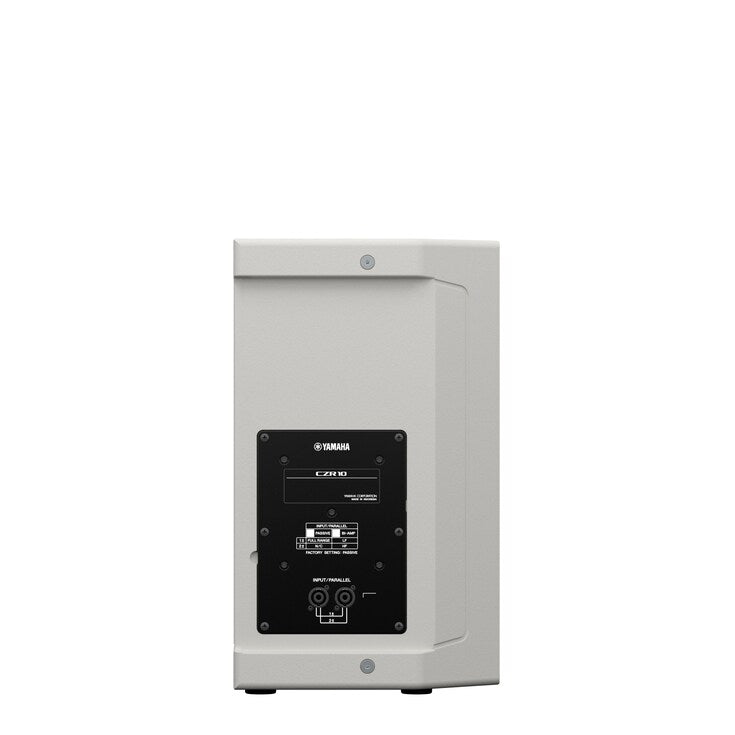

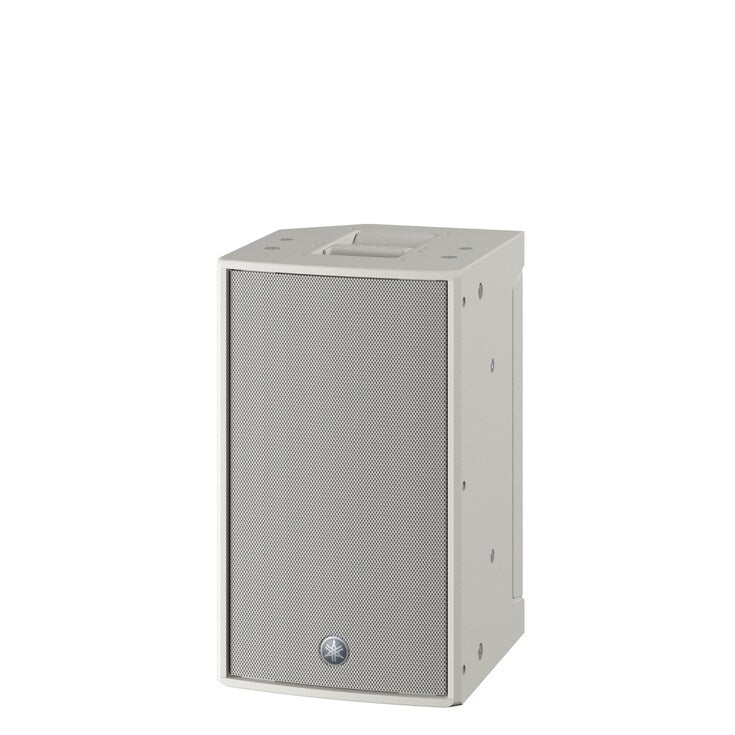

Yamaha CZR10W 10" Passive Loudspeaker - White
Yamaha CZR10W 10" Passive Loudspeaker - White
SKU: SKU: SP-CZR10W-YAMAHA
Regular price
$1,849.00
Regular price
$1,849.00
Sale price
$1,849.00
GST included.
Bulky Freight Item
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Quantity
Low Stock – Call for Availability
Description
Description
The Yamaha CZR10W is a 2-way passive loudspeaker in a durable white finish, designed for live performance and installed sound applications. It combines high power handling with a compact, lightweight and rugged plywood enclosure.
- 2-way loudspeaker with 2" HF and 10" LF
- Yamaha Wide Dispersion CD Waveguide Horn
- 700W (PGM) passive power handling and Bi-amp capable
- Floor monitoring setting
- Plywood cabinet with durable Polyurea coating
- Dual-angle pole socket
- Rotatable horn and U-bracket rigging options
- White finish
Specification
Specification
| Speaker type | 2-way Speaker, Bass-reflex |
|---|---|
| Frequency range (-10dB) | Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz |
| Coverage area | H90° x V60° Rotatable Constant Directivity Horn |
| Floor Monitor Angle | 50° |
| LF | 10" Cone, 3" Voice Coil, Neodymium magnet |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
| Crossover | 2.5 kHz |
| Power rating - NOISE | Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W |
| Power rating - PGM | Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W |
| Power rating - PEAK | Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W |
| Nominal impedance | Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
| Sensitivity | Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL |
| Peak SPL (Calculated) | Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL |
| I/O connectors | SpeakON NL4MP x 2 (Parallel) |
| Handle | Aluminium die-cast, Top x1, Side x1 |
| Pole socket | Φ35 mm x2 (0° or -7°) |
| Rigging | M10 x 8, M8 x 2 |
| Dimensions | 315 mm (W) x 537 mm (H, with rubber feet) x 345 mm (D) |
| Net weight | 14.0 kg (30.9 lbs) |
| Options | Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 |
| Enclosure / Finish / Color | Plywood, Durable Polyurea coating, White |
*1: With recommended DSP processing.
