ADJUSTABLE HEIGHT STAGE

Adjustable Height Portable Stage Systems

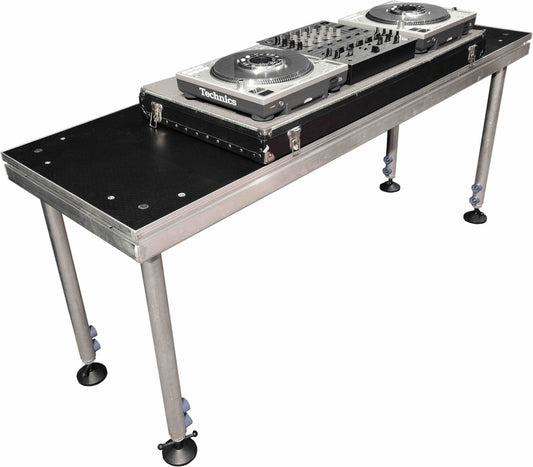

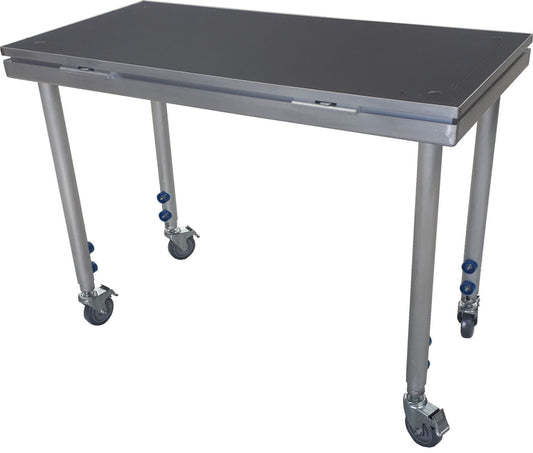

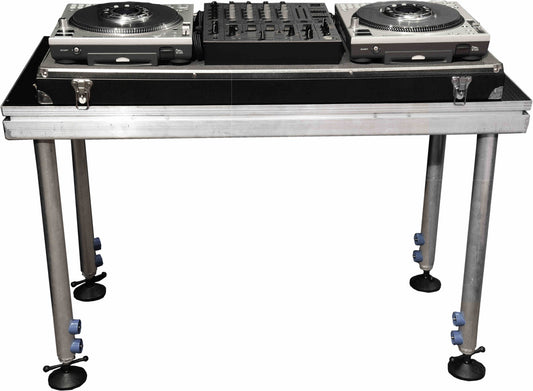

Height adjustable portable stage panels are available in three sizes, 1.2x1.2m, 1x2m and 1.2x2.4m. Each size of stage can be joined with another via a unique built-in 'tongue and groove' platform connector system. The lightweight frame is made from high quality aluminium alloy, 18mm thick slip- resistant laminated plywood and are rated at 1800kg of static distributed load per panel.

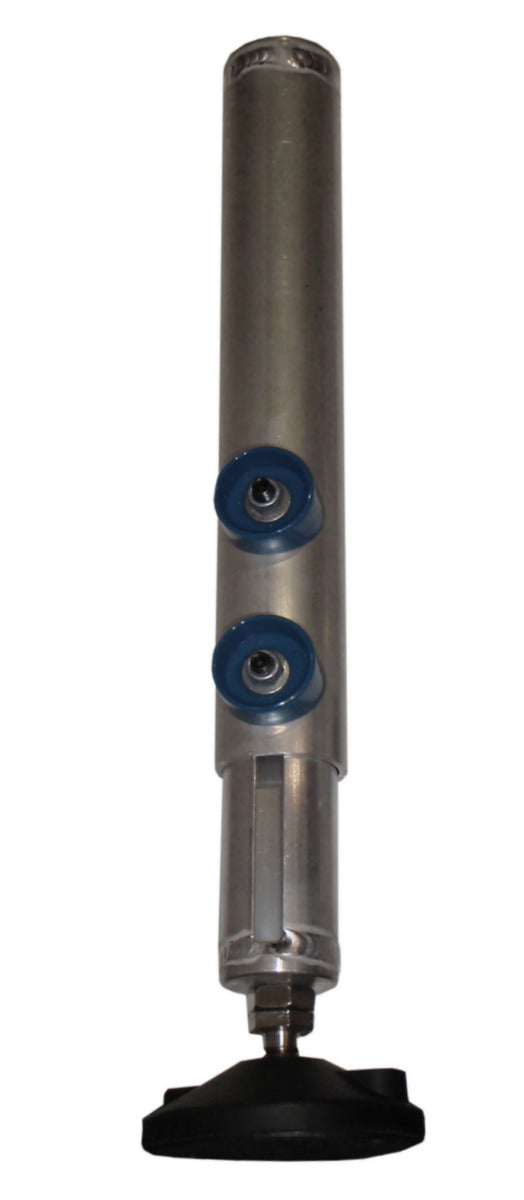

Set up is very easy with the stage legs just slotting into corner clamps under the stage and locked tight with a lever without need for any tools. There is a choice of 4 different height adjustable legs ranging from 300mm to 1400mm in height. Each leg is made of aluminium 50mm tubing and has an integrated ruler which allows all legs to be set up to an exact same height. Fine height adjustment can be made with a flexible foot in situations where floor or ground is uneven.

There is a range of staging system accessories available for the portable stage panels including safety guardrails, stairs & stage accessories and stage skirts to give the set up that professional finish. For fixed-height requirements or larger venue installs, our fixed height stage range offers a solid alternative, and pairing your stage with drape support systems or truss lighting bridges completes a full stage production setup.

22 products
