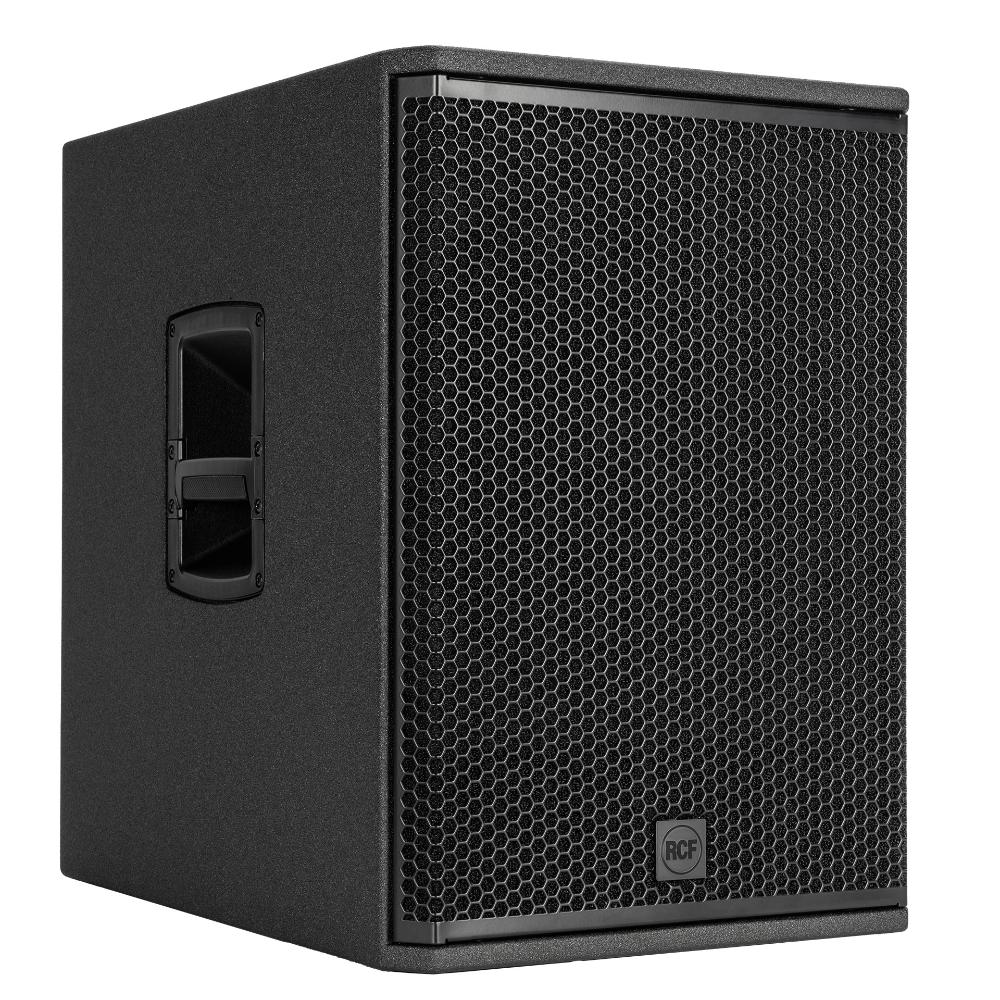

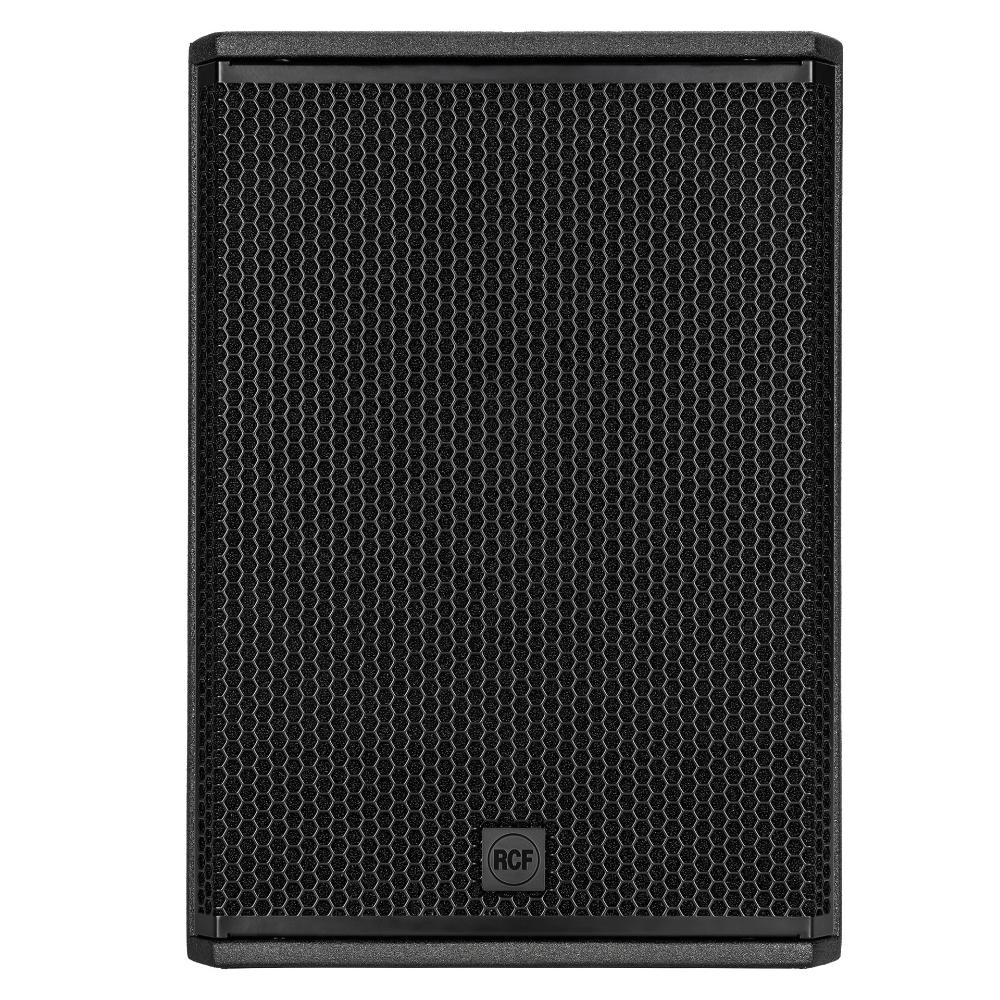

RCF 705-AS MK3 15" 1400 WATT ACTIVE SUBWOOFER

RCF 705-AS MK3 15" 1400 WATT ACTIVE SUBWOOFER

SKU: SUB705MK3

$2,749.00
$3,670.00 $2,749.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

FEATURES
  • 1400 Watt Class-D Amplifier
  • 15” Woofer, bass reflex housing
  • Stereo Crossover
  • Switchable Crossover Frequencies
  • Polarity-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
  • Bass Motion Control excursion management

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.

Specification

SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz

MAX SPL @ 1M: 131 dB

Transducers

WOOFER: 15'', 3.0'' v.c

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

HI-PASS FREQUENCIES: 110 Hz

LOW-PASS FREQUENCIES: 80 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Soft Limiter

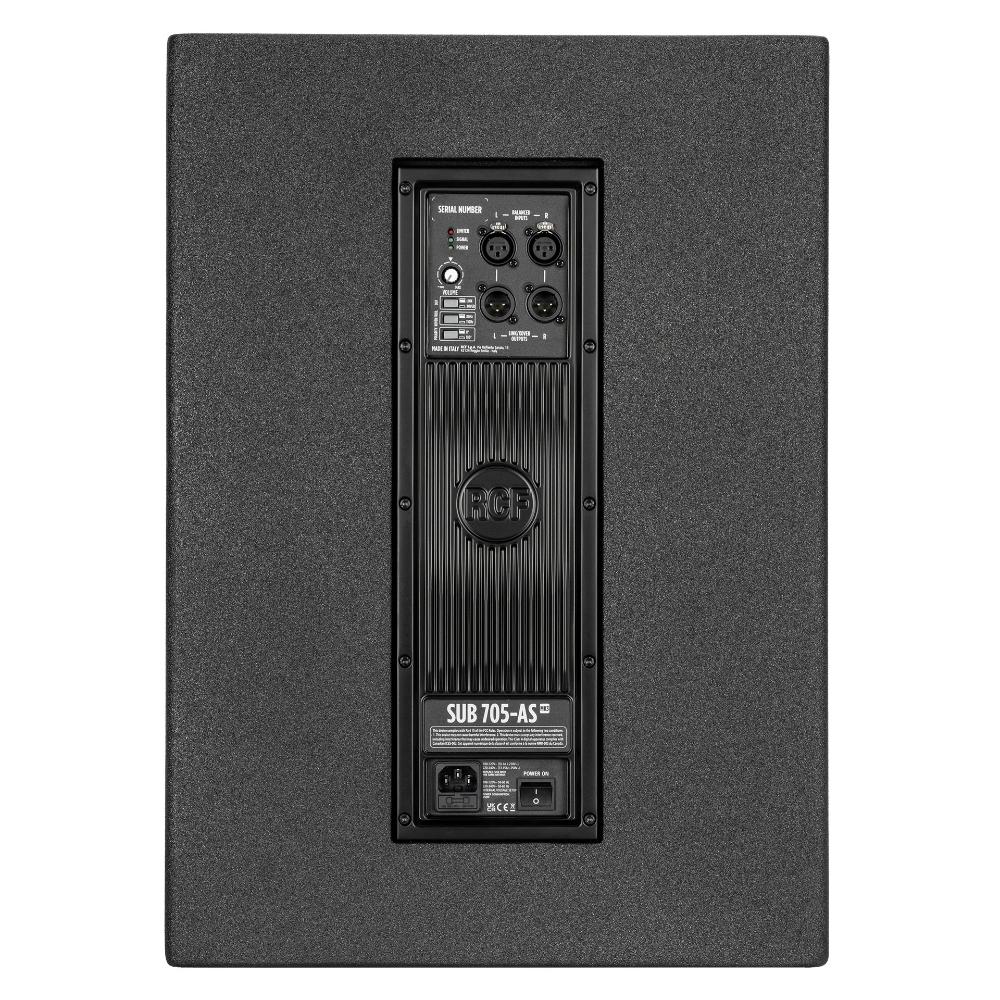

CONTROLS: Volume, EQ, Phase, Xover

Power section

TOTAL POWER: 1400 W Peak, 700 W RMS

LOW FREQUENCIES: 1400 W Peak, 700 W RMS

COOLING: Convection

CONNECTIONS: VDE

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

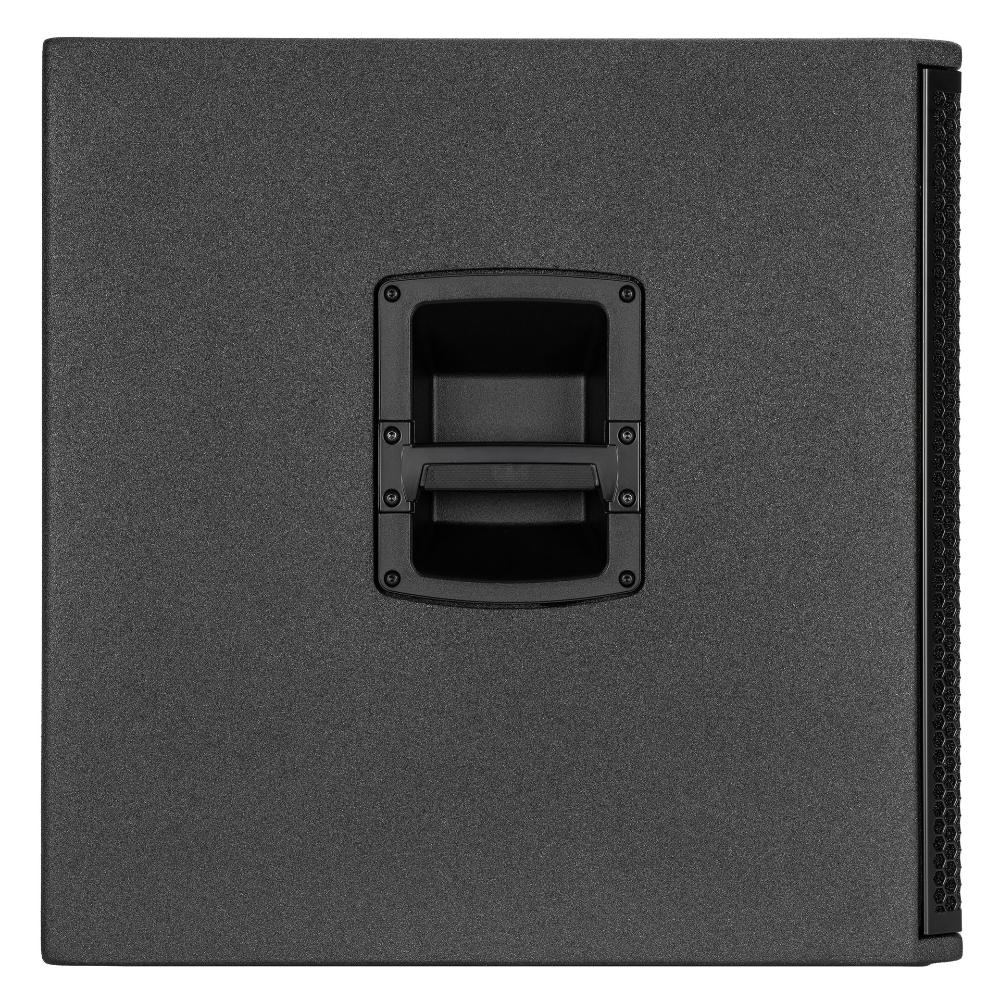

HANDLES: 2 side

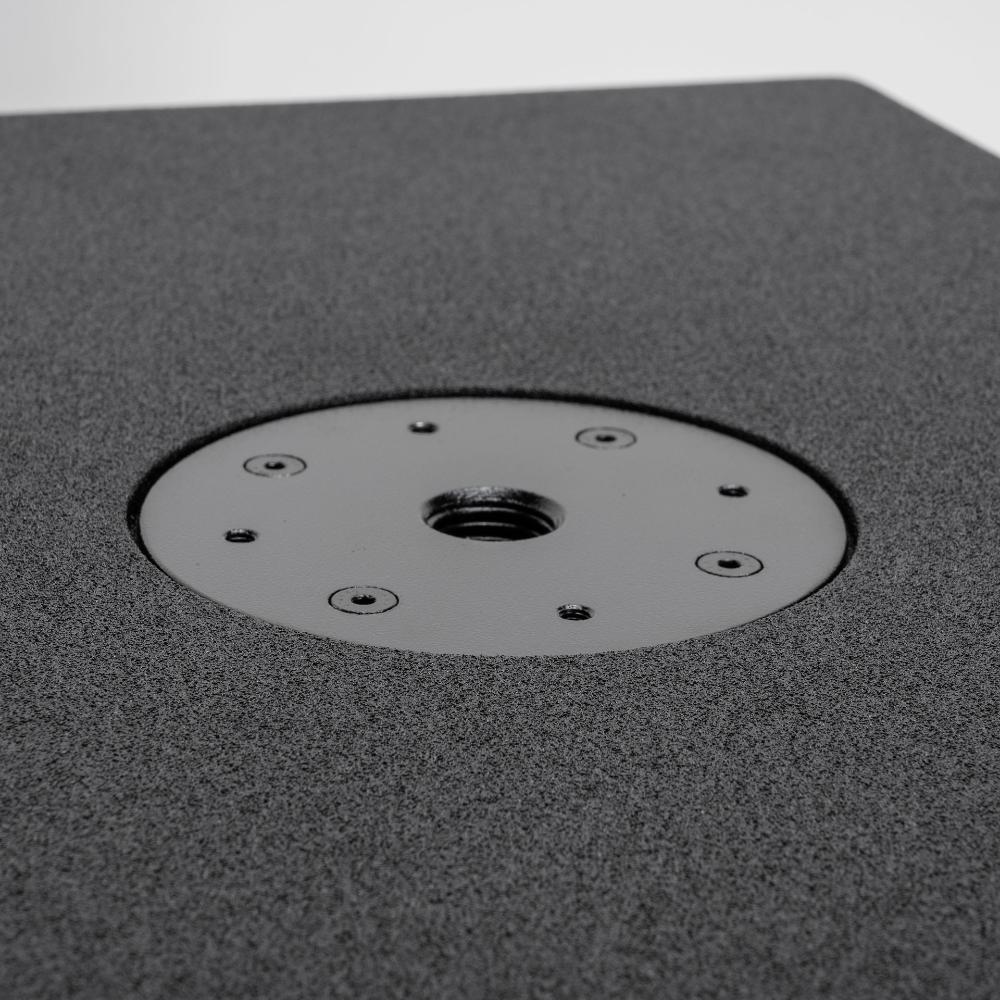

POLE MOUNT/CAP: Yes

COLOR: Black

Size

HEIGHT: 568 mm / 22.36 inches

WIDTH: 430 mm / 16.93 inches

DEPTH: 595 mm / 23.43 inches

WEIGHT: 28.6 kg / 63.05 lbs

Shipping informations

PACKAGE HEIGHT: 605 mm / 23.82 inches

PACKAGE WIDTH: 640 mm / 25.2 inches

PACKAGE DEPTH: 470 mm / 18.5 inches

PACKAGE WEIGHT: 32.4 kg / 71.43 lbs
