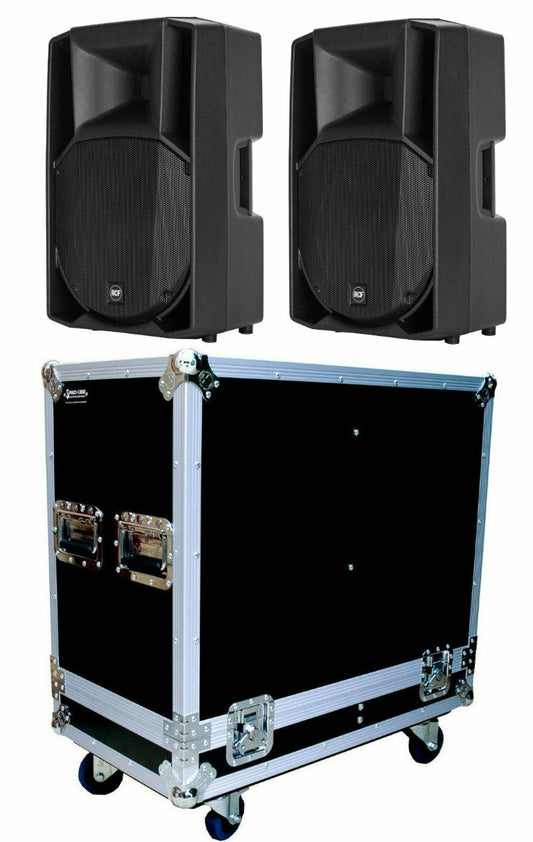

Package includes:

2x RCF ART 735-A MK4 active speakers

1x Case-To-Go Dual speaker case on castors rrp$499

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

132 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
15" Woofer
800 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener.

The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

SUPERIOR COMPRESSION DRIVERS

The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.

The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.

POWERFUL CLASS D AMPLIFIERS

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

BRING ART WITH YOU

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.

SPECIFICATIONS

Acoustical specifications

FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz

MAX SPL @ 1M: 132 dB

HORIZONTAL COVERAGE ANGLE: 90°

VERTICAL COVERAGE ANGLE: 60°

COMPRESSION DRIVER: 1 x 1.4'' neo, 3.0'' v.c

WOOFER: 15'', 3.0'' v.c

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR, Jack

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

MIC. INPUT SENSITIVITY: -32 dBu

CROSSOVER FREQUENCIES: 800 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Soft Limiter

CONTROLS: Volume, Boost, Mic/Line

TOTAL POWER: 1400 W Peak, 700 W RMS

HIGH FREQUENCIES: 400 W Peak, 200 W RMS

LOW FREQUENCIES: 1000 W Peak, 500 W RMS

COOLING: Convection

CONNECTIONS: VDE

CE MARKING: Yes

Physical specifications

CABINET/CASE MATERIAL: PP Composite

HARDWARE: 2 x M10

HANDLES: 1 Top, 2 Side

POLE MOUNT/CAP: Yes

GRILLE: Steel

COLOR: Black

Size

HEIGHT: 708 mm / 27.87 inches

WIDTH: 437 mm / 17.2 inches

DEPTH: 389 mm / 15.31 inches

WEIGHT: 21.4 kg / 47.18 lbs

Shipping informations

PACKAGE HEIGHT: 750 mm / 29.53 inches

PACKAGE WIDTH: 500 mm / 19.69 inches

PACKAGE DEPTH: 440 mm / 17.32 inches

PACKAGE WEIGHT: 24.4 kg / 53.79 lbs

Dual 15" speaker case with wheels

External dimensions: 840mm wide, 500mm deep x 880mm high with wheels fitted (780mm high withgout wheels fitted)

Internal dimension of each speaker compartment (WxDxH): Compartment 1: 436x380x720mm, Compartment 2: 436x380x720mm

Features:

9mm laminated plywood construction
internally lined with 10mm hardfoam
4x handles
4x wheel cups
3.5" wheels

Collection: RCF SPEAKER PACKAGES

Sort by:

2 products

Filter and sort

Filter

2x RCF ART 735-A MK4 700W RMS ACTIVE SPEAKERS AND DUAL FLIGHT CASE

2x RCF ART 735-A MK4 700W RMS ACTIVE SPEAKERS AND DUAL FLIGHT CASE

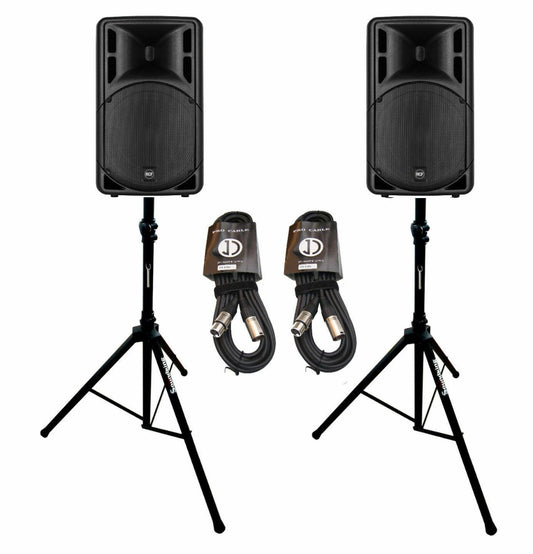

RCF ART315A MK4 15" active speaker package with stands and cable
