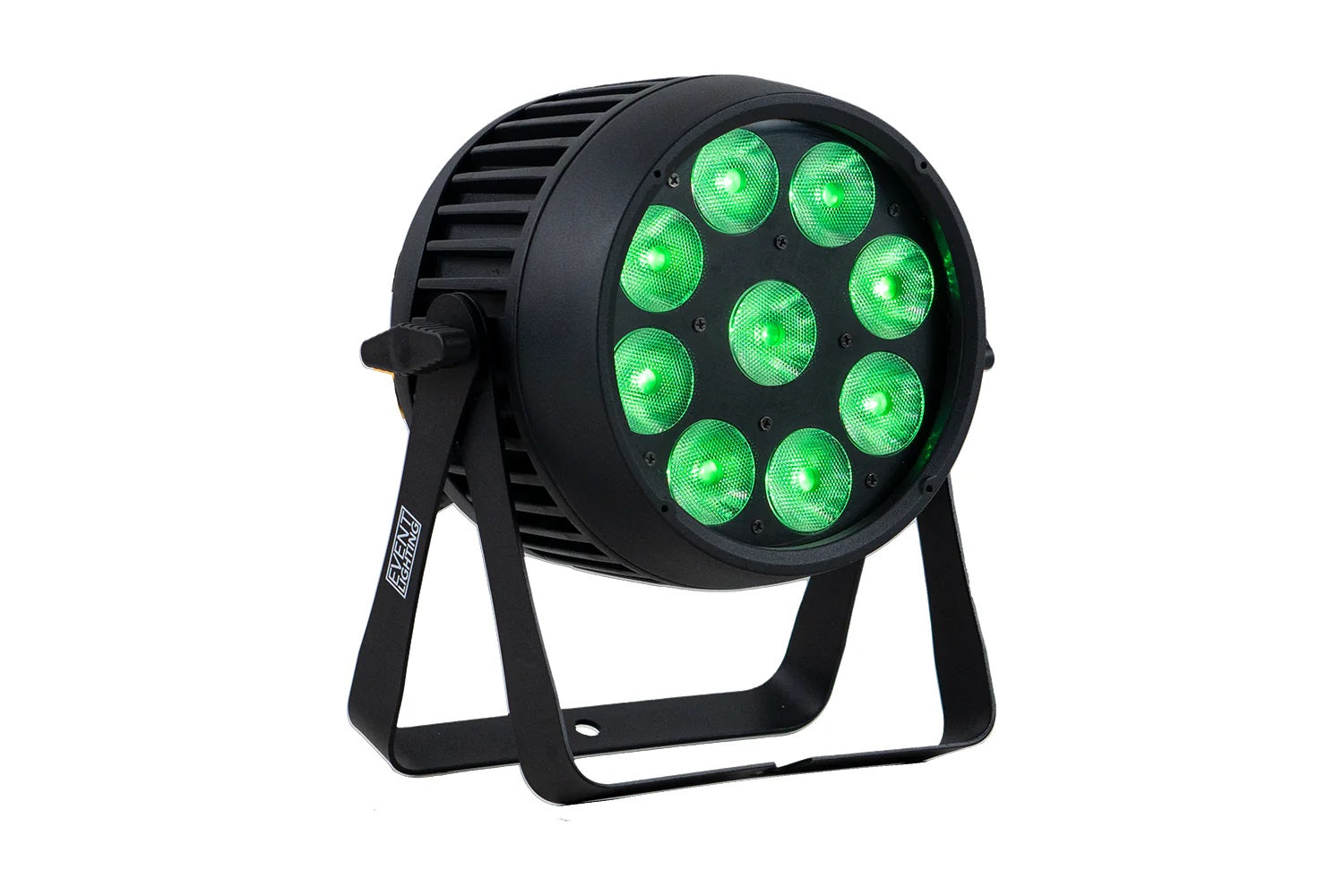

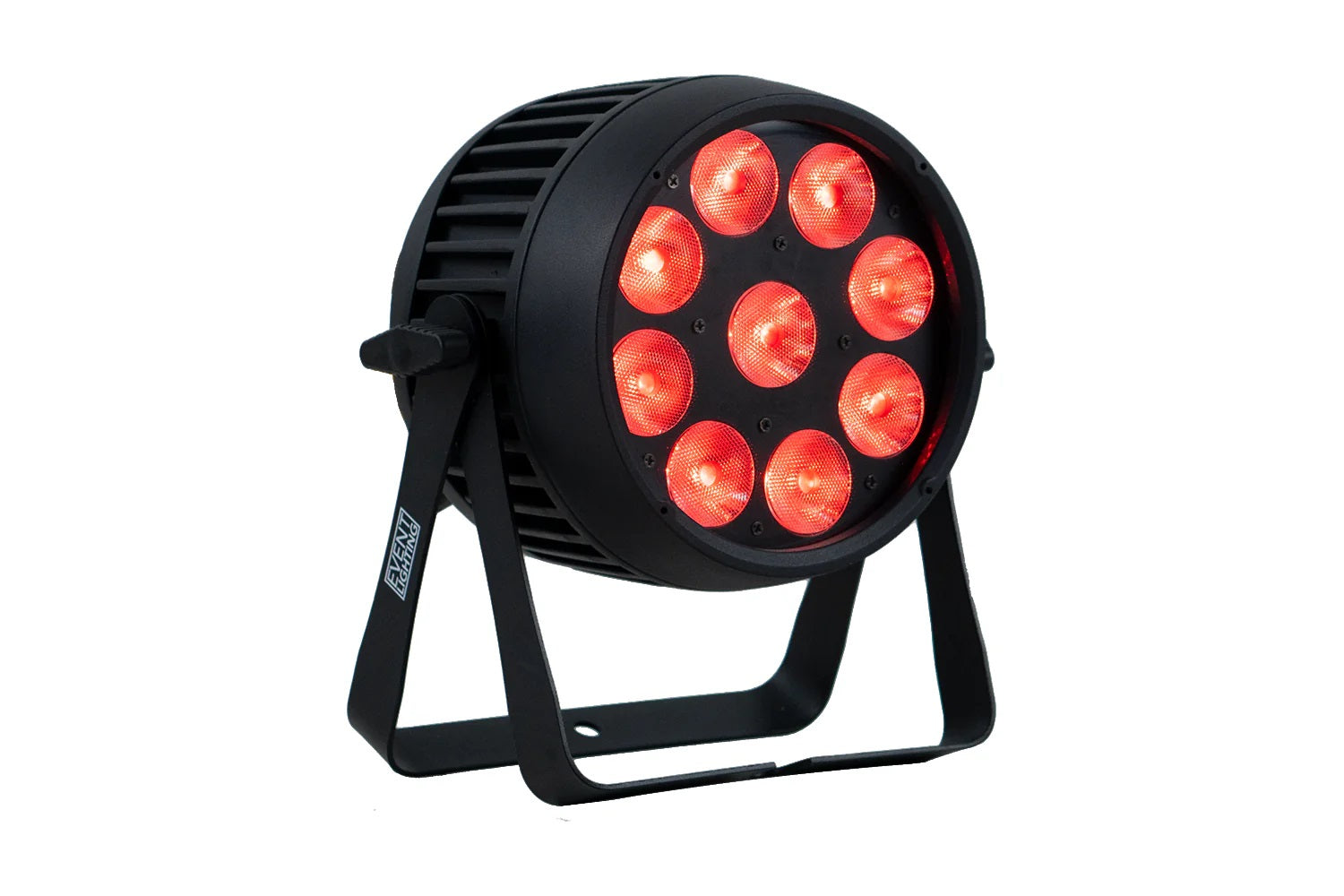

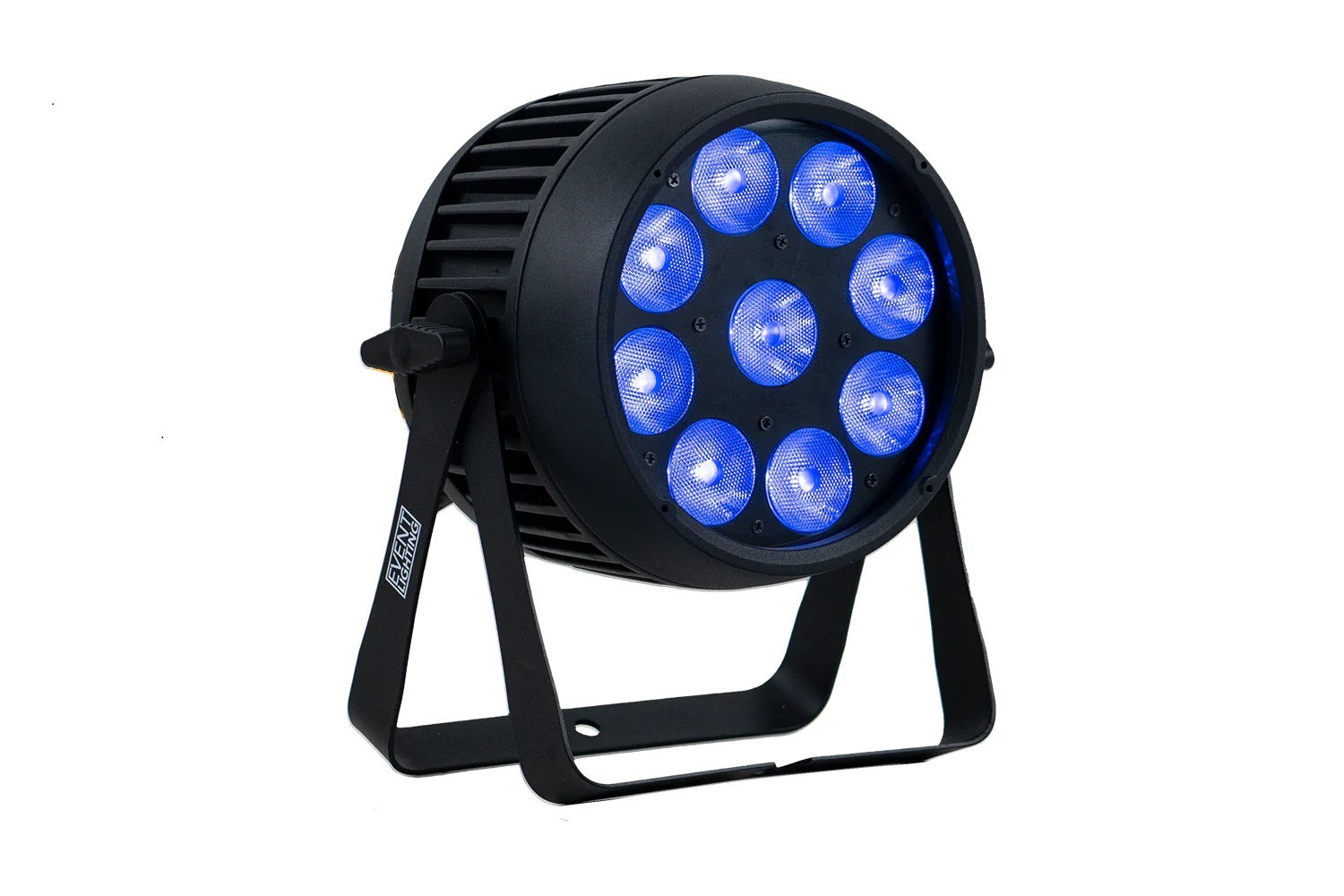

PAR9X15O - Outdoor Pro Par with 9 x 15W RGBW LEDs

The PAR9X15O is a mid-sized outdoor rated fixture, featuring 9 x 15W RGBW LEDs in a die cast aluminium housing, a 25° beam angle, and the ability to install wireless DMX.

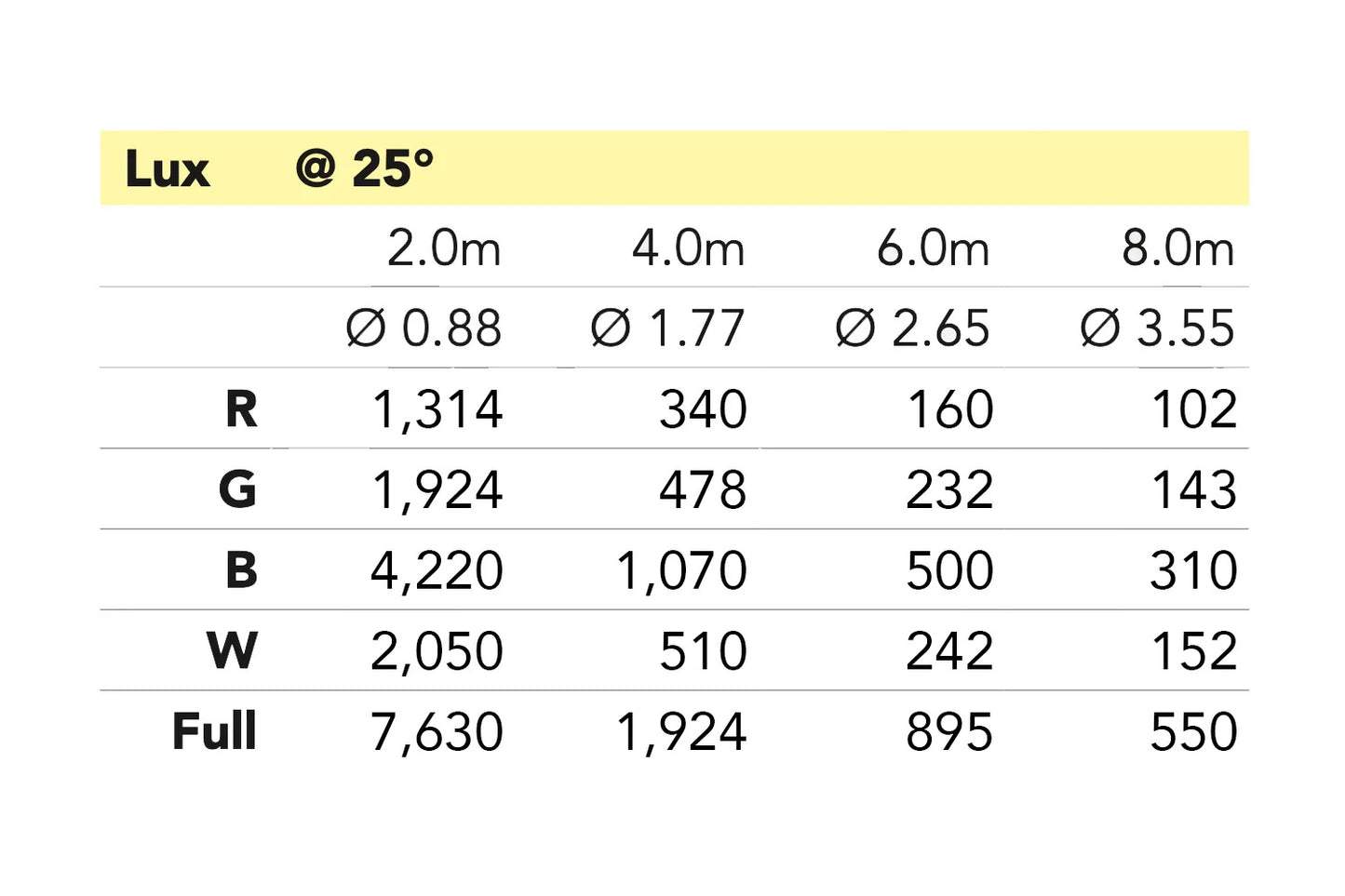

Photometrics

• Light Source: 9 x 15W RGBW LEDs
• Beam Angle: 25°
• Output: 22,500 lux on @ 2m RGBW full on
• PWM: 20,000Hz
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%
• Strobe: 1~20Hz

Power

• Input Voltages: 100V~240V AC,50/60Hz, 150W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, manual, auto, sound active, master/slave (optional: Wireless DMX)
• Display: LCD full colour control panel
• Control Protocol: DMX512 (optional: Wireless DMX)
• DMX Channels: 4 / 6 / 8

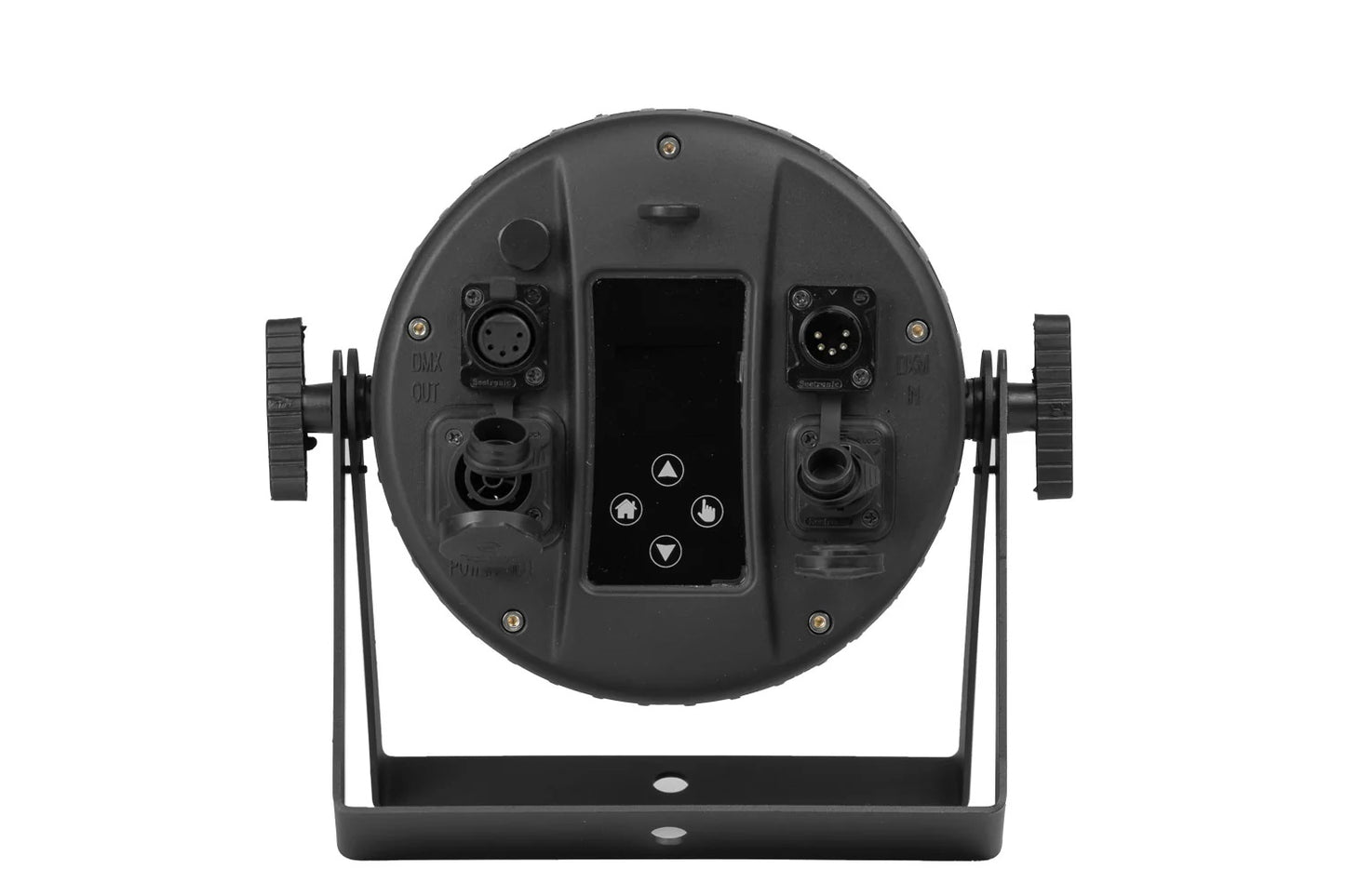

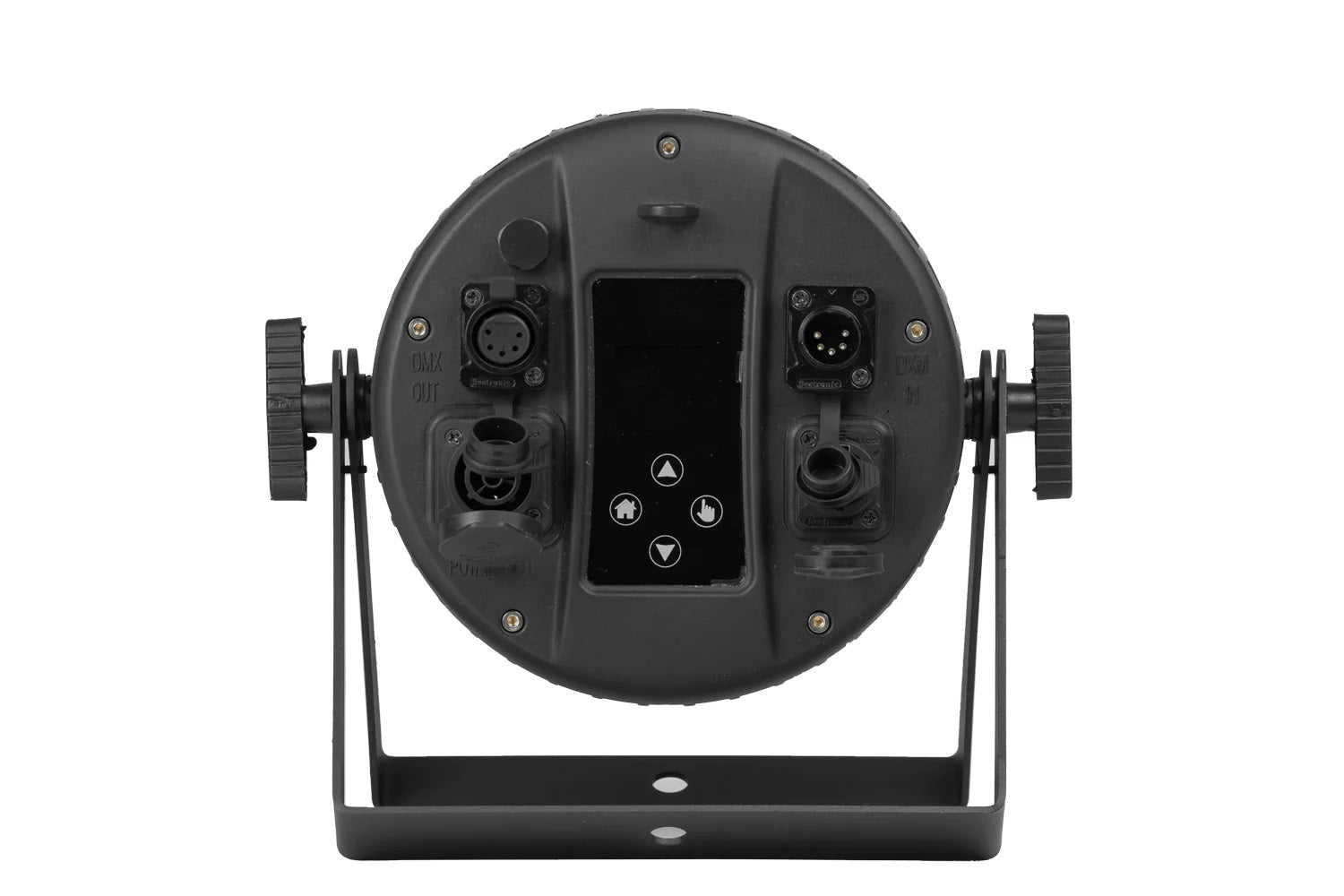

• DMX Interface: Seetronic® 5 Pin Outdoor DMX in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• IP Rating: IP65
• Cooling: Fanless Cooling

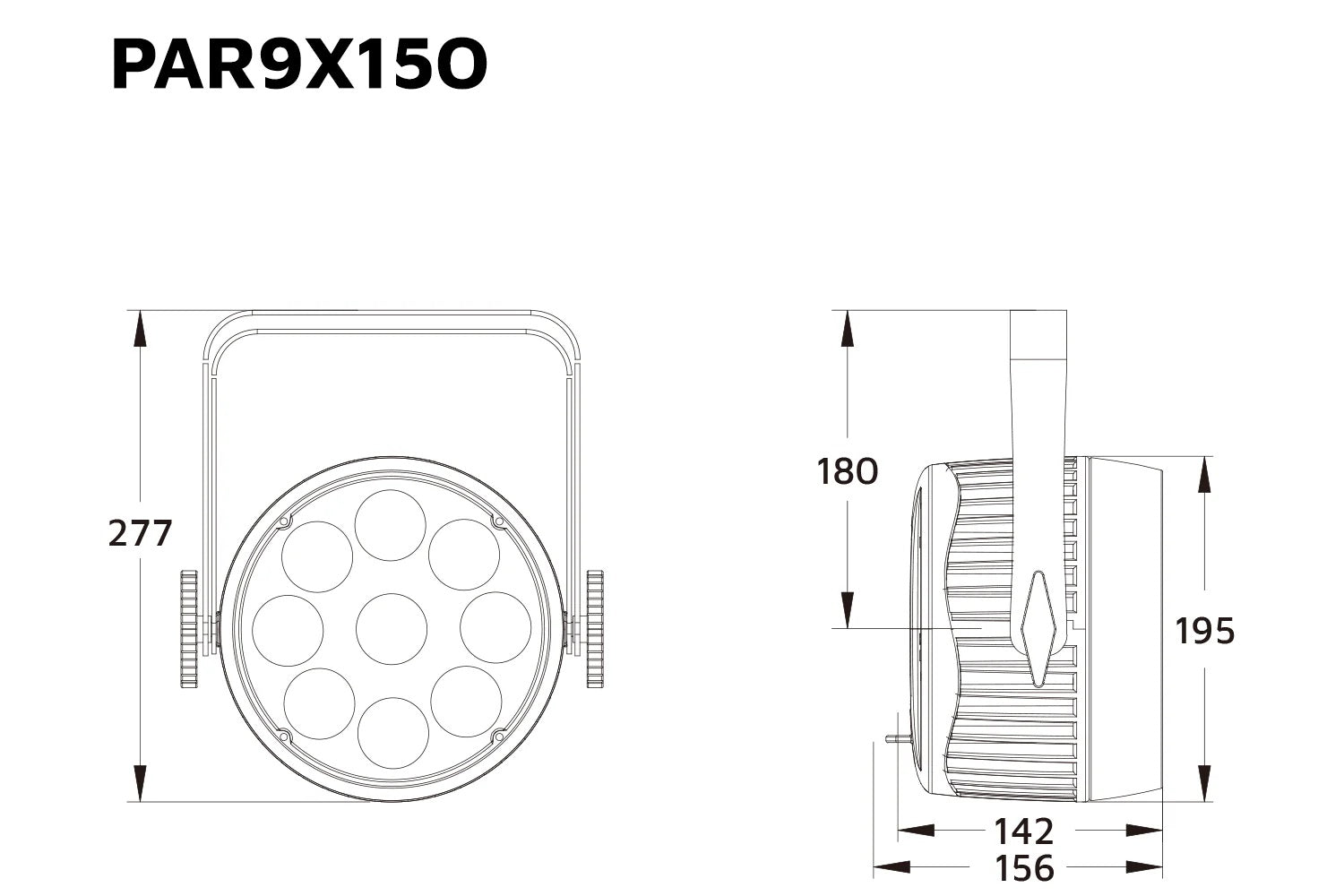

• Dimension: 195 x 234 x 144mm
• Net Weight: 6.5kg

MISC

• Accessories Included: 1M Seetronic® Outdoor Powercon,  1M Seetronic® Outdoor DMX Cable
• Road case: PAR9CASEWC Fits 6 Units.

IMPORTANT:  Only use the provided Outdoor DMX cable in the device’s DMX out port. The use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.

Product Specification Sheet Download

Download the User Manual

Spare Parts

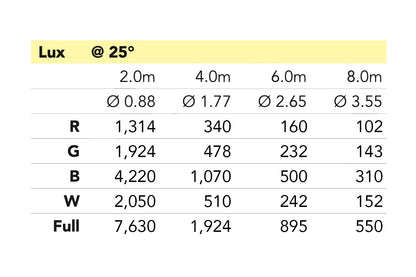

• Photometrics
  Light Source 9x 15 W RGBW 4-in-1 LEDs
  Beam Angle 25°
  Output 22,500 lux @ 2 m full on
  PWM 20,000 Hz
  LED Lifespan 50,000 hours
  Effects
  Dimming 0~100%, 3 dimming curves
  Strobe 0.5~20 Hz
  Power
  Input Voltage 100~240 V AC, 50/60 Hz
  Power Consumption 150 W
  Connection Seetronic® outdoor TRUE1 in/out
  Control
  Operation Modes DMX, manual, auto, sound active, master/slave
  RDM Change DMX Address
  Control Protocol DMX512, RDM, (optional: Wireless DMX)
  DMX Channels 4/6/8
  Control Interface Seetronic® 3-pin outdoor DMX in/out
  Display Full colour LCD touch screen
  Housing
  Housing Materials Die-cast aluminium
  Housing Finish Matte black
  Cooling Fanless cooling with temperature protection
  IP Rating IP65
  Net Weight 6.5 kg
  Accessories
  Included 1x 1 m Seetronic® outdoor powerkon extension cable
  1x 1 m Seetronic® outdoor DMX extension cable
  Optional Road Case: PAR9CASE
  Barn Door: PAR9BD
