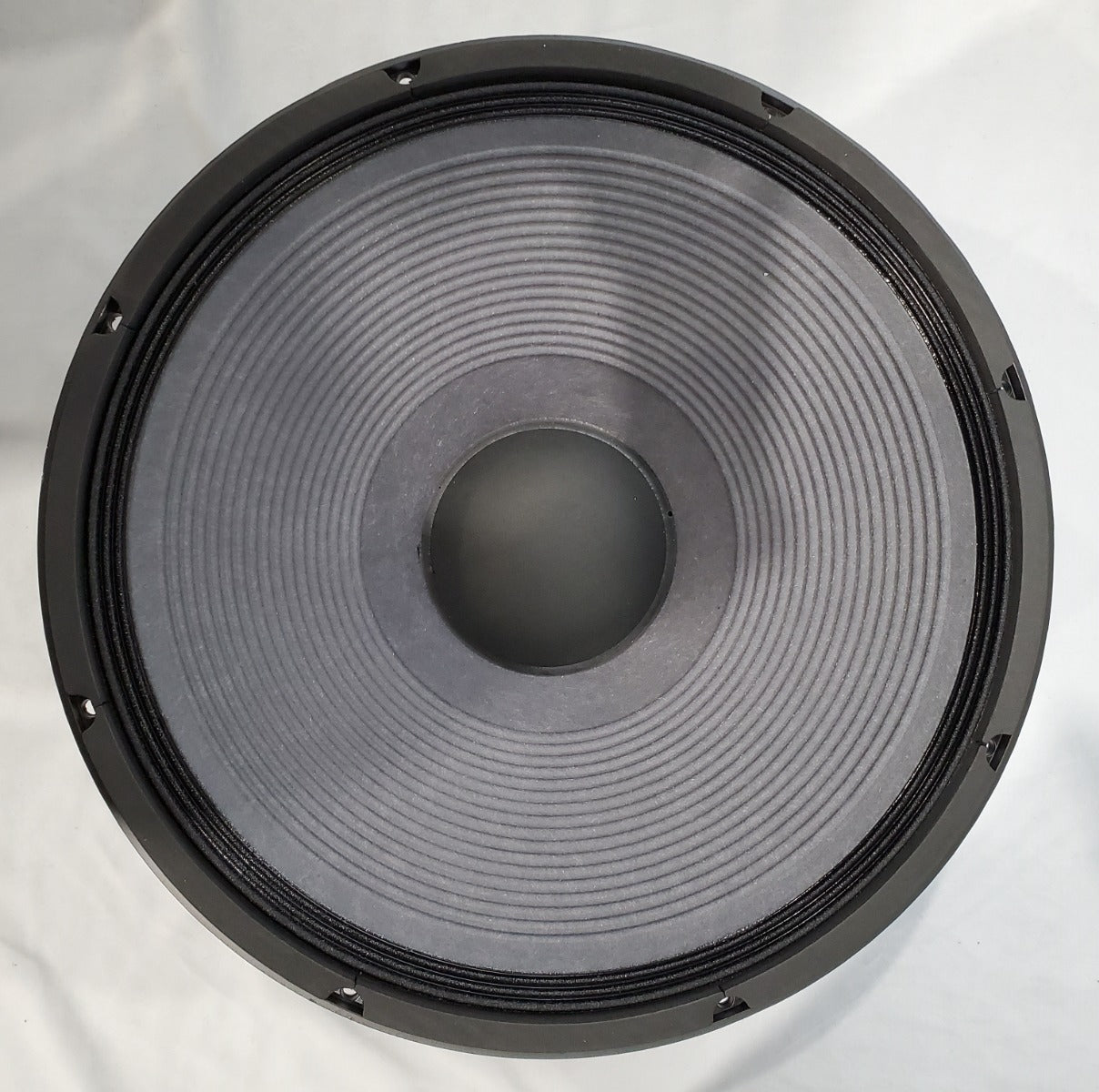

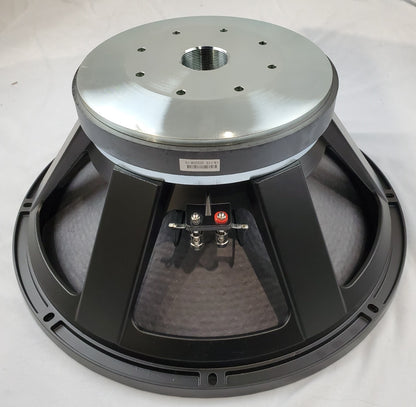

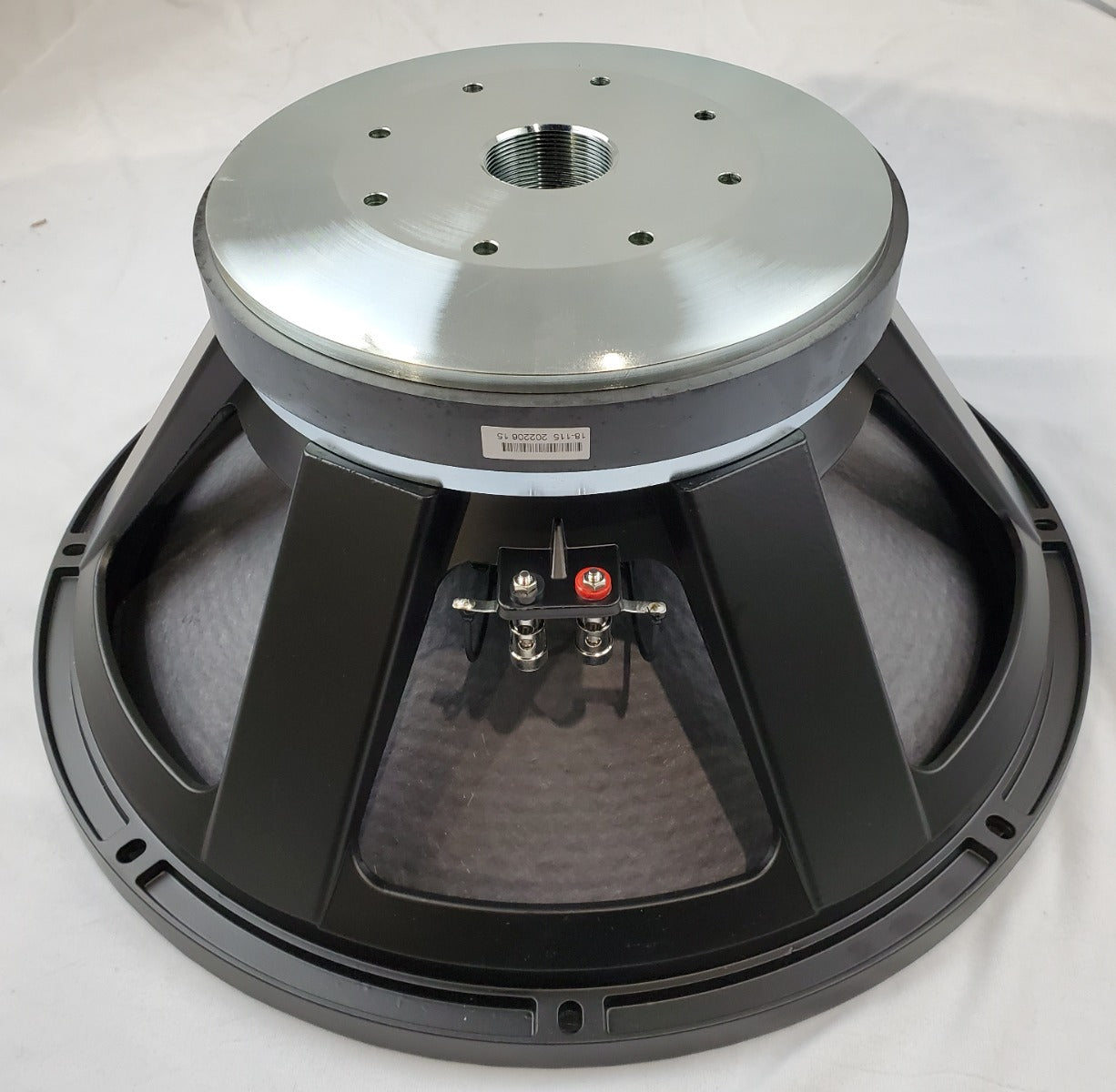

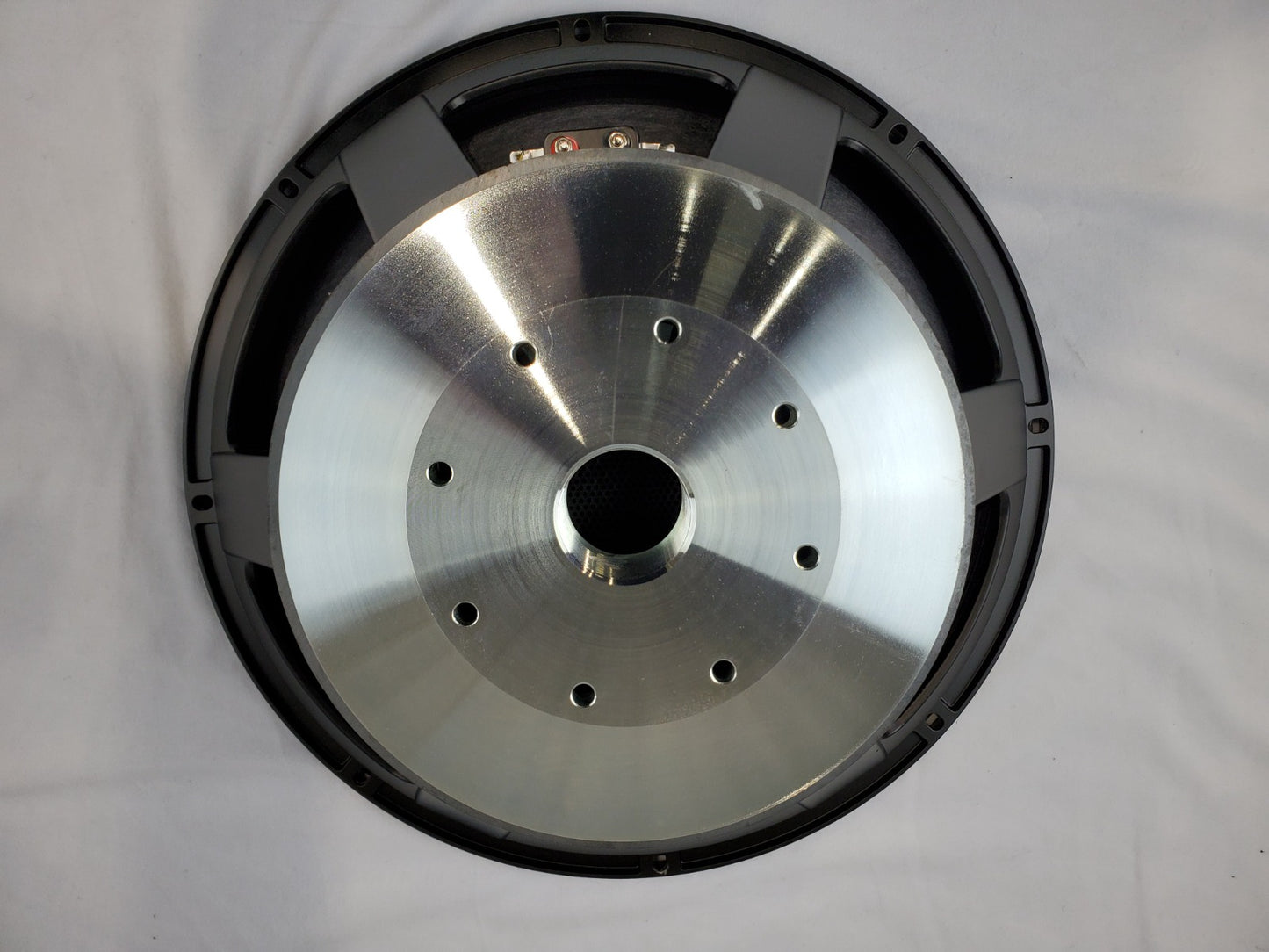

Bob Audio BS1000 18" 800W RMS driver / speaker CAST FRAME
Bob Audio BS1000 18" 800W RMS driver / speaker CAST FRAME
SKU: SKU: SB18-2/BS1000
Regular price
$349.00
Regular price
$399.00
Sale price
$349.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low Stock – Call for Availability
Description
Description
Suitable for bass application.
Specifications:
External Frame Diameter 463mm
Screw Hole Spacing 443mm C/C (Center to Center)
Mounting Hole Cutout 423mm
| Nominal Diameter | 460/18 | mm/inch | ||
| Retd Impedance | 8 | ohms | ||
| Power Capacity | 800 | watts | ||
| Sensitivity IW/IM | 99 (+/- 2) | dB | ||
| Frequency Range | 36.5-1500 | Hz | ||
| Voice Coil Diameter | 115/4.6 | mm/inch | ||
| Magnetic Assembly Weight | 4.3 | kg | ||
| Magnet Diameter | 255 x 140 x 50 | mm/inch | ||
| Product Net Weight | 15.2 | kg | ||
| Resonance Frequency | Fs | 36.5 | Hz | |
| DC resistance | Re | 5 | ohms | |
| Mechanical Factor | Qms | 6.37 | ||
| Electrical Factor | Qes | 0.23 | ||
| Total Factor | Qts | 0.23 | ||
| BL Factor | BL | 28.4 | ||
| Vas | 269.6 | L | ||
| Rp | 52.3 | ohm | ||
| Lp | 132.1 | mH | ||
| Cp | 231.4 | LF | ||
| Le | 2.6 | mH | ||
| MmS | 163.8 | gr | ||
| Xmax | (+/-) 12 | mm | ||
