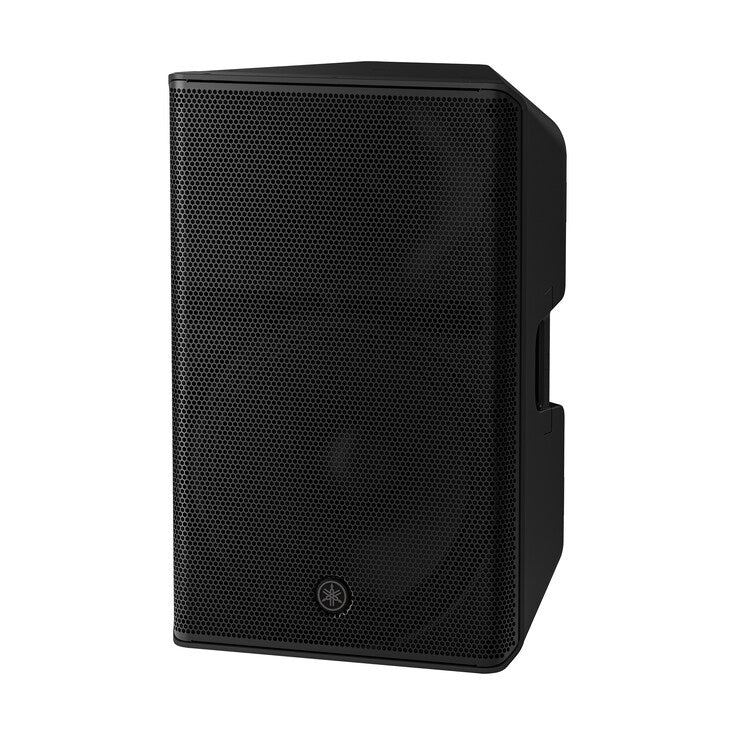

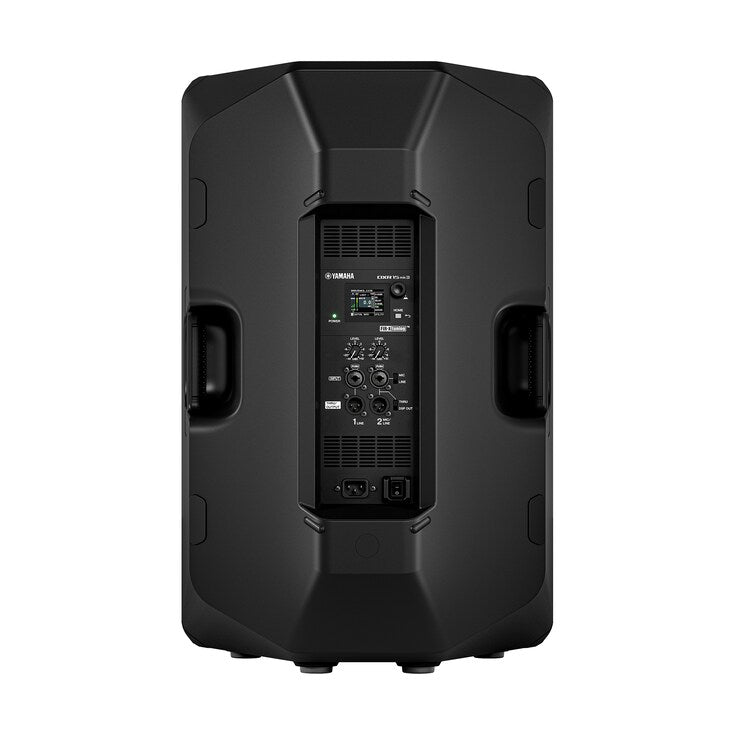

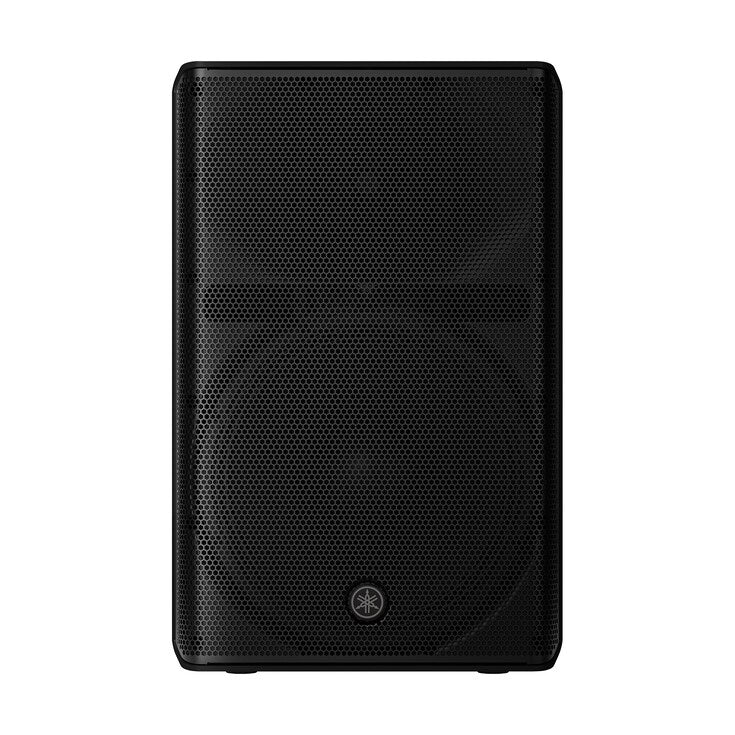

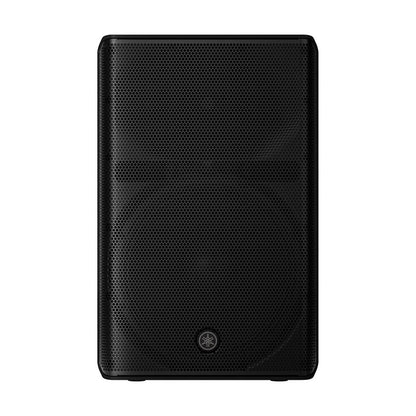

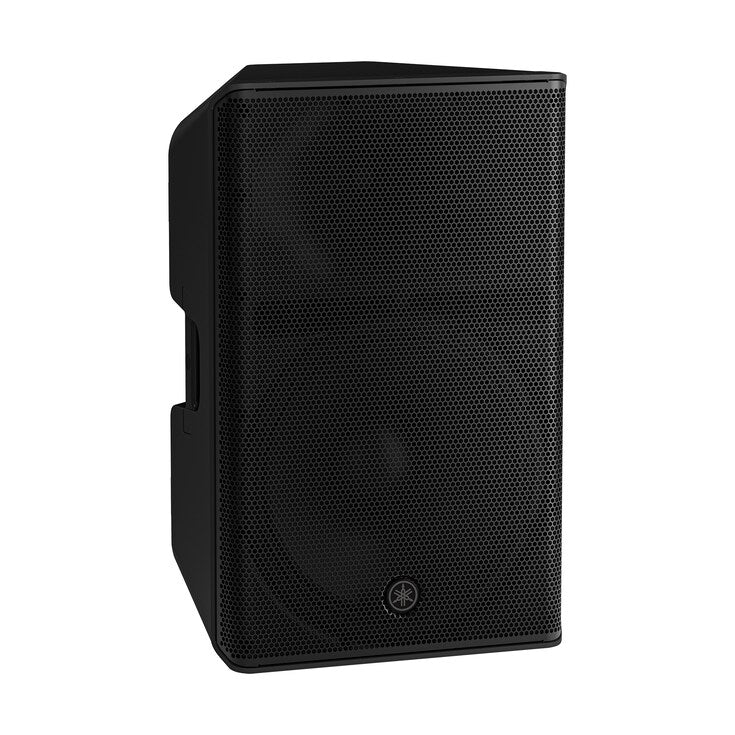

Yamaha DXR15 MK3 15" Powered Loudspeaker
Yamaha DXR15 MK3 15" Powered Loudspeaker
SKU: SKU: SP-DXR15MK3-YAMAHA
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Low Stock – Call for Availability
Description
Description
The DXR15 mk3 is a 2-way, bi-amped, powered loudspeaker and the largest model in Yamaha’s DXR mk3 series. It combines a 15-inch LF driver and 1.75-inch HF compression driver with a newly developed 2000W Class-D amplifier, advanced DSP and flexible connectivity for professional sound reinforcement.
The DXR mk3 platform incorporates FIR-X™ tuning, Drive Motion Calibration™, application-specific DSP modes including FOH/MAIN and MONITOR with AUTO V/H POSITION, intelligent feedback suppression, Bluetooth® audio streaming, and remote control from iOS or Android devices using Yamaha’s D-Remote app.
The enclosure is designed for portable and installed applications, providing flexible positioning, pole mounting and rigging options while maintaining Yamaha’s focus on high output, clarity and reliability.
Specification
Specification
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
|---|---|
| Frequency range (-10dB) | 49 Hz - 20 kHz |
| Coverage area | H90° x V60° |
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) |
| Maximum Output Level | 135 dB SPL (Measured peak, IEC noise@1m) |
| LF | Diameter: 15" cone, Voice Coil: 2.5" |
| HF | Diaphragm: 1.75", Type: 1" throat compression driver |
| Amplifier | Class-D; 2000 W peak (LF 1700 W, HF 300 W); 1000 W RMS (LF 850 W, HF 150 W) |
| Signal processing | 32-bit / 96 kHz; FIR-X tuning™; Drive Motion Calibration™; intelligent feedback suppressor; application-specific DSP modes |
| Analog input | 2 x Combo XLR/TRS |
| Analog output | OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Remote control | D-Remote (iOS/Android app) |
| Cabinet material | Plastic (PP) |
| Finish | Black |
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Dimensions | 445 mm (W) x 700 mm (H) x 445 mm (D) |
| Net weight | 22.8 kg (50.3 lbs) |
