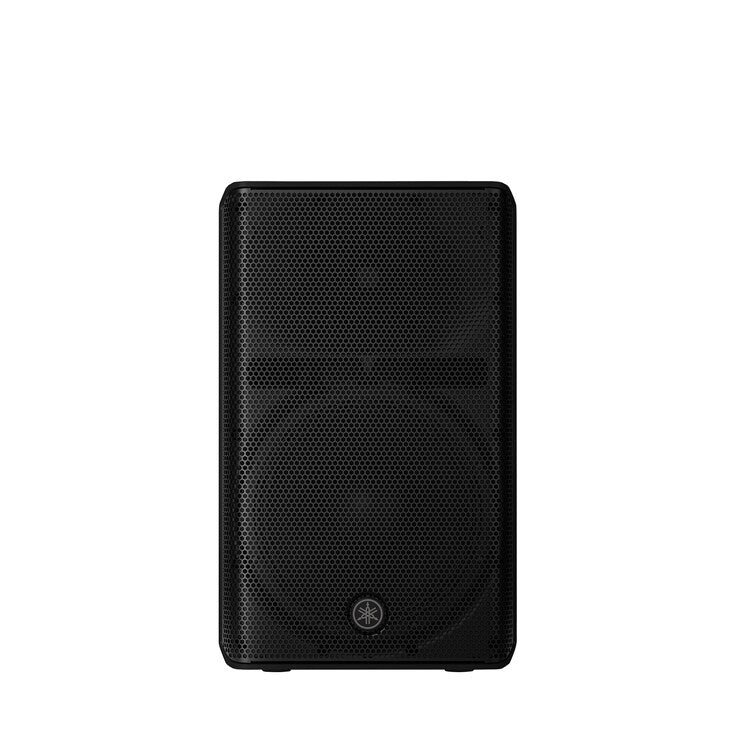

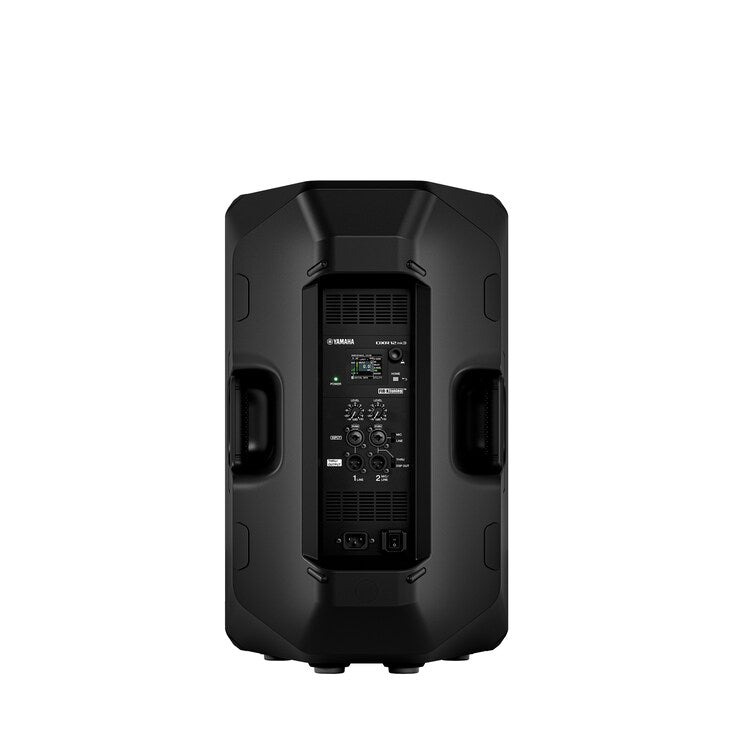

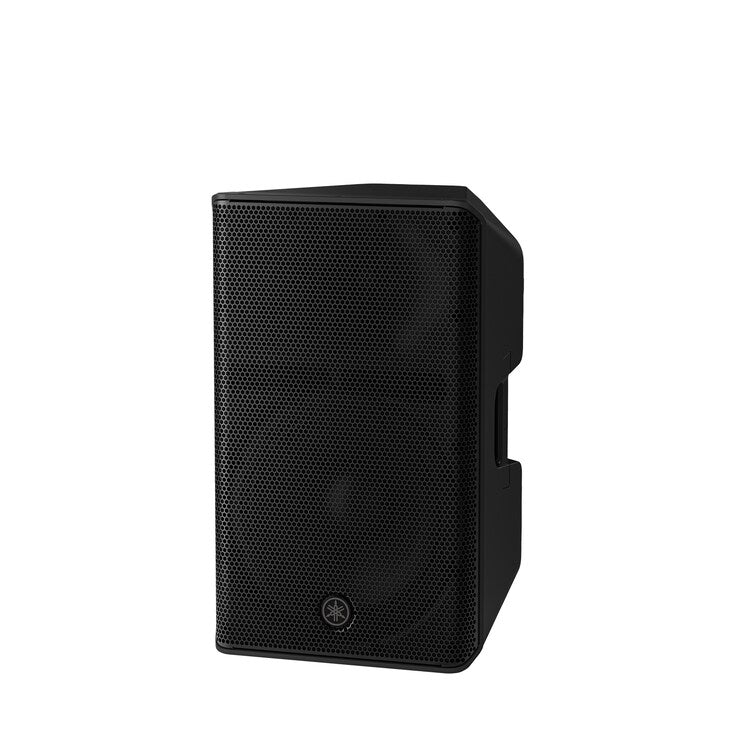

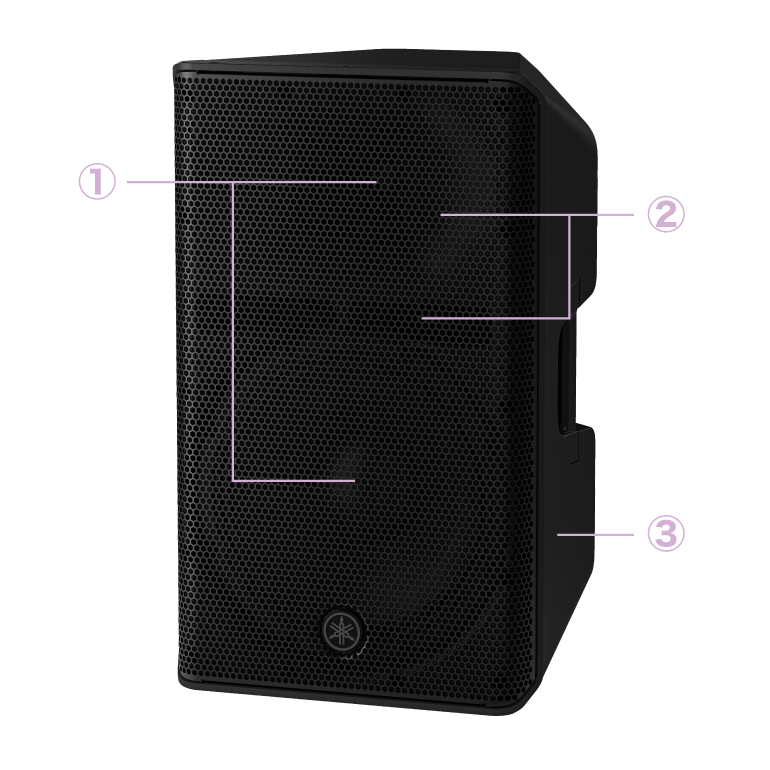

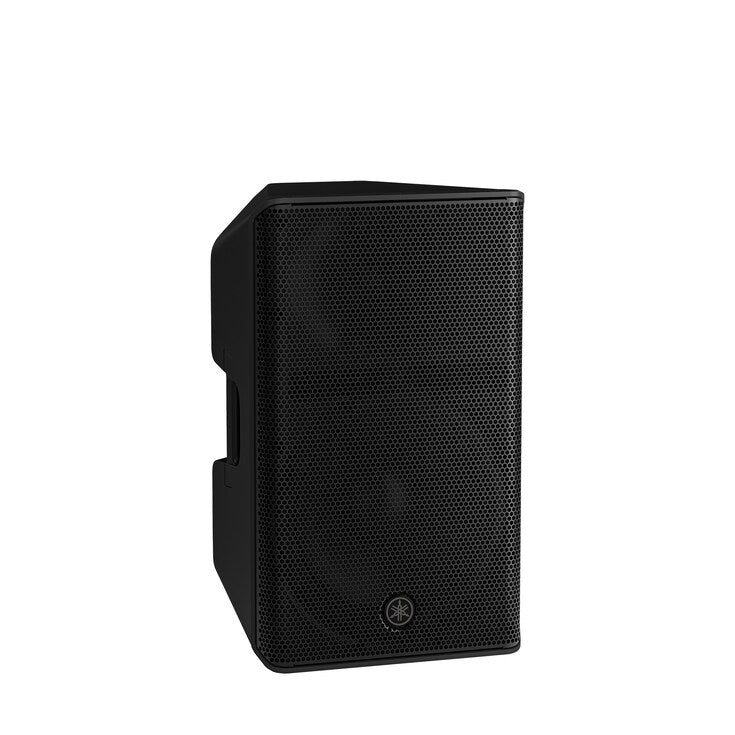

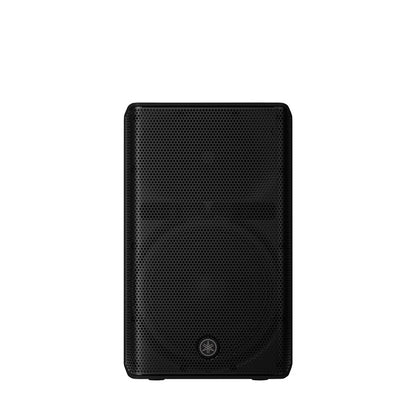

Yamaha DXR12 MK3 12" Powered Loudspeaker
Yamaha DXR12 MK3 12" Powered Loudspeaker
SKU: SKU: SP-DXR12MK3-YAMAHA
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Low Stock – Call for Availability
Description
Description
The DXR12 mk3 is a 2-way, bi-amped, powered loudspeaker equipped with a 12-inch LF driver, 1.75-inch HF compression driver and a newly developed 2000W Class-D amplifier. Yamaha’s DXR mk3 series combines high output with advanced DSP, flexible I/O and a durable, functional enclosure design for a wide range of professional sound reinforcement applications.
The loudspeaker incorporates FIR-X™ tuning, Drive Motion Calibration™, application-specific DSP modes including FOH/MAIN and MONITOR with AUTO V/H POSITION, intelligent feedback suppression, Bluetooth® audio streaming, and remote control from iOS or Android devices using Yamaha’s D-Remote app.
The enclosure provides flexible positioning and installation options including dual-angle pole sockets and rigging points, with optional accessories available for installed and portable use.
Specification
Specification
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
|---|---|
| Frequency range (-10dB) | 52 Hz - 20 kHz |
| Coverage area | H90° x V60° |
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) |
| Maximum Output Level | 134 dB SPL (Measured peak, IEC noise@1m) |
| LF | Diameter: 12" cone, Voice Coil: 2.5" |
| HF | Diaphragm: 1.75", Type: 1" throat compression driver |
| Amplifier | Class-D; 2000 W peak (LF 1700 W, HF 300 W); 1000 W RMS (LF 850 W, HF 150 W) |
| Signal processing | 32-bit / 96 kHz; FIR-X tuning™; Drive Motion Calibration™; intelligent feedback suppressor; application-specific DSP modes |

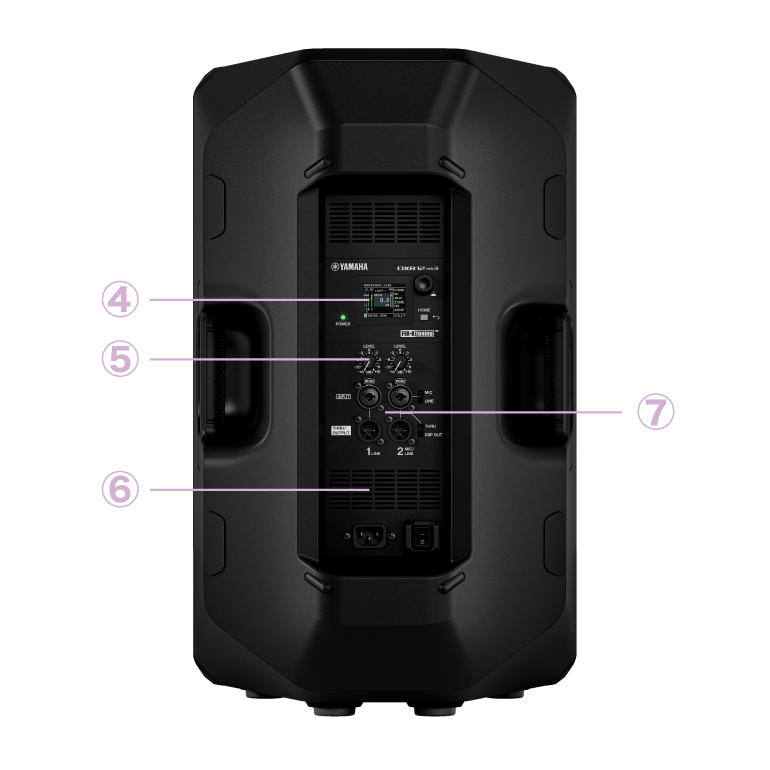

| Analog input | 2 x Combo XLR/TRS |
| Analog output | OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Remote control | D-Remote (iOS/Android app) |
| Cabinet material | Plastic (PP) |
| Finish | Black |
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Dimensions | 376 mm (W) x 601 mm (H) x 376 mm (D) |
| Net weight | 18.4 kg (40.6 lbs) |
