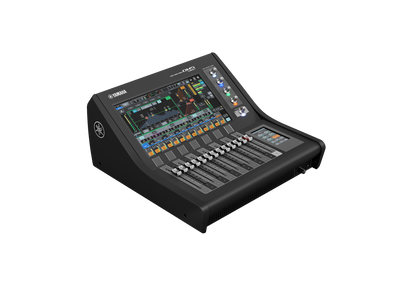

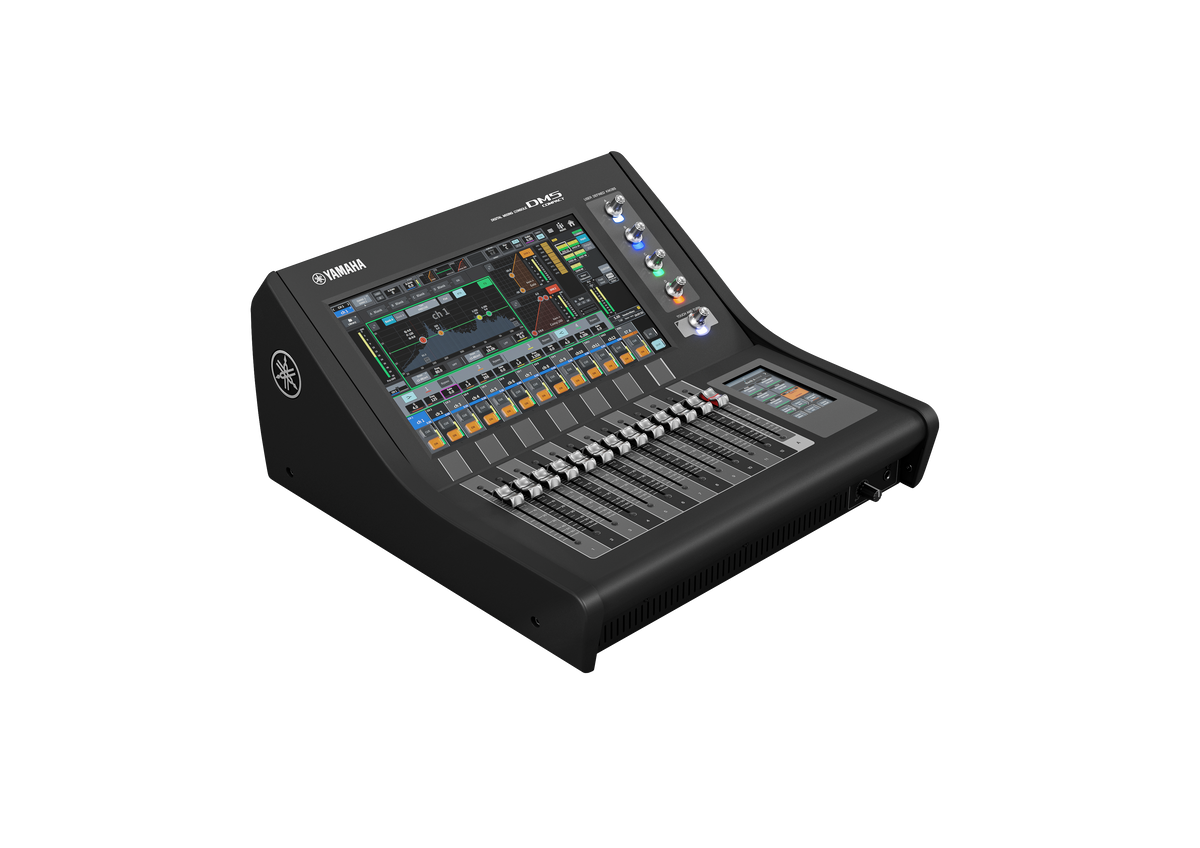

Yamaha DM5 Compact Digital Mixing Console

The Yamaha DM5 Compact is a Dante-equipped professional digital mixing console that delivers DM5 Series processing and workflow in a compact, rack-mountable form factor suited to space-conscious live sound, corporate, house of worship, theatre and broadcast applications.

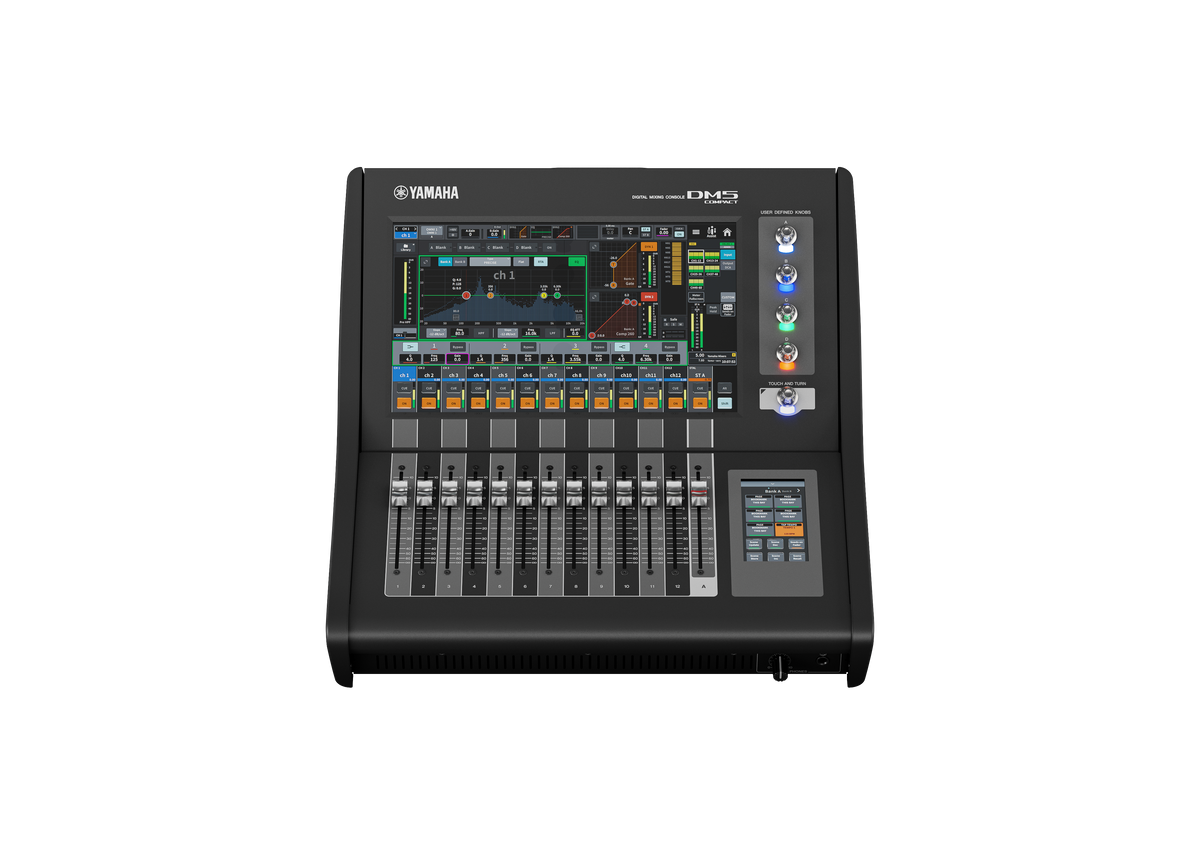

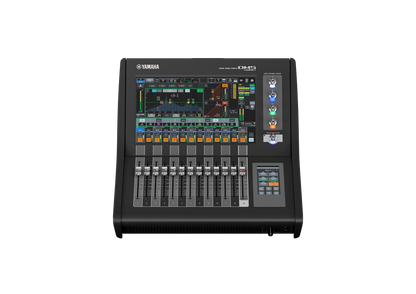

The DM5 Compact features a 13.3-inch multi-touch main screen with glass keys, a 4.3-inch multi-touch screen and 13 faders. It provides 16 analogue inputs, 8 analogue outputs and processing for 60 mono input channels.

Both DM5 Series models support up to 64 channels in and out of Dante networking at 96 kHz, 24 Mix buses, 12 Matrix buses, 2 Stereo buses, 12 DCAs and 18 channels of USB audio I/O. A PY Series card slot supports optional processing and I/O expansion.

Channel processing includes four EQ types with real-time analyser and an extensive dynamics library. A 16-slot onboard effects rack provides 43 effects, including eight delay types and reverbs. Yamaha Assist functions support setup tasks, while DM Editor, DM StageMix, MonitorMix and ProVisionaire Control Plus provide compatible software control workflows.

Technical Specifications

• Input mixing channels: 60 mono
• Buses: 24 Mix + 12 Matrix + 2 Stereo
• DCAs: 12
• Display: 13.3" multi-touch screen x 1, 4.3" multi-touch screen x 1
• Faders: 13 (12 + 1)

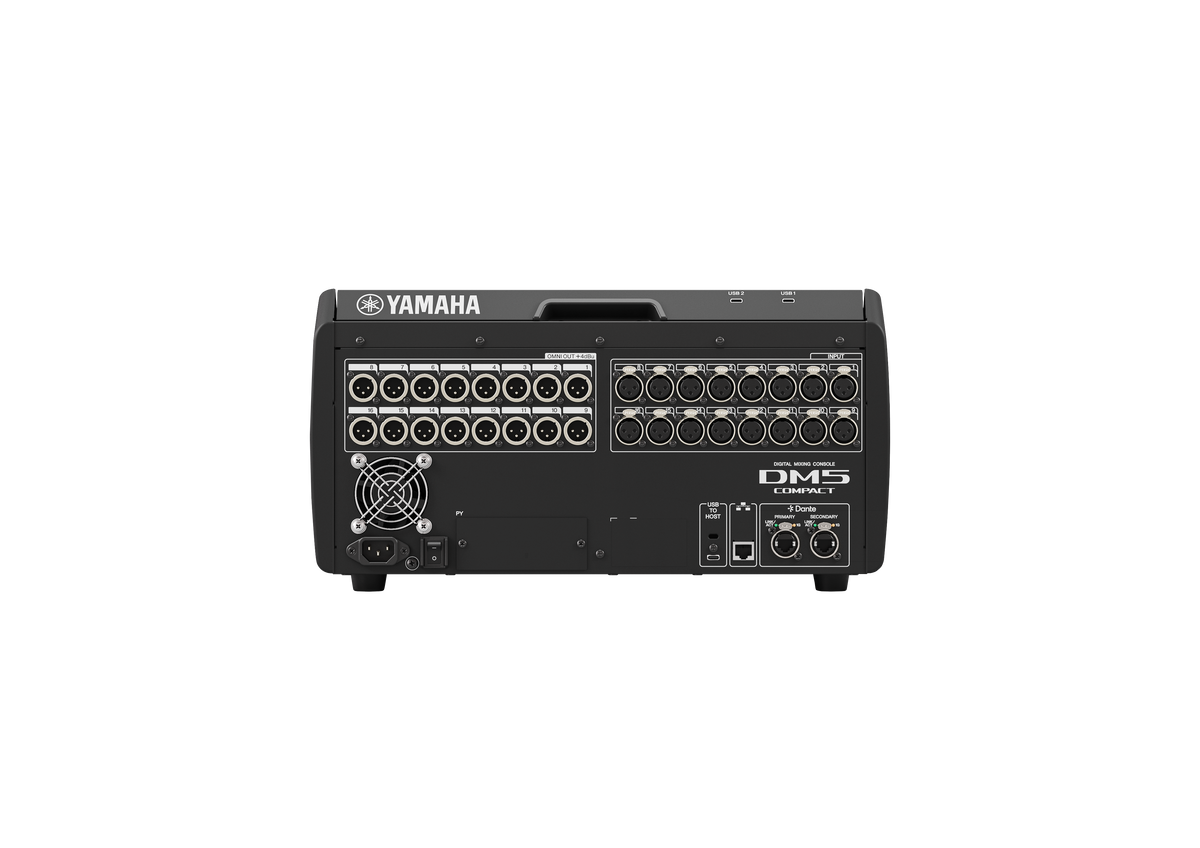

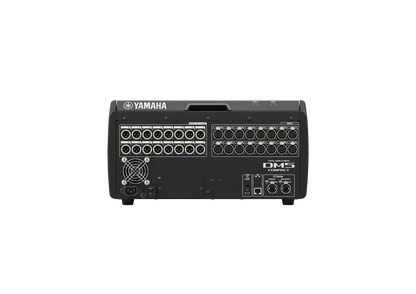

• Analog I/O: 16 inputs / 8 outputs
• Dante: 64 in / 64 out
• Dante sample rate: 96 kHz
• Slot: PY Slot x 1
• USB Audio Interface: 18 in / 18 out
• Onboard effects rack: 16 slots
• Effects: 43
• Dugan automixing: 12 channels standard
• Network/control: RJ45 connector for mixer control
• Audio playback: Bluetooth
• Power consumption: 100 W
• Dimensions (W x H x D): 460 mm x 255 mm x 484 mm (18.1" x 10.0" x 19.1")
• Net Weight: 16.5 kg (36.4 lb)
