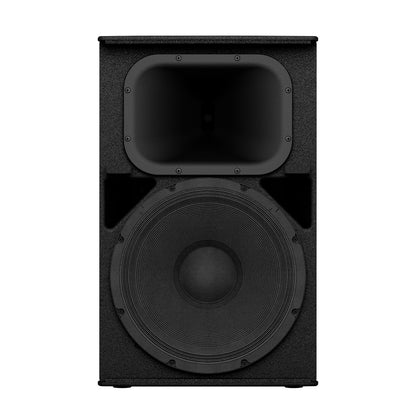

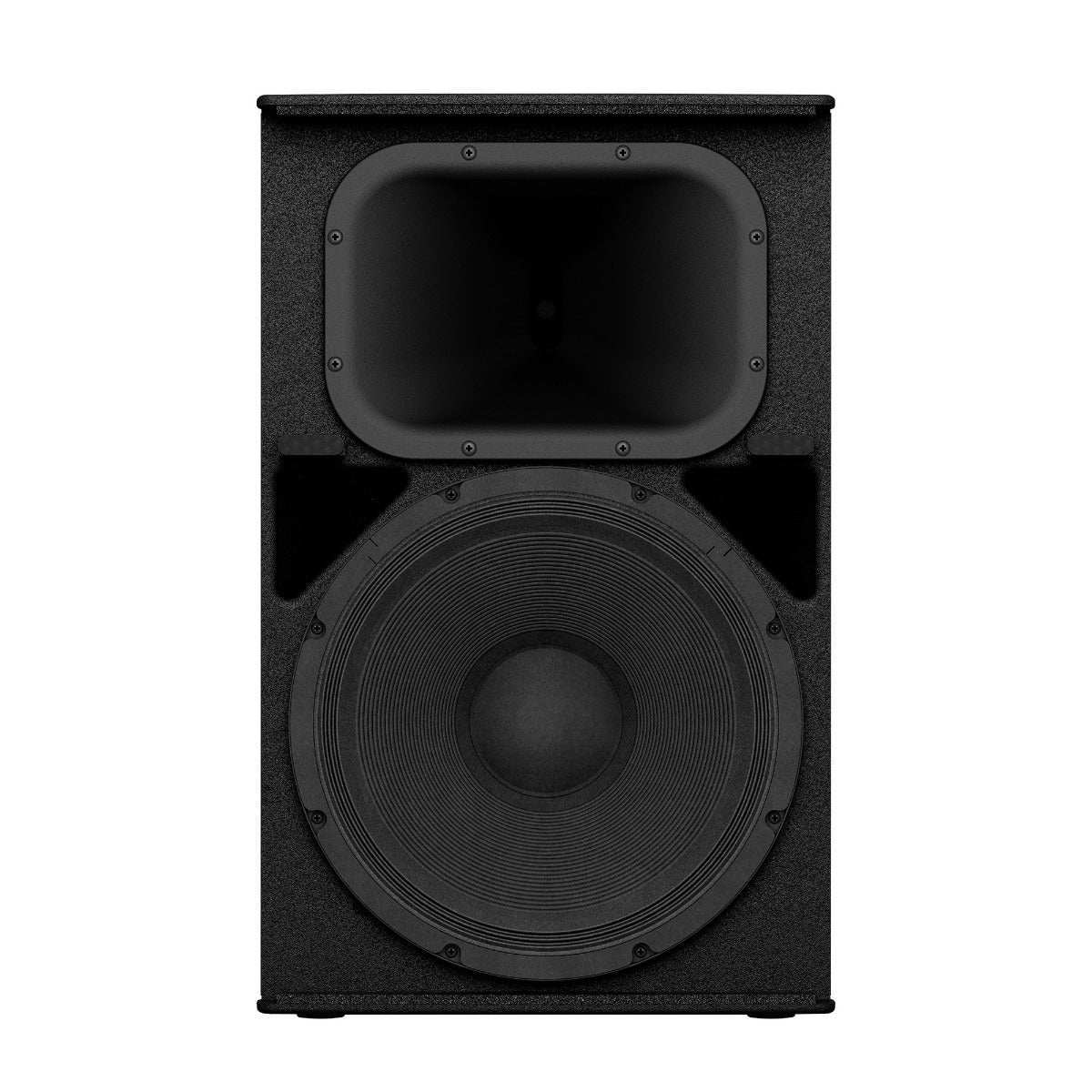

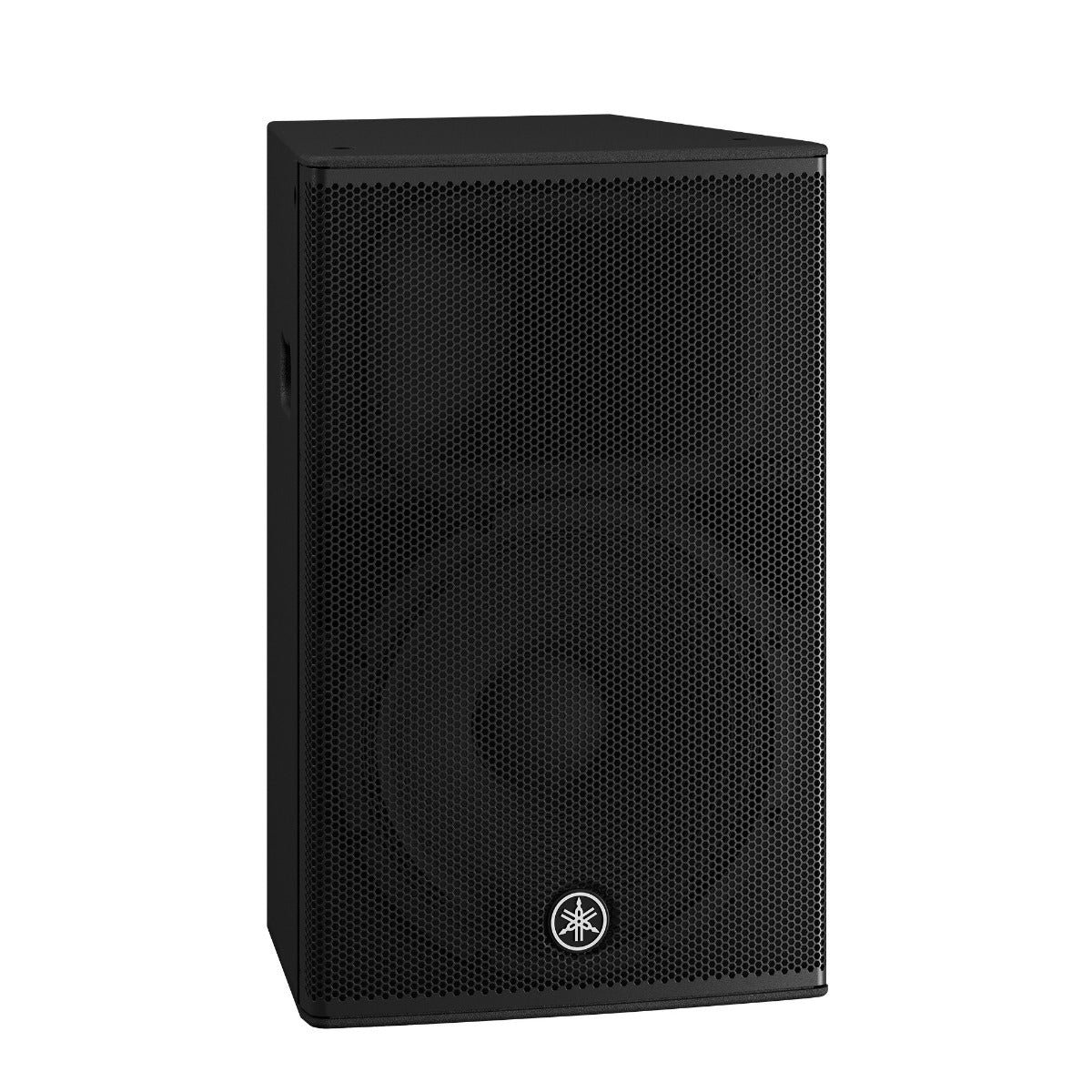

Yamaha DHR15 15" 2-Way Bi-Amp Powered Speaker 465W RMS - plywood cabinet

Yamaha DHR15 15" 2-Way Bi-Amp Powered Speaker 465W RMS - plywood cabinet

SKU: SKU: DHR15

Regular price $1,049.00
Regular price $1,299.00 Sale price $1,049.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

In Stock

Description

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 15-inch LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

Select from our range of Powered Speakers online.

Specification



DHR15

DHR12M
Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 44 Hz - 20 kHz 55 Hz - 20 kHz
Coverage area H90゚ x V60゚ H90゚ x V90゚
Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) 1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m) 131 dB SPL 129 dB SPL
Components LF Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
HF Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
Amplifier class Class-D Class-D
Power rating Dynamic 1,000 W (LF: 800 W, HF: 200 W) *1 1,000 W (LF: 800 W, HF: 200 W) *1
Continuous 465 W (LF: 400 W, HF: 65 W) 465 W (LF: 400 W, HF: 65 W)
Cooling Fan cooling, 4 speeds Fan cooling, 4 speeds
Power consumption 74 W (1/8power), 18 W (Idle) 74 W (1/8power), 18 W (Idle)
Power requirements 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz
A/D D/A Converters 24 bit 48 kHz Sampling 24 bit 48 kHz Sampling
Processors HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

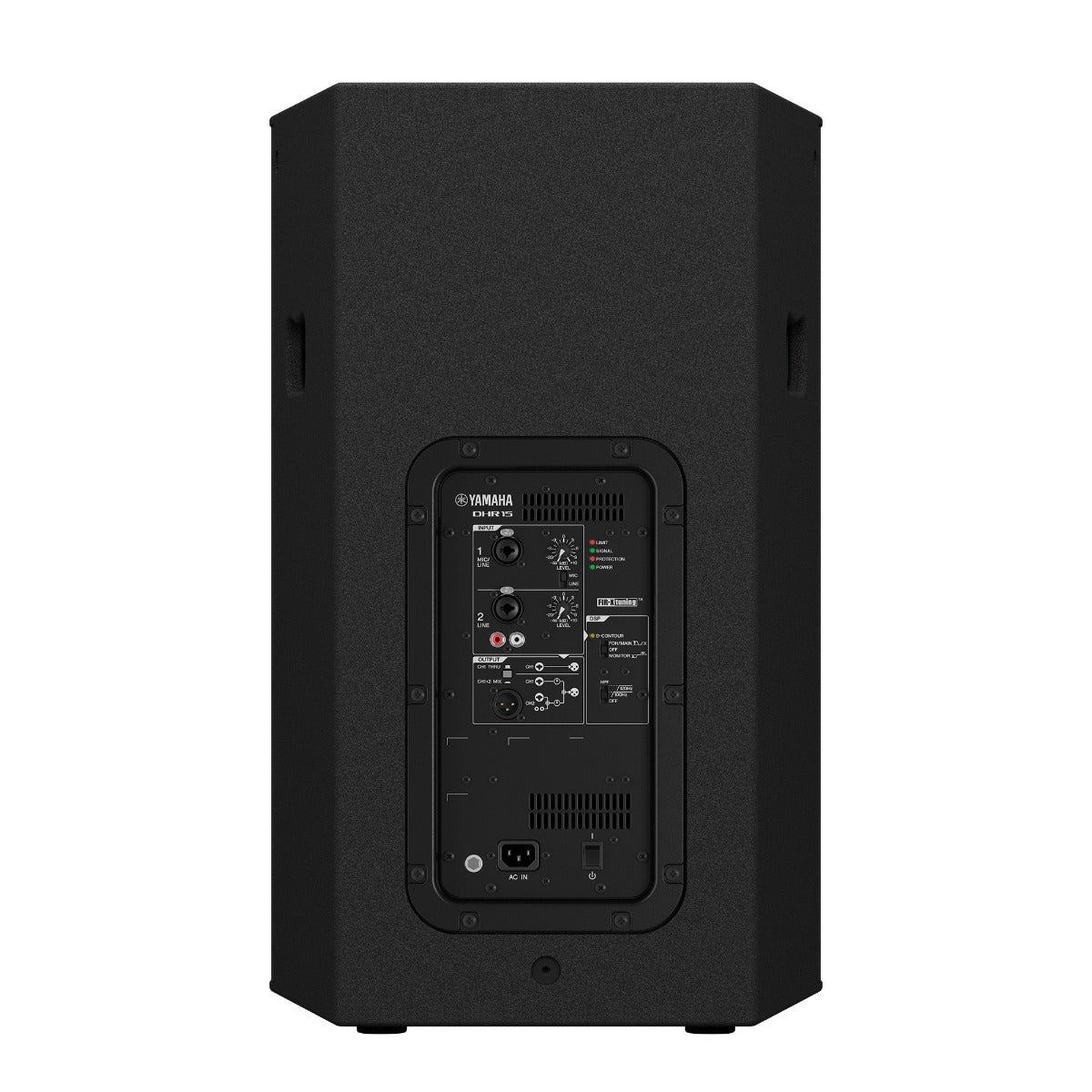

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material Plywood Plywood
Finish Durable Polyurea Painting, Black Durable Polyurea Painting, Black
Handle Side x2 Side x1
Pole socket Φ35 mm x2 (Bottom, 0° or -7°) Φ35 mm x1 (Bottom)
Rigging Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) -
Floor Monitor Angle - 57°
Dimensions W 432 mm (17.0") 500 mm (19.7")
H 692 mm (27.2") (with rubber feet) 343 mm (13.5") (with rubber feet)
D 405 mm (15.9") 454 mm (17.9")
Net weight 24.0 kg (52.9 lbs) 16.5 kg (36.4 lbs)
Options - -
