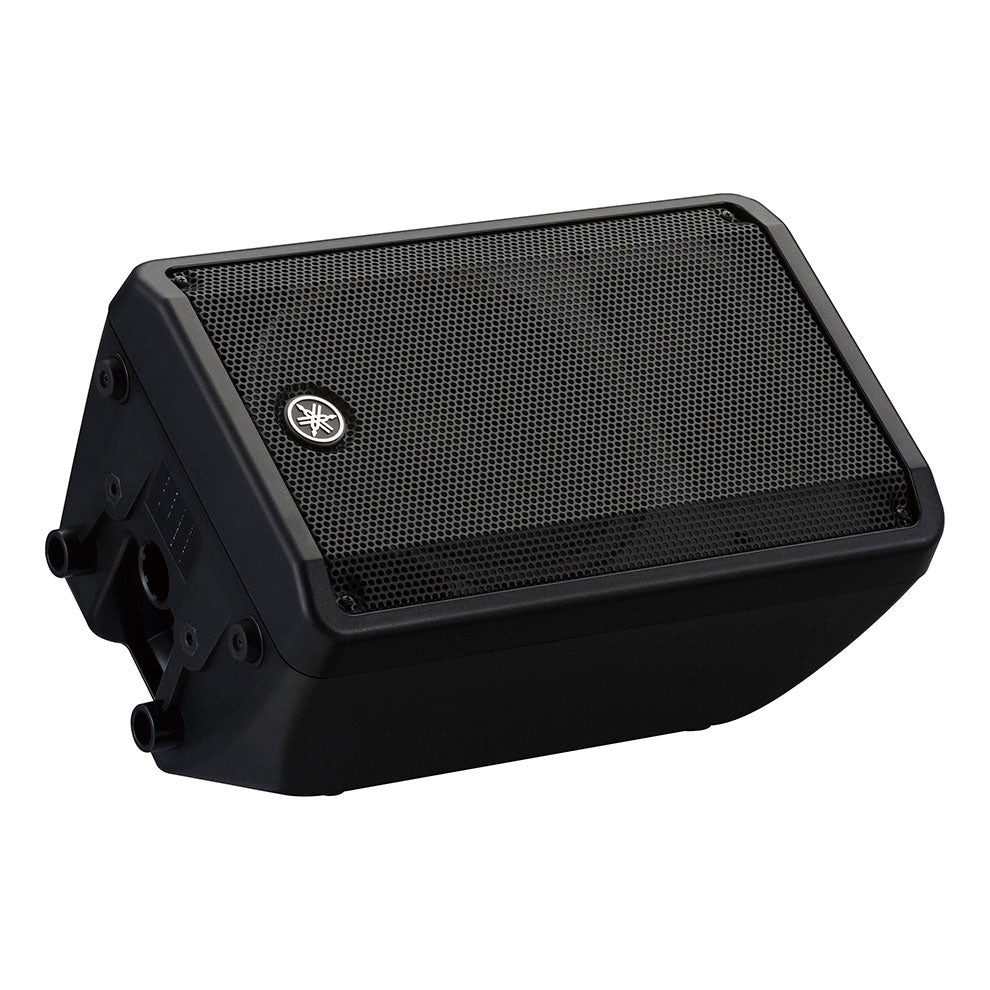

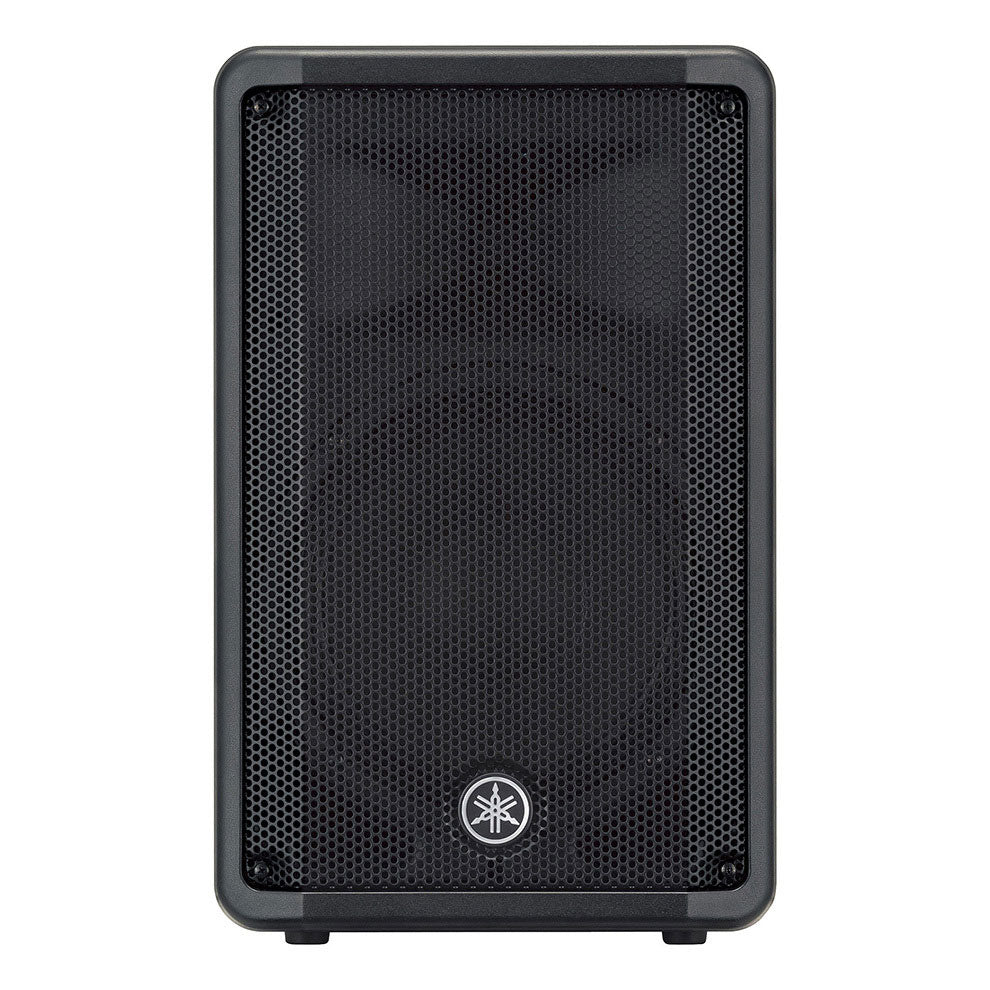

Yamaha DBR10 10” 2-way Powered Loudspeaker
Yamaha DBR10 10” 2-way Powered Loudspeaker
SKU: SKU: DBR10
Regular price
$679.00
Regular price
$799.99
Sale price
$679.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
In Stock
Description
Description
The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.
Specification
Specification
| Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type | |
|---|---|---|
| Frequency range (-10dB) | 55Hz – 20kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | Diameter:10" cone, Voice Coil:2", Magnet:Ferrite |
| HF | Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite | |
| Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) | |
| Output power | Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W) | |
| Maximum output level (1m; on axis) | 129dB SPL | |

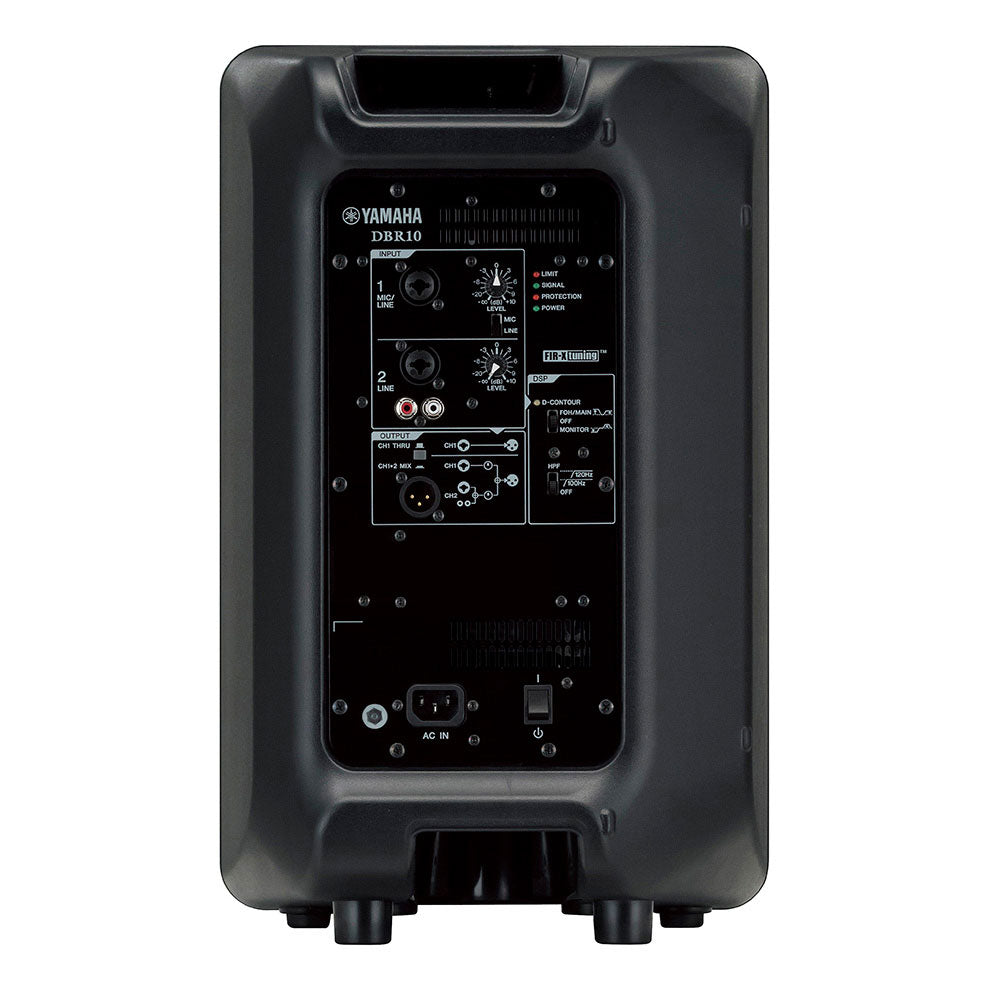

| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Heat dissipation | Fan cooling, 4 speeds | |
| Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz | |
| Power consumption | 60W(1/8 Power Consumption), 18W(Idle) | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Top x 1 | |
| Flying and mounting hardware | Bottom x 2 (Fit for M8 x 15 mm eyebolts) | |
| Pole socket | 35mm (Bottom x 1) | |
| Dimensions | W | 308mm (12.1") |
| H | 493mm (19.4") | |
| D | 289mm (11.4") | |
| Net weight | 10.5 kg (23.2 lbs) | |
