Yamaha
Yamaha CZR15 15" Passive Loudspeaker - Black
Yamaha CZR15 15" Passive Loudspeaker - Black
SKU: SKU: SP-CZR15-YAMAHA
Regular price
$2,049.00
Regular price
$2,049.00
Sale price
$2,049.00
GST included.
Bulky Freight Item
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Quantity
Low Stock – Call for Availability
Description
Description

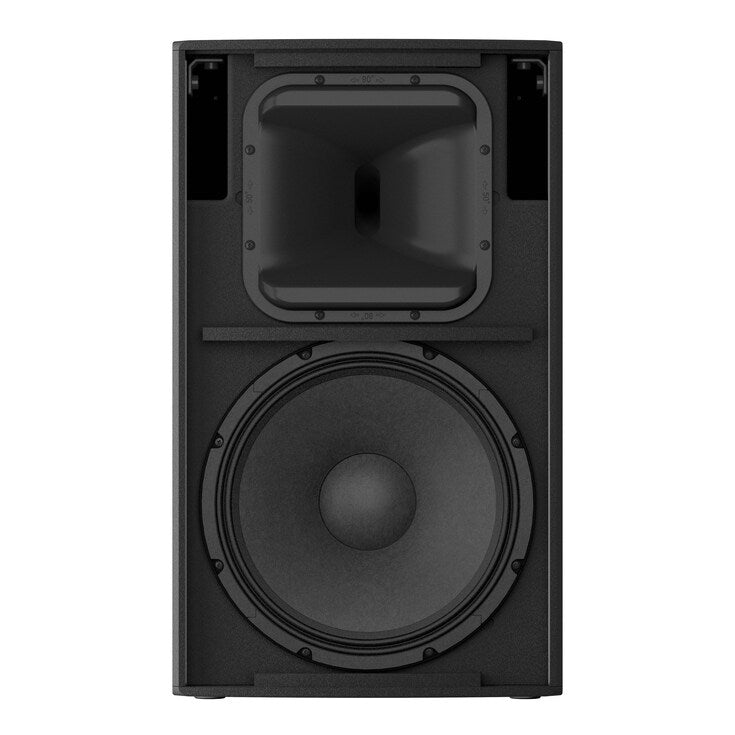

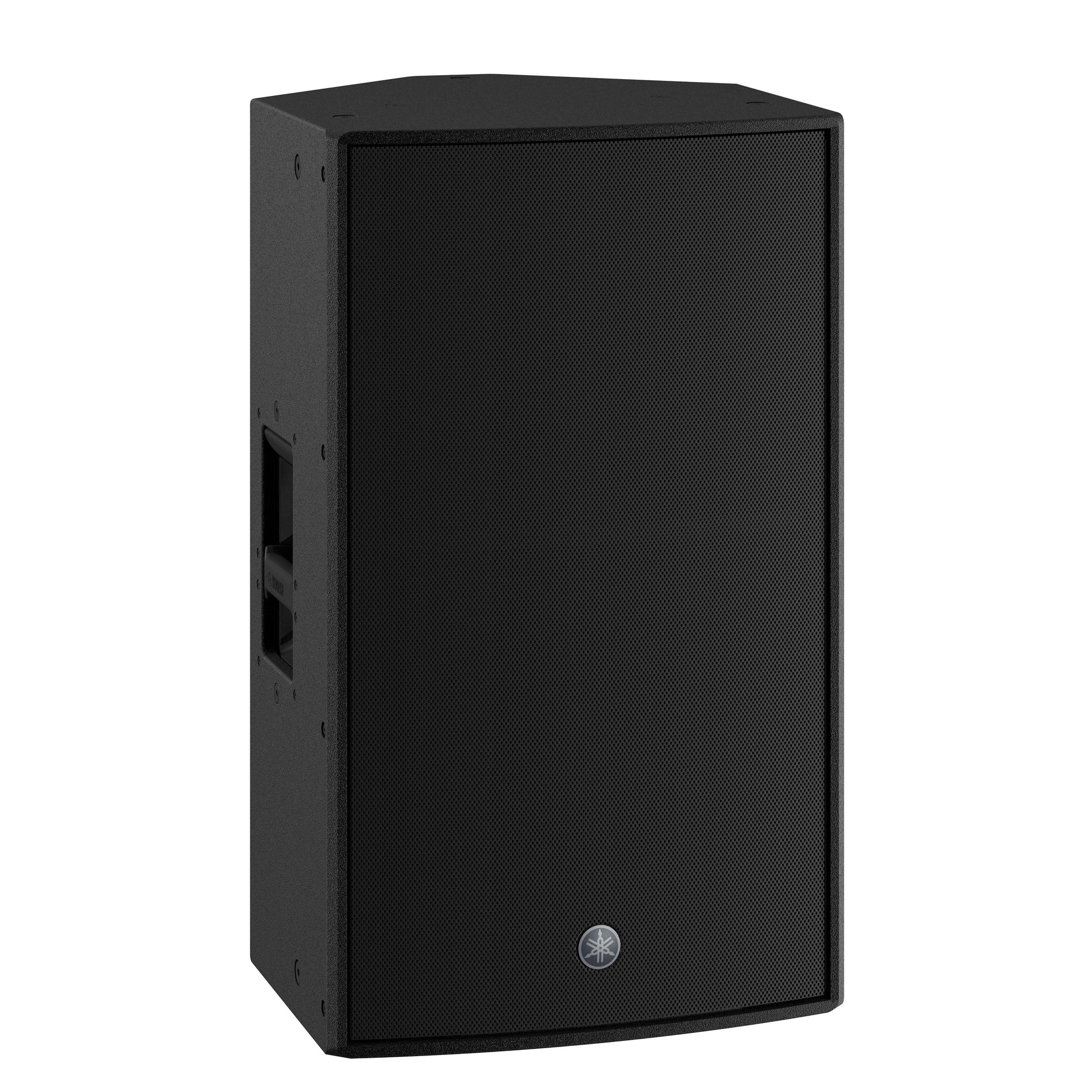

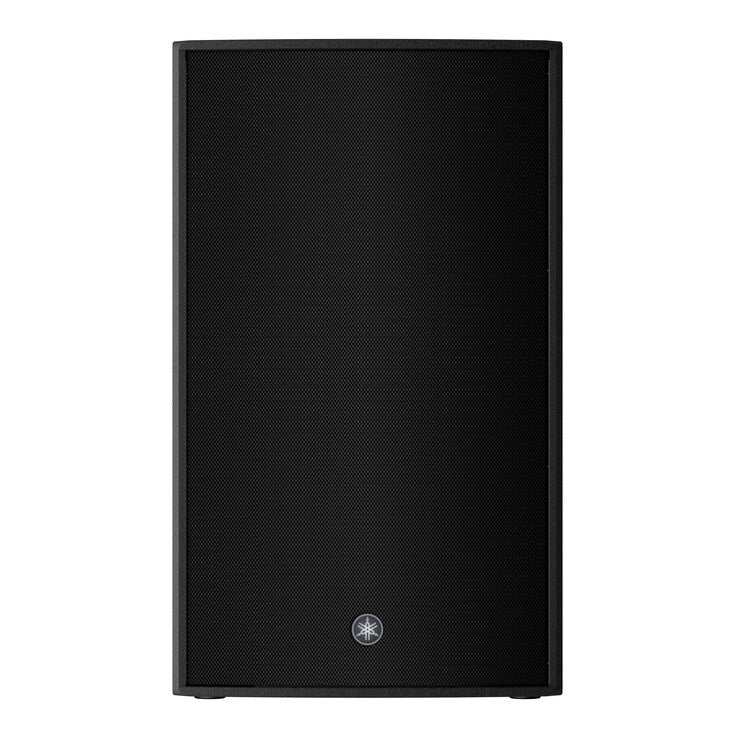

The Yamaha CZR15 is a 2-way passive loudspeaker designed for live performance and installed sound applications. It combines high power handling with a rugged plywood enclosure and durable Polyurea coating.
- 2-way loudspeaker with 3" HF and 15" LF
- Yamaha Wide Dispersion CD Waveguide Horn
- 800W (PGM) passive power handling and Bi-amp capable

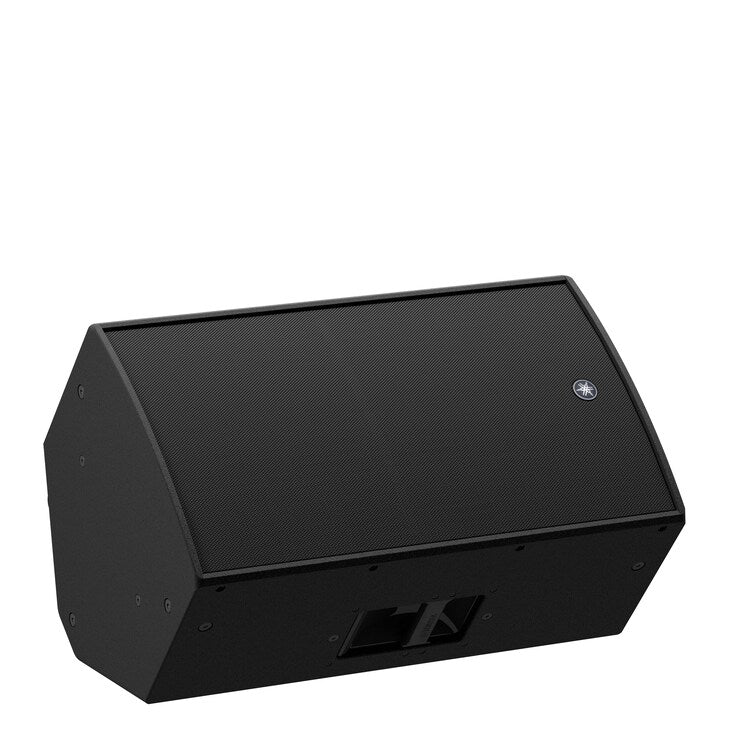

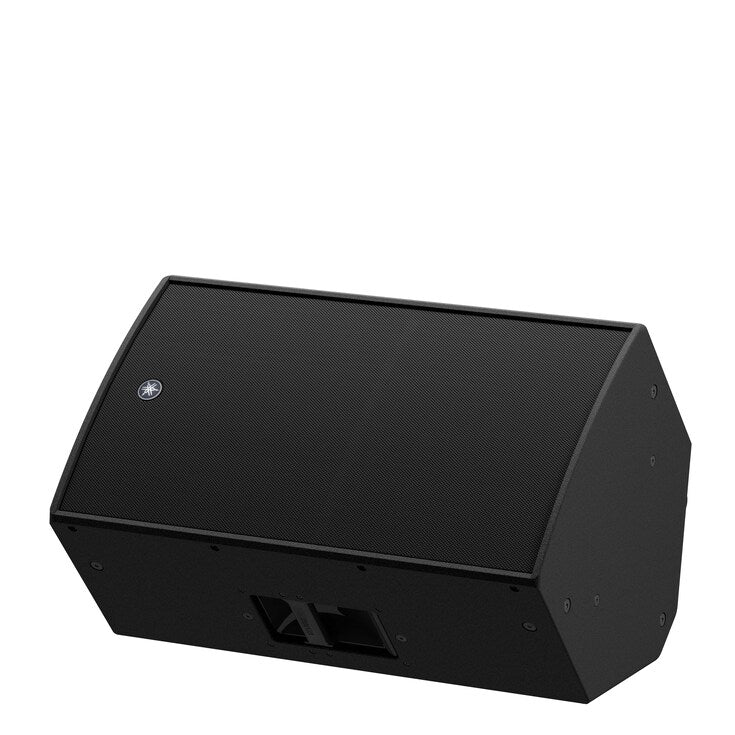

- Floor monitoring setting
- Plywood cabinet with durable Polyurea coating
- Dual-angle pole socket
- Rotatable horn and U-bracket rigging options
- Black finish
Specification
Specification
| Speaker type | 2-way Speaker, Bass-reflex |
|---|---|
| Frequency range (-10dB) | Passive: 41 Hz - 20 kHz, Normal (*1): 43 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz |
| Coverage area | H90° x V50° Rotatable Constant Directivity Horn |
| Floor Monitor Angle | 50° |
| LF | 15" Cone, 3" Voice Coil, Neodymium magnet |
| HF | 3" Voice Coil, 2" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
| Crossover | 2.0 kHz |
| Power rating - NOISE | Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 55W |
| Power rating - PGM | Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 110W |
| Power rating - PEAK | Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 220W |
| Nominal impedance | Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
| Sensitivity | Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 110dB SPL |
| Peak SPL (Calculated) | Passive: 131 dB SPL, Bi-amp: LF: 131dB SPL, HF: 133dB SPL |

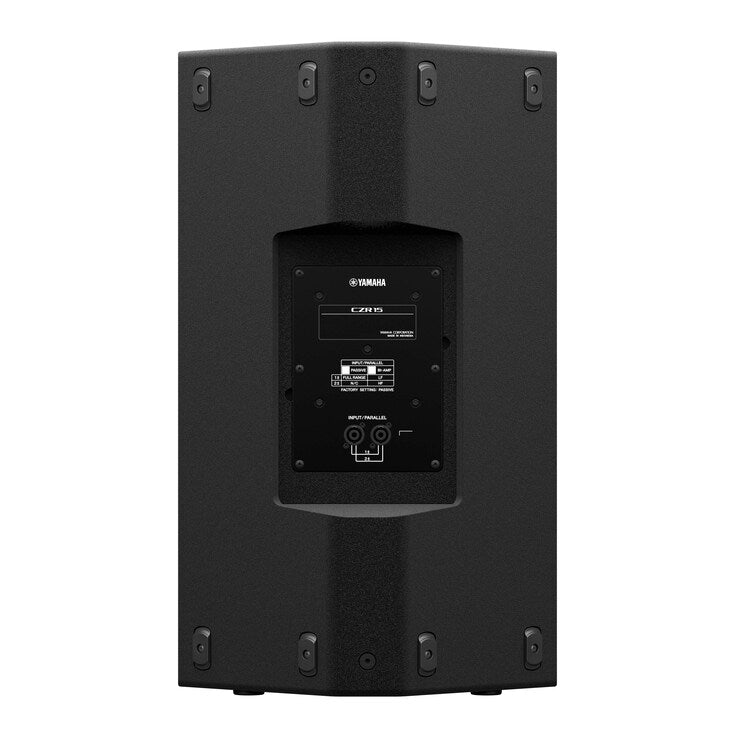

| I/O connectors | SpeakON NL4MP x 2 (Parallel) |
| Handle | Aluminium die-cast, Top x1, Side x2 |
| Pole socket | Φ35 mm x2 (0° or -7°) |
| Rigging | M10 x 8, M8 x 2 |
| Dimensions | 450 mm (W) x 761 mm (H, with rubber feet) x 460 mm (D) |
| Net weight | 21.3 kg (46.9 lbs) |
| Options | Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15 |
| Enclosure / Finish / Color | Plywood, Durable Polyurea coating, Black |
*1: With recommended DSP processing.
