Yamaha
Yamaha CZR12 12-inch Passive Loudspeaker - Black
Yamaha CZR12 12-inch Passive Loudspeaker - Black
SKU: SKU: SP-CZR12-YAMAHA
Regular price
$1,499.00
Regular price
$1,499.00
Sale price
$1,499.00
GST included.
Bulky Freight Item
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Additional freight charges may apply to this item depending on your location. Please contact us on (03) 9364 9999 or email us for a freight quote. Alternatively, you may place your order and a member of our team will contact you if any additional shipping costs are required.
Quantity
Low Stock – Call for Availability
Description
Description
The Yamaha CZR12 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure is suited to a range of live performance and installed sound environments.

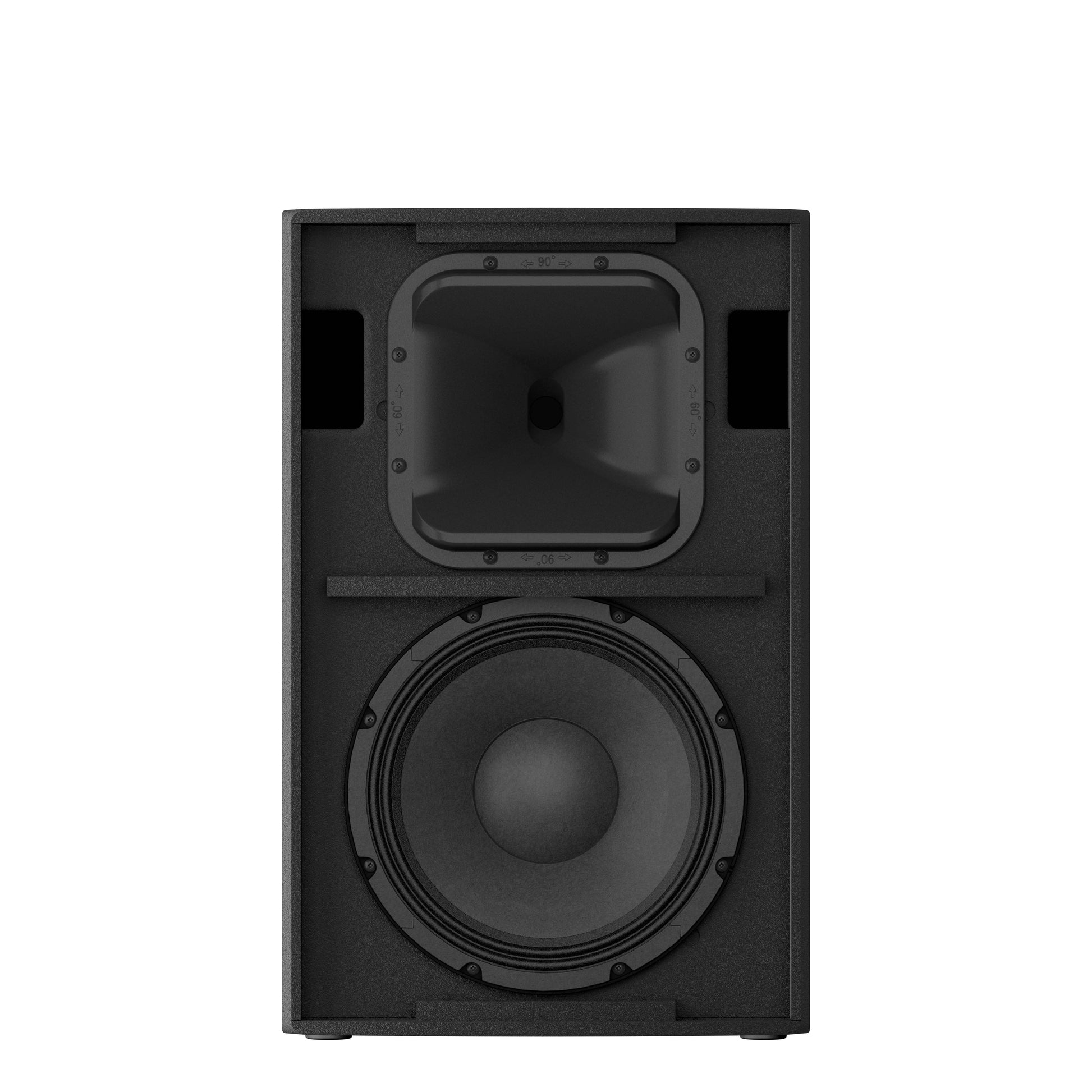

- 2-way loudspeaker with a 2-inch HF and 12-inch LF
- Yamaha Wide Dispersion CD Waveguide Horn
- 800W (PGM) power handling and bi-amp capable

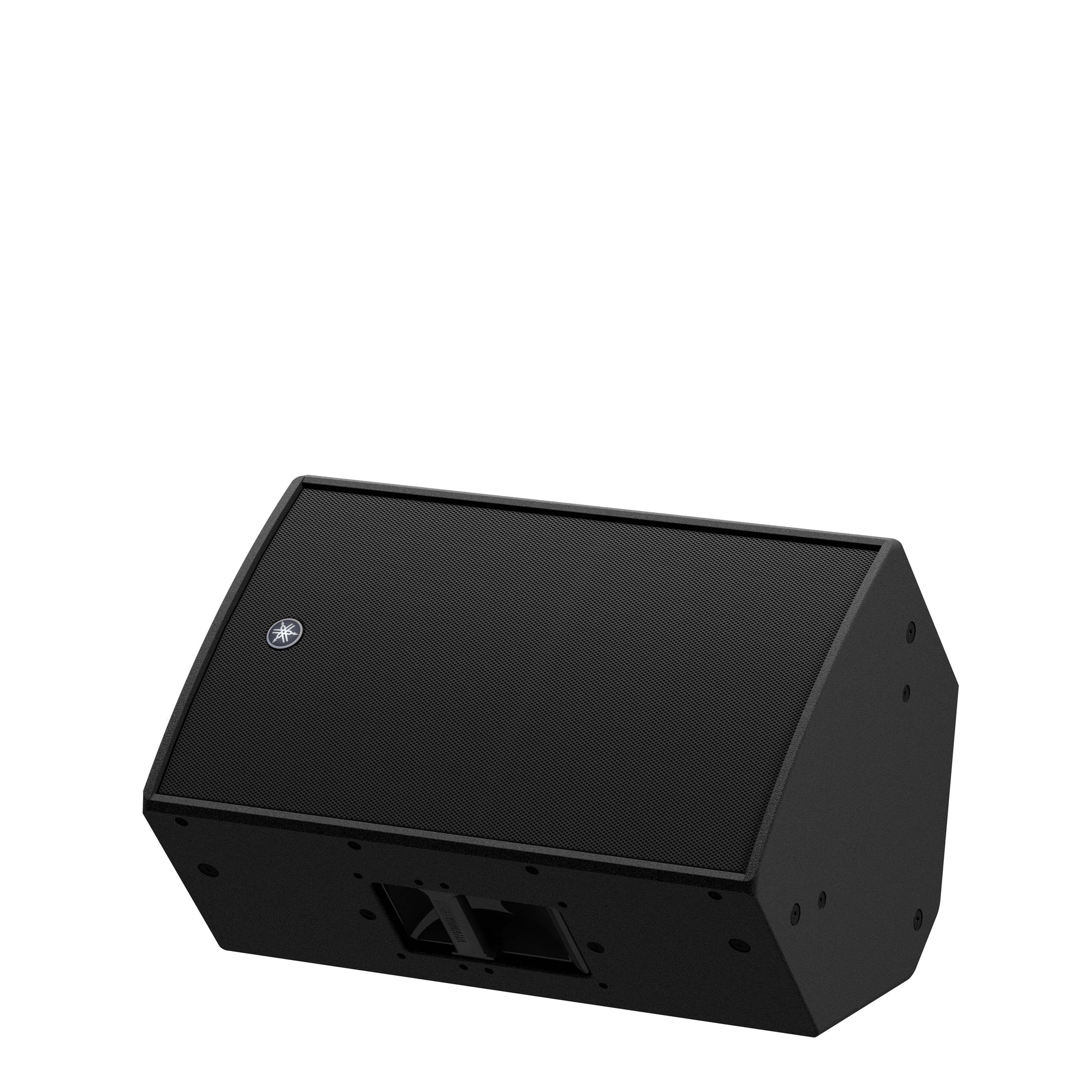

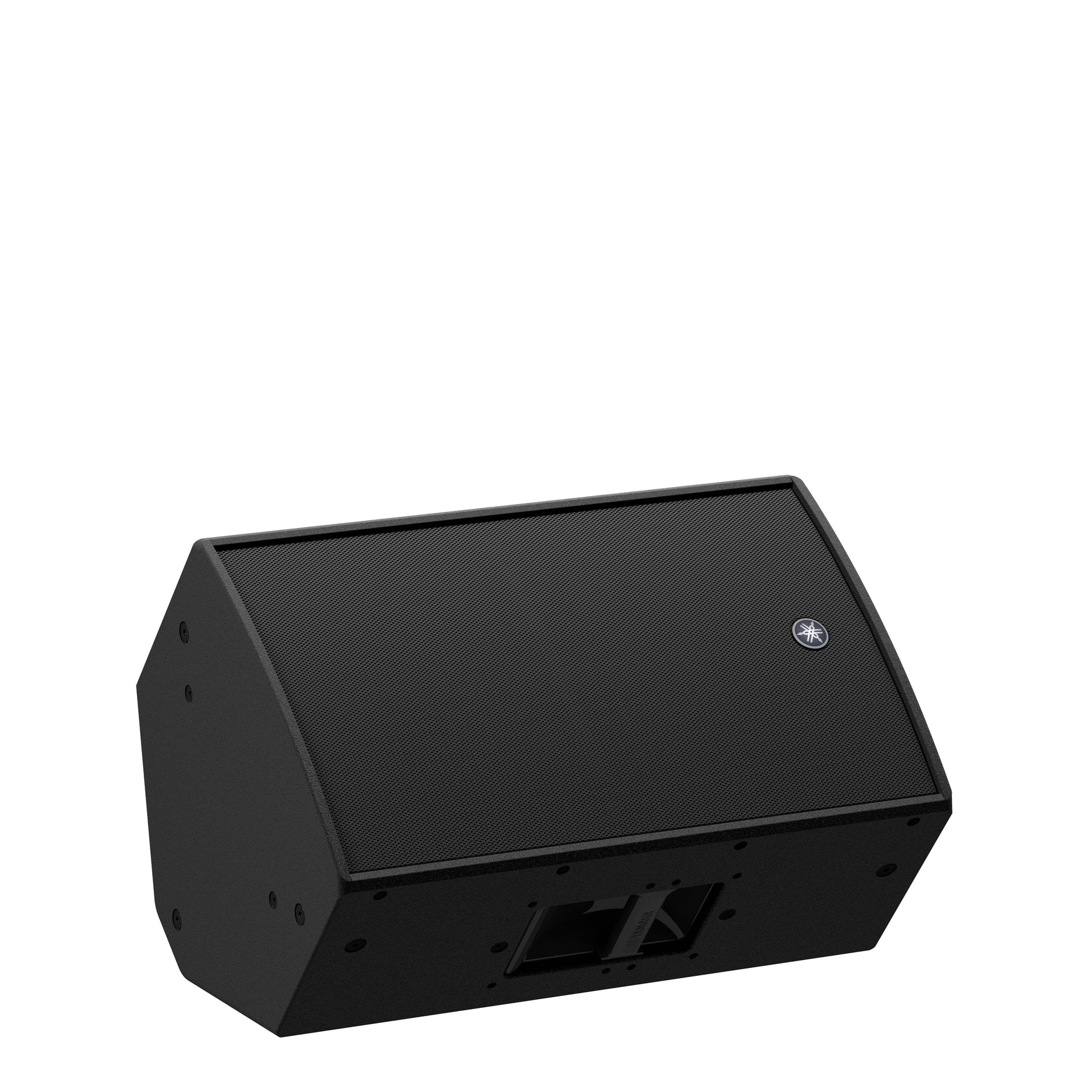

- Floor monitoring setting enables mirroring configuration
- Lightweight, durable plywood cabinet with premium-grade Polyurea coating
- Dual-angle pole socket
- Rotatable horn and U-bracket options UB-DZR12H/V
- Black finish
Specification
Specification
| Speaker type | 2-way Speaker, Bass-reflex |
|---|---|
| Frequency range (-10dB) | Passive: 43 Hz - 20 kHz, Normal (*1): 42 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz |
| Coverage area | H90ﾟ x V60ﾟ Rotatable Constant Directivity Horn |
| Floor Monitor Angle | 50° Symmetrical |
| LF | 12" Cone, 3" Voice Coil, Neodymium magnet |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
| Crossover | 2.0 kHz |
| NOISE | Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W |
| PGM | Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W |
| PEAK | Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W |
| Nominal impedance | Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
| Sensitivity (1W; 1m on axis) | Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL |
| Peak (Calculated) | Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL |

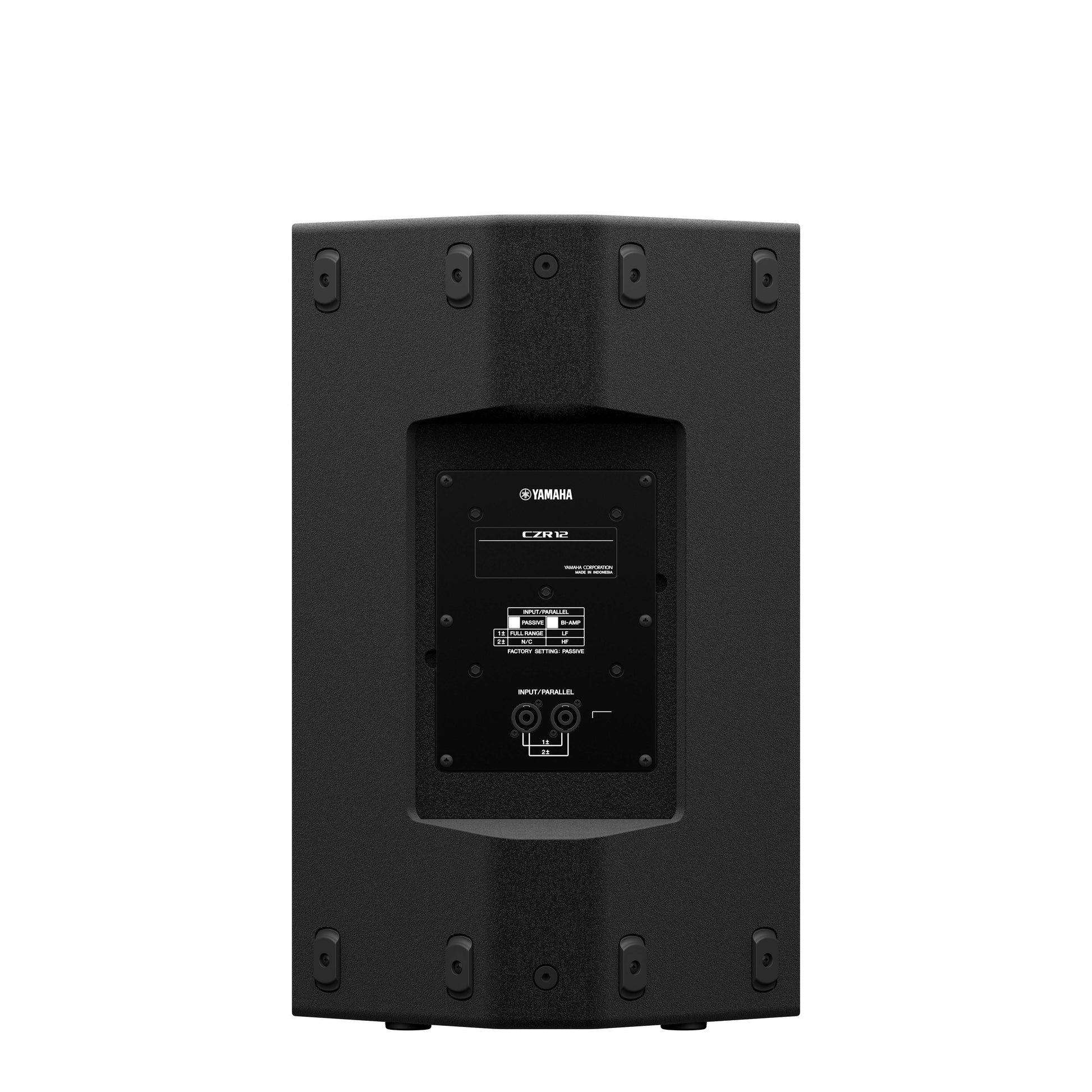

| I/O connectors | SpeakON NL4MP x 2 (Parallel) |
| Handle | Aluminium die-cast, Side x2 |
| Pole socket | Φ35 mm x2 (0° or -7°) |
| Rigging | M10 x 12 |
| Dimensions | 410 mm (16.1") W x 646 mm (25.4") H (with rubber feet) x 394 mm (15.5") D |
| Net weight | 18.0 kg (39.7 lbs) |
| Options | Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12 |
| Enclosure Material, Finish, Color | Plywood, Durable Polyurea coating, Black |
*1: With recommended DSP processing.
