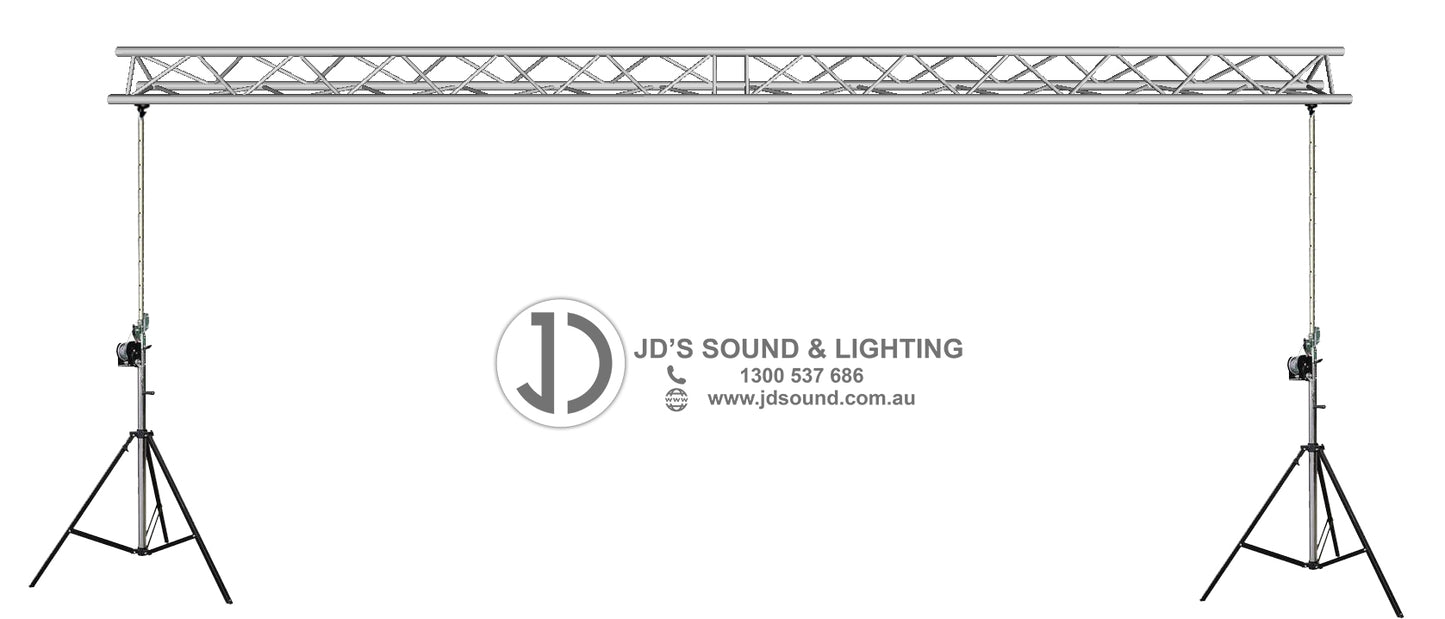

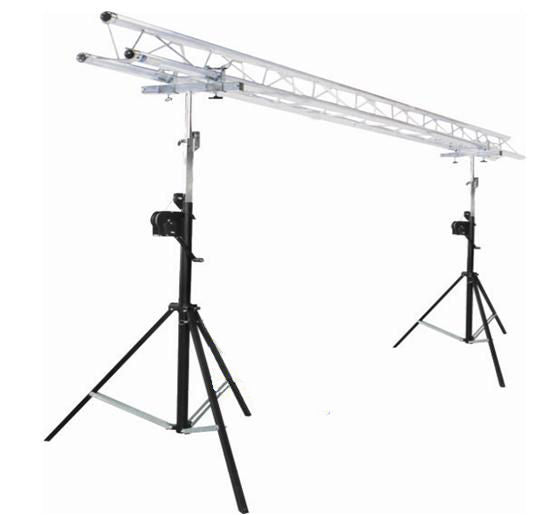

TRI Truss stand - 6m 290mm Tri truss Heavy duty winch up lighting truss
TRI Truss stand - 6m 290mm Tri truss Heavy duty winch up lighting truss
SKU: SKU: WINCHTRUSS4X6 TRI
Description
Description
BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE
Package includes:
- 2x heavy duty winch up stand (model Soundking WS4)
- 3x 2m 290mm aluminium Tri truss (model AluTruss ALU-30120B)
- 2x stand adaptors

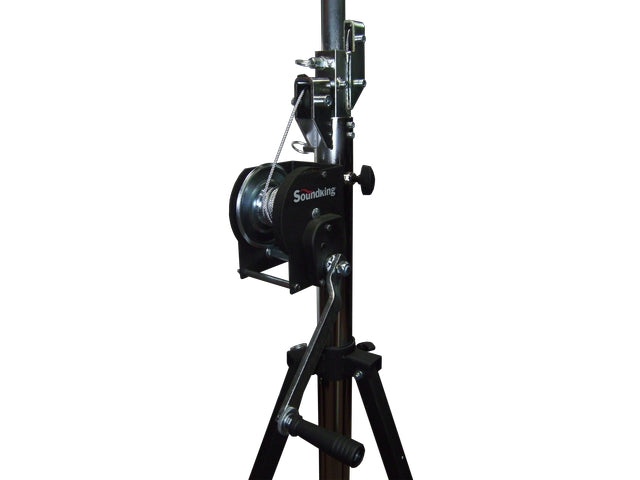

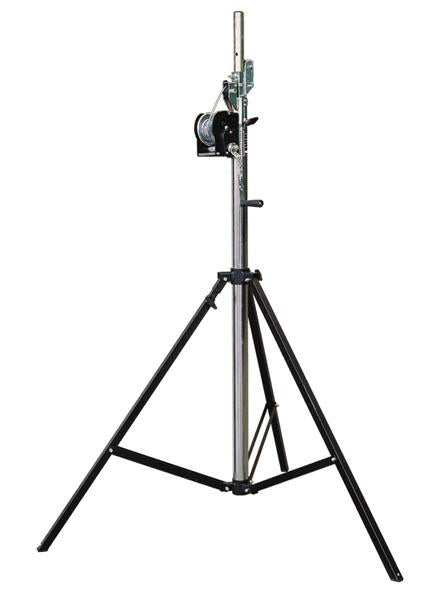

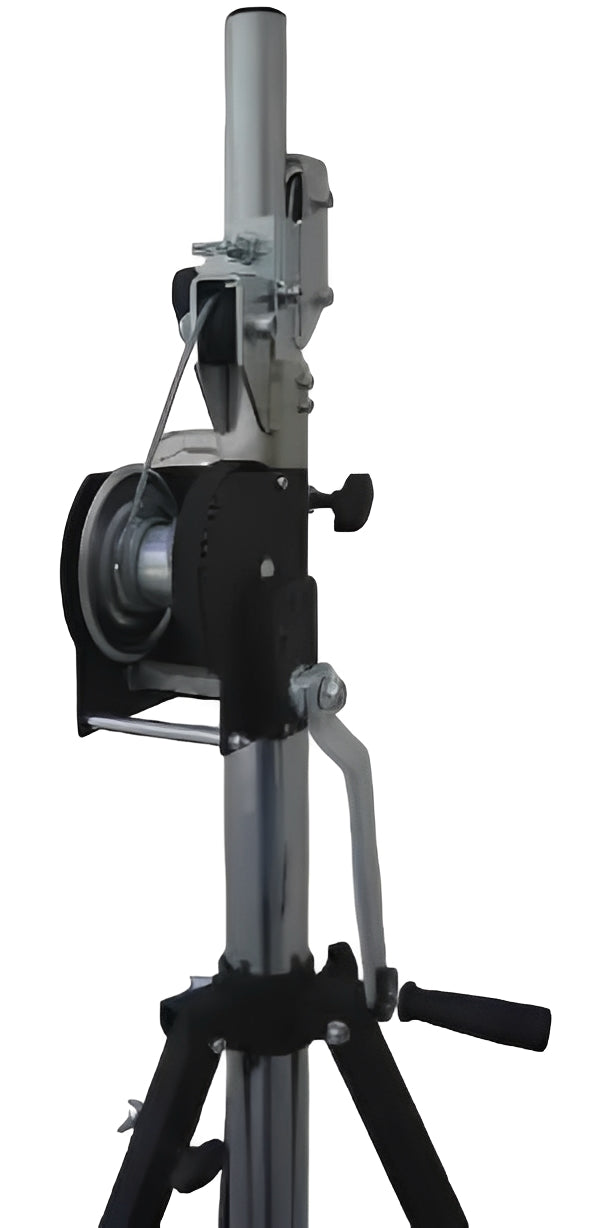

SPECIFICATION FOR THE WINCH UP STAND
Features:
- Heavy duty
- Effects / Control: Winch-up
- Dimensions: Height adjusts from 2.2m to 4m
- Load Capacity: 85Kg EACH
- Weight: 27Kg EACH
- Construction: Steel
- Warranty: 12 Months
- TUV rated
TRUSS
290mm Truss is probably the most widely used truss in Australia. Perfect for general use over short runs, 290mm truss is used for DJ / band lighting trusses or small to medium shows. Constructed from standard 2" aluminium pipe.
The truss comes fitted with conical couplers, spigots and safety pins for joining more pieces of truss (no bolts required).

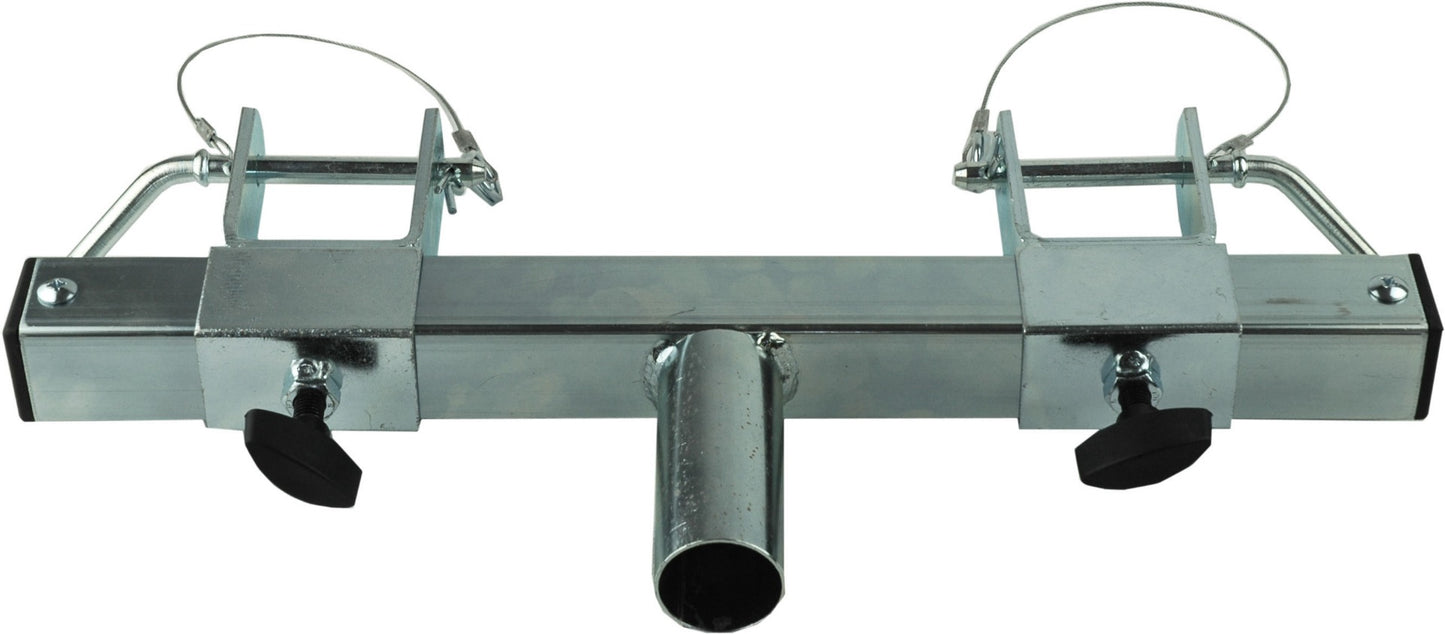

SPECIFICATION FOR TADAPT
Truss adaptor suits box or tri-trusses 250-290mm wide
Fits standard 35mm lighting stand socket

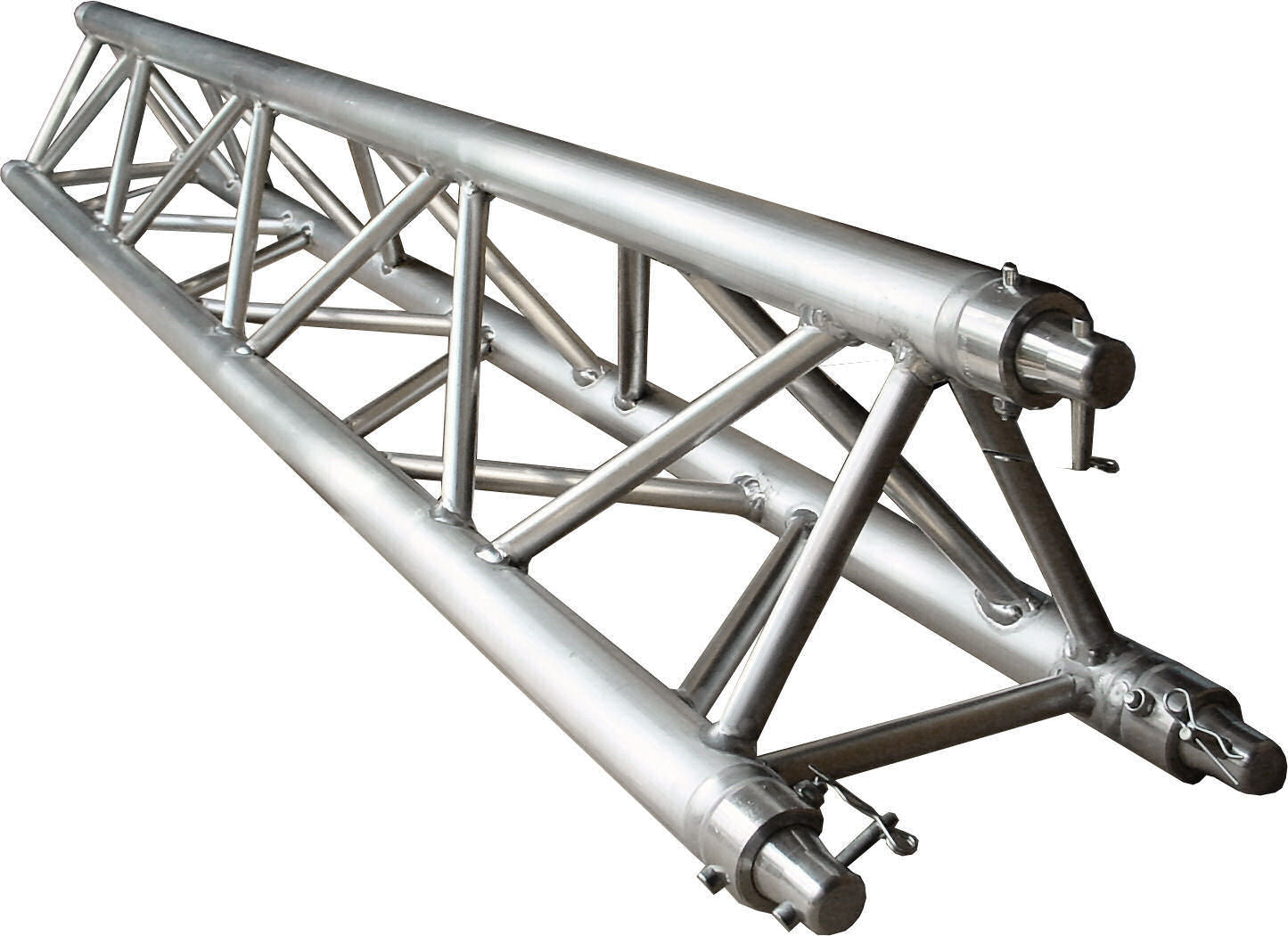

Aluminium Tri-truss
290mm Truss is probably the most widely used truss in Australia. Perfect for general use over short runs, 290mm truss is used for DJ / band lighting trusses or small to medium shows where roof height or sight lines are an issue.
Superior quality alloy(see below). All 290mm Alutruss use the higher strength 6082 composition.
Fast Connect System
Using snug-fitting Conical Spigots, Pins and R-Clips, the connection systems eliminates the need for bolts & nuts, saving a lot of valuable time during set-up.
The truss comes fitted with conical couplers, spigots and safety pins for joining more pieces of truss.
Alutruss manufacturing meet international quality demands. Box truss has obtained SLV and TUV ratings and exporting to many countries and regions including Europe, USA, Middle East, South Asia, etc.
