Shure SLXD24+/B58 Digital Wireless Handheld System – H58
Shure SLXD24+/B58 Digital Wireless Handheld System – H58
SKU: SKU: MIC-SLXD24+/B58-SHURE
Regular price
$1,699.00
Regular price
$1,999.00
Sale price
$1,699.00
GST included.
Quantity
In Stock
Description
Description

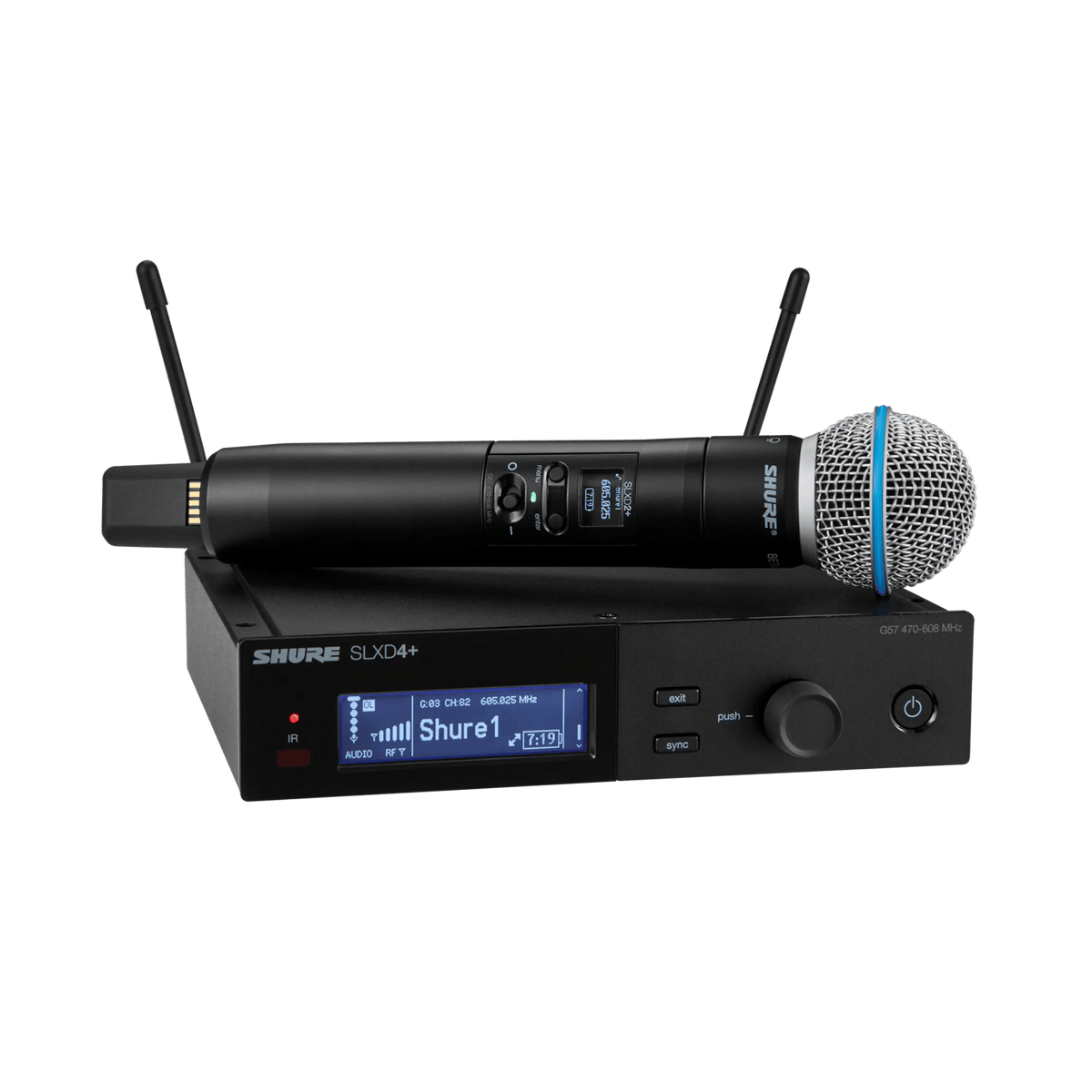

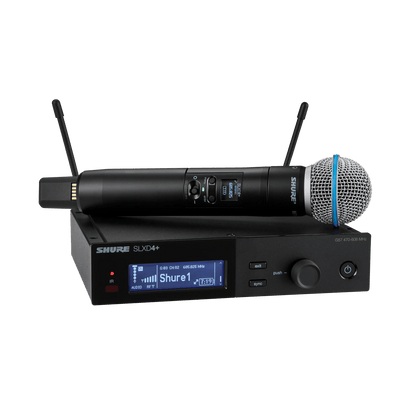

The Shure SLXD24+/B58 is a digital wireless handheld system featuring the Beta® 58A supercardioid dynamic microphone, SLXD2+/B58 handheld transmitter and SLXD4+ single-channel receiver.
SLX-D+ combines transparent 24-bit digital audio with a wide 138 MHz tuning range, Automatic Setup, ShowLink® Ease remote transmitter control, Wireless Workbench® monitoring and control, patented Shure Digital Feedback Reducer software and AES-256 encryption.
- Transparent 24-bit digital audio with >118 dB dynamic range
- 138 MHz wide-tuning range
- Up to 11 simultaneous systems in 6 MHz TV bands and up to 14 in 8 MHz TV bands
- Automatic Setup keeps linked SLX-D+ receivers and transmitters connected through RF interference
- ShowLink® Ease enables remote transmitter frequency, RF power, control lock and firmware management from the receiver
- Wireless Workbench® desktop and WWB Mobile app monitoring and control
- Patented Shure Digital Feedback Reducer software
- AES-256 encryption
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
In the Box

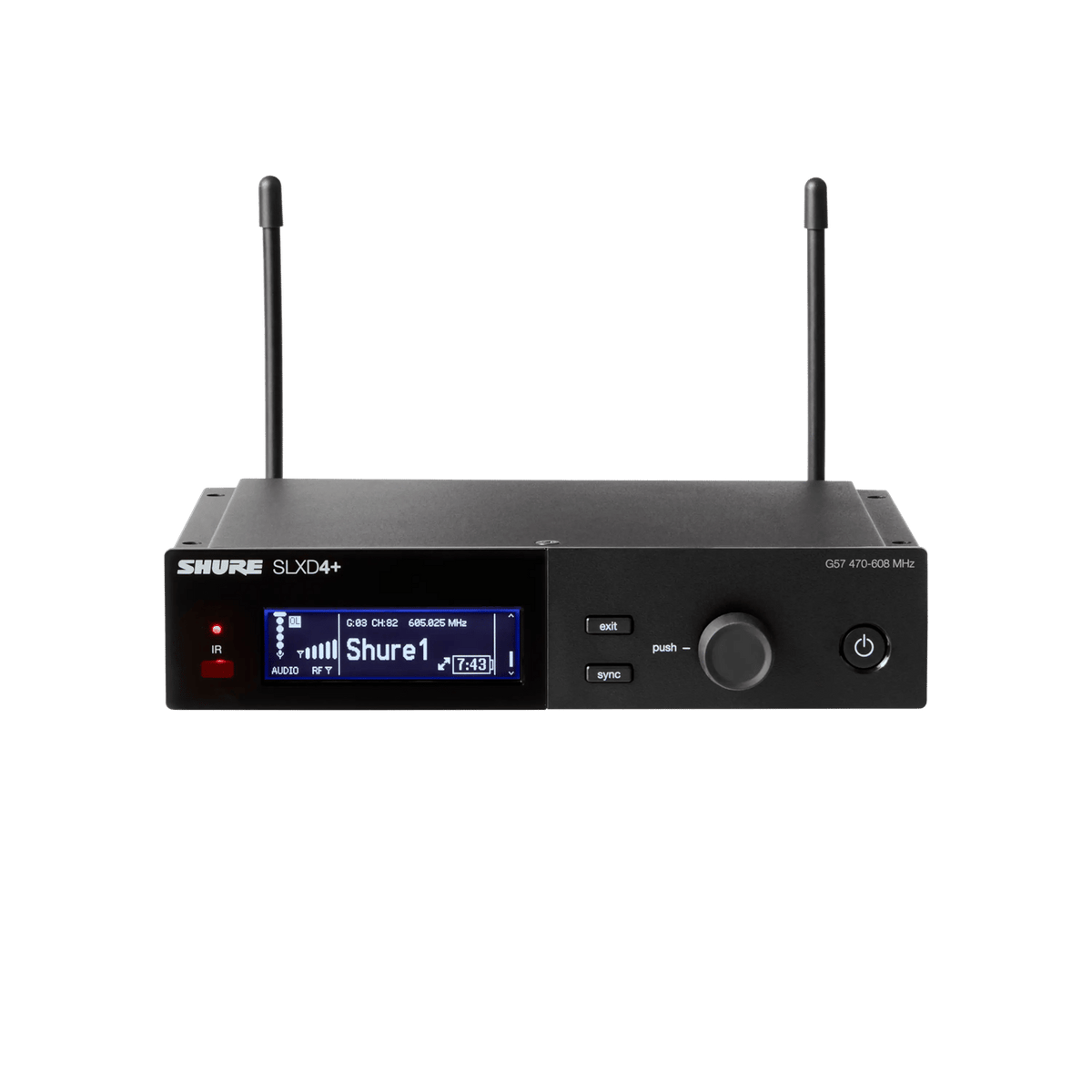

- 1 × SLXD4+ Digital Wireless Receiver

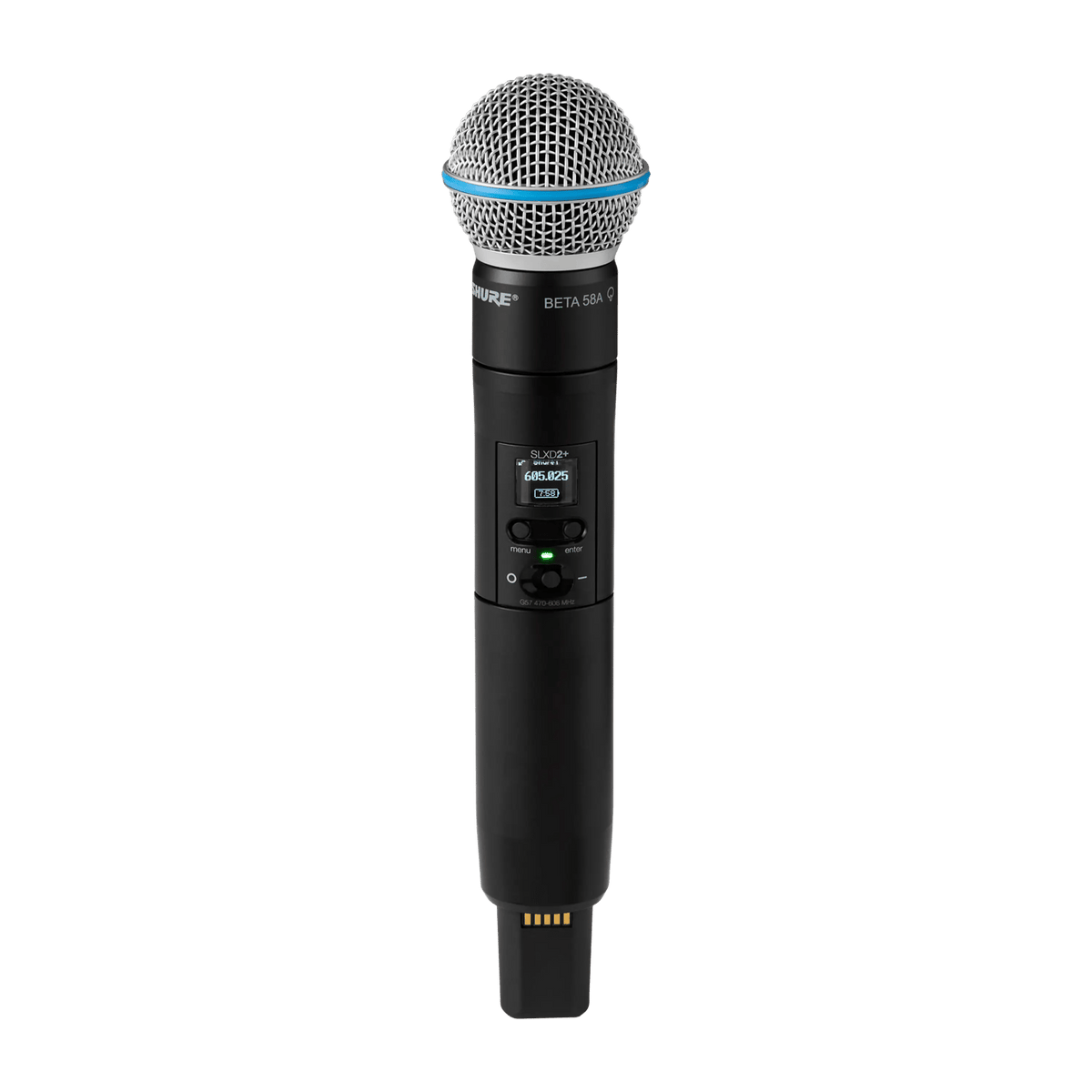

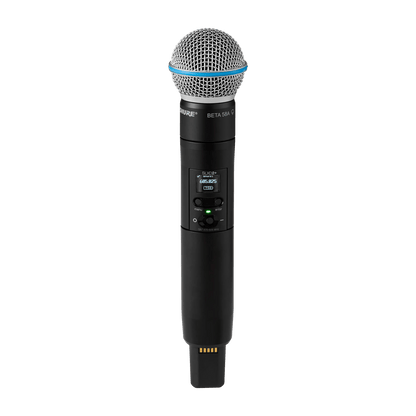

- 1 × SLXD2+/B58 Handheld Transmitter with Beta® 58A Supercardioid Dynamic Microphone
- 1 × microphone clip
- 2 × 1/4 wave antennas
- 1 × rackmount kit
- 2 × AA batteries
- 1 × power supply
- 1 × Microphone carrying pouch
Specification
Specification
| System | SLXD24+/B58 Digital Wireless Handheld System |
|---|---|
| Frequency Band | H58: 520–606 MHz |
| Receiver | SLXD4+ Digital Wireless Receiver |
| Transmitter | SLXD2+/B58 Handheld Transmitter |
| Microphone | Beta® 58A supercardioid dynamic microphone |
| Digital Audio | 24-bit |
| Audio Dynamic Range | 118 dB at 1% THD, A-weighted, typical |
| Total Harmonic Distortion | <0.02% |
| System Latency | 2.8 ms |
| Wideband Tuning Range | 138 MHz (region dependent) |
| Working Range | 100 m (328 ft); actual range depends on RF signal absorption, reflection and interference |
| H58 Transmitter RF Power | 1 / 10 mW RMS for SLXD2+ |
| Encryption | AES-256 |
| Control | ShowLink® Ease; Wireless Workbench® desktop; Wireless Workbench Mobile app |
| Receiver Audio Outputs | Balanced XLR and balanced 1/4 in. (6.35 mm) |
| Receiver Network | Single Port Ethernet 10/100 Mbps; DHCP or Manual IP address |
| Receiver Dimensions | 42 × 197 × 152 mm (1.65 × 7.76 × 5.98 in.), H × W × D |
| Receiver Weight | 900 g, without antennas |
| Receiver Housing | Galvanized Steel |
| Receiver Power | 15 V DC @ 360 mA, supplied by external power supply (tip positive) |
| Receiver Audio Frequency Response | 20 Hz–20 kHz (+1, -2 dB) |
| Transmitter Battery Type | Rechargeable Li-Ion or 1.5 V AA batteries |
| Transmitter Dimensions | 37.1 × 176 mm (1.46 × 6.93 in.), D × L |
| Transmitter Weight | 144 g |
| Transmitter Housing | Aluminum |
