SHURE BLX288/SM58 DUAL CHANNEL HANDHELD WIRELESS SYSTEM

SHURE BLX288/SM58 DUAL CHANNEL HANDHELD WIRELESS SYSTEM

SKU: BLX288S58

$1,249.00
$1,429.00 $1,249.00
Sale Sold out
Taxes included.
Frequency Range

Description

The BLX Vocal Combo Wireless System from Shure joins world-class design and construction with simple and easy setup and operation, featuring dual wireless channels, QuickScan Read moreGo to the glossary">frequency selection and the industry-standard SM58® vocal microphone capsules for warm, clear vocal reproduction. Legendary sound and performance, right out of the box.

Included: BLX88 dual channel wireless receiver; 2 BLX2 handheld transmitters with integrated SM58® Read moreGo to the glossary">cardioid Read moreGo to the glossary">dynamic microphone capsules; 2 microphone clips; PS23 power supply , WA621 color id caps and URT2 rack tray (optional accessories).

Features

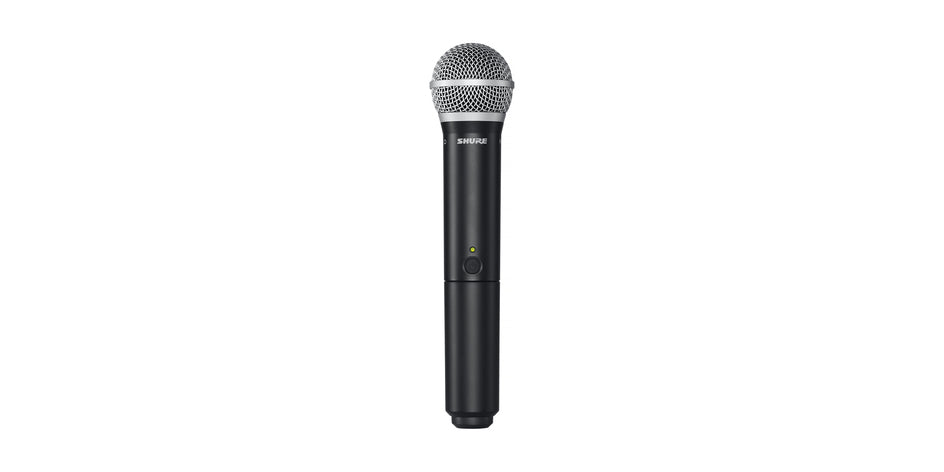

BLX2 Handheld Transmitter:

  • Integrated microphone capsule design, featuring trusted PG58, SM58® or Beta 58A options
  • -10 dB gain attenuation
  • Lightweight, rugged construction
  • Color ID caps (available separately)

BLX88 Dual Channel Receiver

Browse more online at our wireless microphones page.

Specification

BLX2/SM58

Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58, the BLX2 transmits wireless audio with professional clarity and reliability. For use only with BLX Wireless systems.

Specifications

  • Audio Input Level
    gain 0dB -20 dBV maximum
    gain -10dB -10 dBV maximum
  • Gain Adjustment Range
    10 dB
  • RF Transmitter Output
    10 mW, typical
    varies by region
  • Dimensions
    224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.)
  • Weight
    218 g (7.7 oz.) (without batteries)
  • Housing
    Molded ABS
  • Power Requirements
    2 LR6 AA batteries, 1.5 V, alkaline
  • Battery Life
    up to 14 hours (alkaline)

BLX88 receiver

The BLX88 wireless receiver is a durable, dual channel receiver with simple set-up, intuitive controls and microprocessor controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best frequency, enabling simple set-up with up to 12 compatible systems per frequency band.

FEATURES

  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • XLR and ¼” output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

FURTHER TECHNICAL SPECS

  • Output Impedance
    XLR connector: 200 Ω
    6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level
    Ref. ±33 kHz deviation with 1 kHz tone
    XLR connector: –27 dBV (into 100 kΩ load)
    6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
  • RF Sensitivity
    -105 dBm for 12 dB SINAD, typical
  • Image Rejection
    >50  dB, typical
  • Dimensions
    40 mm X 388 mm X 116 mm (H x W x D)
  • Weight
    429 g (15.1 oz.)
  • Housing
    Molded ABS
  • Power Requirements
    12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
View full details
