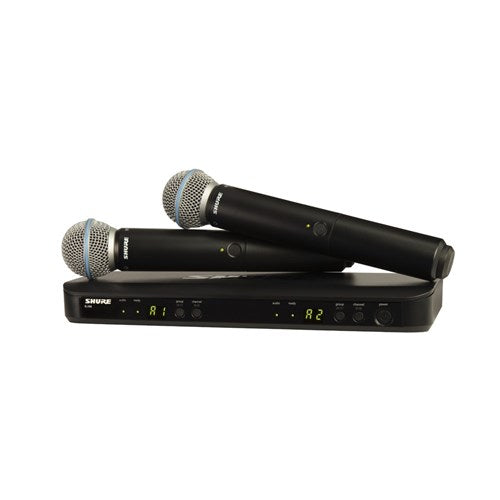

SHURE BLX288/B58 DUAL CHANNEL HANDHELD WIRELESS SYSTEM

SHURE BLX288/B58 DUAL CHANNEL HANDHELD WIRELESS SYSTEM

SKU: BLX288B58

$1,440.00
$1,659.00 $1,440.00
Sale Sold out
Taxes included.
Frequency Range

Description

The BLX Vocal Combo Wireless System from Shure joins world-class design and construction with simple and easy setup and operation, featuring dual wireless channels, QuickScan Read moreGo to the glossary">frequency selection and the industry-standard SM58® vocal microphone capsules for warm, clear vocal reproduction. Legendary sound and performance, right out of the box.

Included: BLX88 dual channel wireless receiver; 2 BLX2 handheld transmitters with integrated Beta58 Read moreGo to the glossary">dynamic microphonecapsules; 2 microphone clips; PS23 power supply , WA621 color id caps and URT2 rack tray (optional accessories).

Features

BLX2 Handheld Transmitter:

  • Integrated microphone capsule design, featuring trusted  Beta 58A
  • -10 dB gain attenuation
  • Lightweight, rugged construction
  • Color ID caps (available separately)

BLX88 Dual Channel Receiver

Specification

BLX88 receiver

The BLX88 wireless receiver is a durable, dual channel receiver with simple set-up, intuitive controls and microprocessor controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best frequency, enabling simple set-up with up to 12 compatible systems per frequency band.

FEATURES

  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • XLR and ¼” output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

FURTHER TECHNICAL SPECS

  • Output Impedance
    XLR connector: 200 Ω
    6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level
    Ref. ±33 kHz deviation with 1 kHz tone
    XLR connector: –27 dBV (into 100 kΩ load)
    6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
  • RF Sensitivity
    -105 dBm for 12 dB SINAD, typical
  • Image Rejection
    >50  dB, typical
  • Dimensions
    40 mm X 388 mm X 116 mm (H x W x D)
  • Weight
    429 g (15.1 oz.)
  • Housing
    Molded ABS
  • Power Requirements
    12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
