SHURE BLX24R/PG58 HANDHELD WIRELESS SYSTEM
SHURE BLX24R/PG58 HANDHELD WIRELESS SYSTEM
SKU: SKU: BLX24RP58
Low Stock – Call for Availability
Description
Description

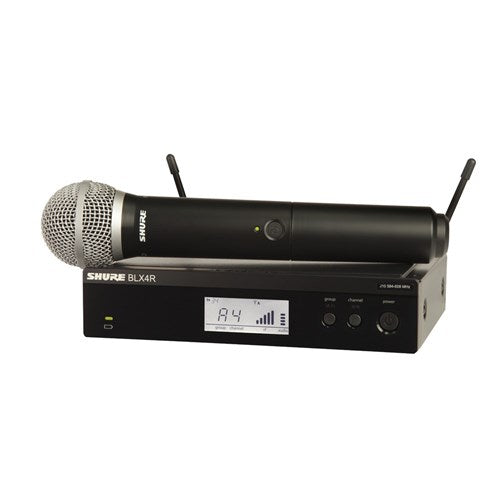

The BLX24R/PG58 Handheld Wireless System is part of the BLX wireless systems family.
Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.
Includes BLX4R rack mount receiver, BLX2/PG58 handheld transmitter, microphone clip, single and dual rackmount kit, two 1/4 wave antennas, zipper bag, power supply, 2 AA batteries, and user guide.

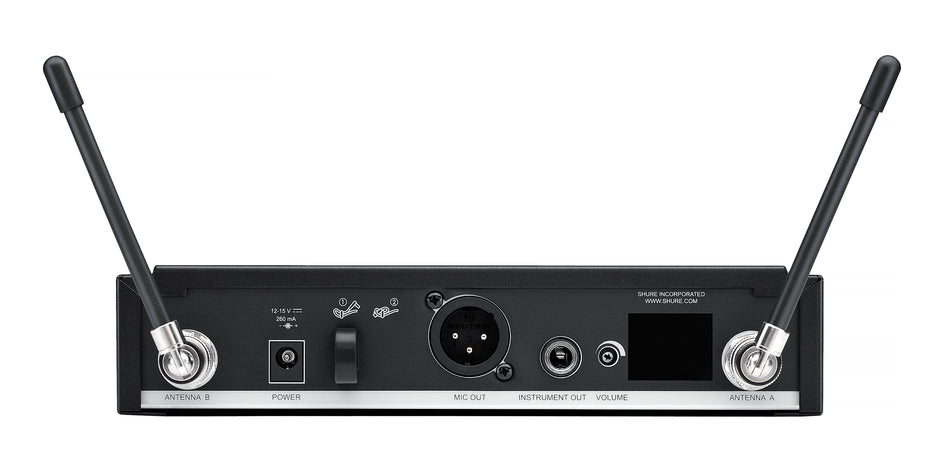

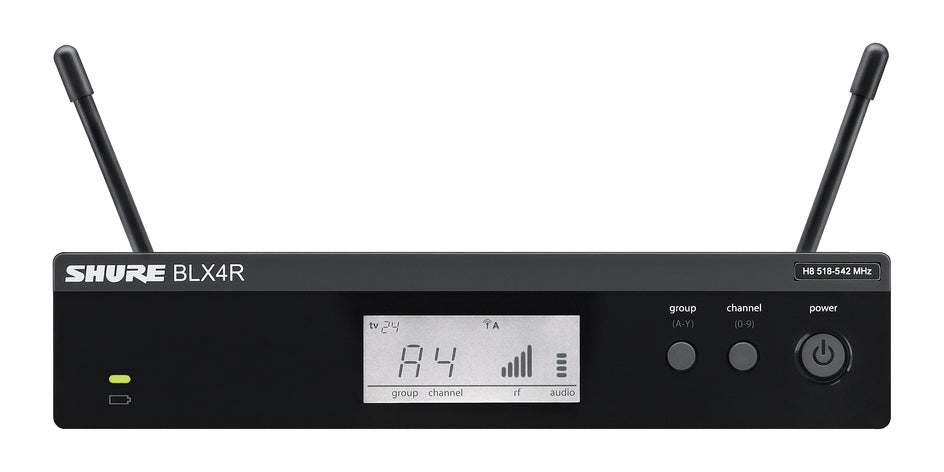

BLX4R receiver
Rack-mountable and featuring rugged metal construction, the BLX4R offers simple setup and intuitive controls. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Removable antennas allow for quick antenna distribution. For use with BLX® Wireless Systems.
Rack mount kit included.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
FEATURES
- XLR and ¼" output connectors
- Microprocessor-controlled internal antenna diversity
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload / clipping)
- Adjustable output level
- LCD display with detailed RF and audio metering
BLX2/PG58 handheld transmitter
Compatible with Shure microphones trusted by musicians for decades, including the legendary SM58, the BLX2 transmits wireless audio with professional clarity and reliability. For use only with BLX Wireless systems.
Features
- Integrated microphone capsule design, featuring trusted PG58
- -10 dB gain attenuation
- Lightweight, rugged construction
- Color ID caps (available separately)
Specification
Specification
BLX2/PG58 transmitter
- Audio Input Level
gain 0dB -20 dBV maximum
gain -10dB -10 dBV maximum - Gain Adjustment Range
10 dB - RF Transmitter Output
10 mW, typical
varies by region - Dimensions
224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.) - Weight
218 g (7.7 oz.) (without batteries) - Housing
Molded ABS - Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline - Battery Life
up to 14 hours (alkaline)
BLX4R receiver
- Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50Ω - Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: –20.5 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load) - RF Sensitivity
-105 dBm for 12 dB SINAD, typical - Image Rejection
>50 dB, typical - Dimensions
50 mm X 198 mm X 163 mm H x W x D - Weight without antennas
998 g (2.2 lb.) - Housing
Molded ABS, steel - Power Requirements
12–15 V DC @ 260 mA, supplied by external power supply (tip positive)
