SHURE BLX24/BETA58 HANDHELD WIRELESS SYSTEM

SHURE BLX24/BETA58 HANDHELD WIRELESS SYSTEM

SKU: BLX24B58

$719.00
$839.00 $719.00
Sale Sold out
Taxes included.
Frequency Range

Description

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

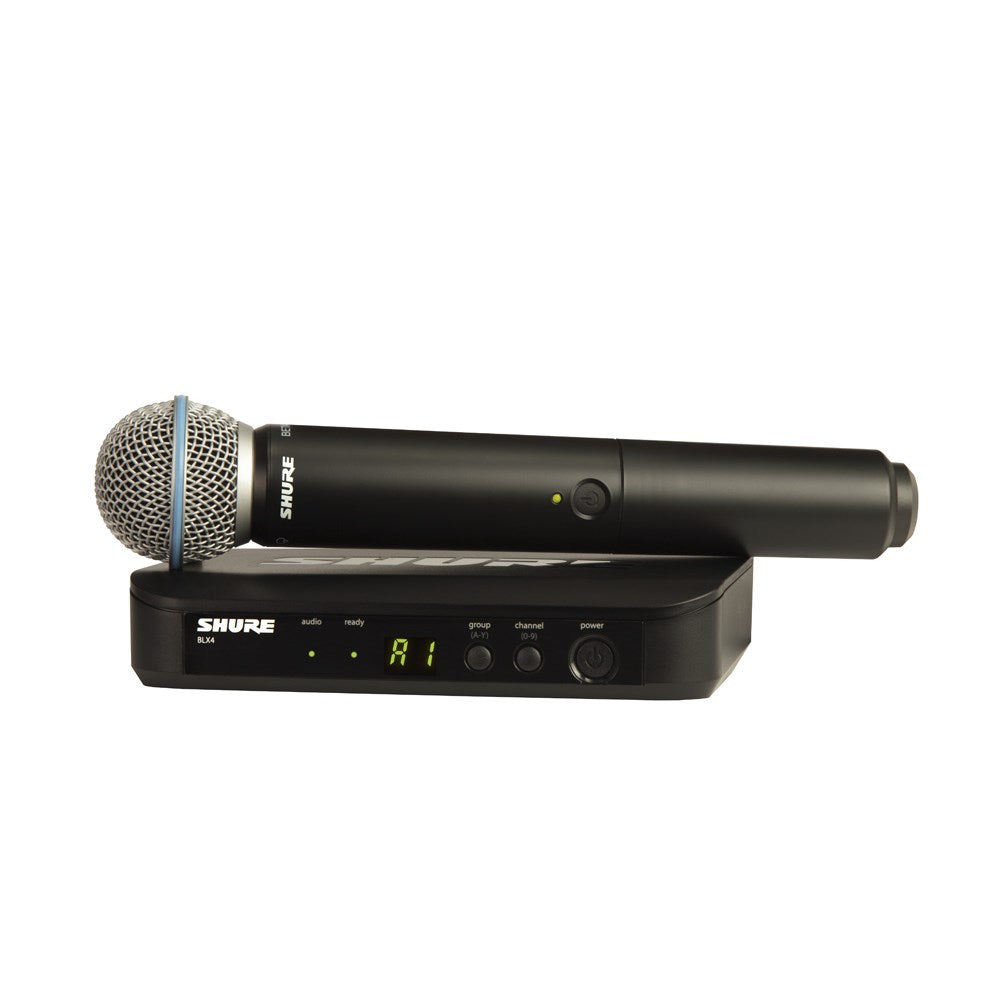

System includes:

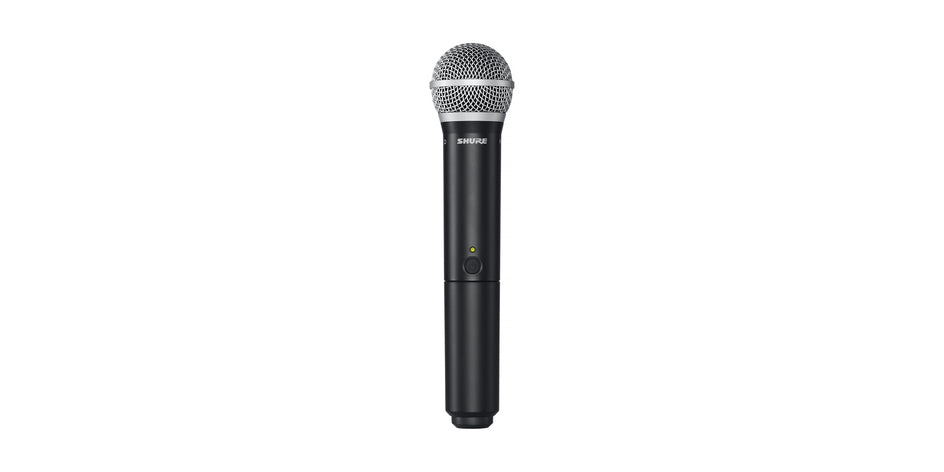

BLX2 Handheld transmitter with BETA58 microphone cartridge.

BLX4 Single channel wireless receiver with microprocessor-controlled internal antenna diversity.

FEATURES
  • Frequency Range: 614MHz-638MHz
  • Up to 14 hours battery life
  • Integrated microphone capsule design, featuring PG58, SM58®, or Beta 58A® options
  • Lightweight, rugged construction
  • Color ID caps (available separately)
  • The durable BLX4 features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.
  • XLR and ¼ inch output connectors
  • Two-color audio status indicator LED - Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)

Specification

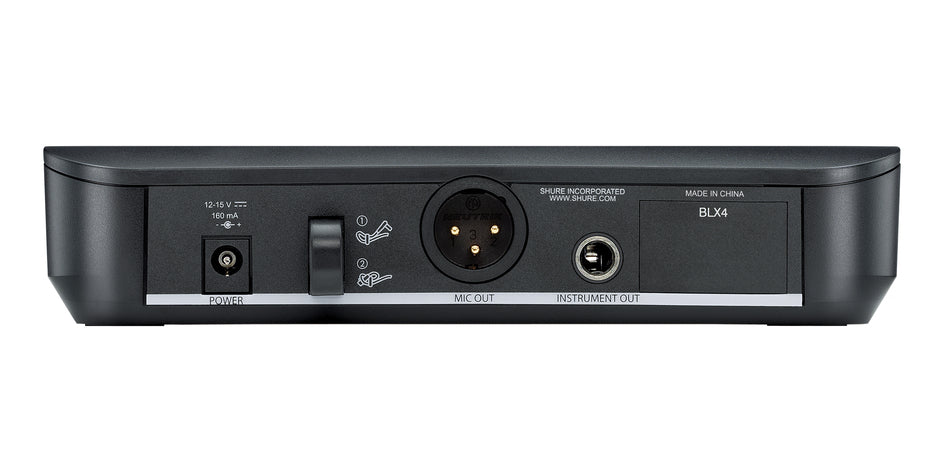

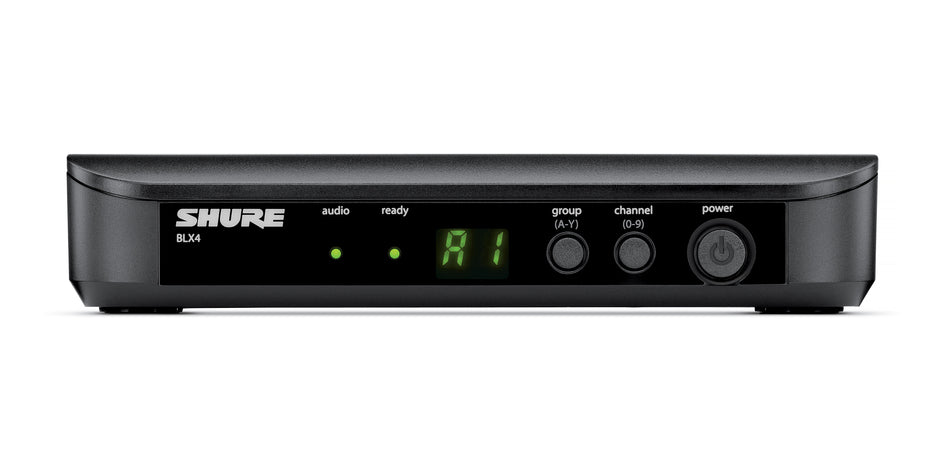

BLX4 receiver

  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • XLR and ¼” output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)
  • Output Impedance
    XLR connector: 200 Ω
    6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level
    Ref. ±33 kHz deviation with 1 kHz tone
    XLR connector: –27 dBV (into 100 kΩ load)
    6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
  • RF Sensitivity
    -105 dBm for 12 dB SINAD, typical
  • Image Rejection
    >50  dB, typical
  • Dimensions
    40 mm X 188 mm X 103 mm (H x W x D)
  • Weight
    241 g (8.5 oz.)
  • Housing
    Molded ABS
  • Power Requirements
    12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
