SHURE BLX188/CVL WIRELESS DUAL LAPEL MICROPHONE SYSTEM

SHURE BLX188/CVL WIRELESS DUAL LAPEL MICROPHONE SYSTEM

SKU: BLX188CVL

$1,190.00
$1,359.00 $1,190.00
Sale Sold out
GST included.
Frequency Range

Low Stock – Call for Availability

Description

Shure BLX Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

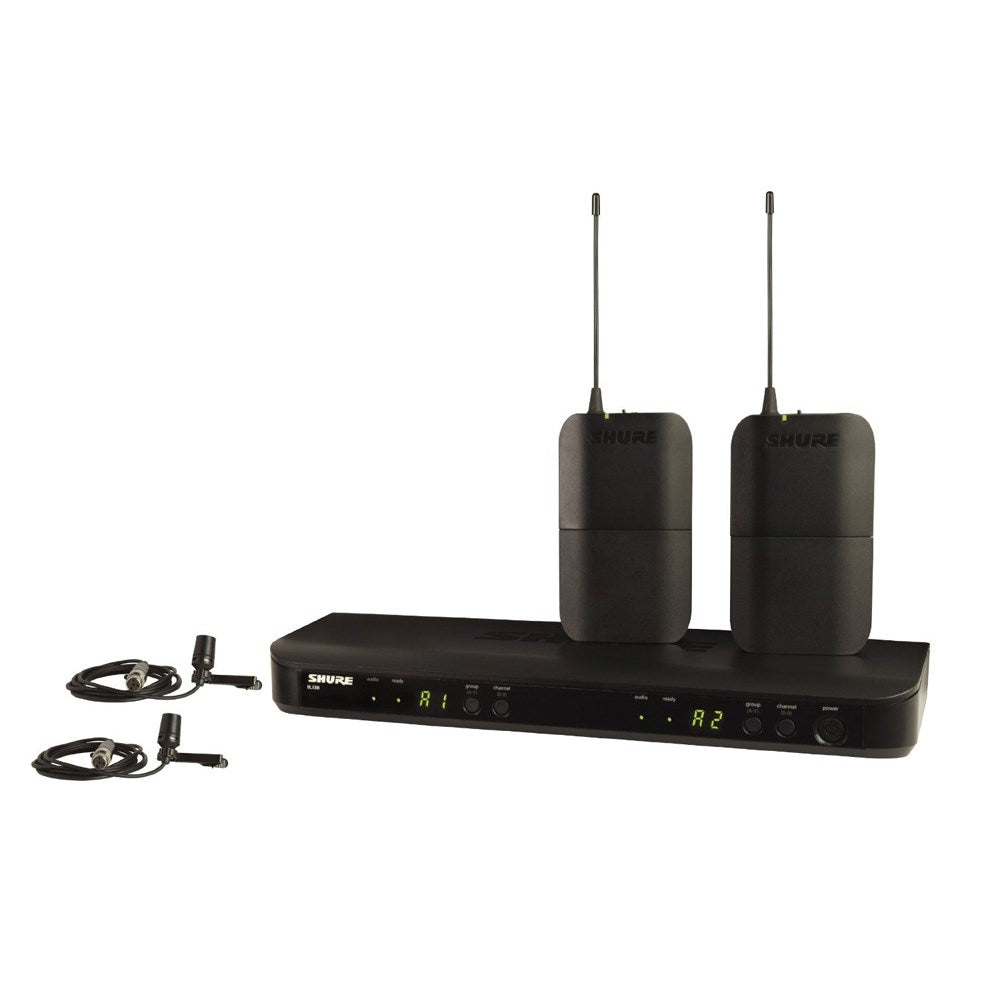

System includes:
  • Dual CVL Centraverse condenser lavalier microphone for use with Shure bodypack Wireless Systems.
  • BLX1 transmitters with up to 14 hours of continuous use with 2 AA batteries. 300 ft (100 m) transmission radius.
  • BLX88 Dual channel receiver with microprocessor-controlled internal antenna diversity.
FEATURES

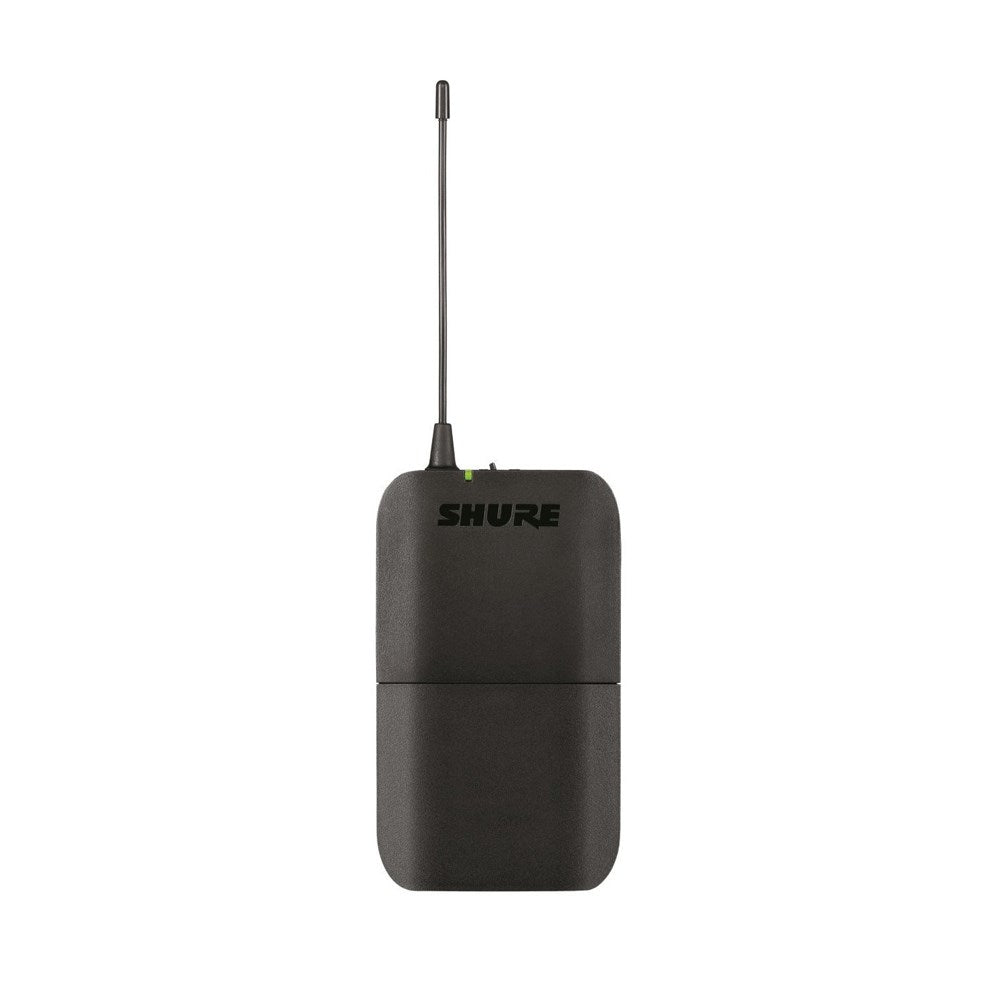

BLX1
  • Frequency Range: 614MHz-638MHz
  • Quick and easy receiver frequency matching
  • TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables
  • Easily accessible On / Off switch
  • The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference.
BLX4
  • XLR and ¼ inch output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED - Green: Normal audio levels, Red: Excessive audio levels (overload / clipping)
CVL Centraverse Condensor Lavalier Microphone
  • Miniature clip-on lavalier microphone for low visibility
  • Permanently charged electret condenser element for clear vocal reproduction
  • Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality
  • Included tie clip allows for hands-free use, perfect for presenters
  • Included windscreen reduces plosives, wind and breath sounds
  • Tailored frequency response optimized for speaking and presentations
  • TA4F (TQG) connector seamlessly integrates with Shure wireless bodypack systems
  • Legendary Shure precision engineering for durability and performance

Specification

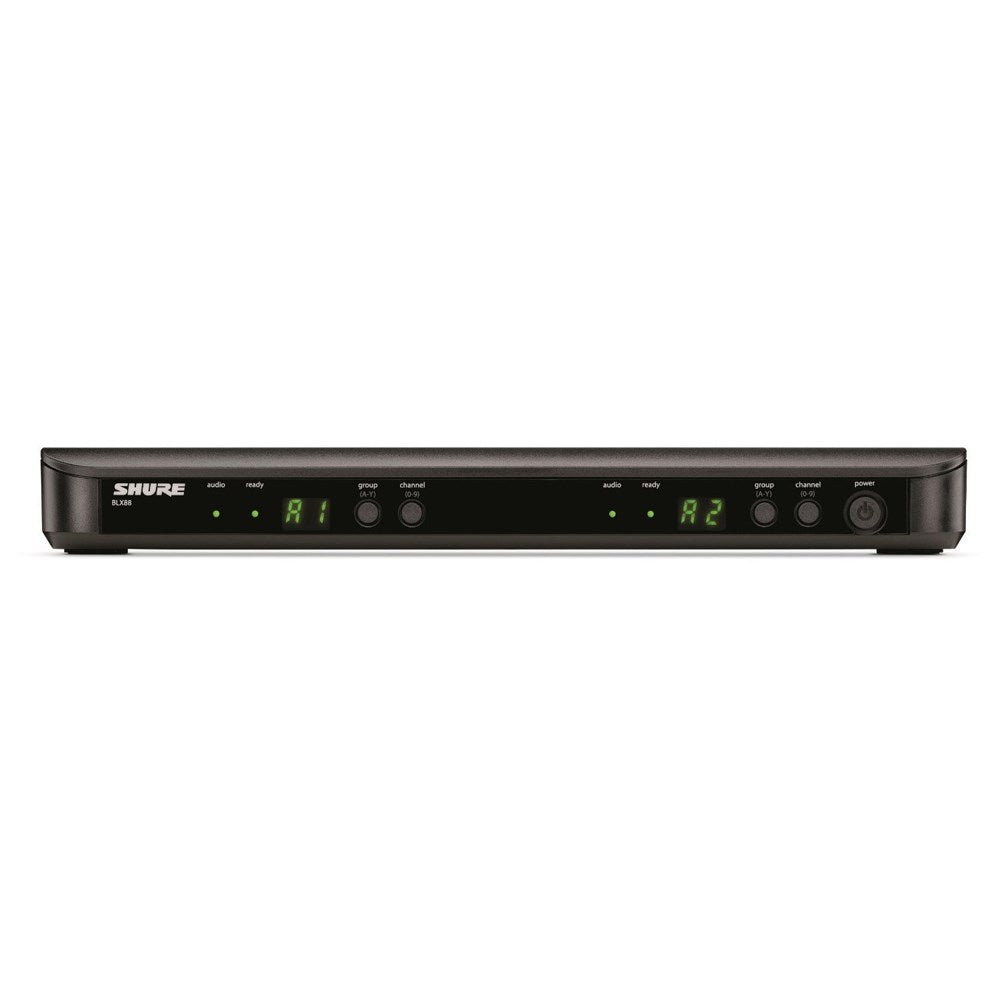

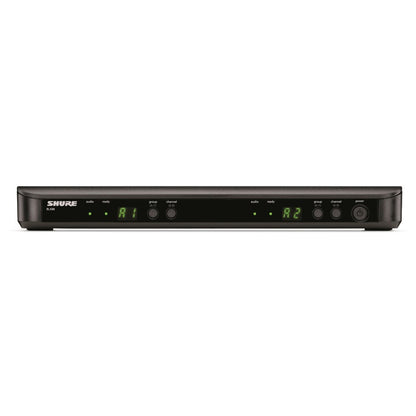

BLX88 receiver

The BLX88 wireless receiver is a durable, dual channel receiver with simple set-up, intuitive controls and microprocessor controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best frequency, enabling simple set-up with up to 12 compatible systems per frequency band.

FEATURES

  • One-touch QuickScan frequency selection quickly locates the best open frequency (in case of interference)
  • Up to 12 compatible systems per frequency band (region-dependent)
  • XLR and ¼” output connectors
  • Microprocessor-controlled internal antenna diversity
  • Two-color audio status indicator LED
    • Green: Normal audio levels
    • Red: Excessive audio levels (overload/clipping)

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

FURTHER TECHNICAL SPECS

  • Output Impedance
    XLR connector: 200 Ω
    6.35 mm (1/4") connector: 50 Ω
  • Audio Output Level
    Ref. ±33 kHz deviation with 1 kHz tone
    XLR connector: –27 dBV (into 100 kΩ load)
    6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
  • RF Sensitivity
    -105 dBm for 12 dB SINAD, typical
  • Image Rejection
    >50  dB, typical
  • Dimensions
    40 mm X 388 mm X 116 mm (H x W x D)
  • Weight
    429 g (15.1 oz.)
  • Housing
    Molded ABS
  • Power Requirements
    12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
