RCF

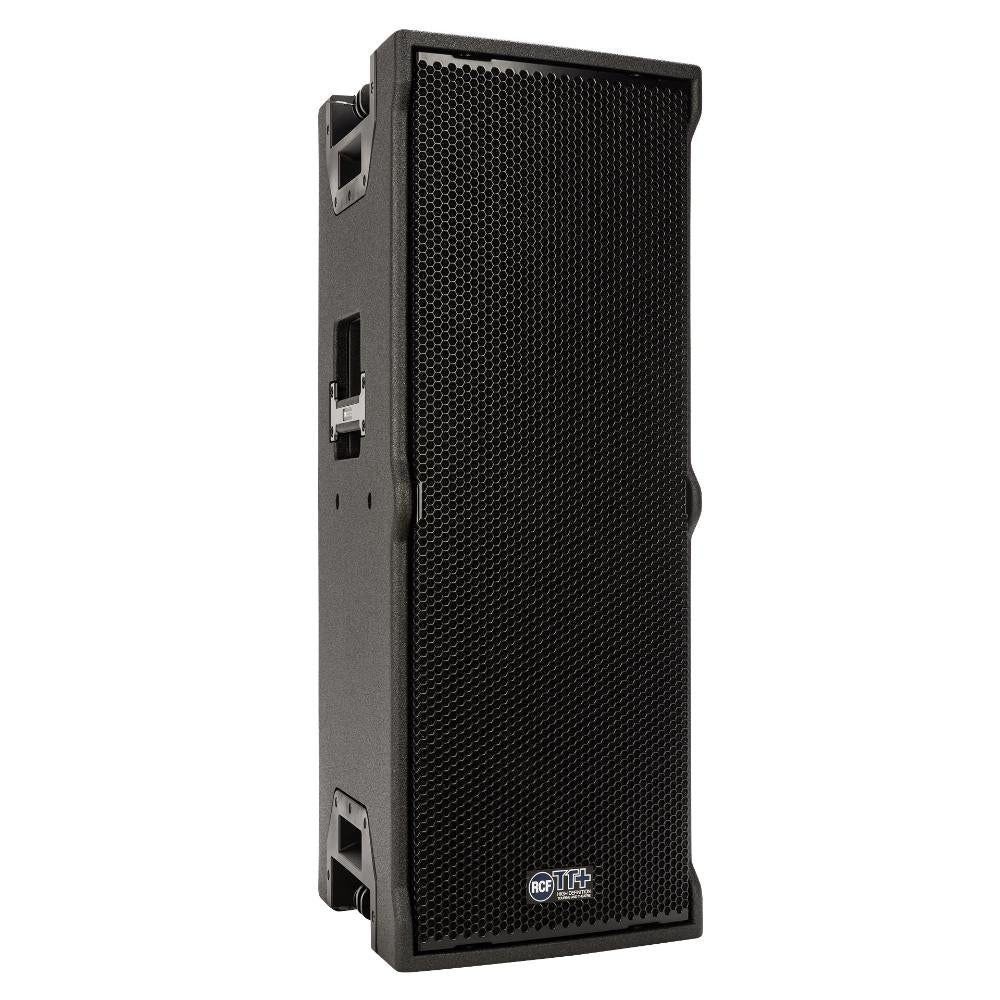

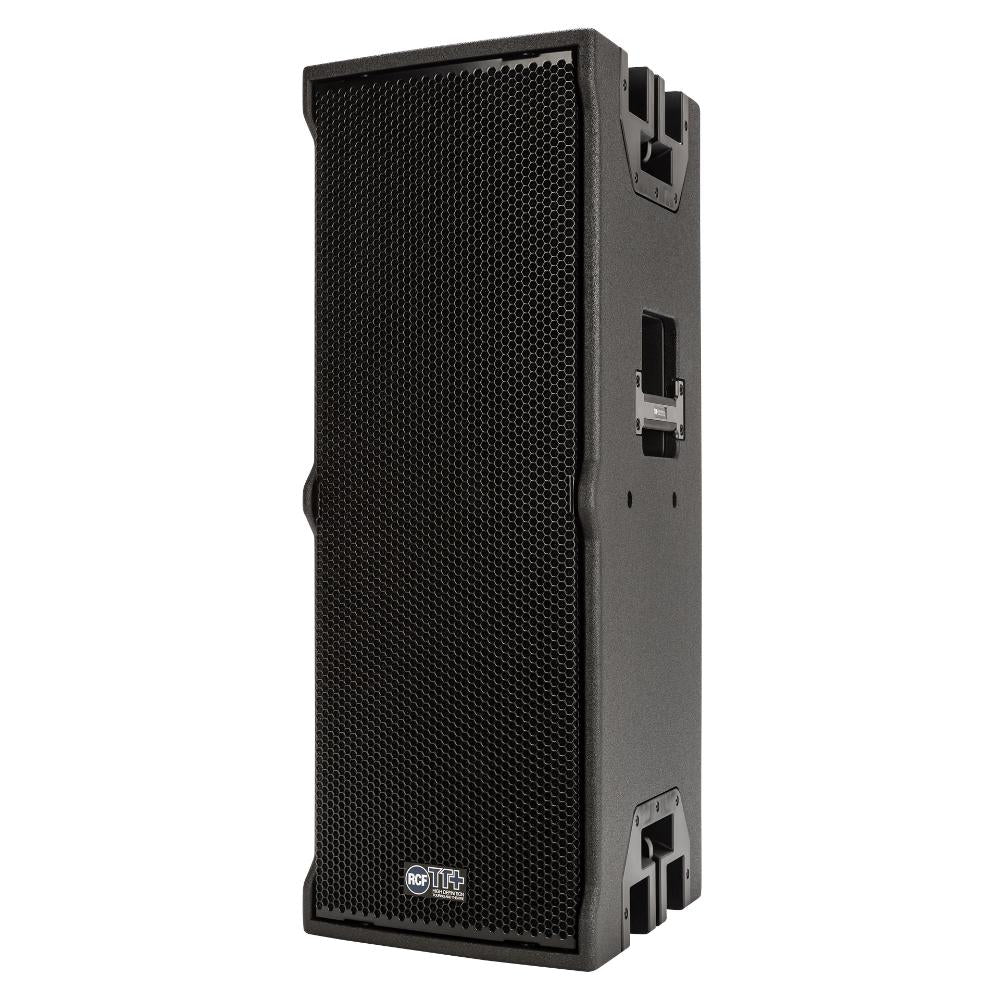

RCF TTL 4-A ACTIVE TWO-WAY ARRAY SPEAKER

RCF TTL 4-A ACTIVE TWO-WAY ARRAY SPEAKER

SKU: SKU: SP-TTL4A-RCF

Regular price $8,636.00
Regular price $10,795.00 Sale price $8,636.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Unavailable

Description

RCF TTL 4-A – The Solution Speakers

Top-quality sound for highly demanding events indoors or outdoors in small to medium-sized areas. The TT 4 series flexibility fills the gaps between point source and line array speakers, providing the audio engineer with augmented coverage adaptability. This approach combines all the advantages of TT+ technology, such as controlled dispersion, outstanding clarity and extreme power with three coverage options, multiple rigging accessories, remote control and recallable presets. A groundbreaking solution for a vast range of applications.

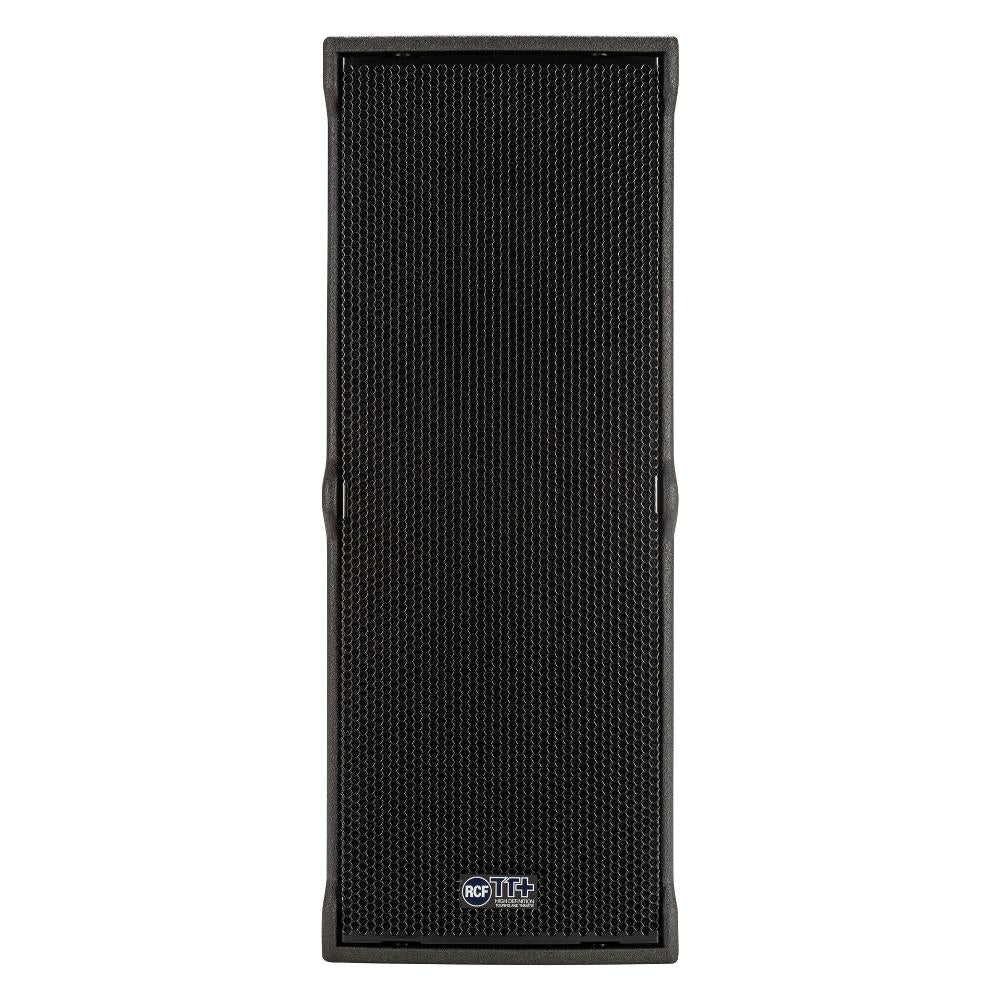

100° × 25° Waveguide with Coherent Directivity

This special waveguide design allows the deployment of multiple TTL 4-A for excellent control of directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.

Networked Control and Much More

RDNet is an advanced platform for integrated monitoring and control of sound systems – from small live and installed setups to massive arena systems. Based on a robust networked architecture, RDNet combines system control, line array design, and comprehensive audio measurements into a single powerful software package.

Engineers and technicians can intuitively manage every device on the network, from individual components to multiple groups. The platform provides full DSP control of compatible devices, with flexible configuration tools for perfectly tuning the system response at maximum speed. Users have real-time access and oversight of all key settings from a centralized interface.

New Perspective on Linearity

RCF speakers are designed using a proprietary and advanced digital FIR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Specification

Specifications

Acoustical Specifications
Frequency Response: 45 Hz – 20,000 Hz
Max SPL @ 1m: 135 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 25°

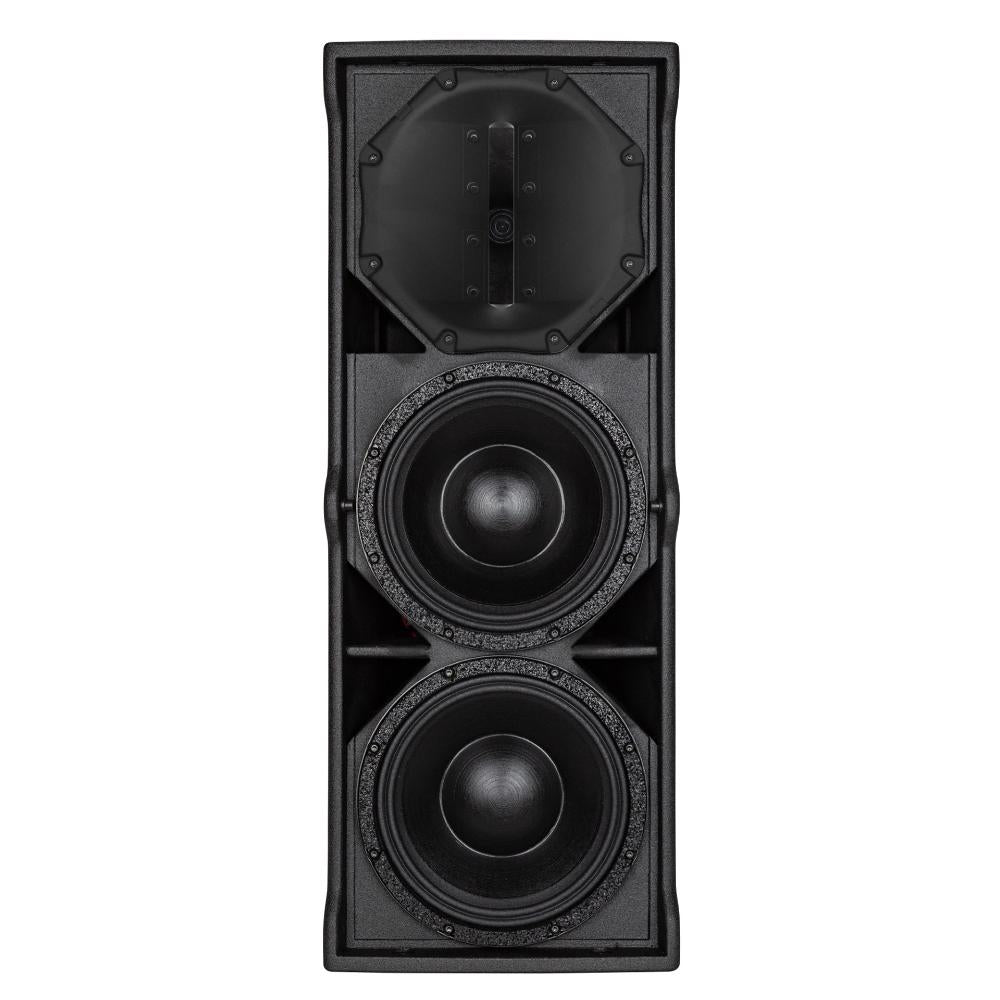

Transducers
Compression Driver: 1 × 1.5" neo, 4.0" v.c.
Woofer: 2 × 10" neo, 3.0" v.c.

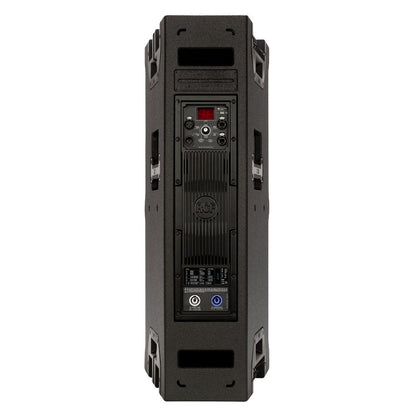

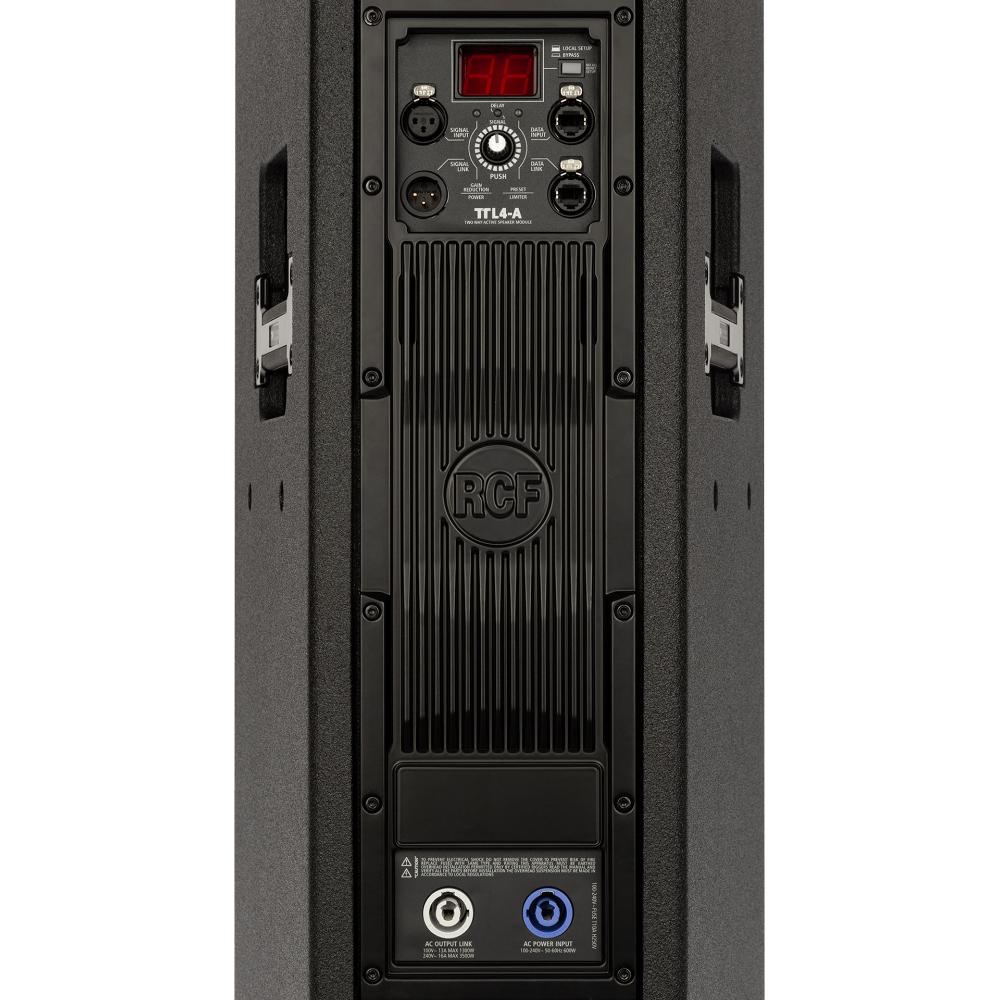

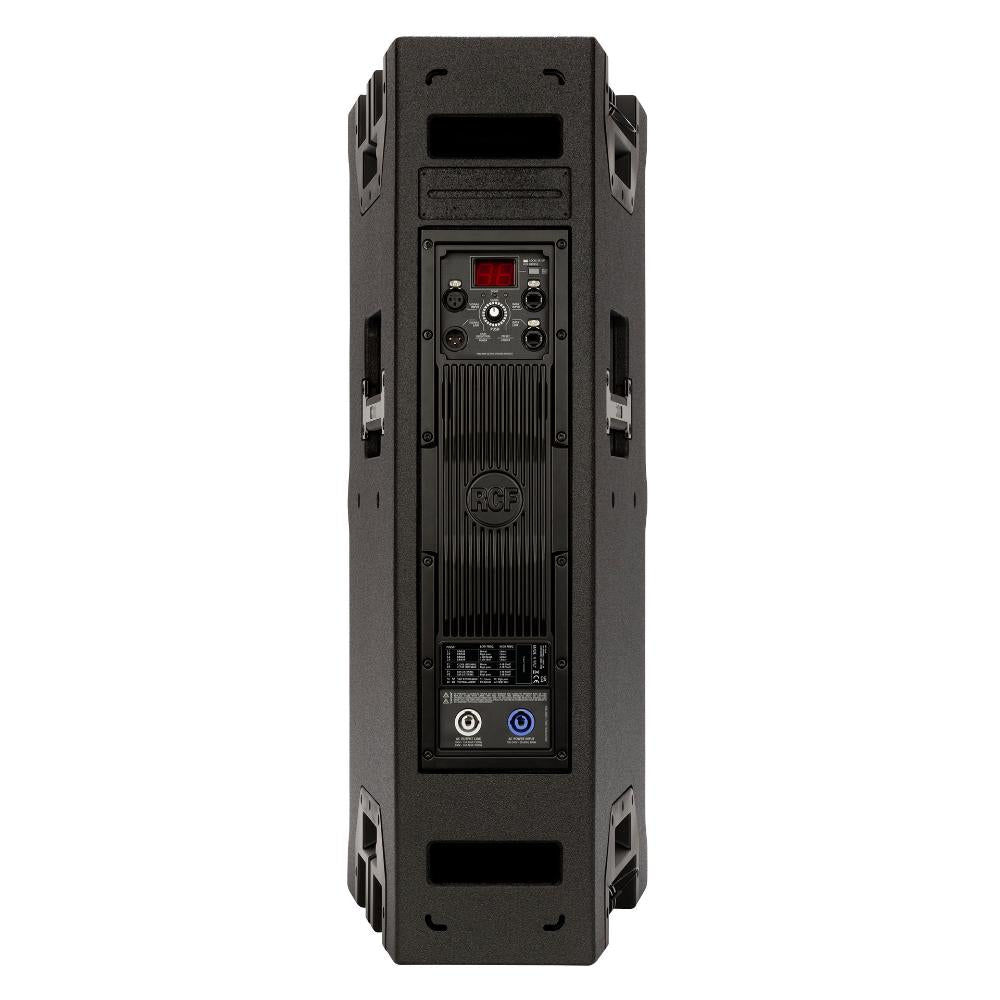

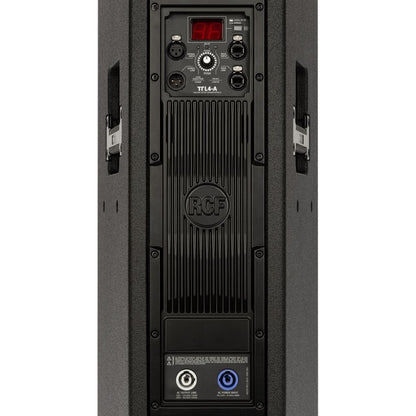

Input/Output
Input Signal: bal/unbal
Input Connectors: XLR, RDNet Ethercon
Output Connectors: XLR, RDNet Ethercon
Input Sensitivity: +4 dBu
Processor
Crossover Frequencies: 900 Hz
Protections: Thermal, RMS
Limiter: Fast Limiter
Controls: Selectable preset, volume, delay
RDNet: Onboard
Power
Total Power: 3200 W Peak, 1600 W RMS
High Frequencies: 1200 W Peak, 600 W RMS
Low Frequencies: 2000 W Peak, 1000 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Compliance & Physical
Safety Agency: CE compliant
Cabinet Material: Baltic birch plywood

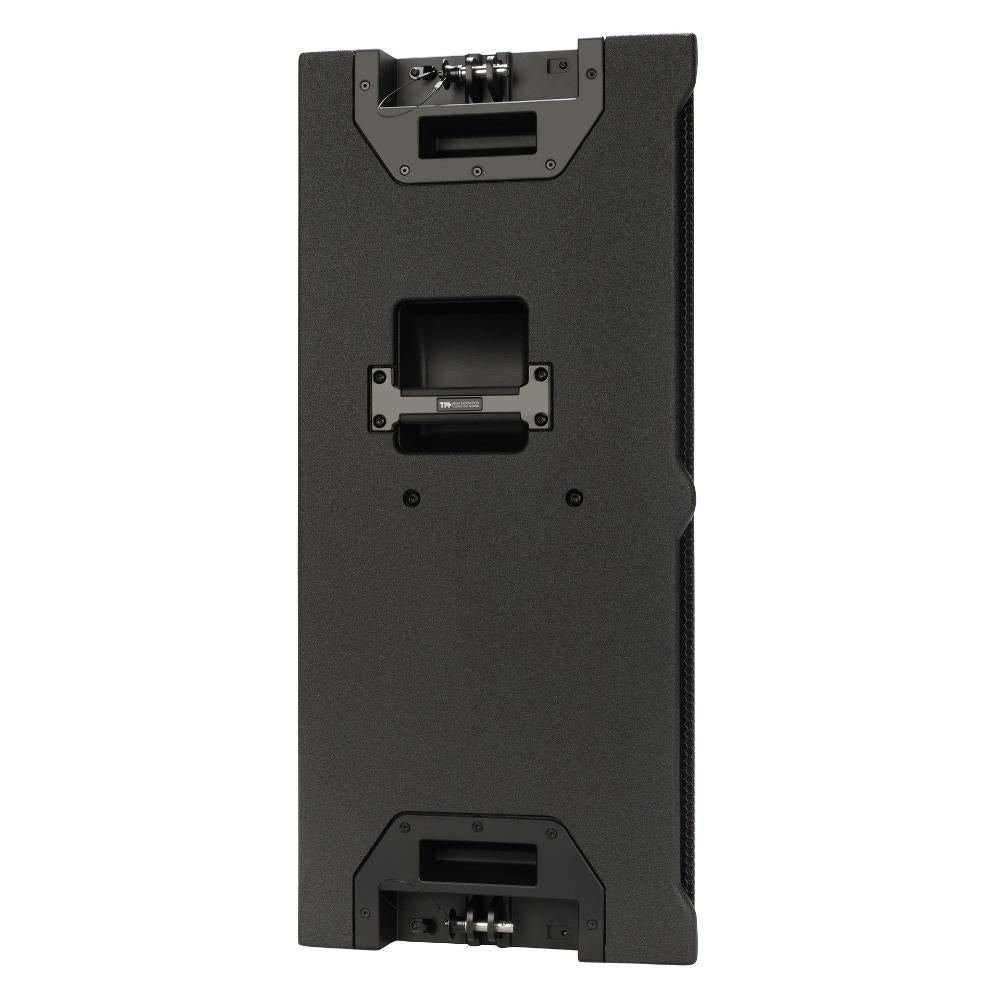

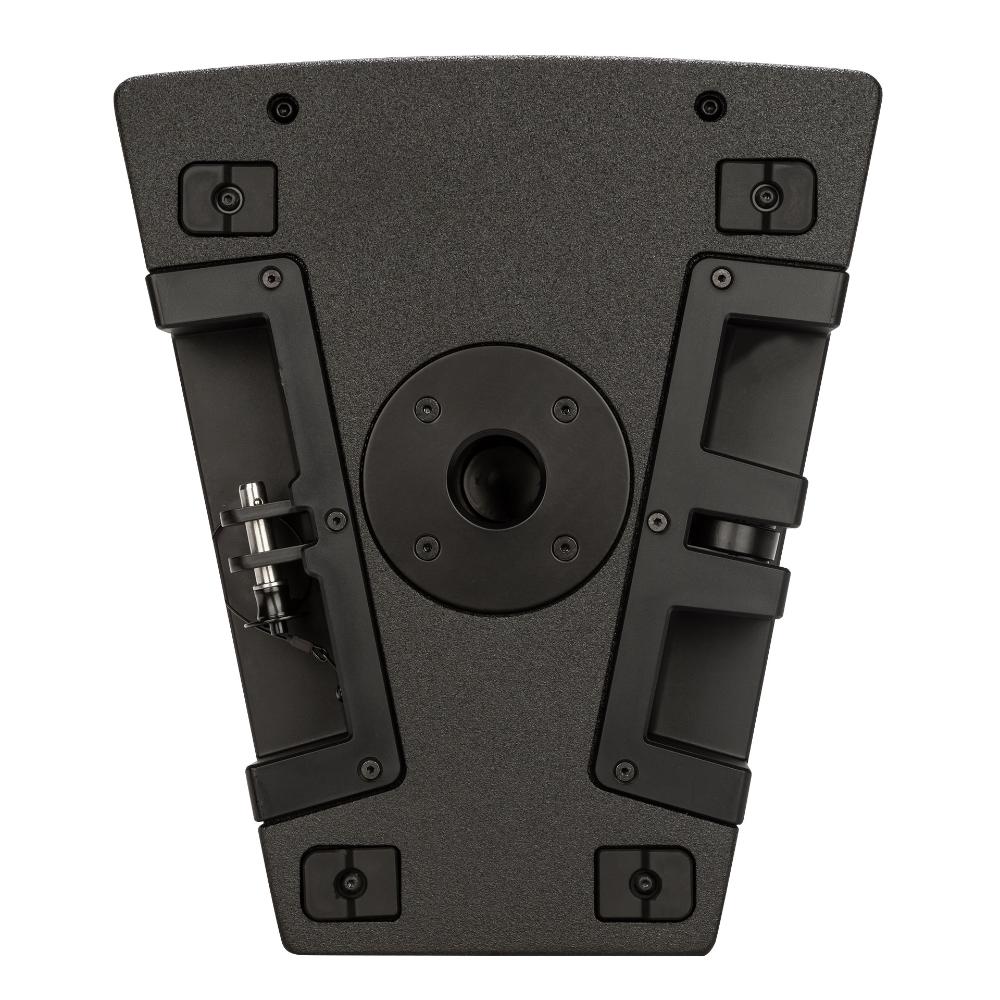

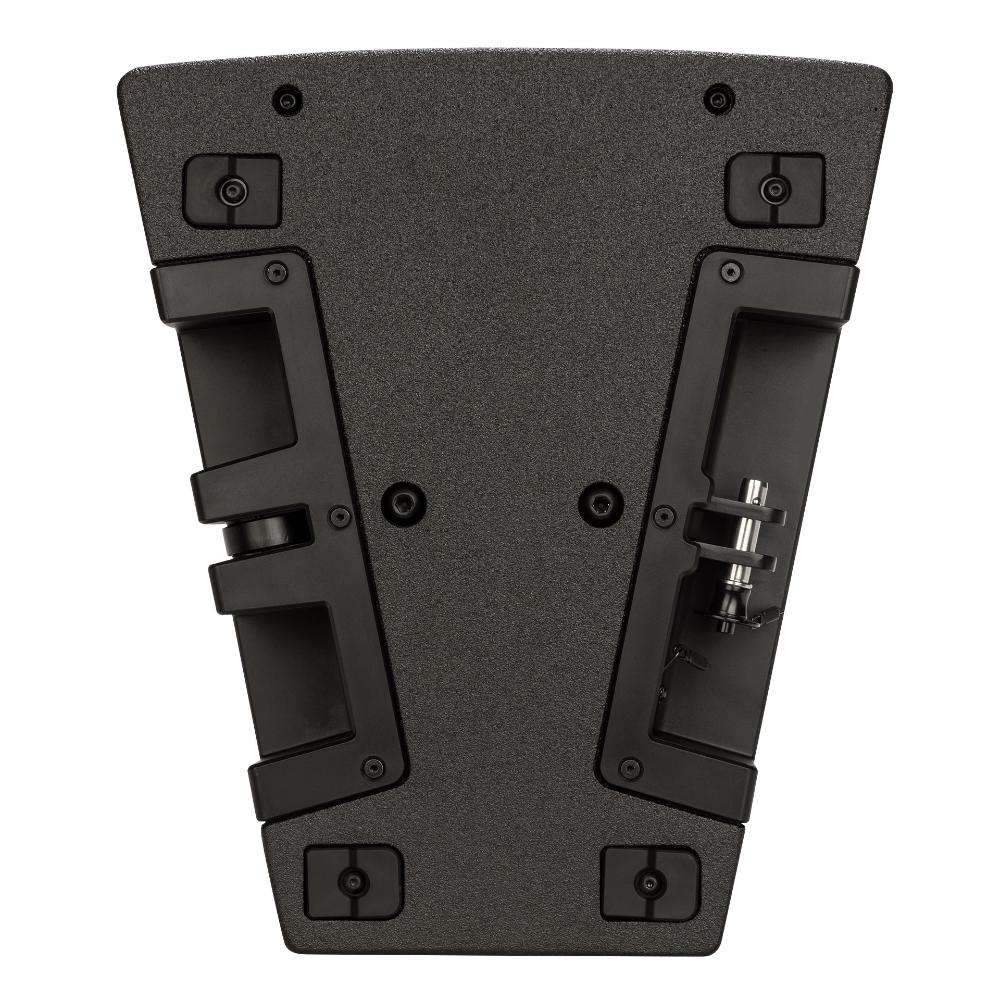

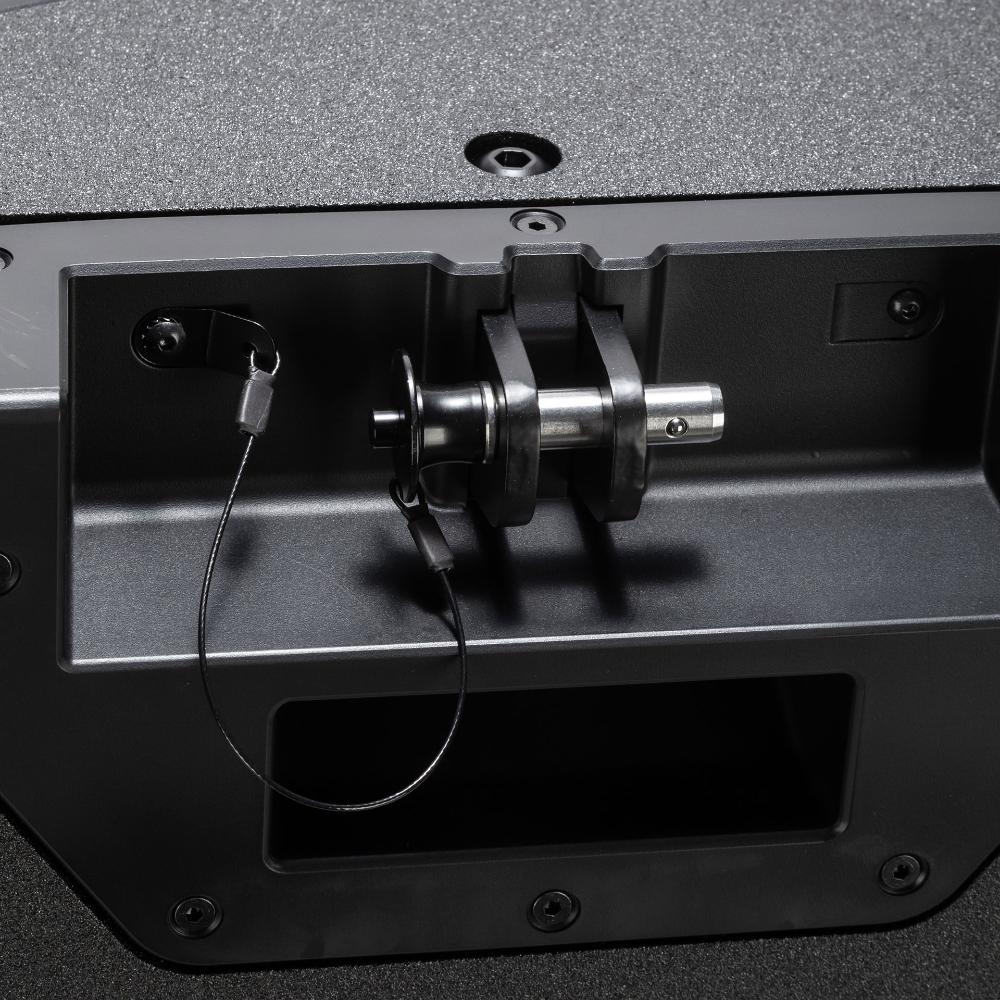

Hardware: Array fittings, 2×M10 on top, 2×M8

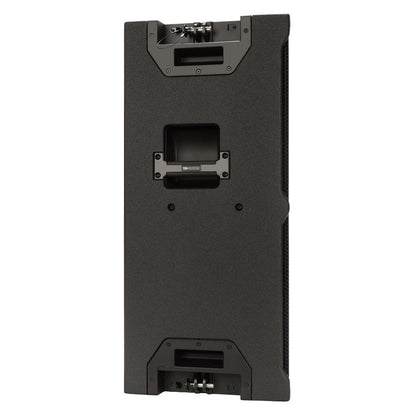

Handles: 2 side, 2 rear
Grille: Steel
Color: Black
Size & Weight
Height: 825 mm / 32.48 in
Width: 316 mm / 12.44 in
Depth: 369 mm / 14.53 in
Weight: 30.4 kg / 67.02 lbs
Shipping
Package Height: 410 mm / 16.14 in
Package Width: 865 mm / 34.06 in
Package Depth: 365 mm / 14.37 in
Package Weight: 33.5 kg / 73.85 lbs
