RCF TT 22-A II ACTIVE HIGH OUTPUT TWO-WAY SPEAKER

RCF TT 22-A II ACTIVE HIGH OUTPUT TWO-WAY SPEAKER

SKU: TT22AMKII

$4,199.00
$7,450.00 $4,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low Stock

Description

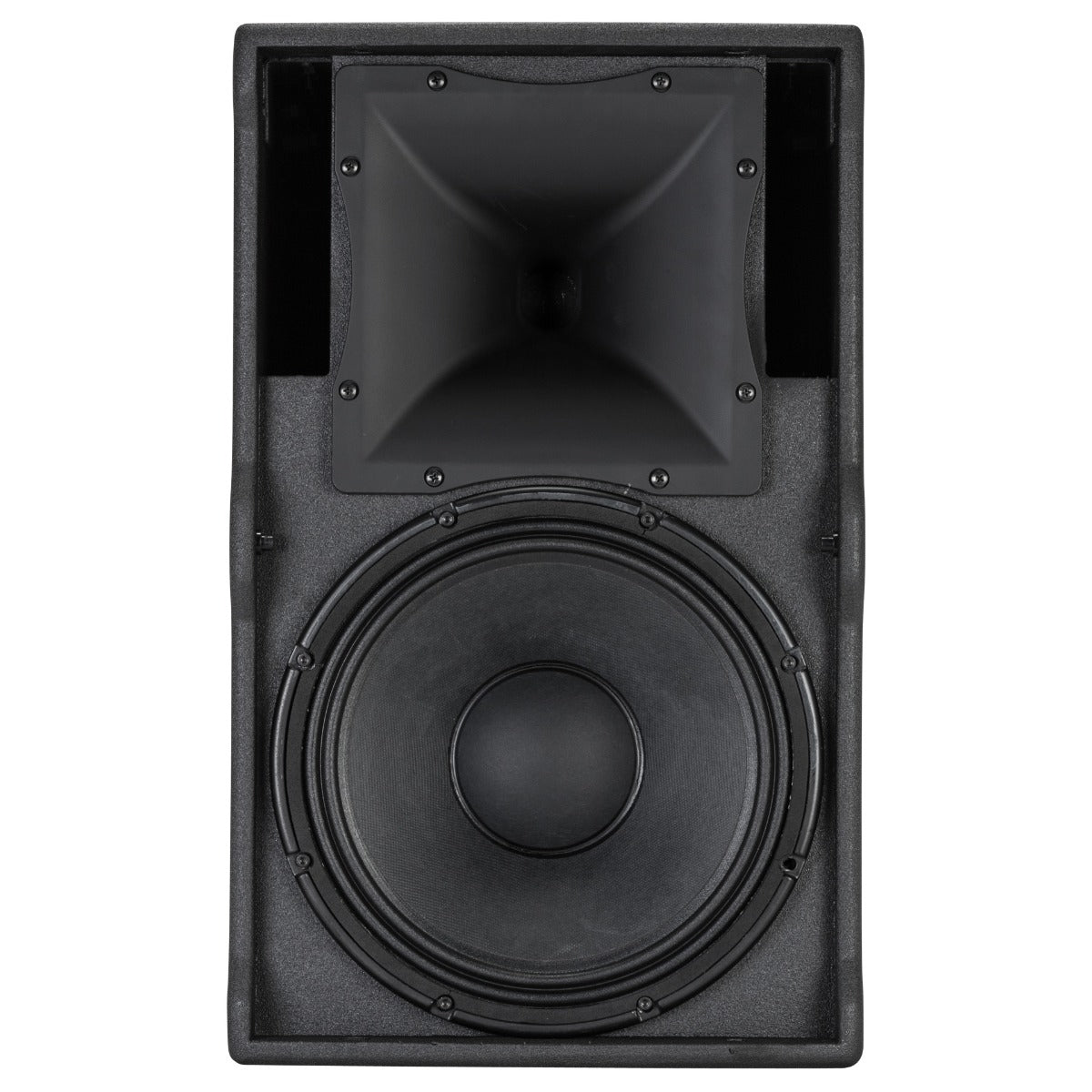

TT22-A II is a 2-way active system featuring a 12” neodymium woofer, 86 mm voice coil in a bass reflex configuration and a 1.4” exit, 75 mm voice coil neo compression driver. An extremely careful acoustic design plus the highest quality transducers and a powerful amplifier make the TT22-A II speaker system the perfect solution from live sound situations to playback and monitoring. The amplifier section features 1100 watt power – 800 watt low frequency, 300 watt high frequency. The cabinet is made of marine Baltic birch plywood and features high-resistance polyurea coating. The cabinets has 2 side handles, 6 x fly-track rigging points, quick lock pin receptacles and a steel pole mount.

  • 1100 W Class D Amplifier
  • 90 x 60 constant directivity coverage angle
  • 12" neo woofer, 3.5" mm voice coil
  • 1.5 " neo c. driver, 3.0" mm voice coil
  • DSP Processing
  • Onboard RDNet Control

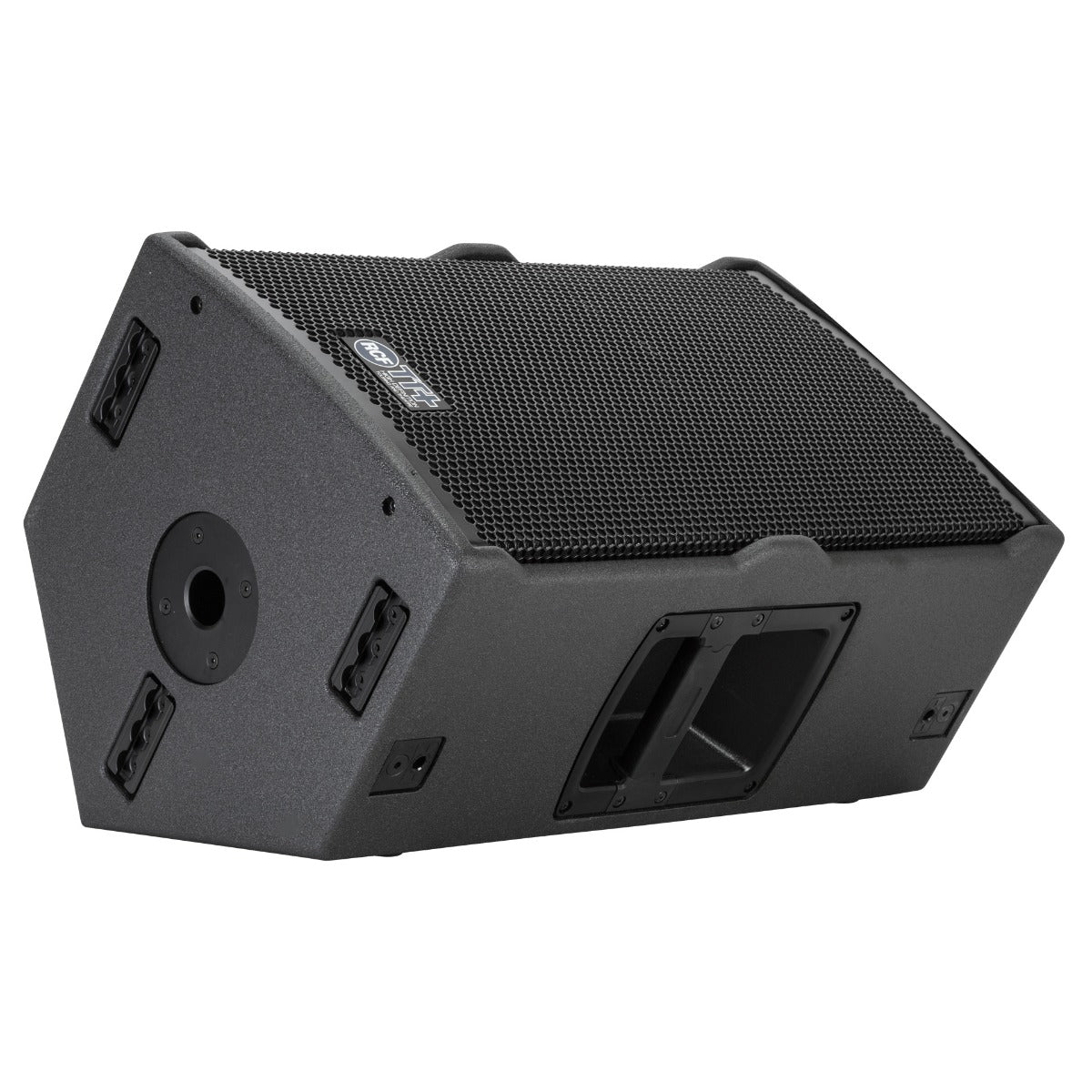

  • Multifunctional cabinet
  • Very high output

RCF RDNet

NETWORKED CONTROL AND MUCH MORE
RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

Read More

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Read More



Specification

SPECIFICATIONS

FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz

MAX SPL @ 1M: 131 dB

HORIZONTAL COVERAGE ANGLE: 90°

VERTICAL COVERAGE ANGLE: 60°

Transducers

COMPRESSION DRIVER: 1 x 1.5'' neo, 3.0'' v.c

WOOFER: 12'' neo, 3.5'' v.c

Input/Output section

INPUT SIGNAL: bal/unbal

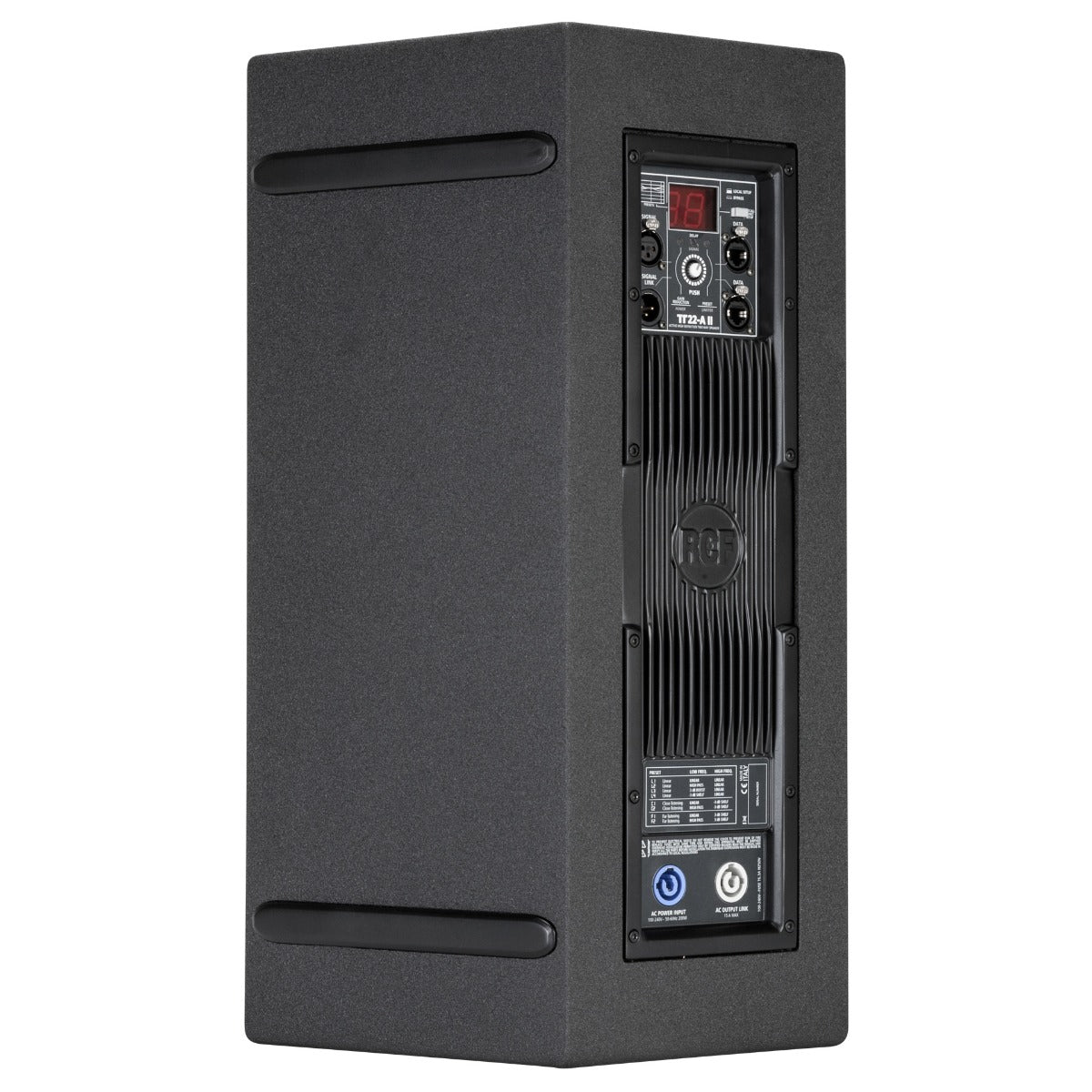

INPUT CONNECTORS: XLR, RDNet Ethercon

OUTPUT CONNECTORS: XLR, RDNet Ethercon

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

CROSSOVER FREQUENCIES: 800 Hz

PROTECTIONS: Thermal, HF

LIMITER: Fast Limiter

CONTROLS: proces., 8 sel. presets

RDNET: Yes

Power section

TOTAL POWER: 2200 W Peak, 1100 W RMS

HIGH FREQUENCIES: 600 W Peak, 300 W RMS

LOW FREQUENCIES: 1600 W Peak, 800 W RMS

COOLING: Convection

CONNECTIONS: Powercon IN/OUT

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

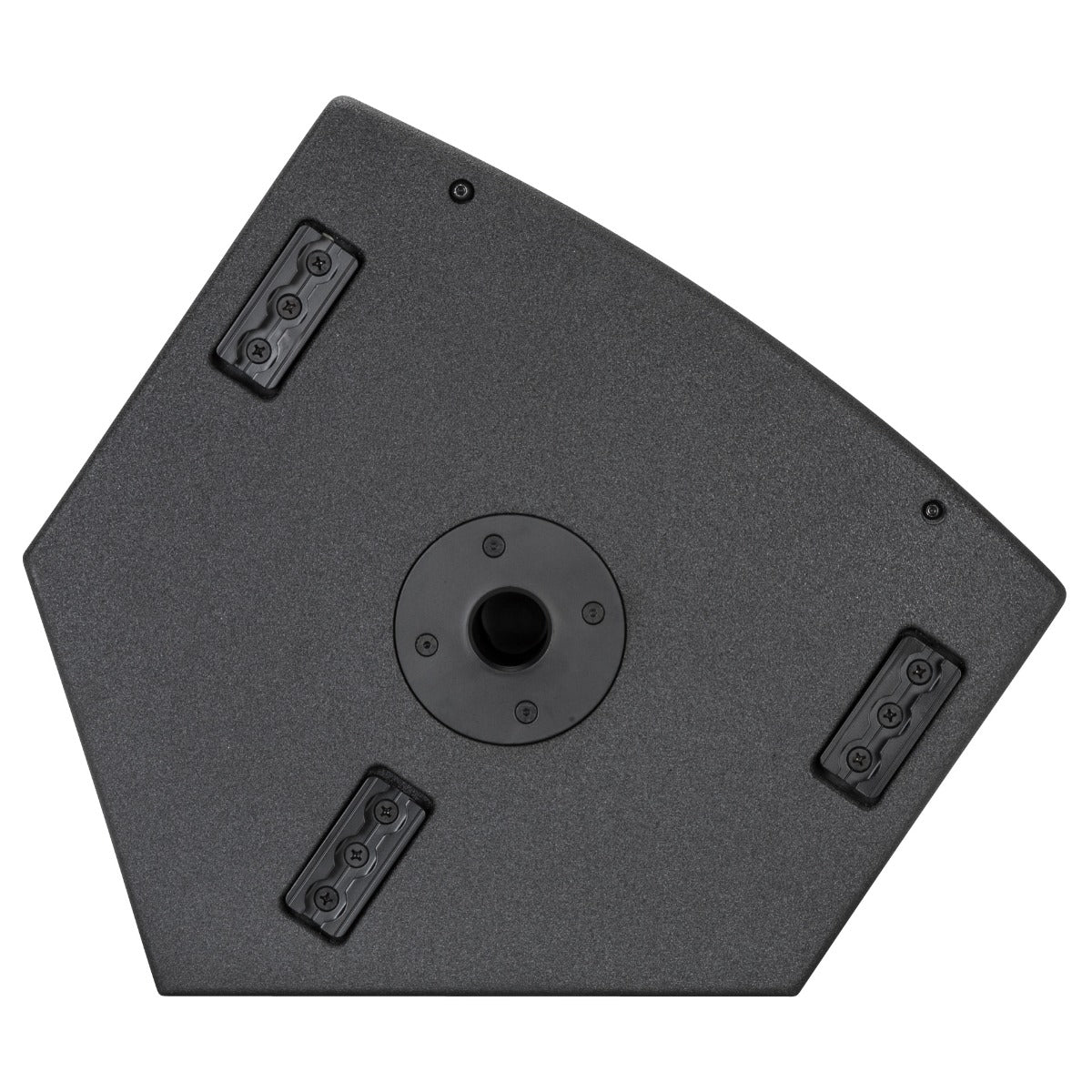

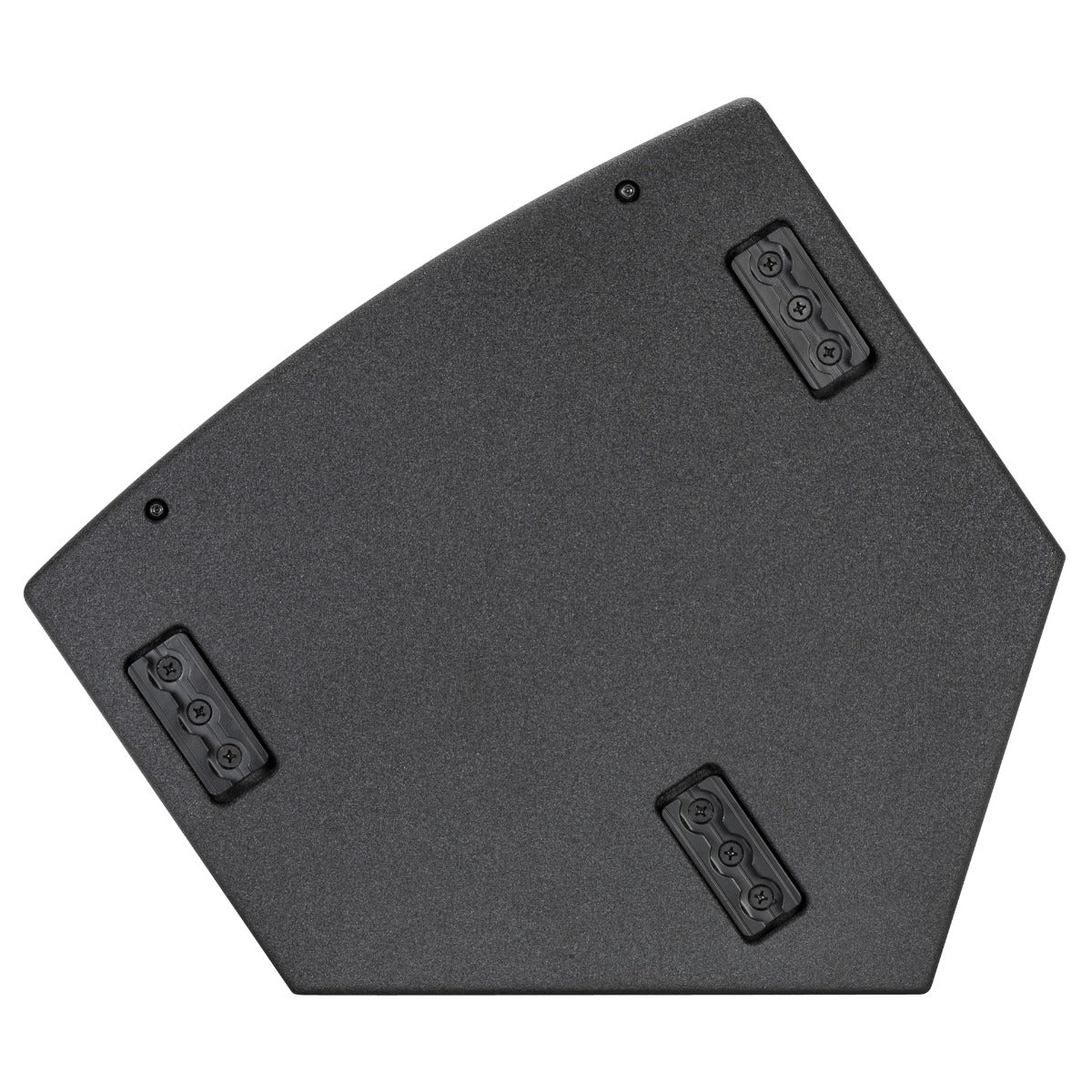

HARDWARE: 6 x fly tracks, quick lock, pole mount

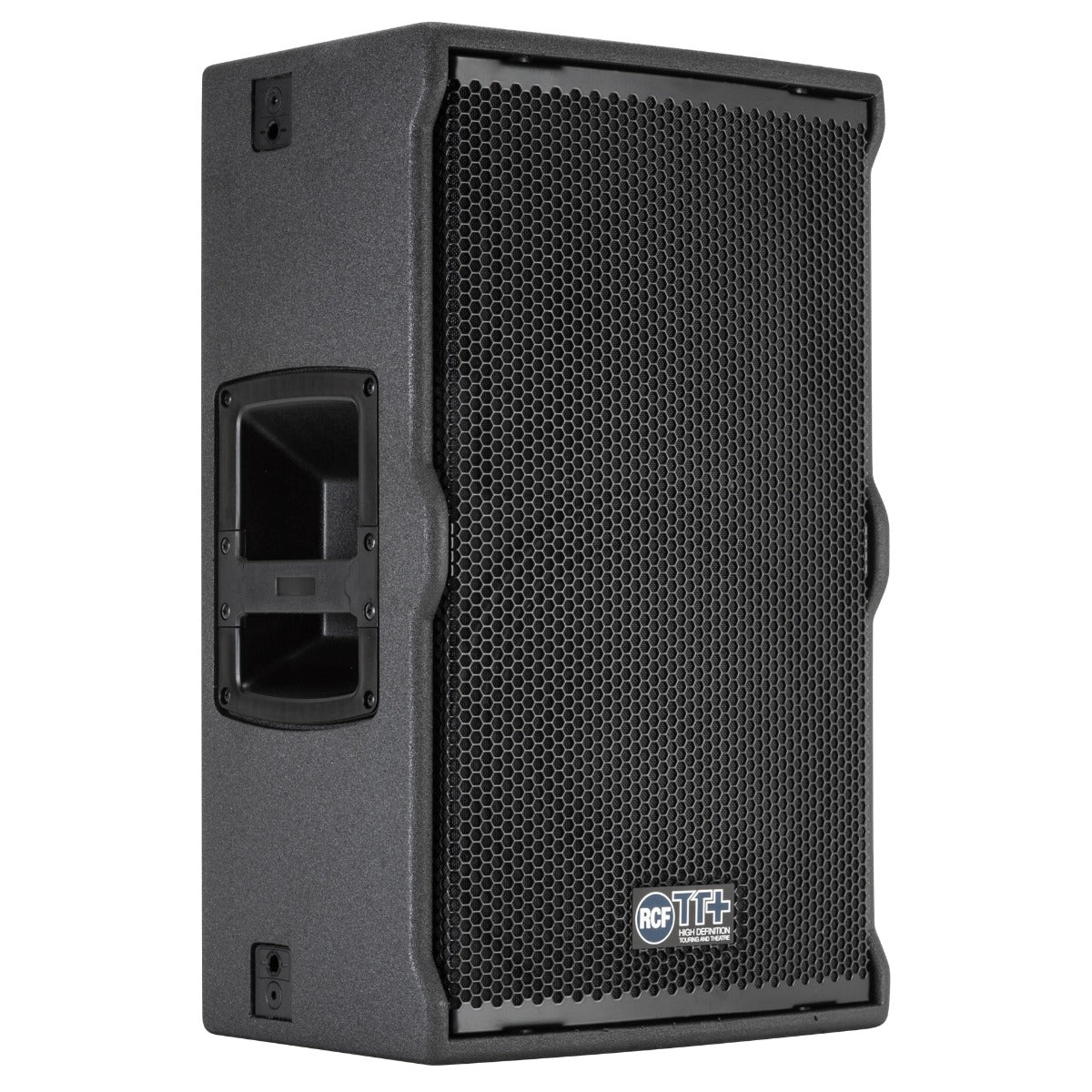

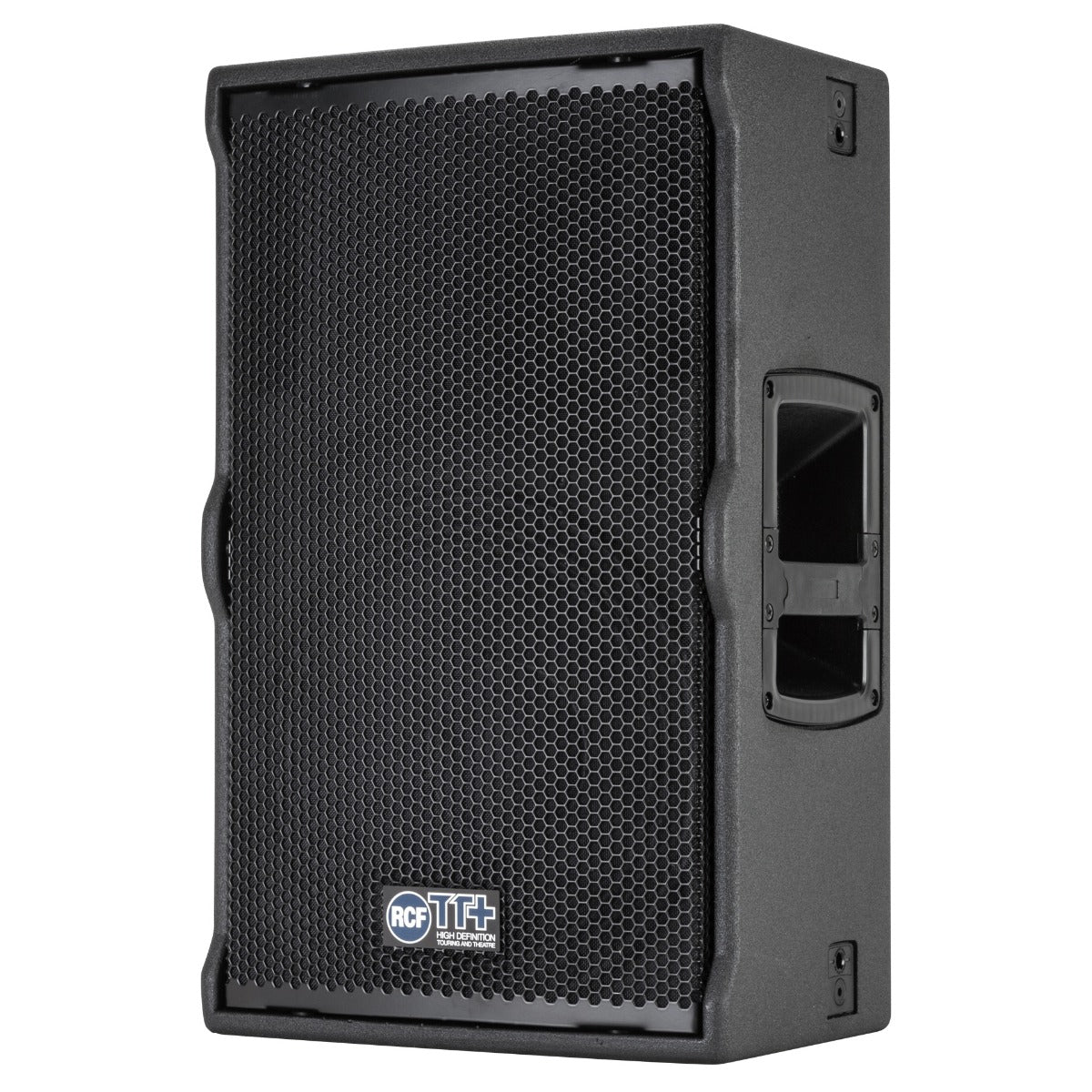

HANDLES: 2 on side

POLE MOUNT/CAP: Yes

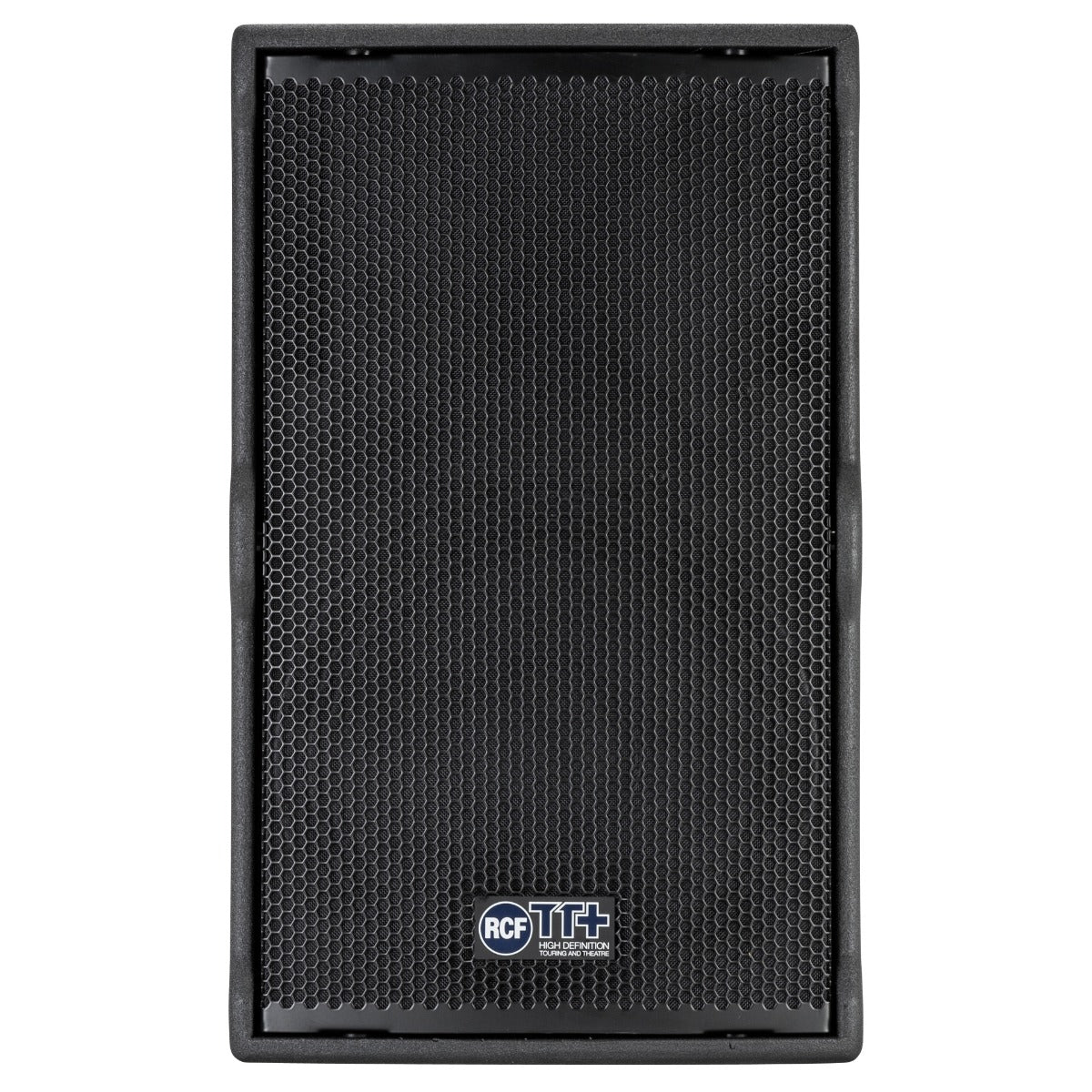

GRILLE: Steel

COLOR: Black

Size

HEIGHT: 600 mm / 23.62 inches

WIDTH: 365 mm / 14.37 inches

DEPTH: 379 mm / 14.92 inches

WEIGHT: 22.6 kg / 49.82 lbs

Shipping informations

PACKAGE HEIGHT: 655 mm / 25.79 inches

PACKAGE WIDTH: 410 mm / 16.14 inches

PACKAGE DEPTH: 420 mm / 16.54 inches

PACKAGE WEIGHT: 25.5 kg / 56.22 lbs
