RCF SUB 8006-AS ACTIVE HIGH POWER SUBWOOFER

RCF SUB 8006-AS ACTIVE HIGH POWER SUBWOOFER

SKU: SKU: SUB8006-AS

Regular price $9,999.00
Regular price $13,995.00 Sale price $9,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

  • 5000 Watt Peak power - 2500 Watt RMS
  • 137 dB max SPL
  • 30 Hz - 120 Hz frequency response
  • 2 x 18" Woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Integrated mechanics for multiple configuration with HDL 20-A
  • Baltic birch tour grade cabinet

LEGENDARY SUBWOOFERS

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience

POWERFUL CLASS D AMPLIFIERS

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE TRASDUCERS INNOVATORS

RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 60 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.

Read More

CABINET & MECHANICS

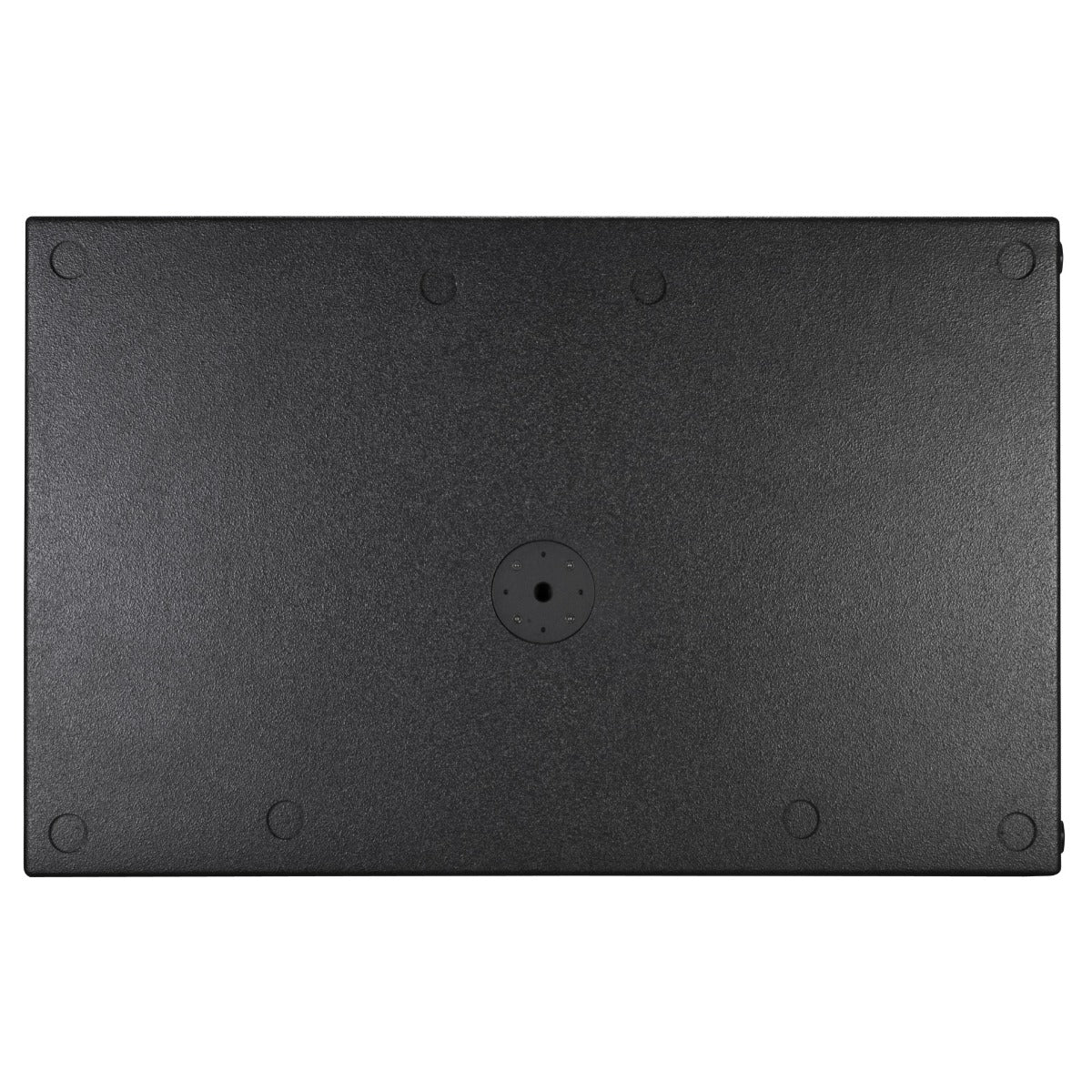

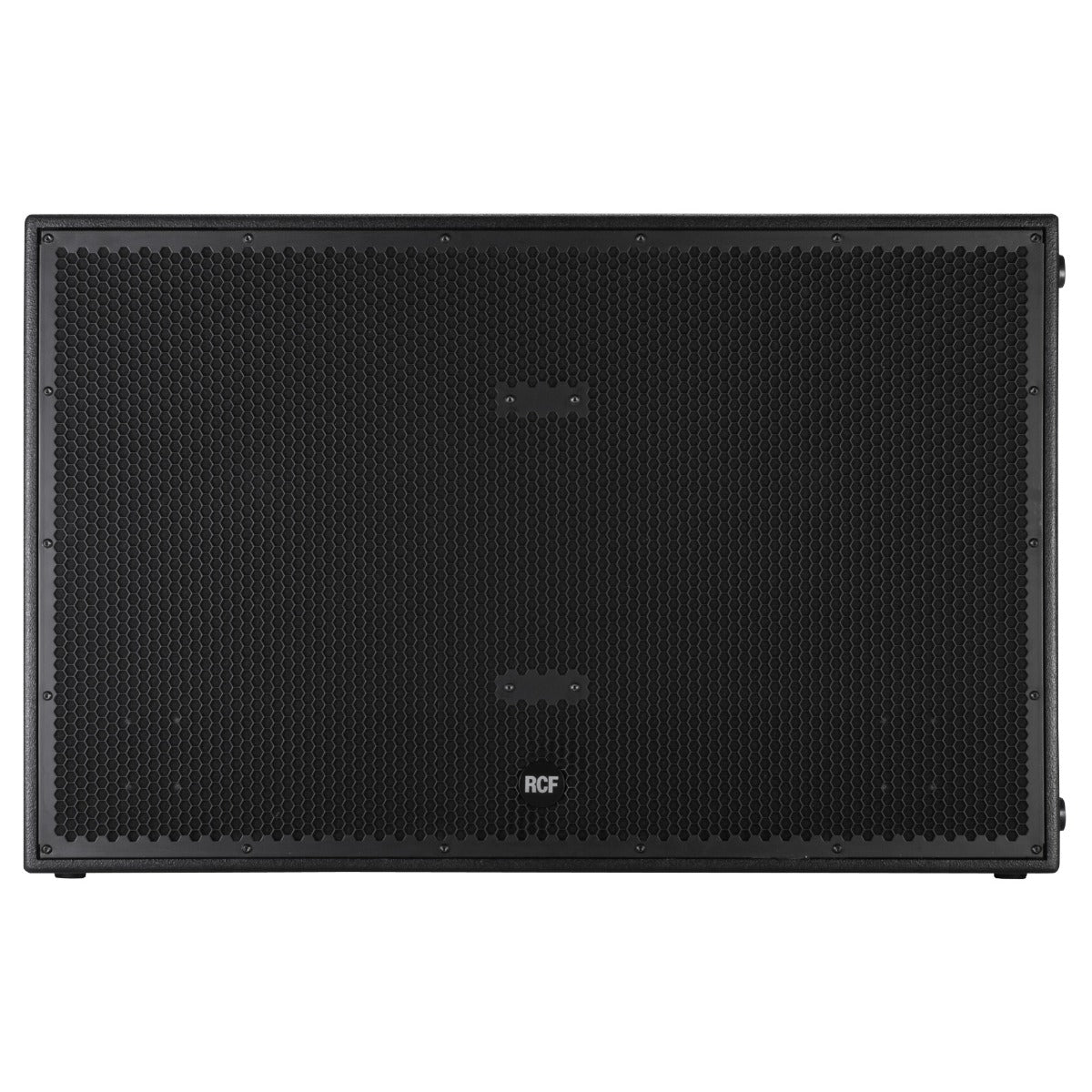

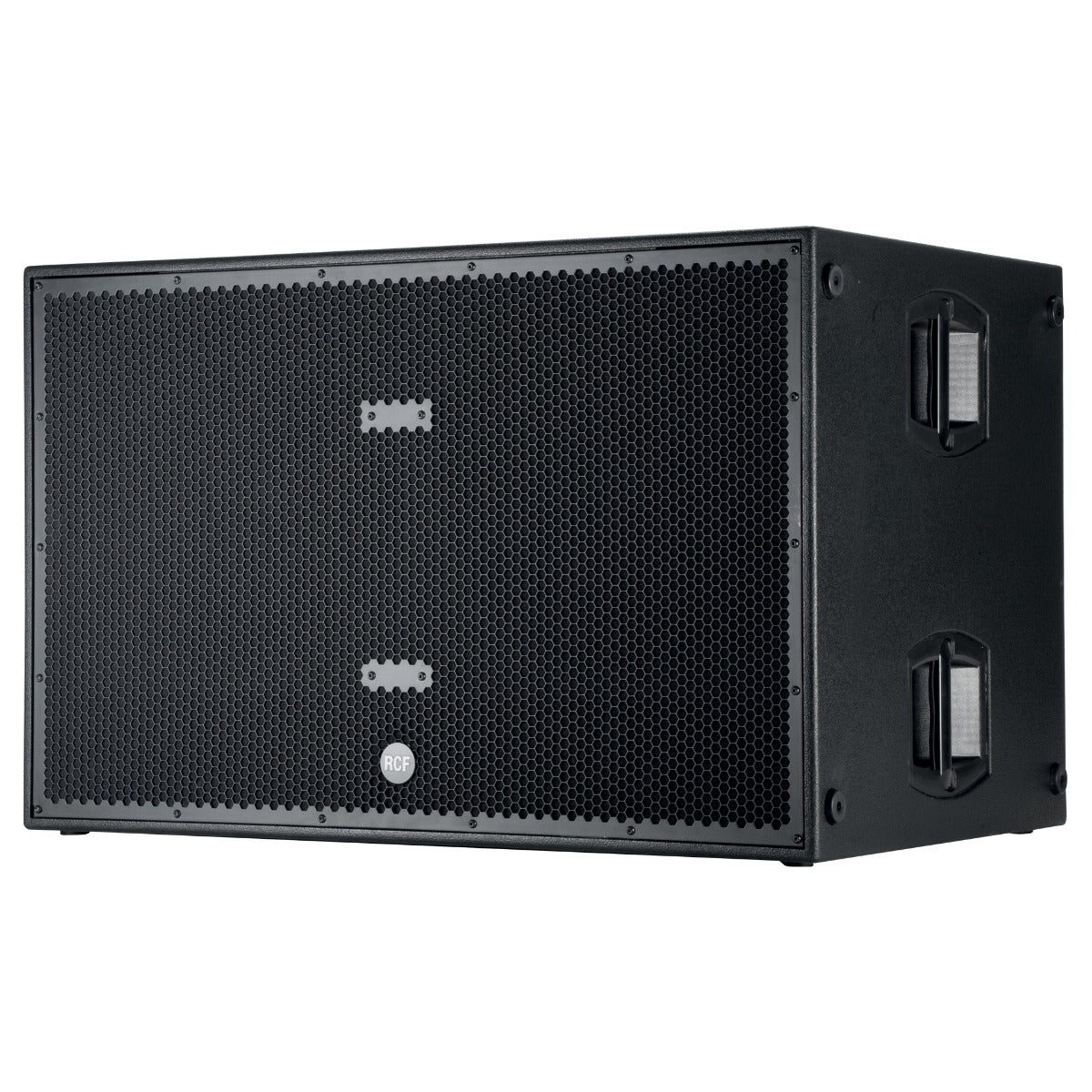

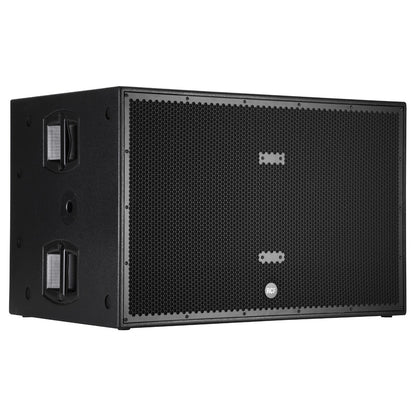

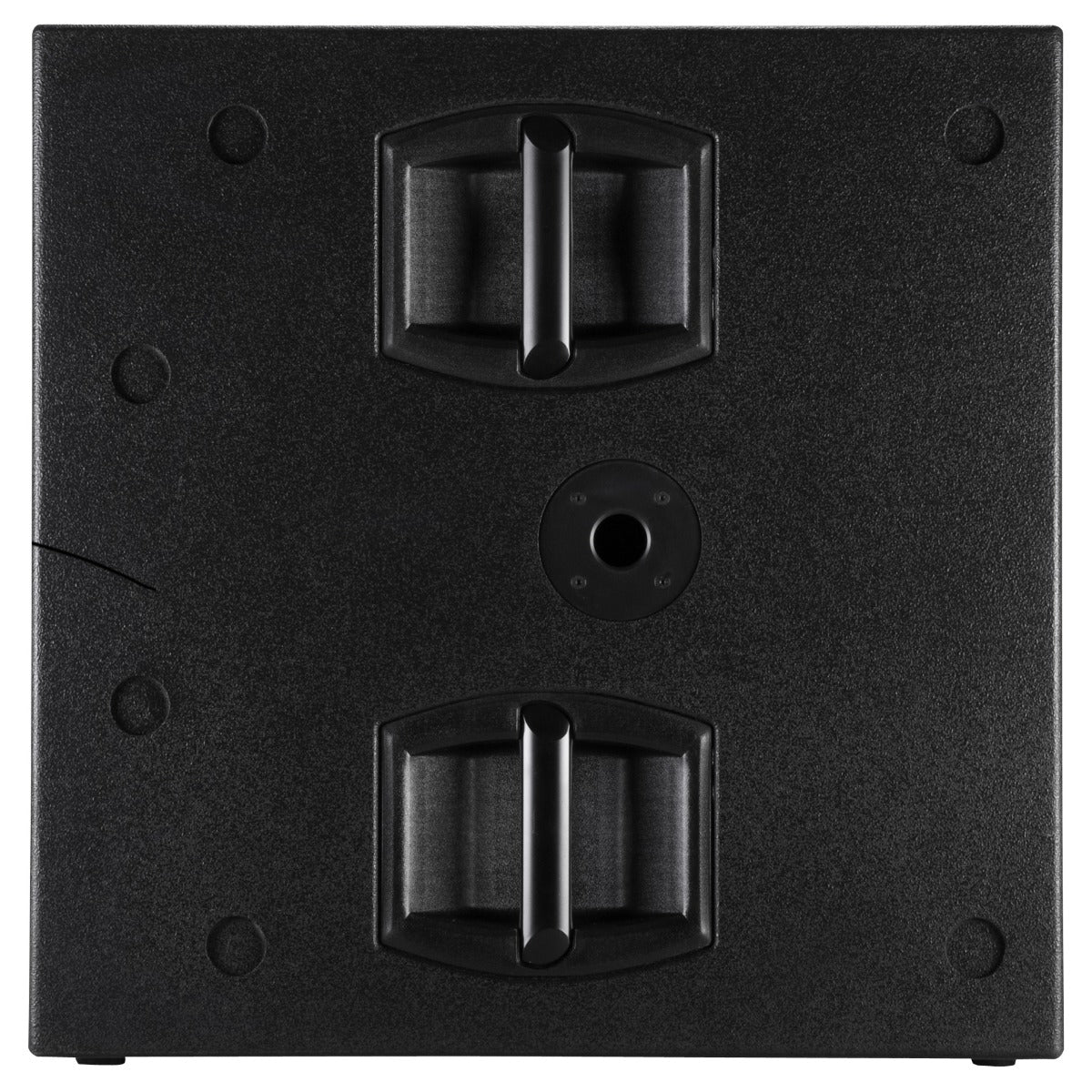

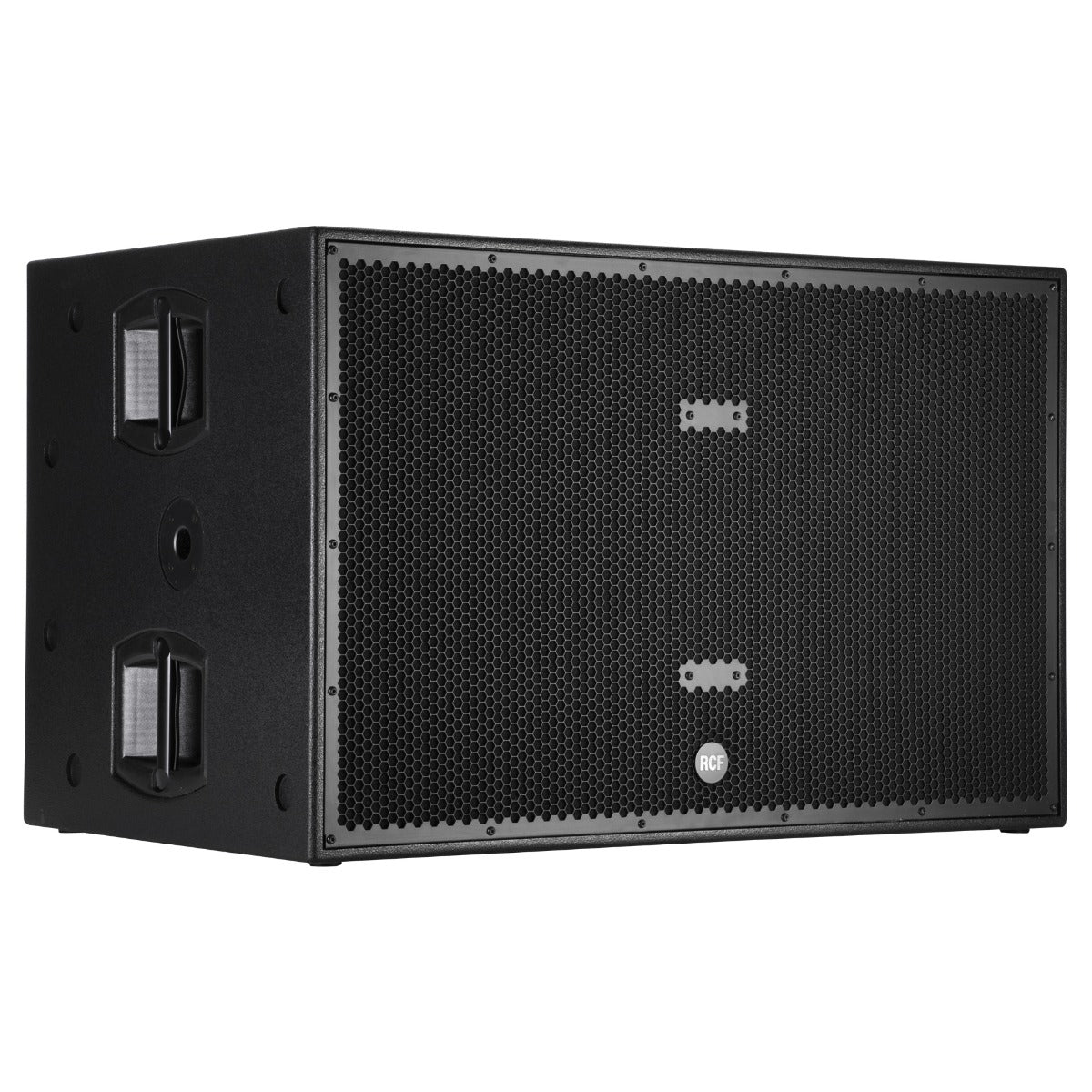

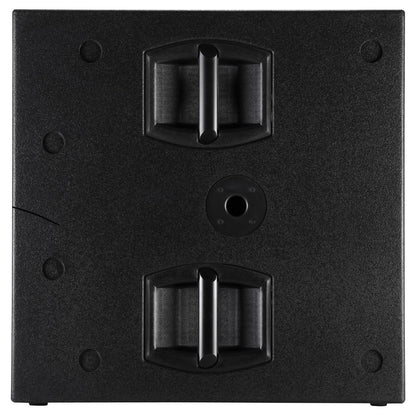

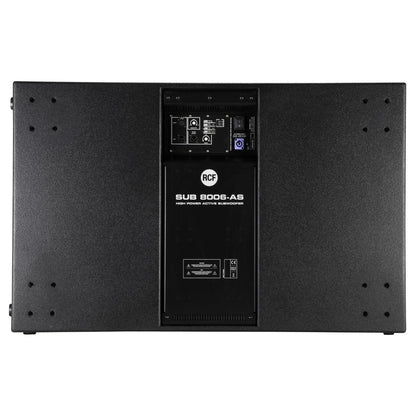

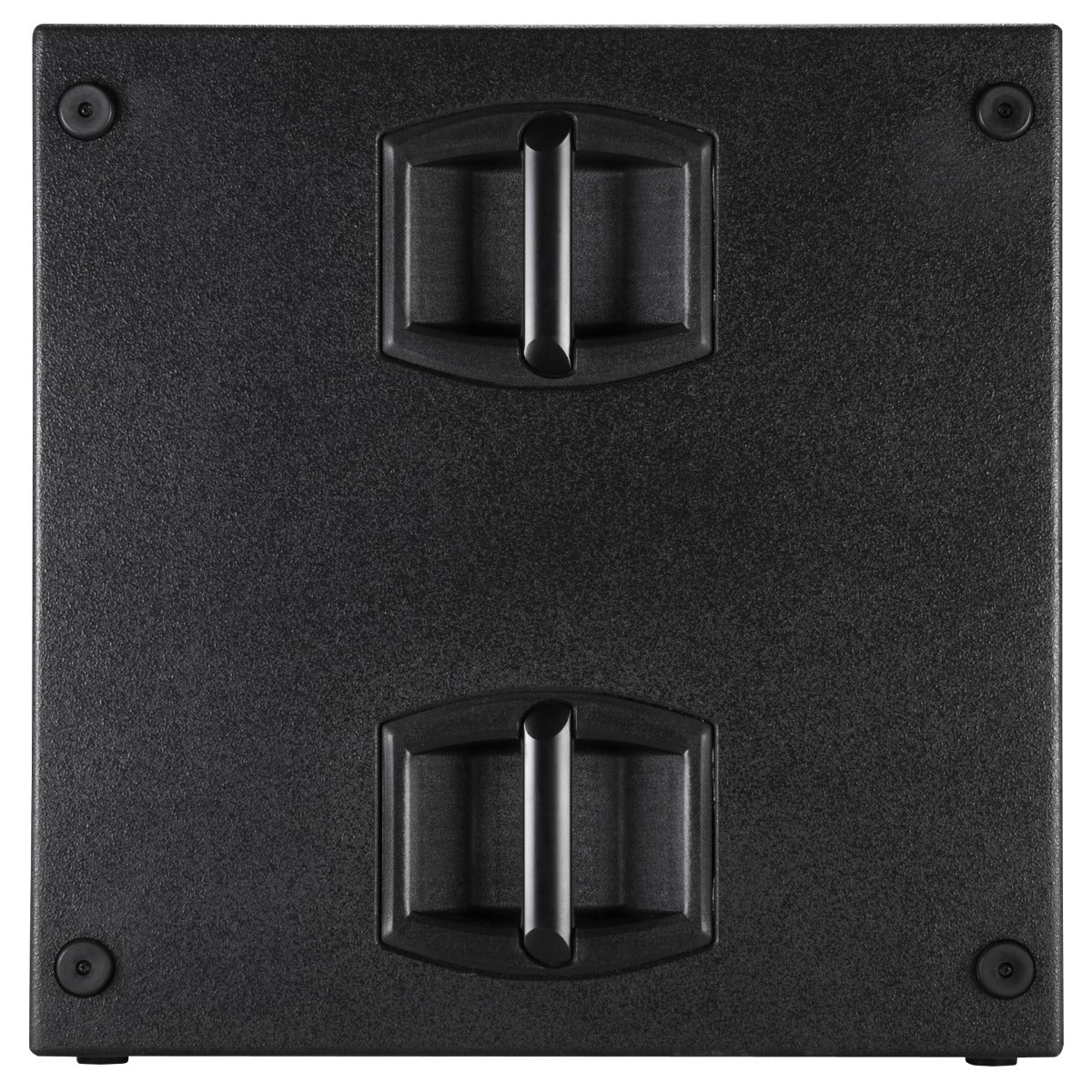

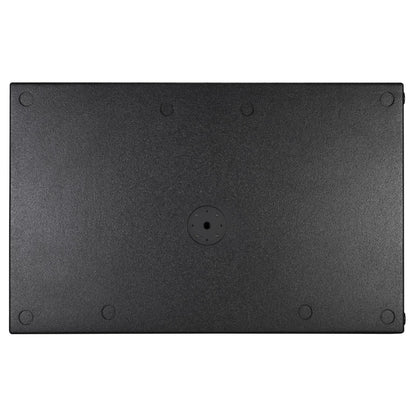

The RCF cabinets are made of baltic birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

Select from our wide array of Powered Subwoofer online.



Specification

SPECIFICATIONS


FREQUENCY RESPONSE: 30 Hz ÷ 120 Hz

MAX SPL @ 1M: 137 dB

Transducers

WOOFER: 2 x 18'', 4.0'' v.c

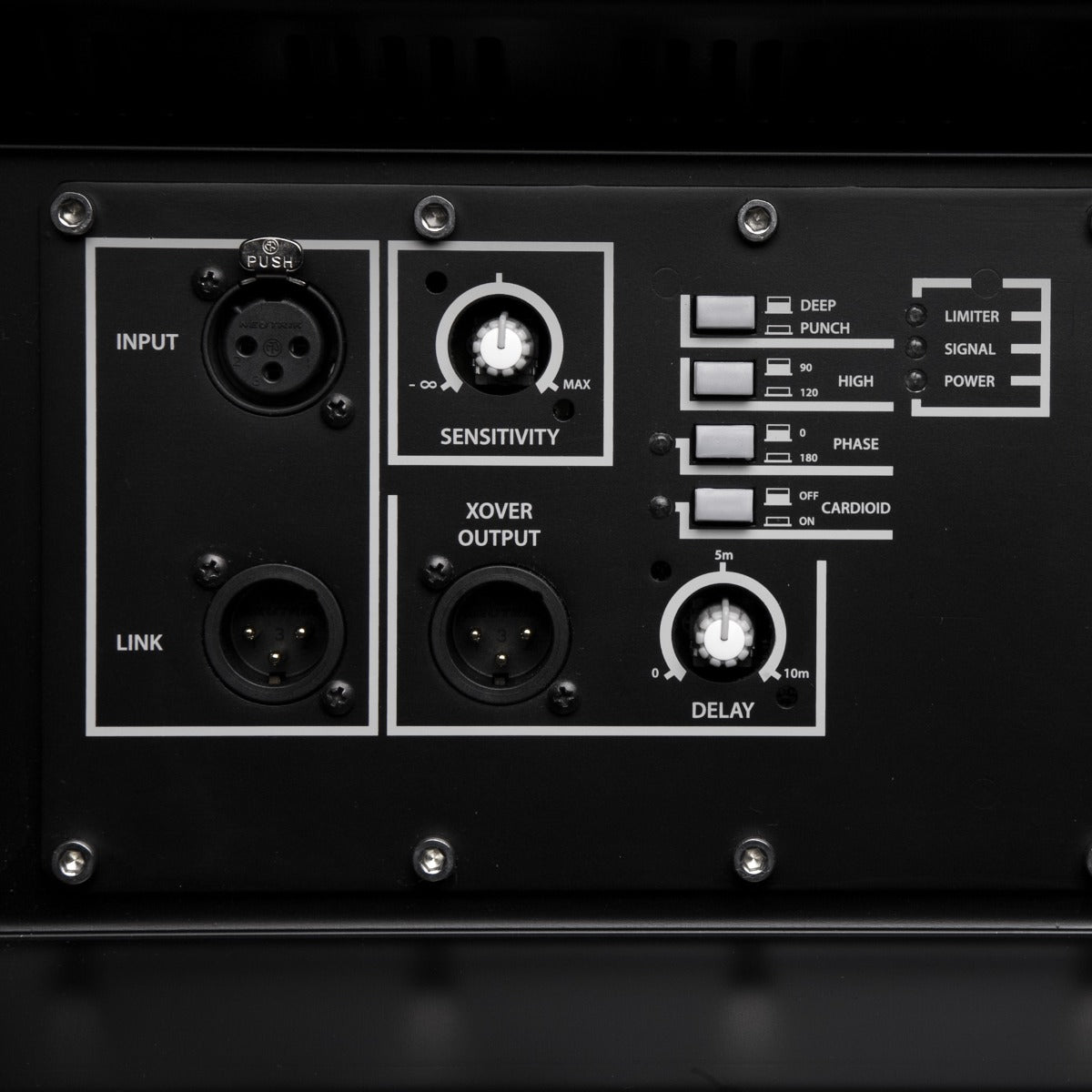

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

HI-PASS FREQUENCIES: 100 Hz

LOW-PASS FREQUENCIES: 80 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Fast Limiter

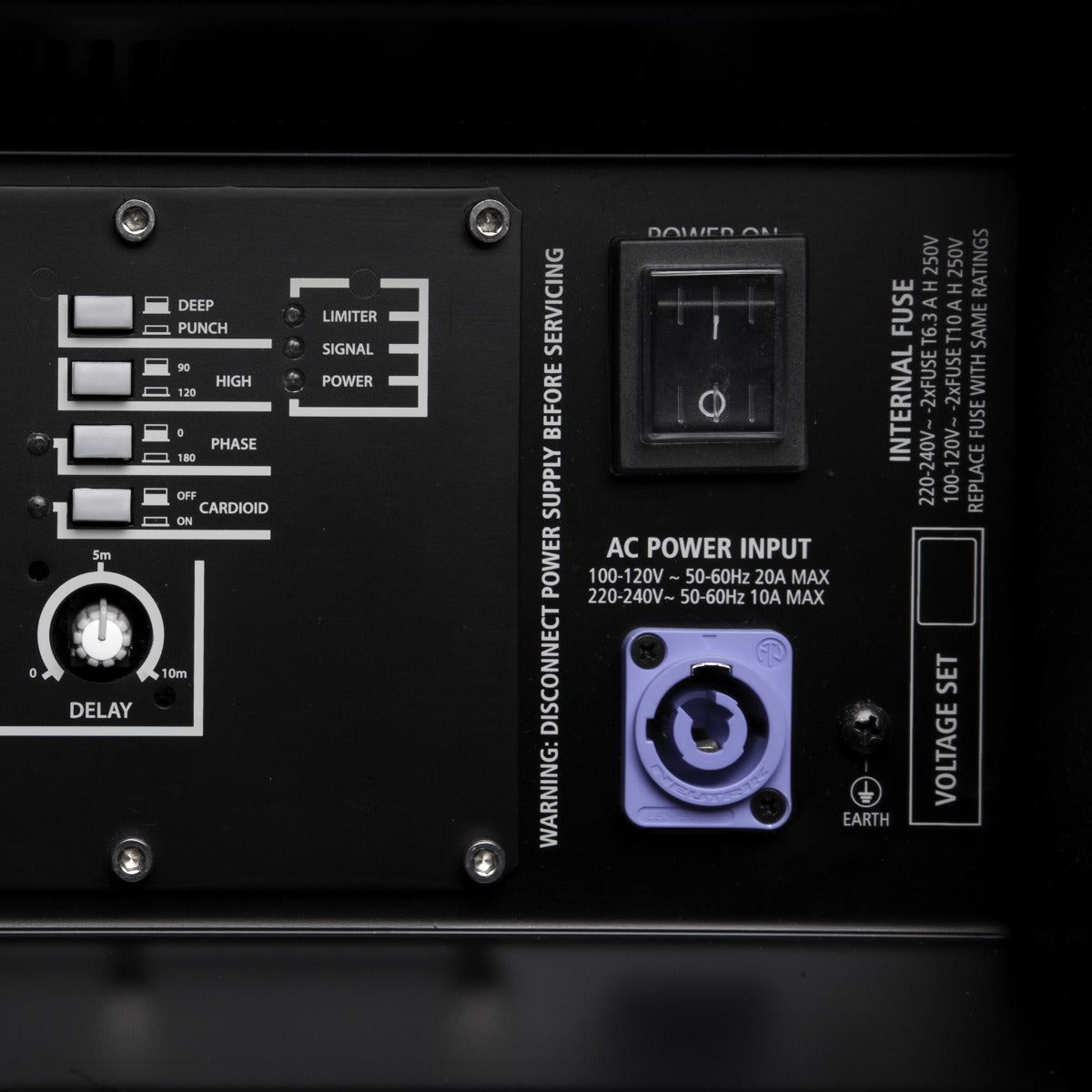

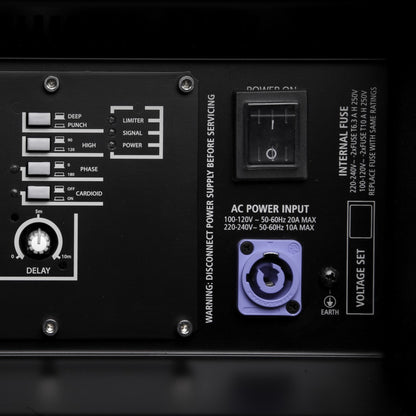

CONTROLS: Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi

Power section

TOTAL POWER: 5000 W Peak, 2500 W RMS

LOW FREQUENCIES: 5000 W Peak, 2500 W RMS

COOLING: Convection

CONNECTIONS: Powercon IN/OUT

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

HARDWARE: Mounting points

HANDLES: 4 side

GRILLE: Steel

COLOR: Black

Size

HEIGHT: 709 mm / 27.91 inches

WIDTH: 1109 mm / 43.66 inches

DEPTH:
700 mm / 27.56 inches

WEIGHT: 96.4 kg / 212.53 lbs

Shipping informations

PACKAGE HEIGHT: 763 mm / 30.04 inches

PACKAGE WIDTH: 1156 mm / 45.51 inches

PACKAGE DEPTH: 753 mm / 29.65 inches

PACKAGE WEIGHT: 109 kg / 240.3 lbs
