RCF SUB 8003-AS II 18" 2200 WATT ACTIVE SUBWOOFER

RCF SUB 8003-AS II 18" 2200 WATT ACTIVE SUBWOOFER

SKU: SKU: SUB8003-AS II

Regular price $4,600.00
Regular price Sale price $4,600.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

THIS UNIT IS DISCONTINUED

PLEASE SEE THE NEW MODEL

RCF SUB8003-AS MK3



The SUB 8003-AS II active subwoofer features the latest generation of RCF woofer technology, digital amplifiers and DSP processing with higher power and enhanced performance. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands and DJs.

  • 2200 W
  • 135 dB max SPL
  • 35 Hz - 120 Hz frequency response

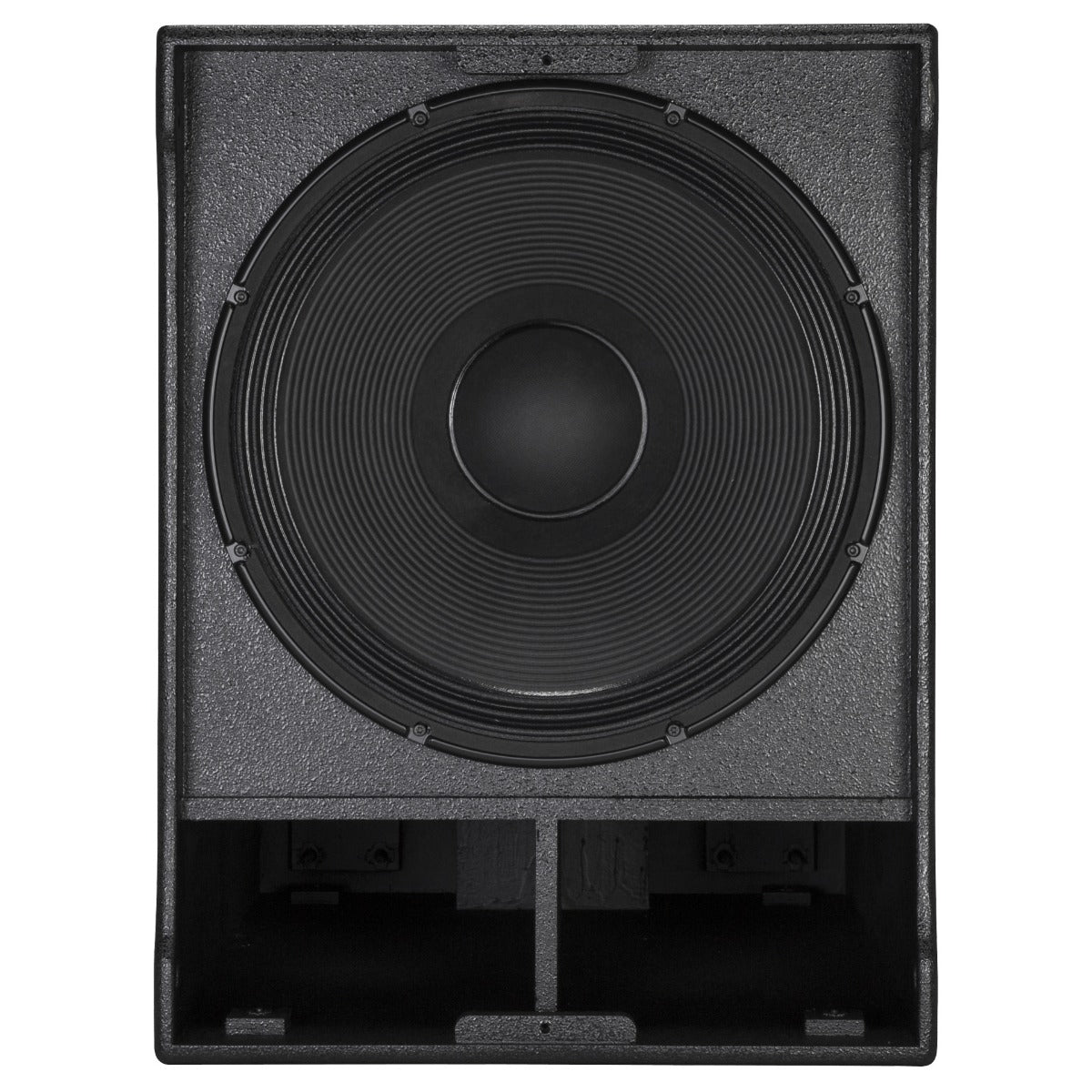

  • 18" Woofer, 4.0" v.c.
  • Selectable gain, X-over and delay
  • Birch tour grade cabinet
  • Stereo XLR input, Stereo XLR signal output

POWERFUL CLASS D AMPLIFIERS

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE TRASDUCERS INNOVATORS

RCF specialises in developing advanced transducer technology including the application of high-tech materials such as Neodymium, Carbon Fiber, Pure Titanium, Kevlar, Kapton and Mylar hybrids. With over 60 years of design and manufacturing experience in the market, RCF has been instrumental in technological inventions such as carbon fiber cone molding, double silicon spiders, inside/outside voice coil windings to edge wound voice coil manufacturing and pure titanium diaphragm forming. Our latest developments have resulted in designing state of the art neodymium magnetic circuits, radically new voice coil ventilation systems and ground breaking direct drive voice coil assemblies.

LEGENDARY SUBWOOFERS

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self- powered design, internal delay control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

CABINET & MECHANICS

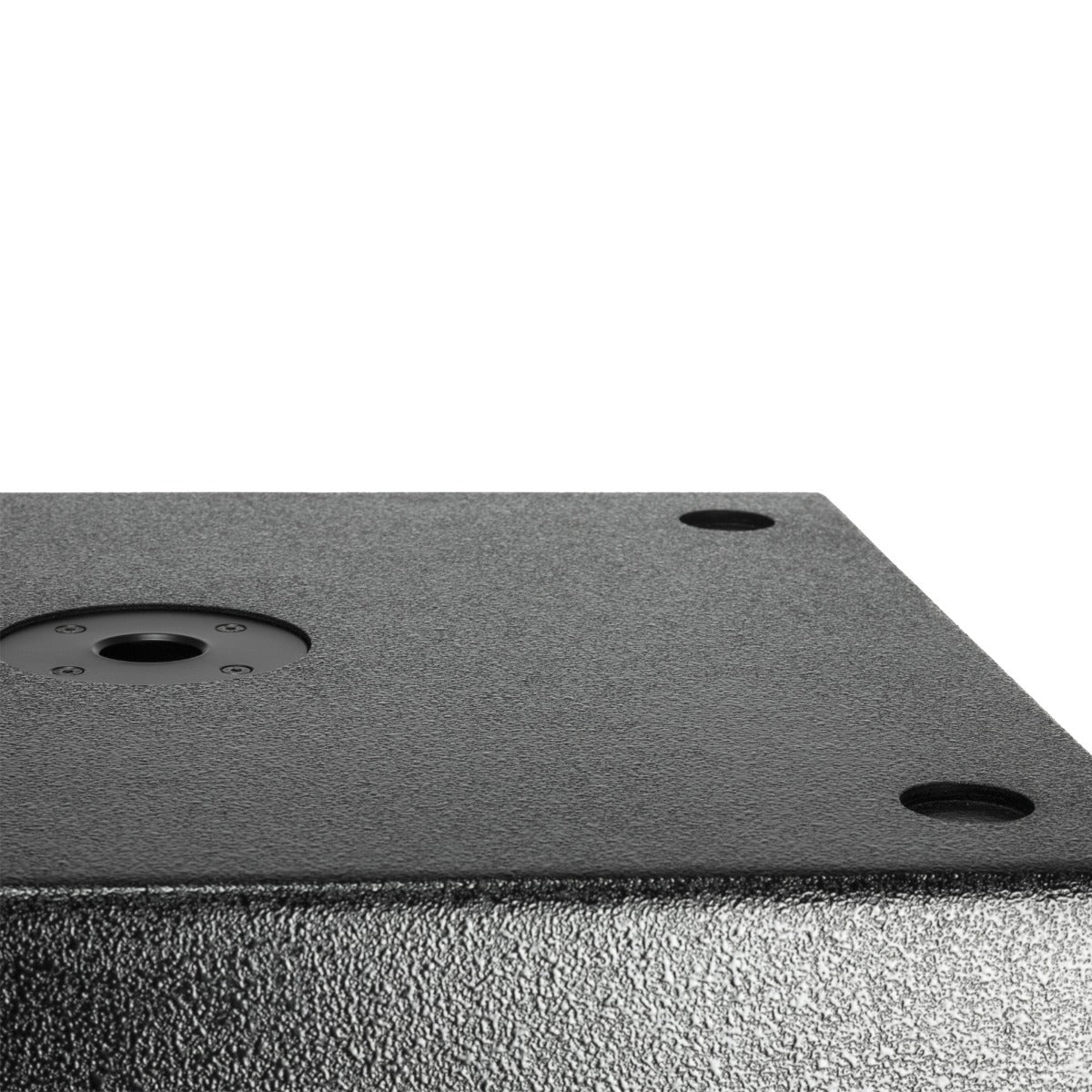

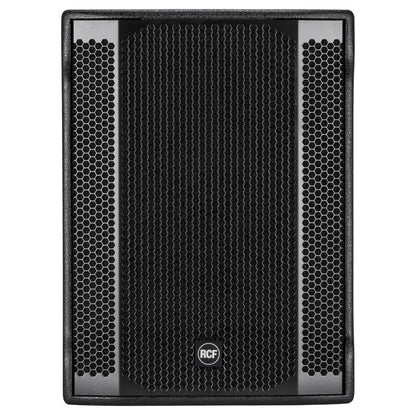

The RCF cabinets are made of the best multi-ply hardwood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

Choose from a variety of Powered Subwoofer online.

Specification

SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE: 35 Hz ÷ 120 Hz

MAX SPL @ 1M: 135 dB

Transducers

WOOFER: 18'', 4.0'' v.c

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

CROSSOVER FREQUENCIES: Selectable

PROTECTIONS: Thermal, RMS

CONTROLS: Gain, EQ, Phase, Xover, Delay, Cardioid

Power section

TOTAL POWER: 2200 W Peak, 1100 W RMS

LOW FREQUENCIES: 2200 W Peak, 1100 W RMS

COOLING: Convection

CONNECTIONS: Powercon IN/OUT

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

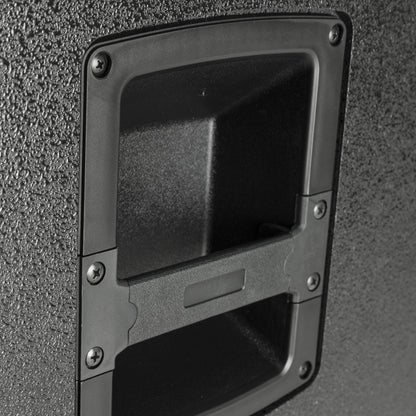

HANDLES: 2 side

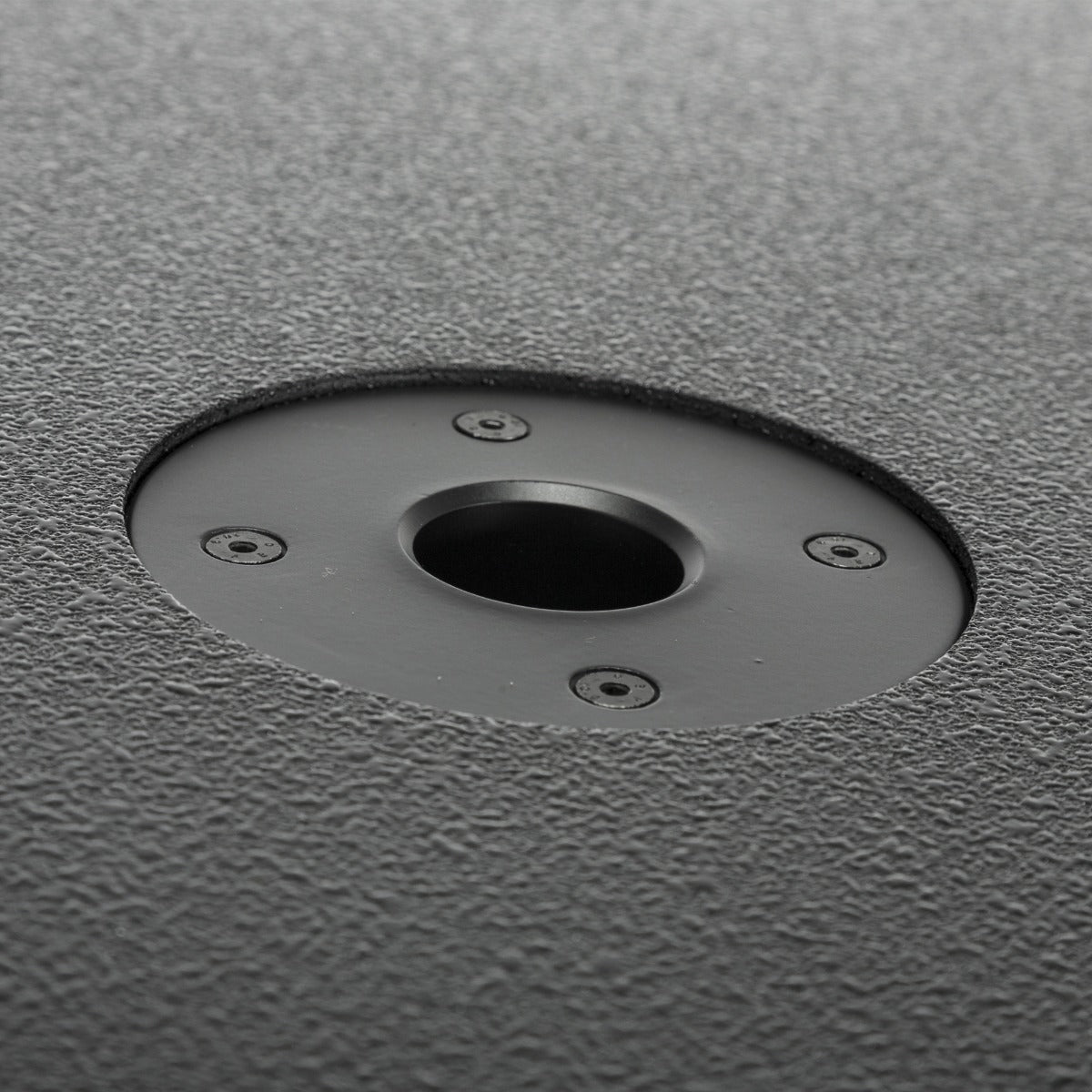

POLE MOUNT/CAP: Yes

GRILLE: Steel

COLOR: Black

Size

HEIGHT: 694 mm / 27.32 inches

WIDTH: 523 mm / 20.59 inches

DEPTH: 700 mm / 27.56 inches

WEIGHT: 45 kg / 99.21 lbs

Shipping informations

PACKAGE HEIGHT: 745 mm / 29.33 inches

PACKAGE WIDTH: 760 mm / 29.92 inches

PACKAGE DEPTH: 580 mm / 22.83 inches

PACKAGE WEIGHT: 51 kg / 112.44 lbs
