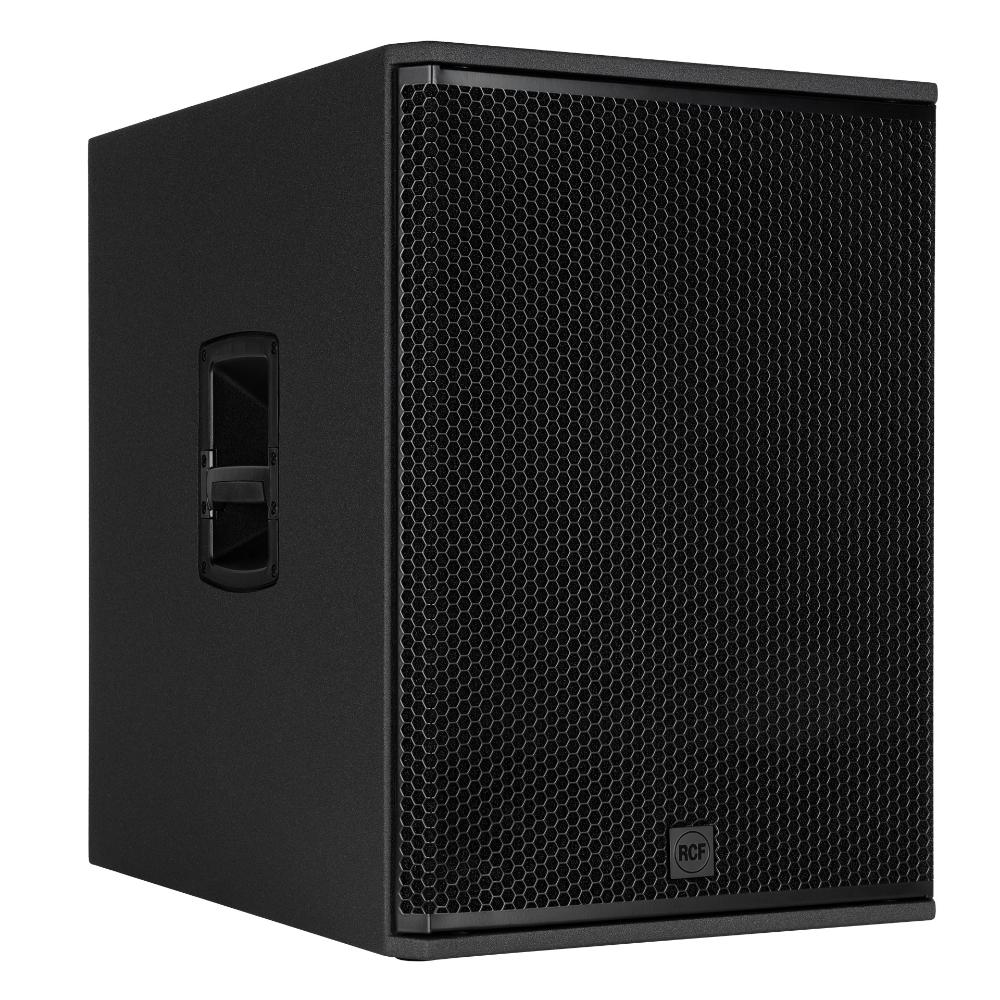

RCF SUB 18-AX PROFESSIONAL ACTIVE 18" SUBWOOFER

SKU: SKU: SUB-SUB18AX-RCF

$4,659.00

~~$5,695.00~~ $4,659.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color: Black

Quantity

Low Stock

Description

Advanced Subwoofer with Crossover Presets for RCF Speakers

The key to optimizing your sound system is the precise adjustment of your subwoofer's time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.

With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

Features

2200 Watt Class-D Amplifier
135 dB MAX SPL
18” Woofer, bass reflex housing
Digital Crossover w/ Presets
Multi-ply hardwood polyurea-coated
LiveRemote App
Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
Bass Motion Control excursion management
Powercon True1 Top Sealed AC Connector

The SUB 18-AX is a portable 18" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 135 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 18-AX is the ideal complement for 10", 12” or 15" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Specification

Acoustical Specifications
Frequency Response: 35 Hz ÷ 120 Hz
Max SPL @ 1m: 135 dB

Transducers
Woofer: 1 x 18”, 4.0” v.c

Input/Output Section
Input Signal: Balanced/Unbalanced
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu

Processor Section
Protections: Thermal
Limiter: Soft Limiter

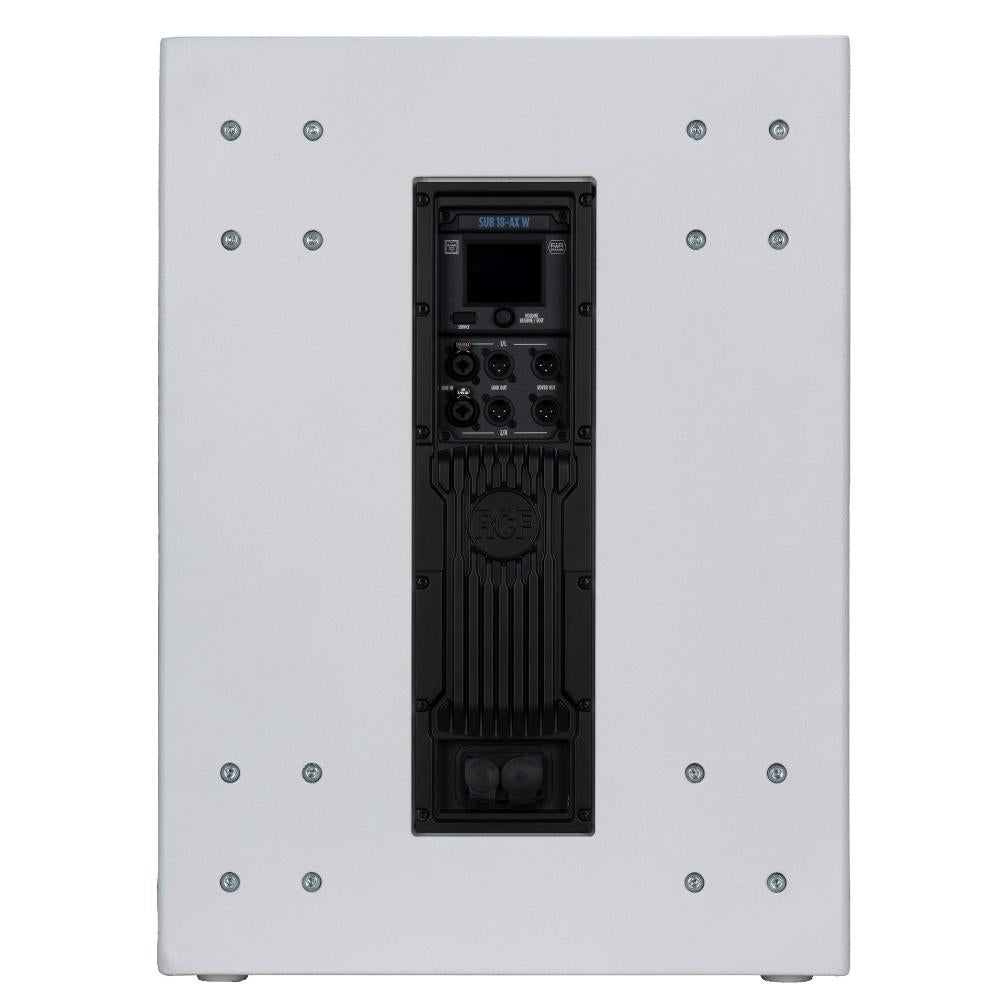

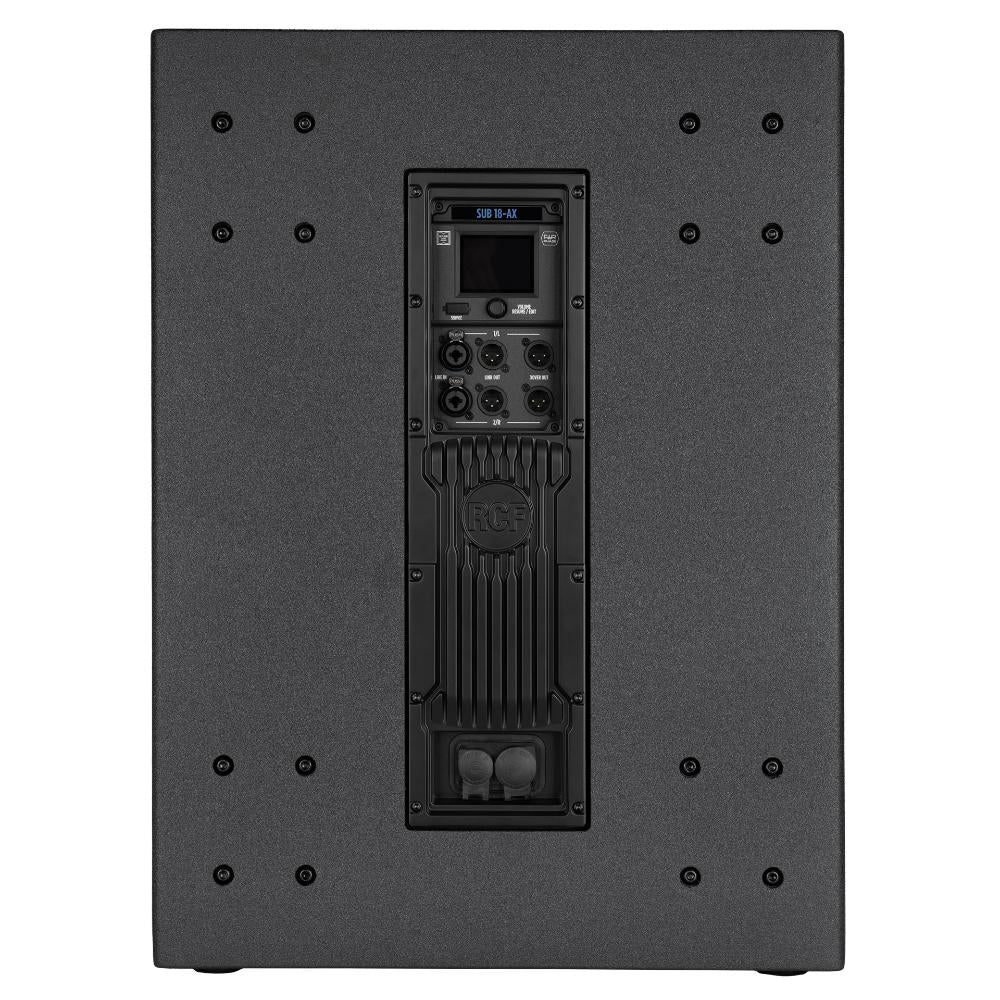

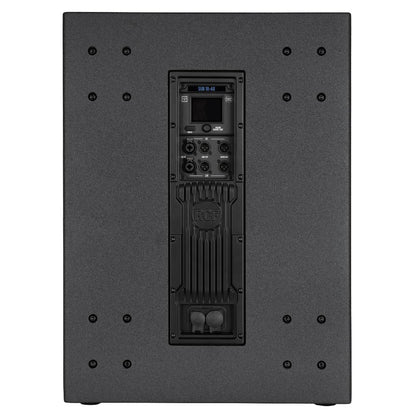

Controls: Encoder for Volume Control and Data Entry, Touch Screen for Parameter Management and Monitoring

Power Section
Total Power: 2200 W Peak, 1100 W RMS
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance
Safety Agency: CE Compliant

Physical Specifications
Cabinet/Case Material: Plywood

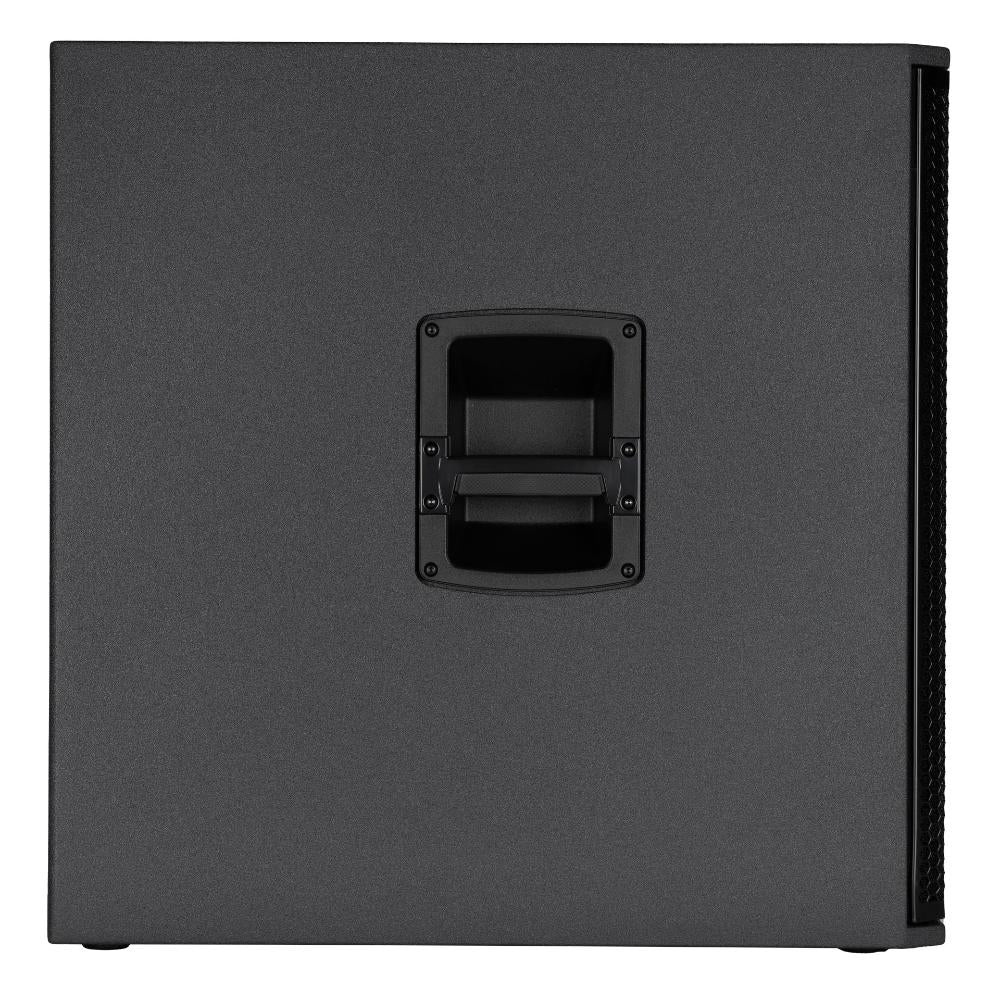

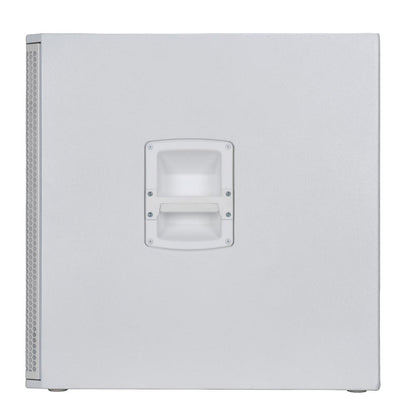

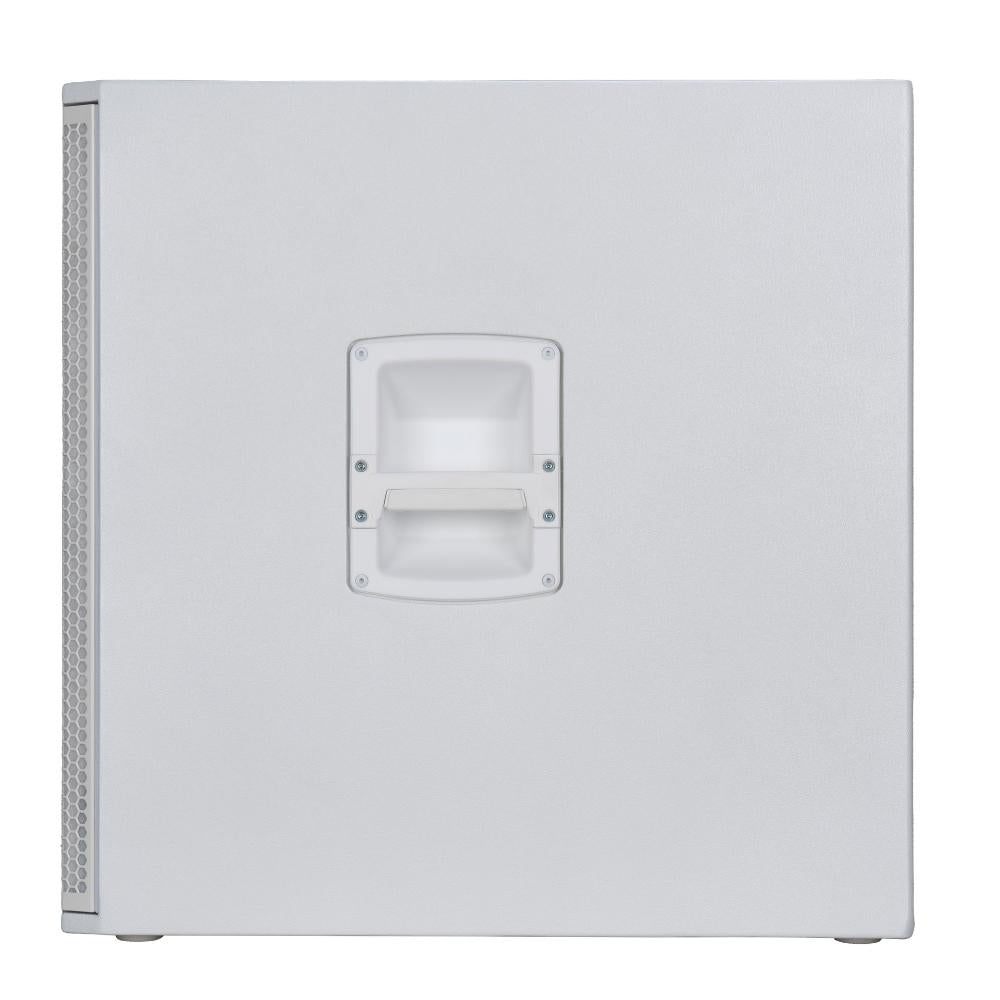

Handles: 1 Handle per Side

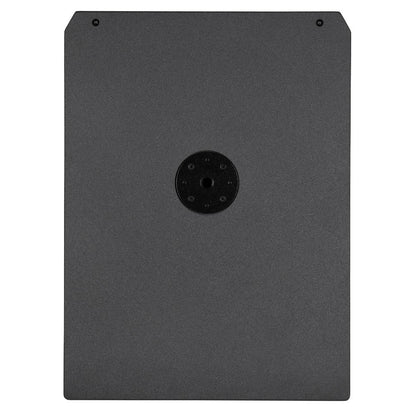

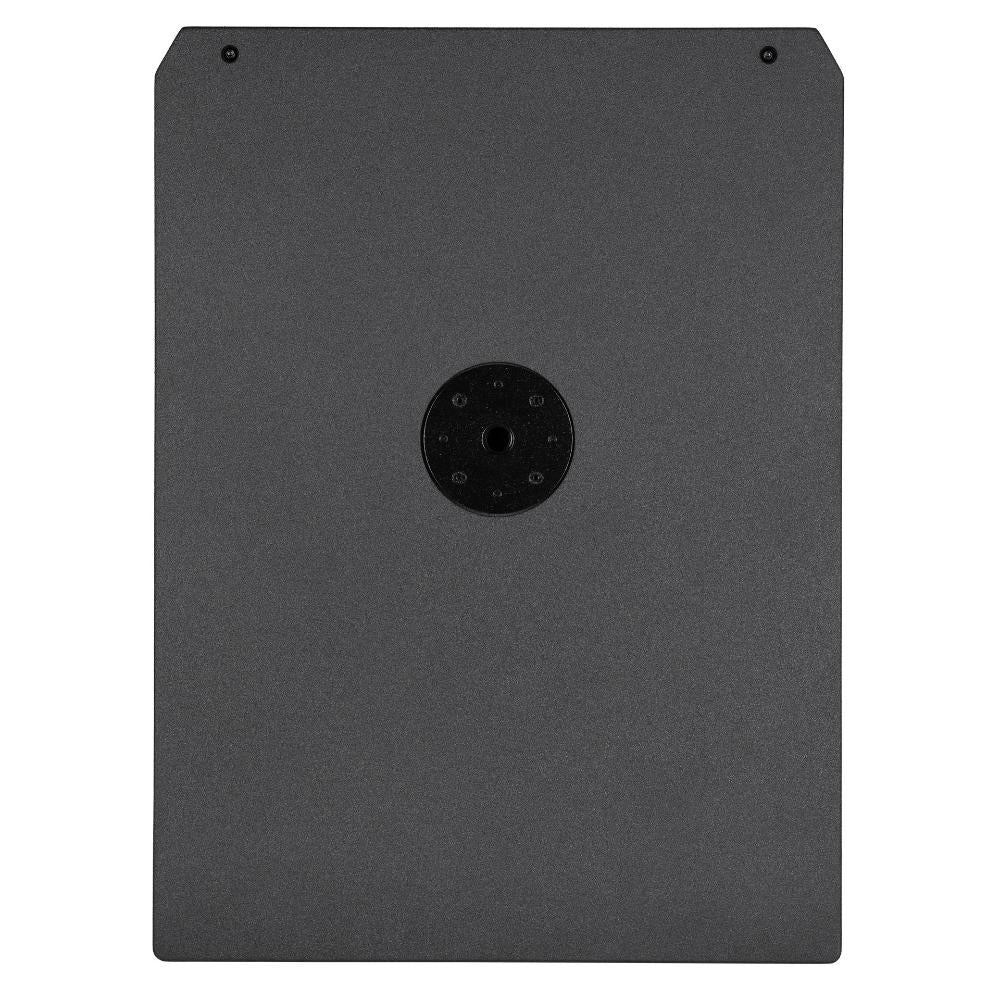

Pole Mount/Cap: M20 Thread

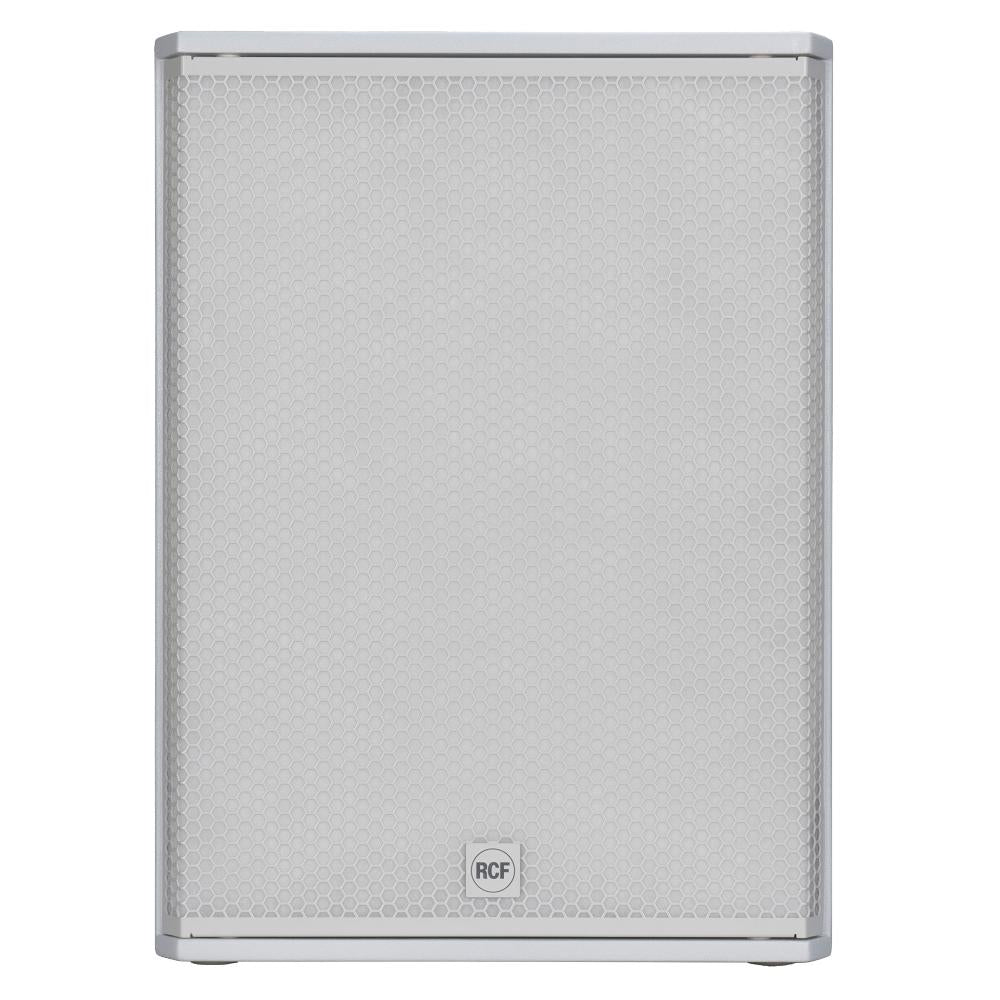

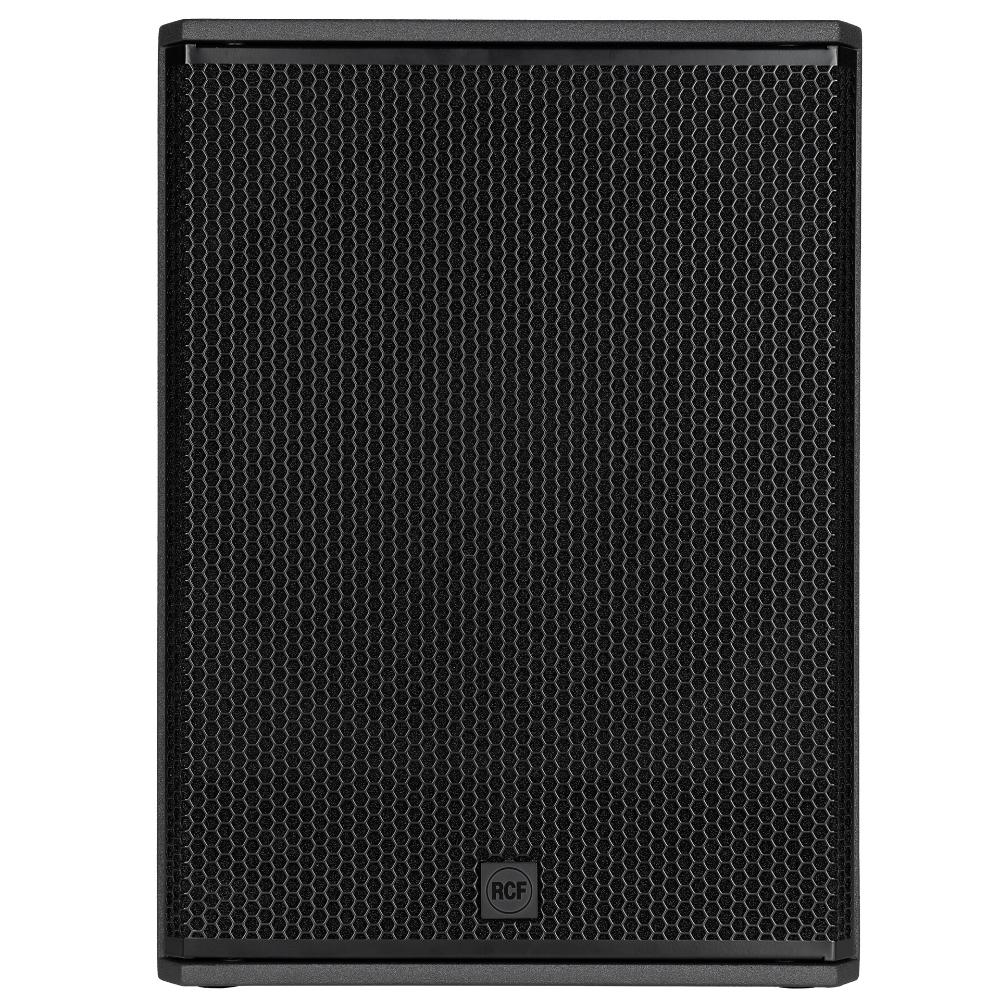

Grille: Steel

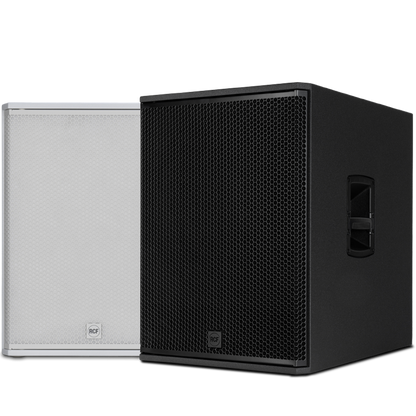

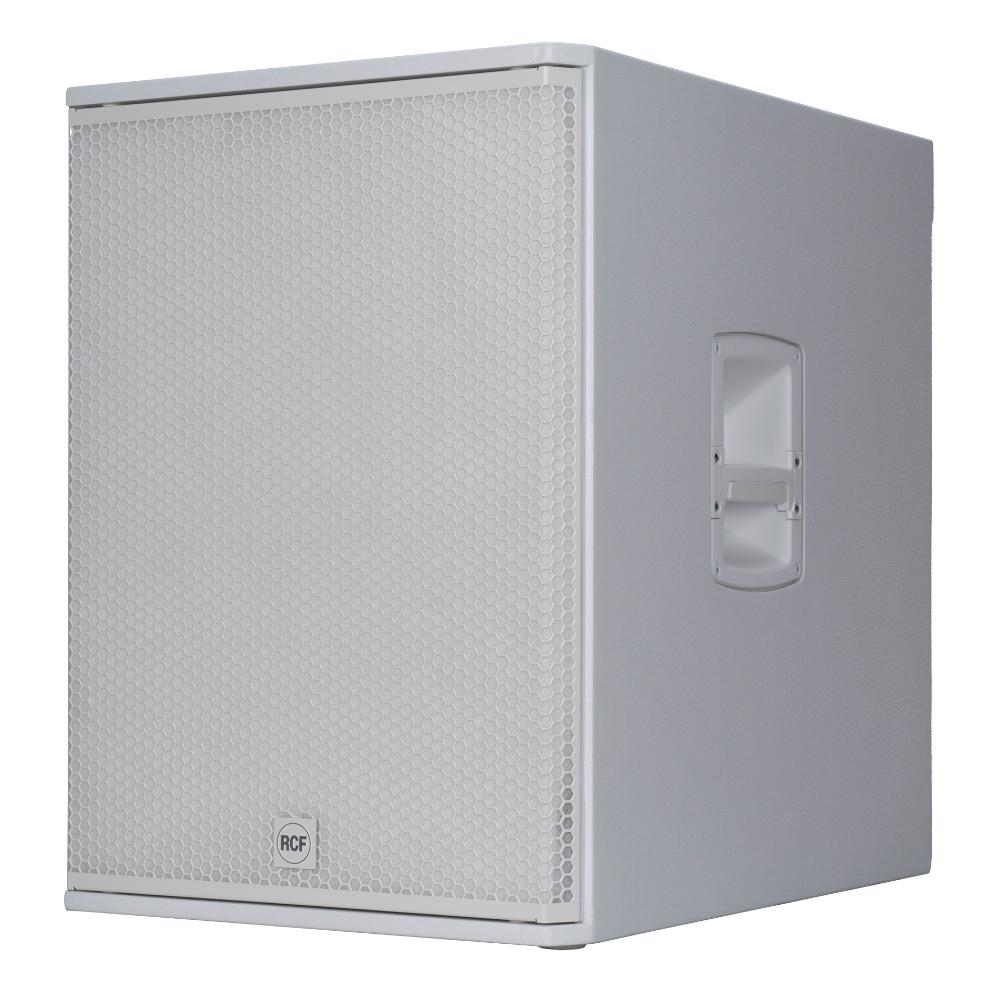

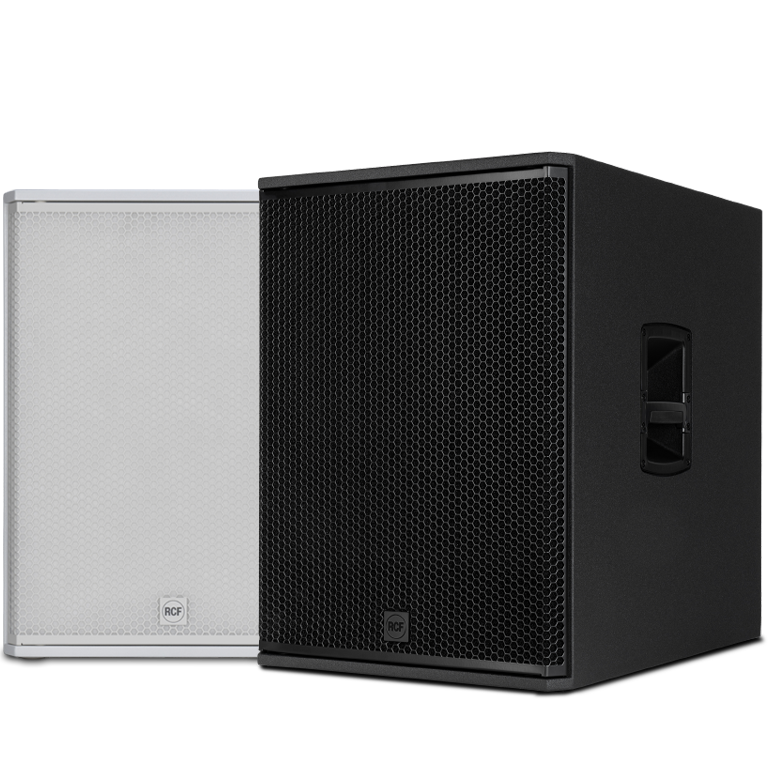

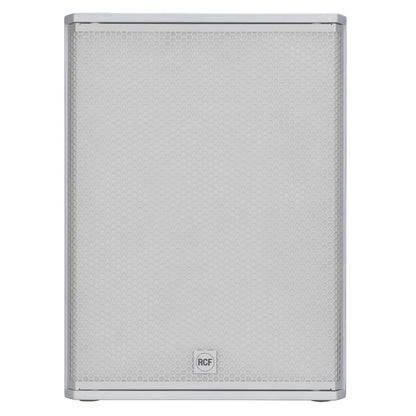

Color: Black, White

Size / Weight
Height: 693 mm / 27.28 inches
Width: 505 mm / 19.88 inches
Depth: 685 mm / 26.97 inches
Weight: 43.8 kg / 96.56 lbs

Shipping Information
Package Height: 735 mm / 28.94 inches
Package Width: 745 mm / 29.33 inches
Package Depth: 565 mm / 22.24 inches
Package Weight: 49.5 kg / 109.13 lbs
