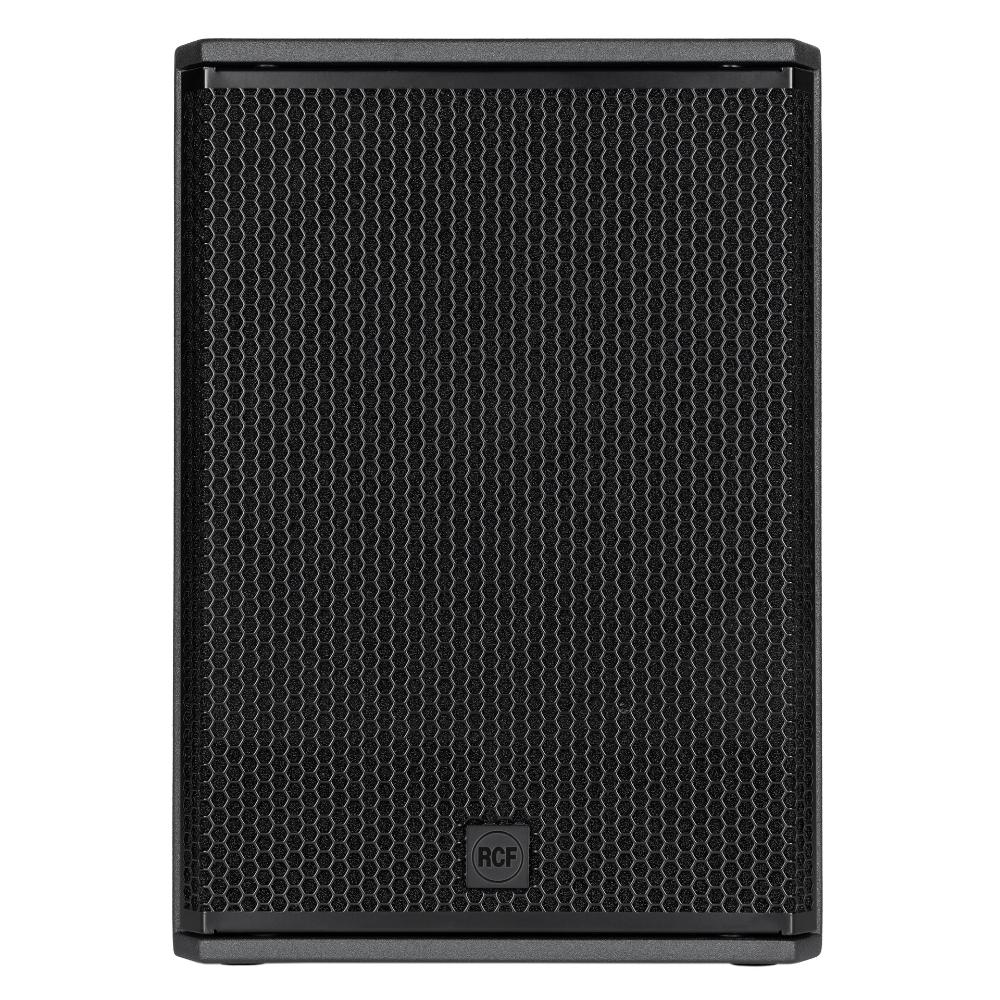

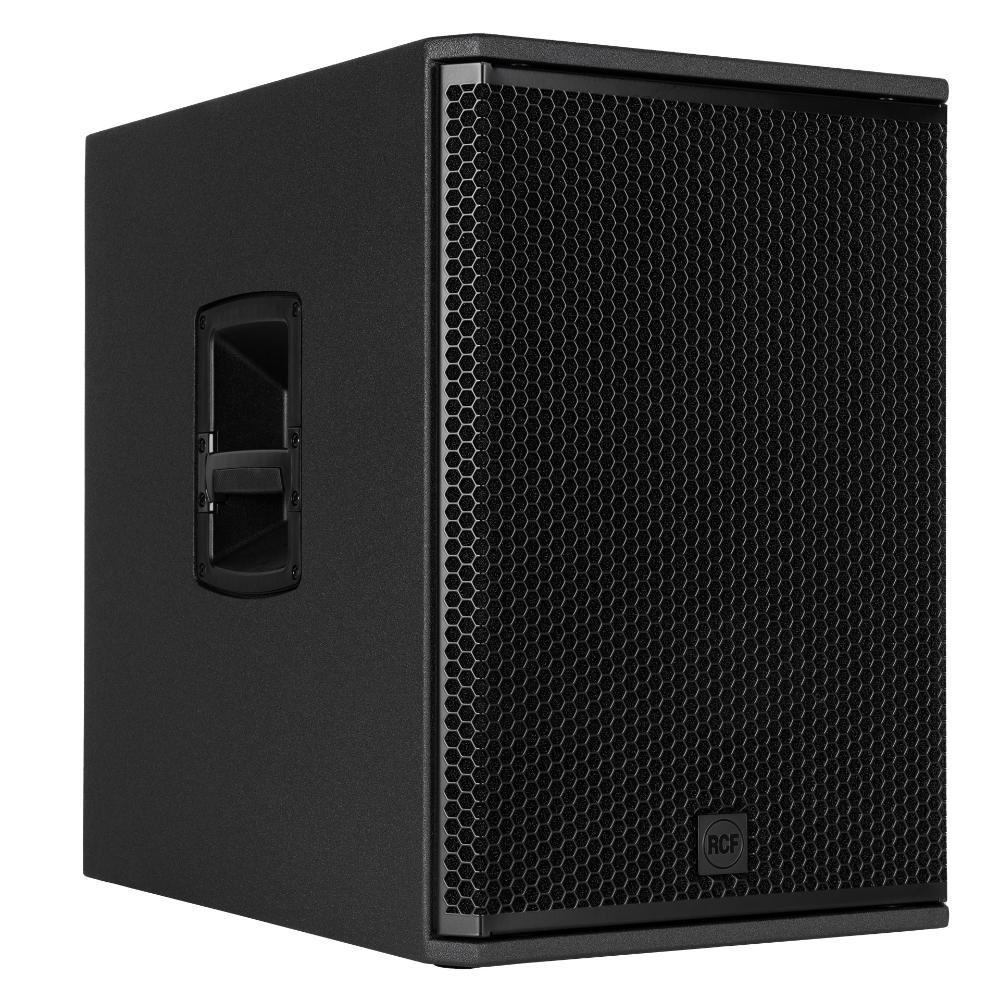

RCF SUB 15-AX PROFESSIONAL ACTIVE 15" SUBWOOFER

SKU: SKU: RCF SUB 15-AX-1

$3,639.00

~~$4,800.00~~ $3,639.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color: Black

Quantity

Out of stock

Description

Advanced Subwoofer with Crossover Presets for RCF Speakers

The key to optimizing your sound system is the precise adjustment of your subwoofer's time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.

With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

Features

2200 Watt Class-D Amplifier
133 dB MAX SPL

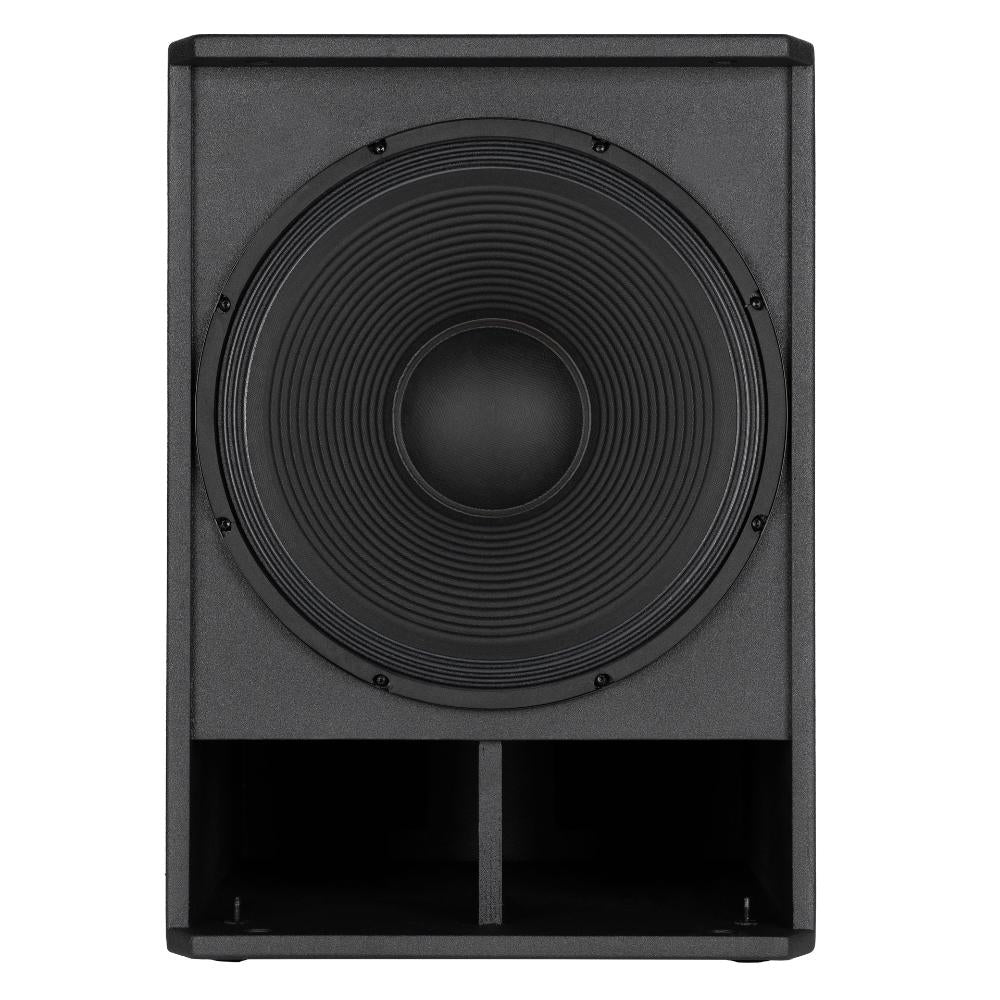

15” Woofer, bass reflex housing
Digital Crossover w/ Presets
Multi-ply hardwood polyurea-coated
LiveRemote App

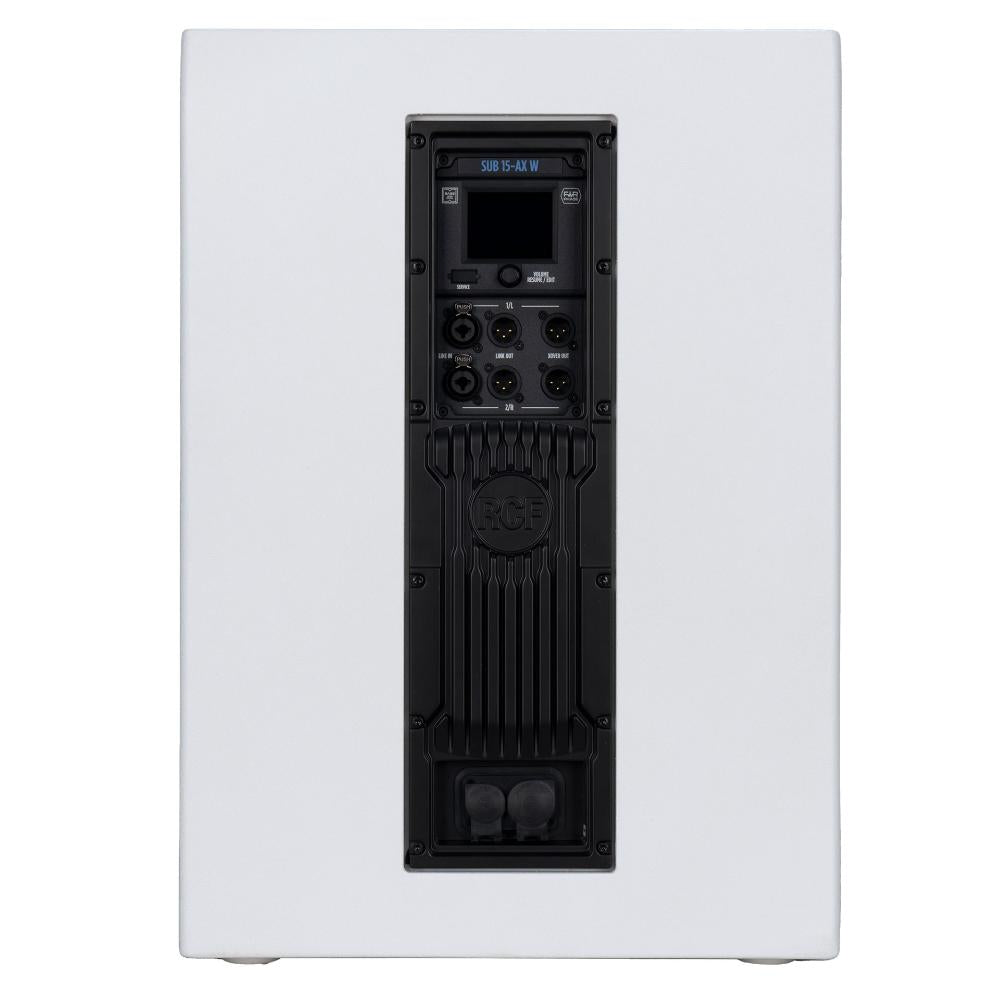

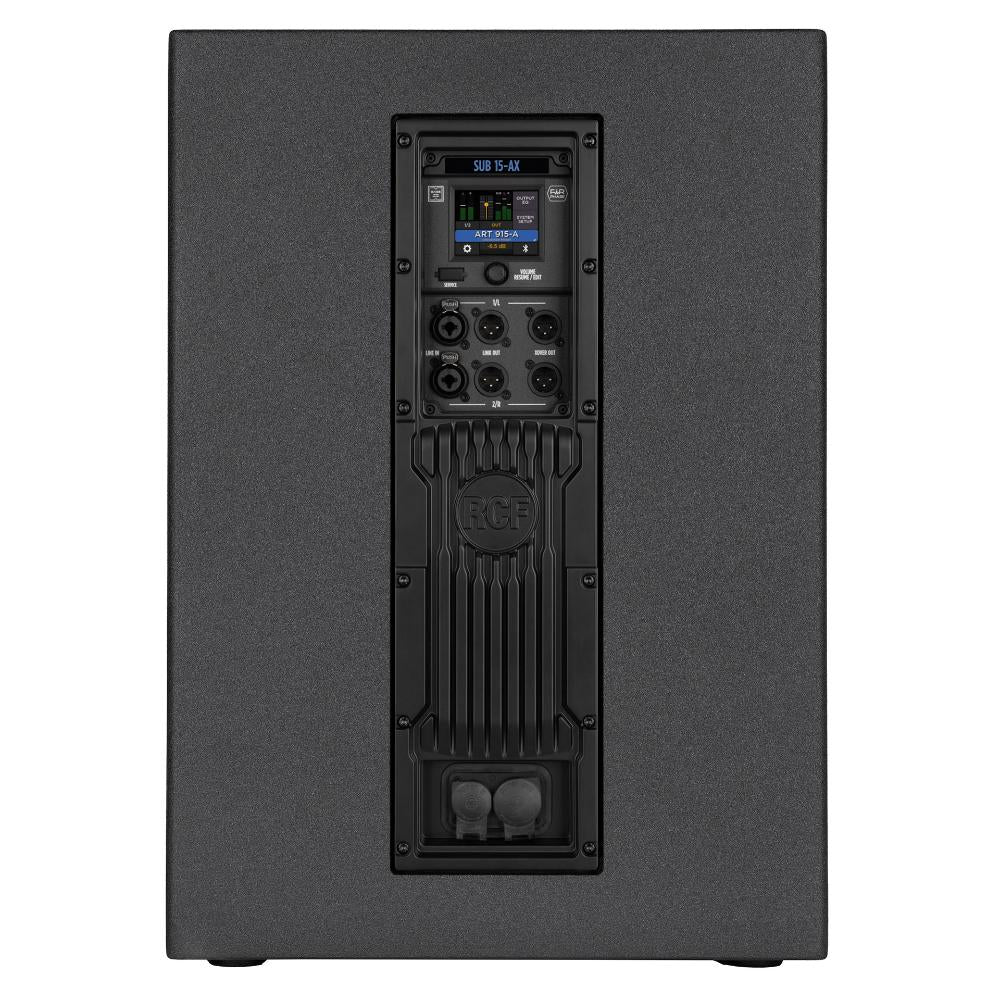

Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
Bass Motion Control excursion management
Powercon True1 Top Sealed AC Connector

The SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Specification

Acoustical Specifications
Frequency Response: 35 Hz ÷ 120 Hz
Max SPL @ 1m: 133 dB

Transducers
Woofer: 1 x 15”, 3.0” v.c

Input/Output Section
Input Signal: Balanced/Unbalanced
Input Connectors: Combo XLR/Jack
Output Connectors: XLR
Input Sensitivity: -2 dBu / +4 dBu

Processor Section
Protections: Thermal
Limiter: Soft Limiter
Controls: Encoder for Volume Control and Data Entry, Touch Screen for Parameter Management and Monitoring

Power Section
Total Power: 2200 W Peak, 1100 W RMS
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance
Safety Agency: CE Compliant

Physical Specifications
Cabinet/Case Material: Plywood

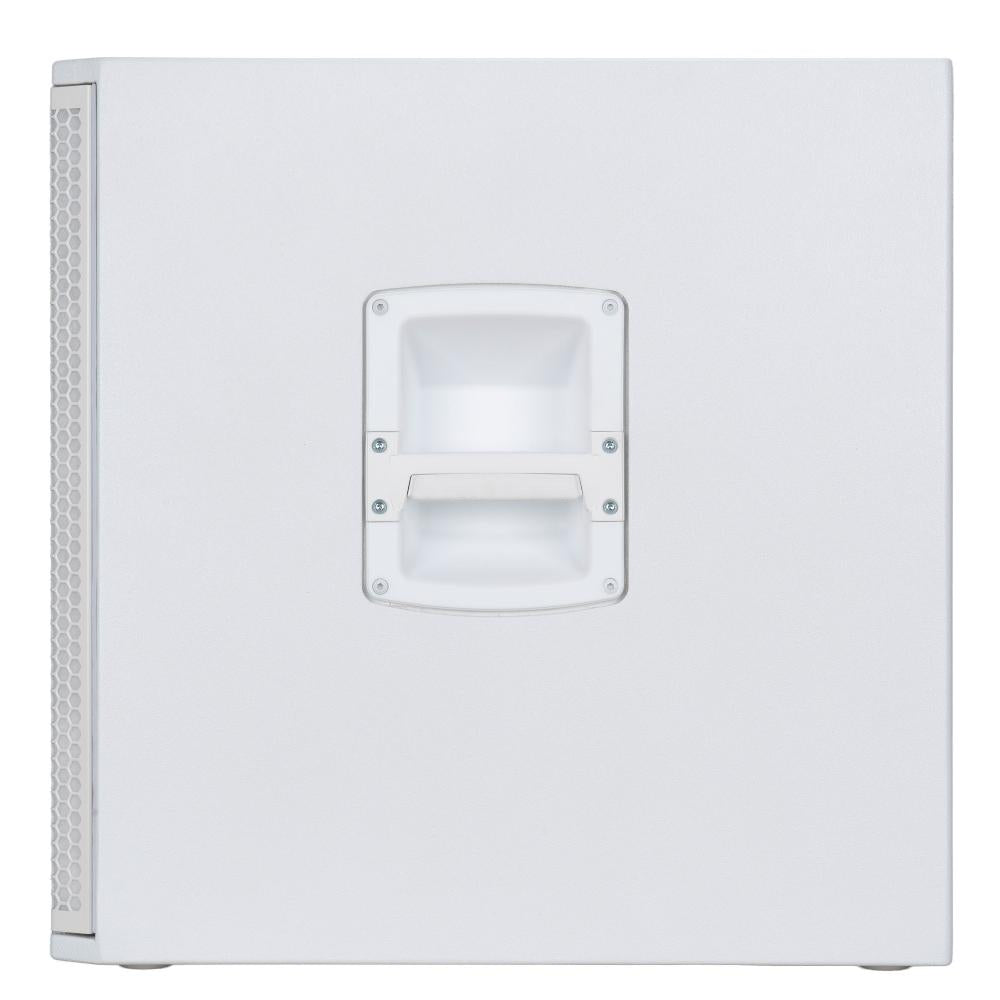

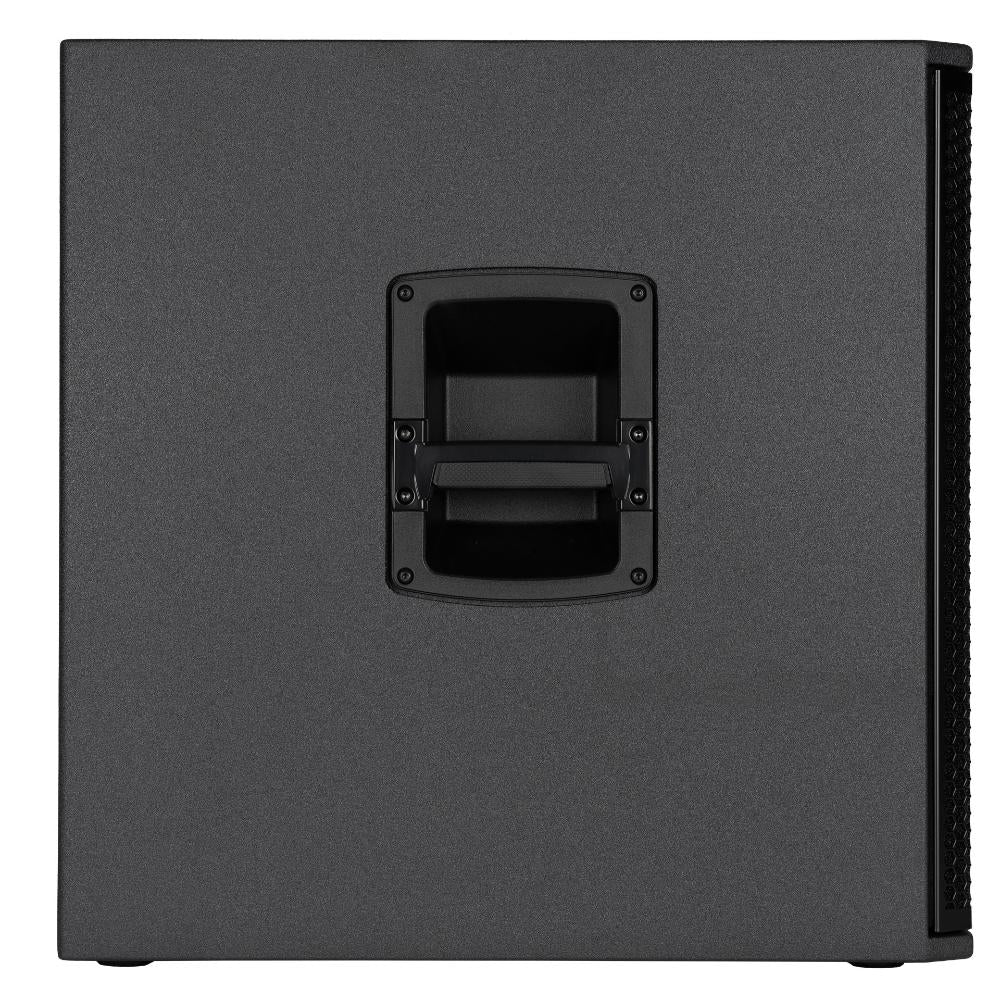

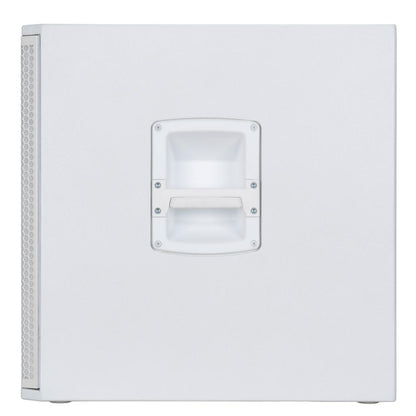

Handles: 1 Handle per Side

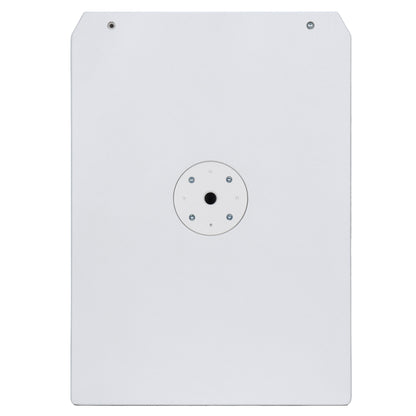

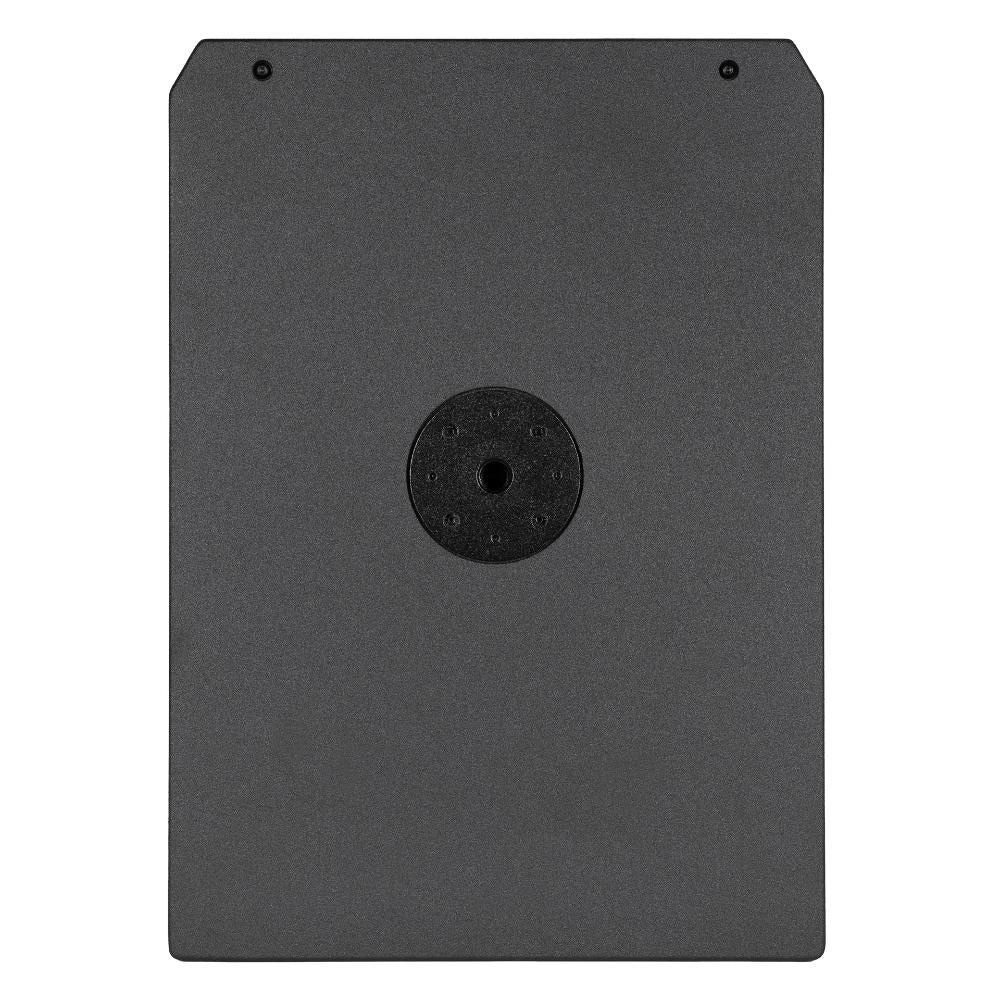

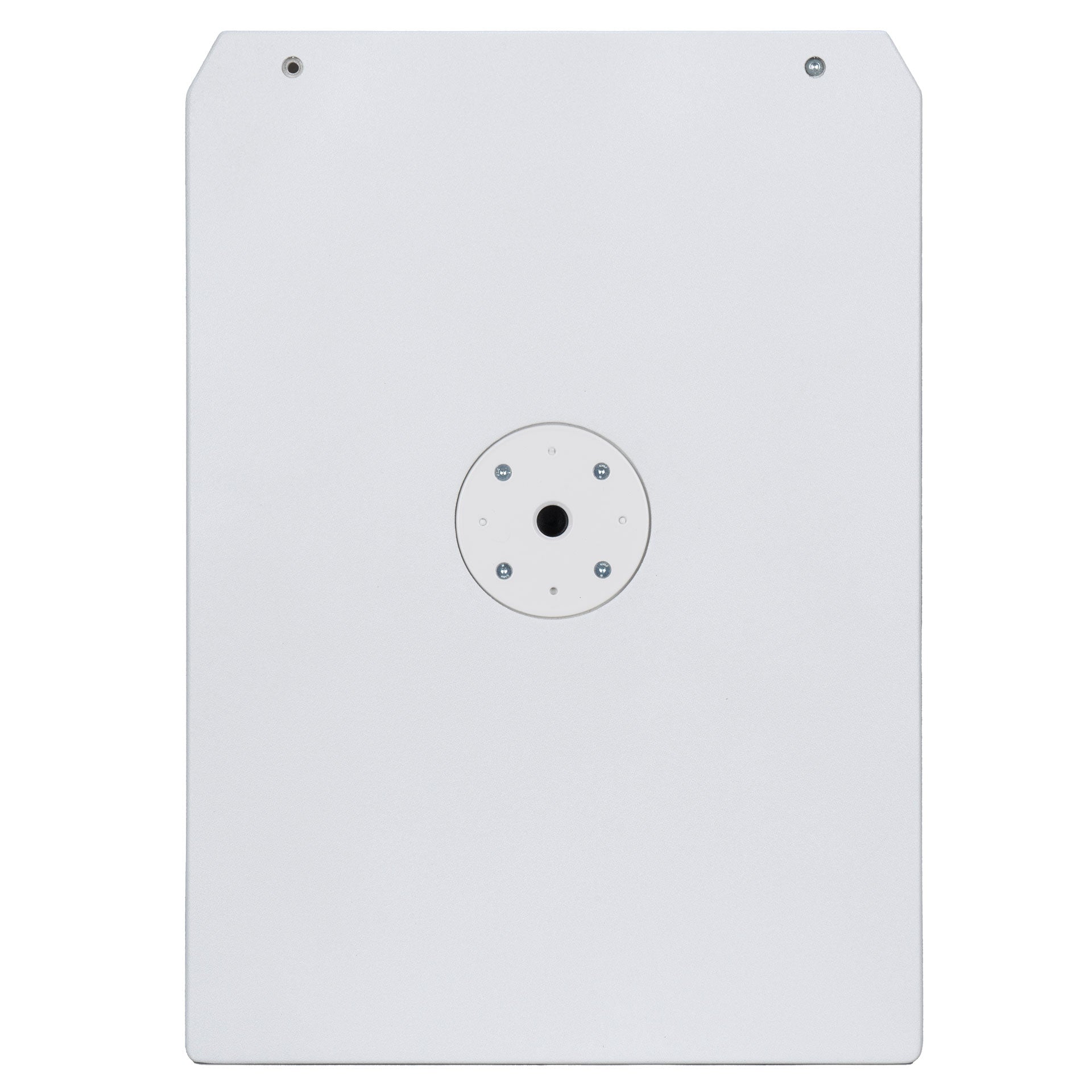

Pole Mount/Cap: M20 Thread
Grille: Steel

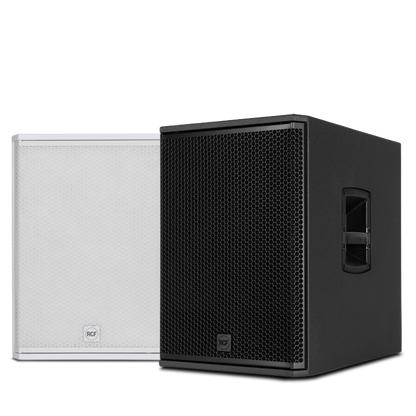

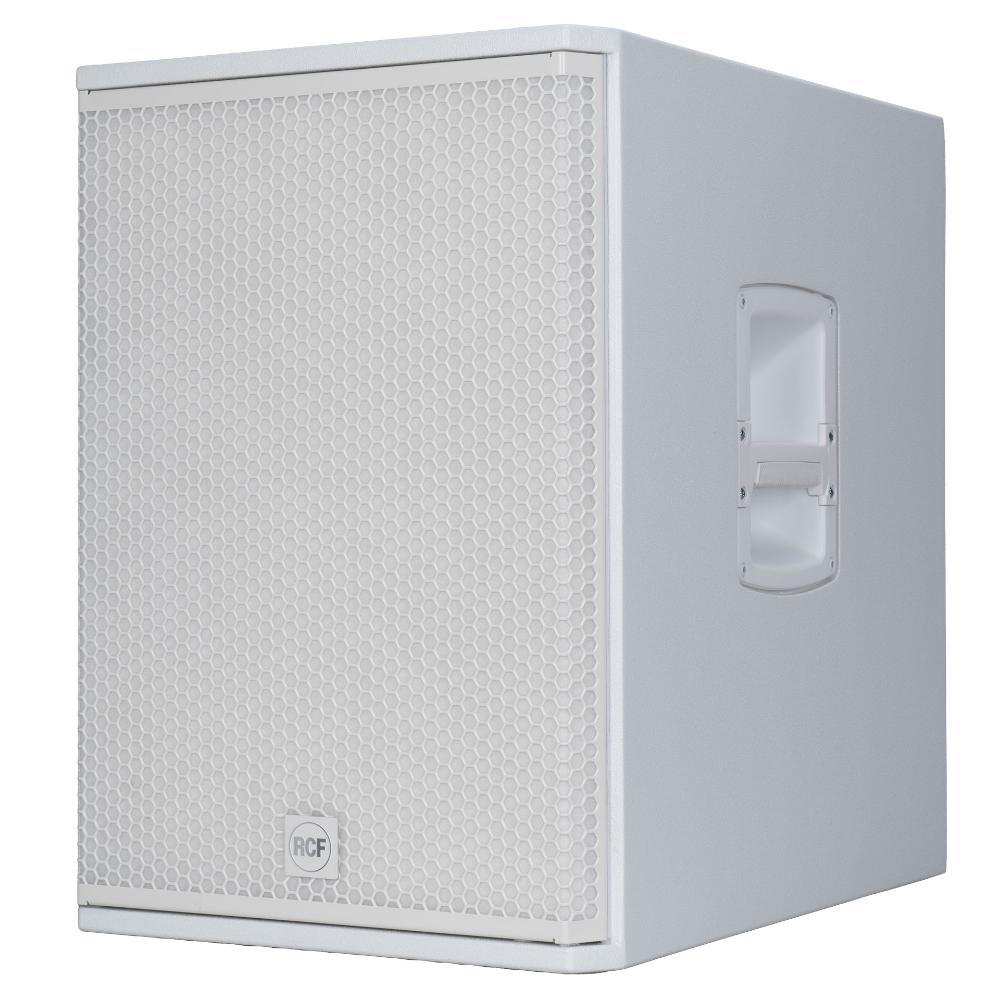

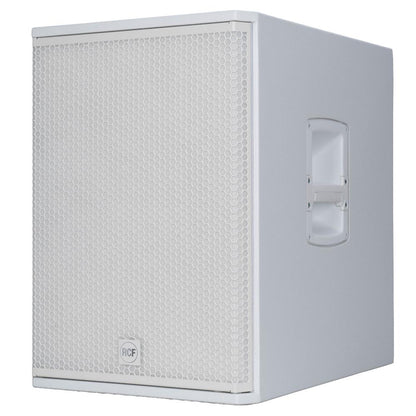

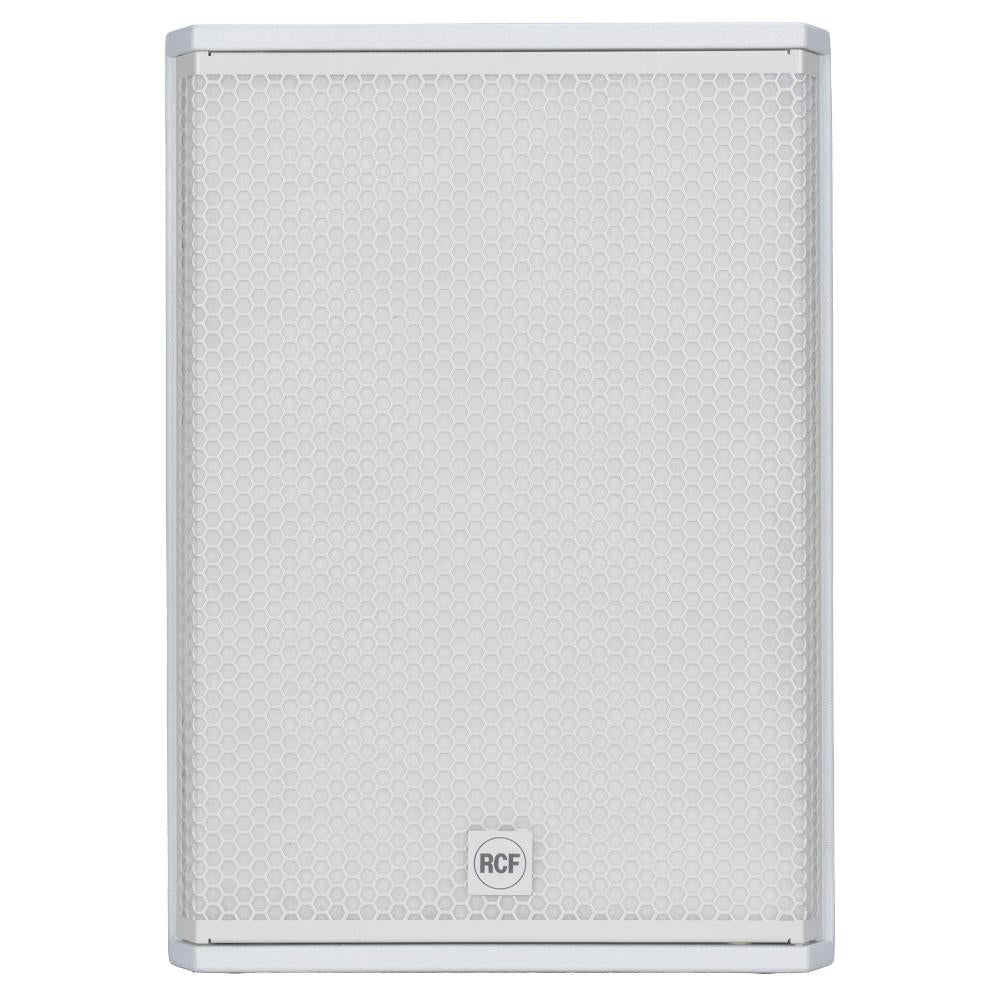

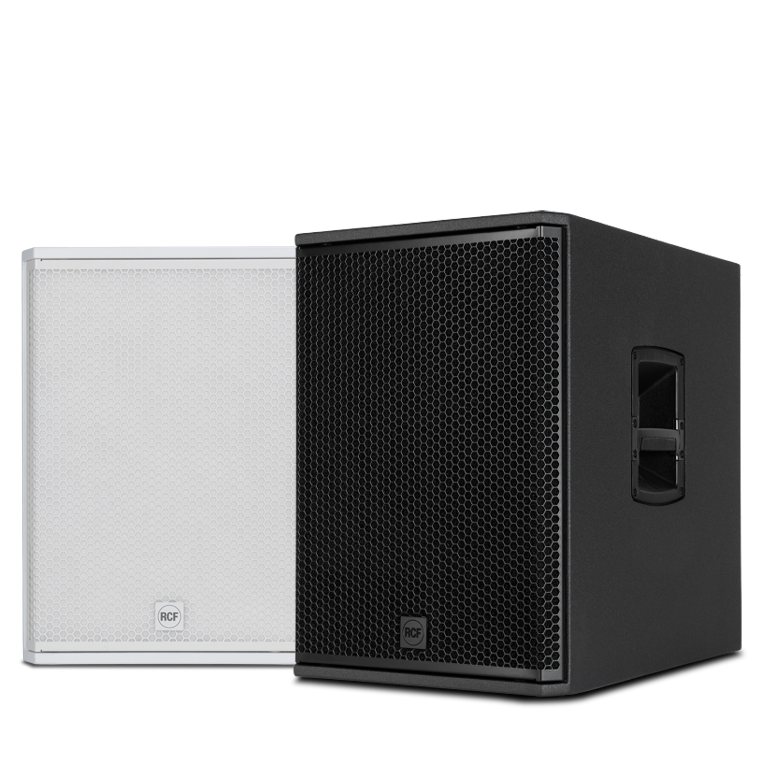

Color: Black, White

Size / Weight
Height: 590 mm / 23.23 inches
Width: 420 mm / 16.54 inches
Depth: 590 mm / 23.23 inches
Weight: 31.4 kg / 69.23 lbs

Shipping Information
Package Height: 640 mm / 25.2 inches
Package Width: 650 mm / 25.59 inches
Package Depth: 480 mm / 18.9 inches
Package Weight: 36.5 kg / 80.47 lbs
