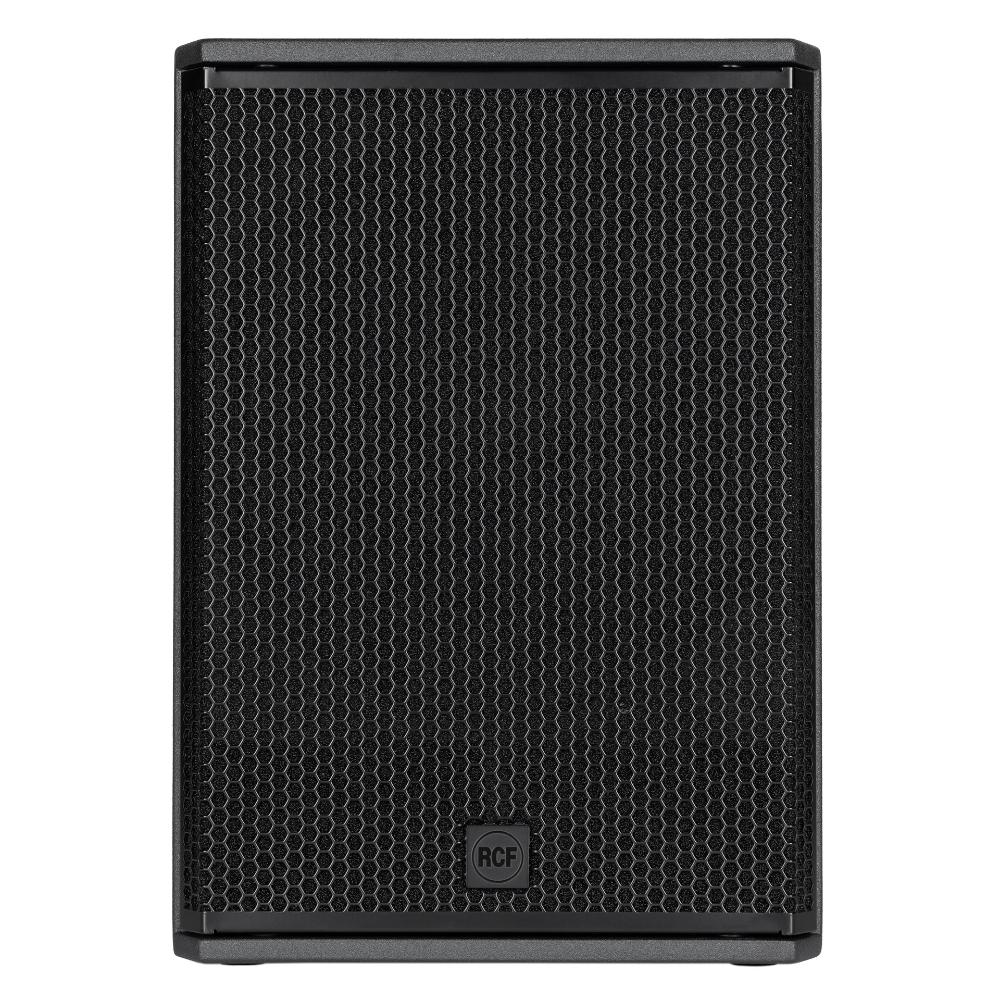

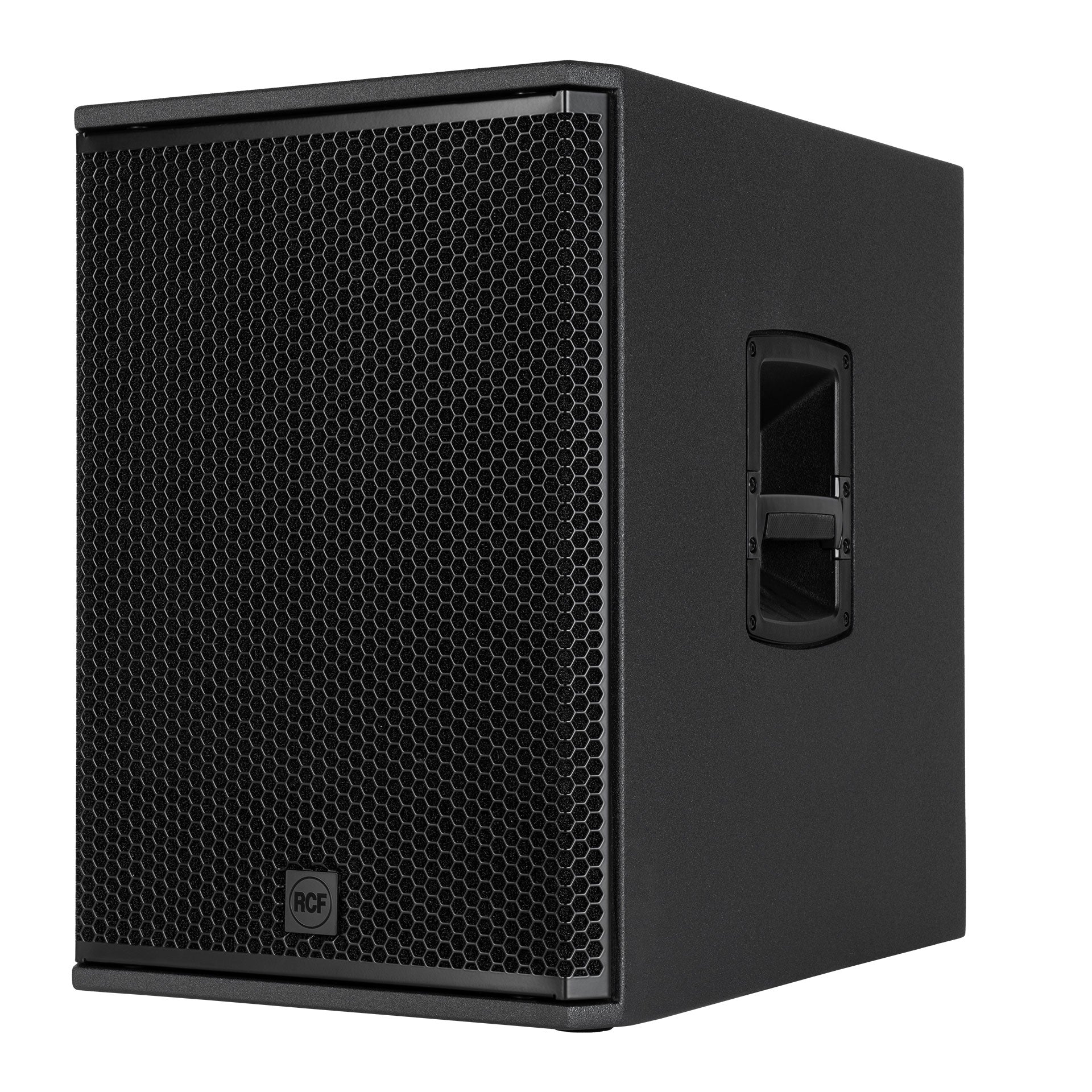

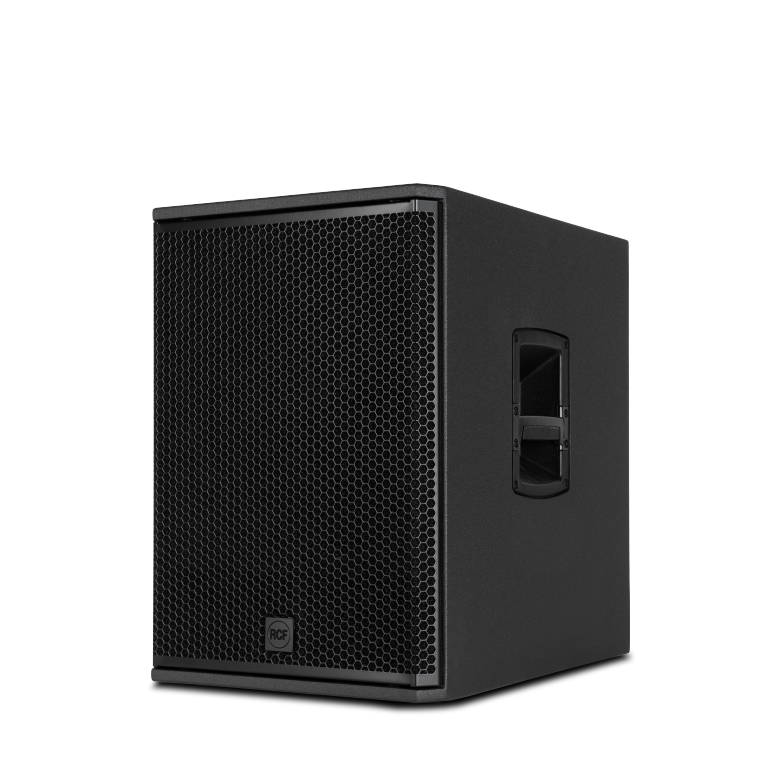

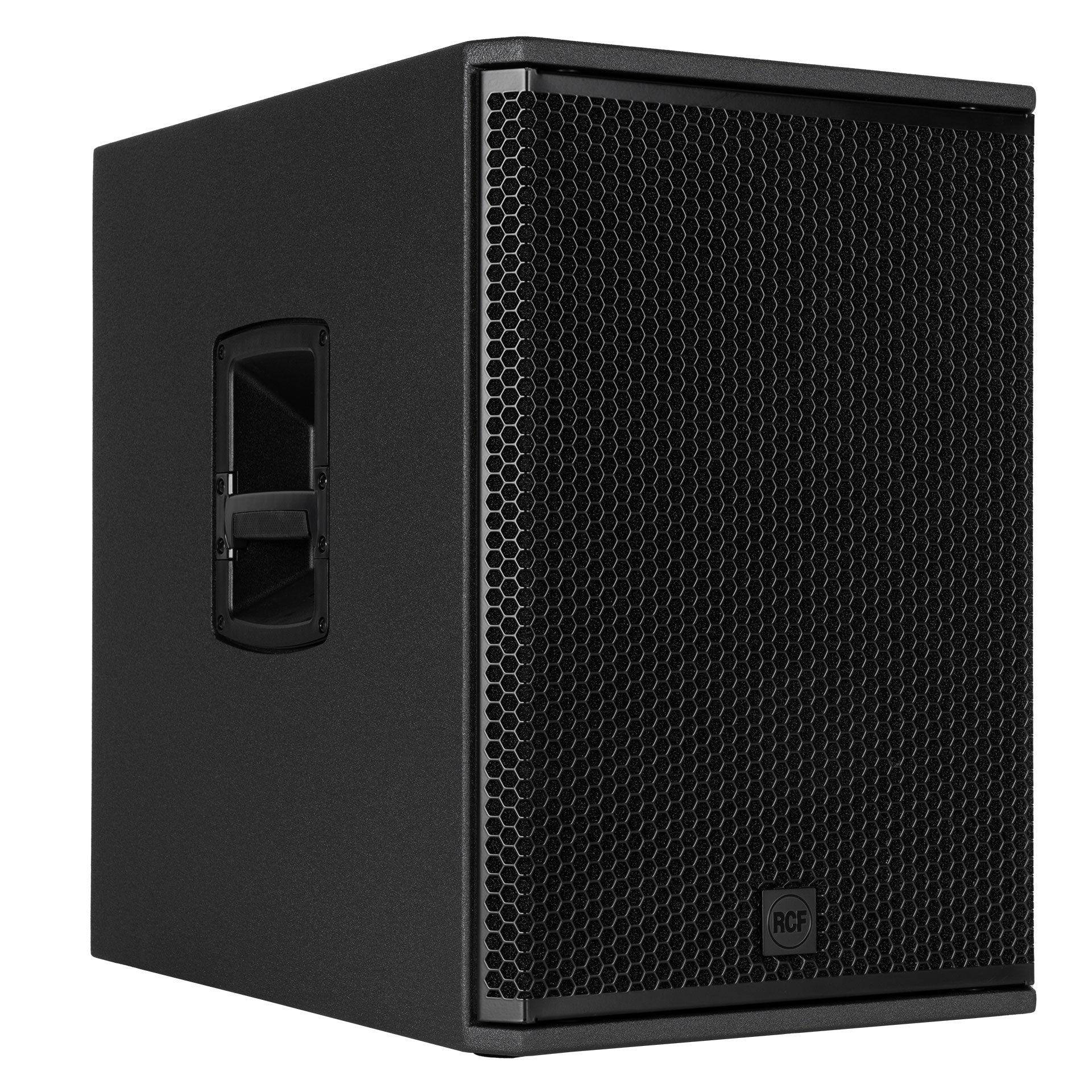

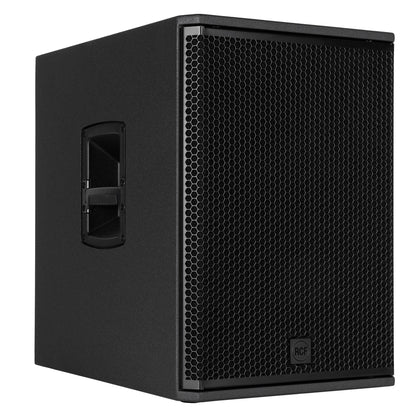

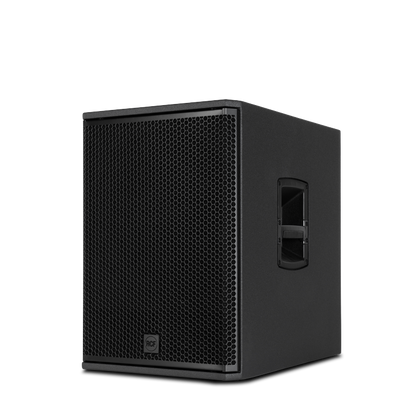

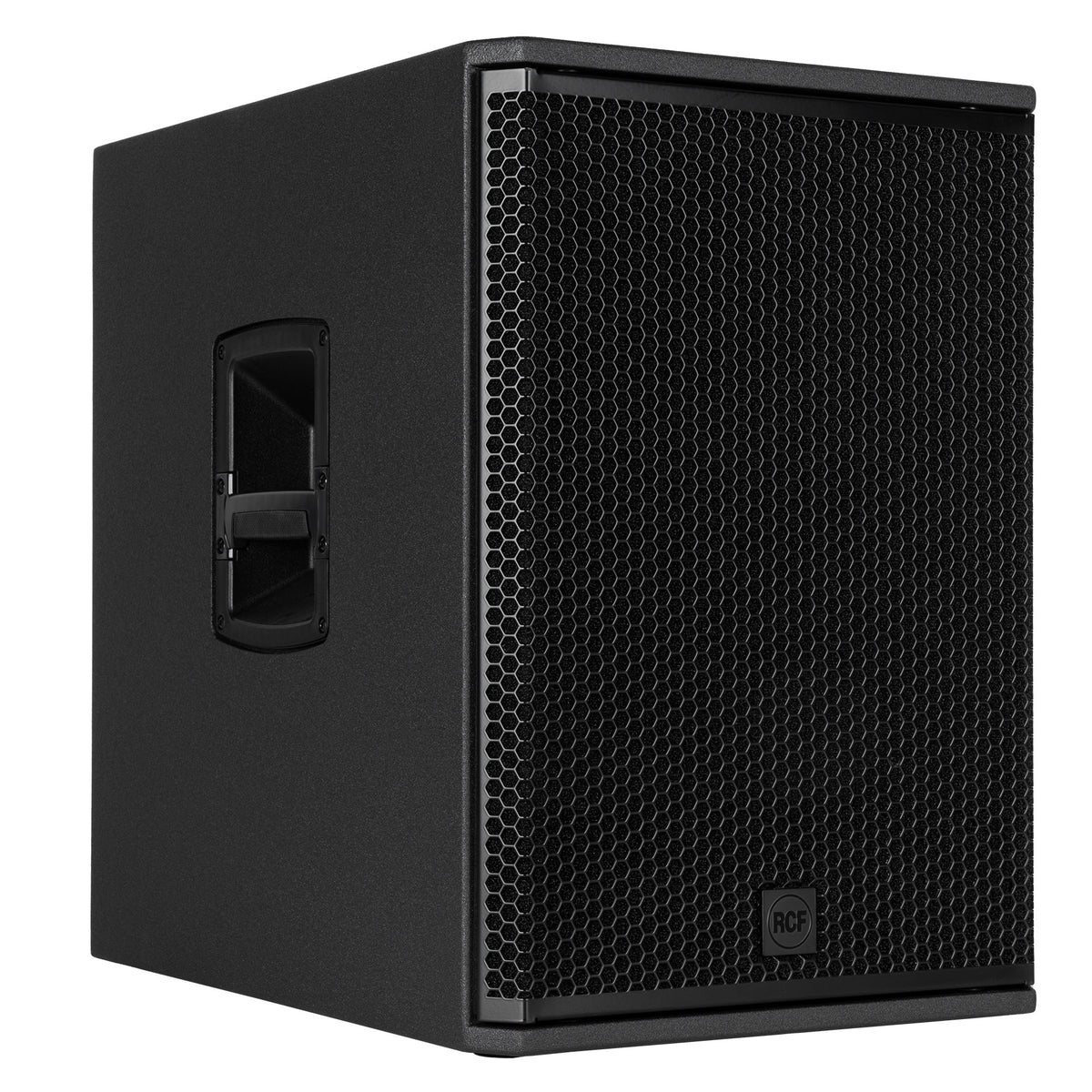

RCF SUB 15-AS Professional Active Subwoofer

The RCF SUB 15-AS is a portable 15-inch high-power active subwoofer for live sound applications. It combines a 2200 W Class-D amplifier with a 15-inch woofer and RCF Bass Motion Control for extended low-frequency response.

• 2200 W power
• 133 dB max SPL
• 35 Hz - 400 Hz frequency response
• 15-inch woofer with 3.0-inch voice coil
• Birch tour-grade cabinet with polyurea coating

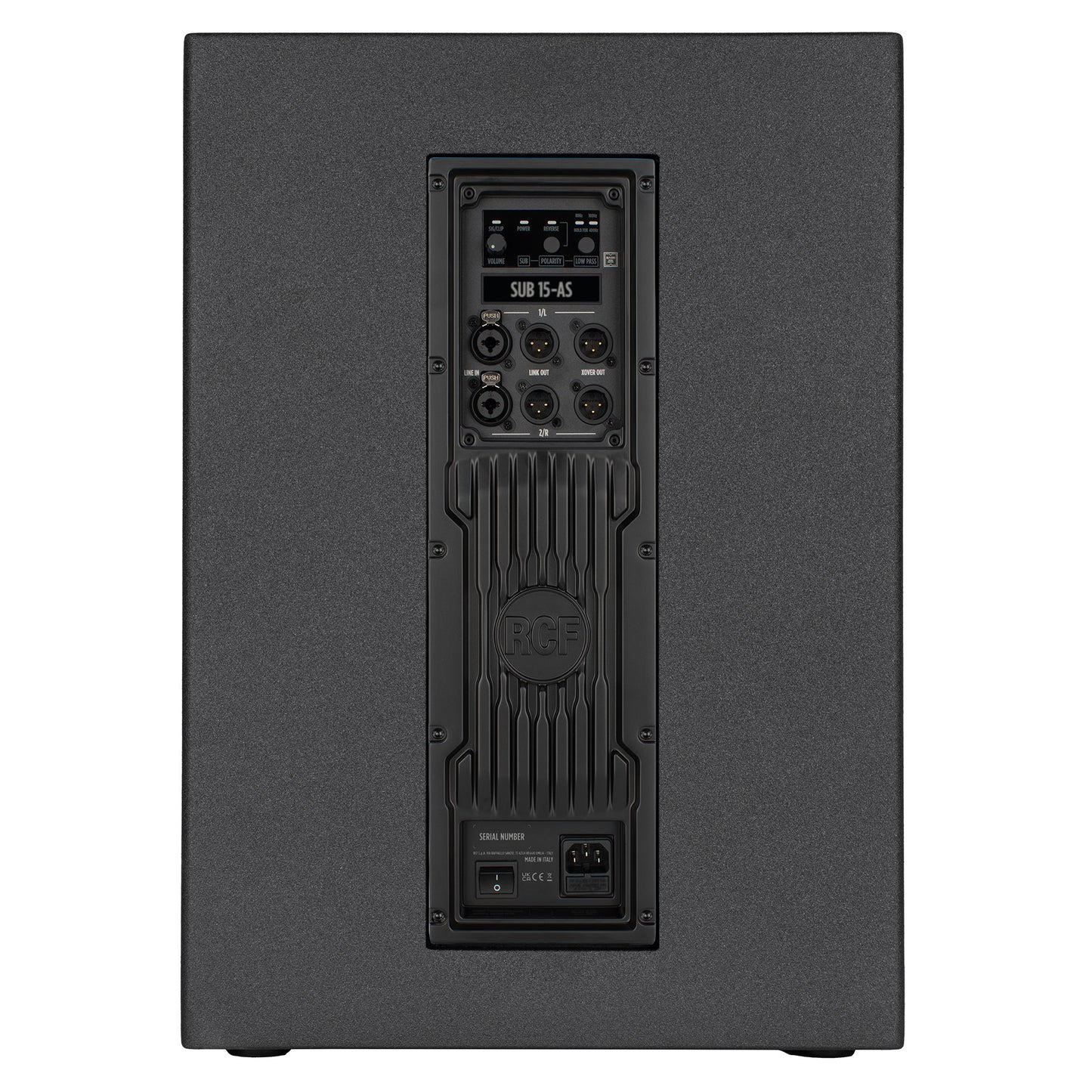

• Mono/stereo XLR/TRS combo inputs plus link and stereo XLR crossover outputs
• Volume, polarity and low-pass frequency selection

Acoustical Specifications

• Frequency Response: 35 Hz - 400 Hz
• Max SPL @ 1m: 133 dB

Transducers

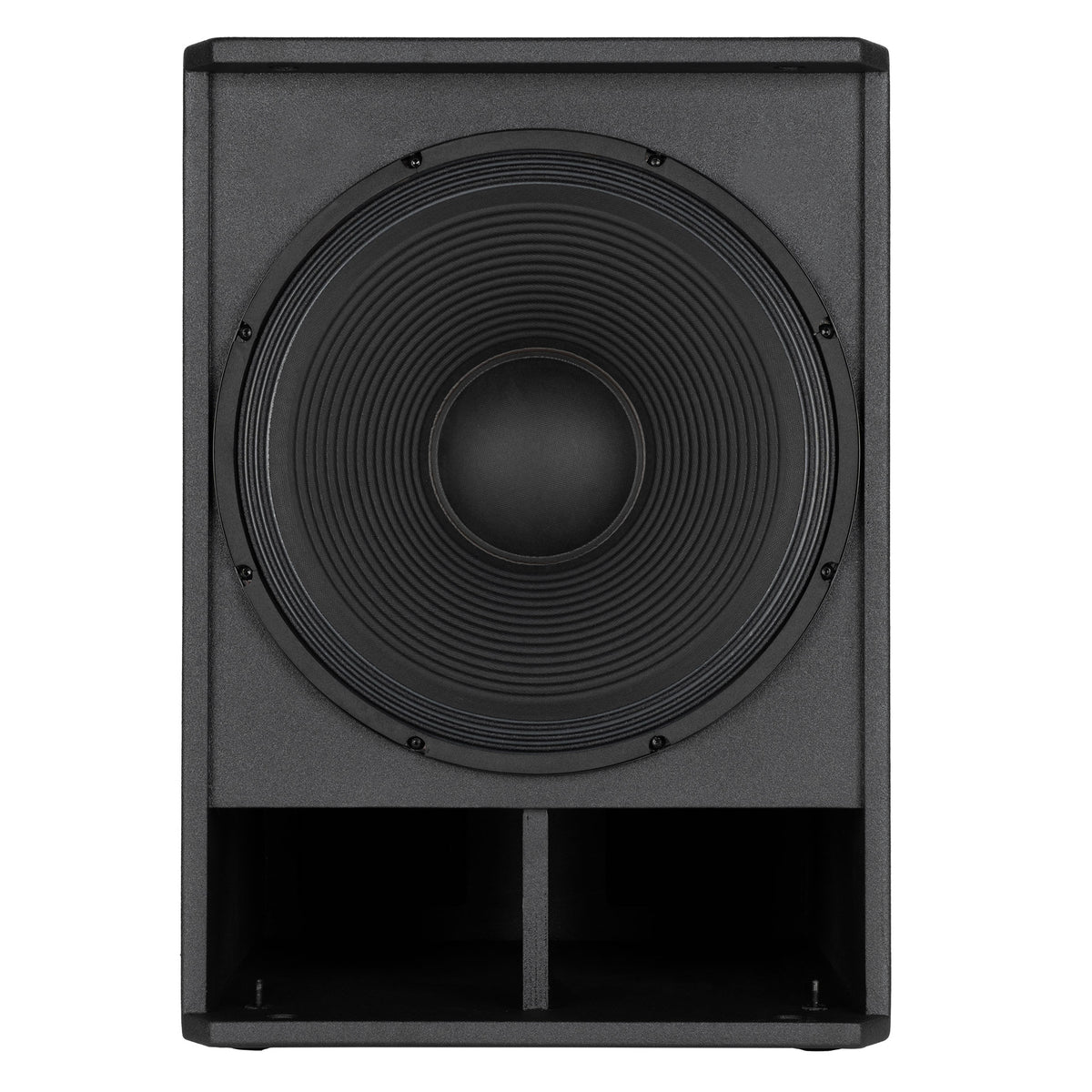

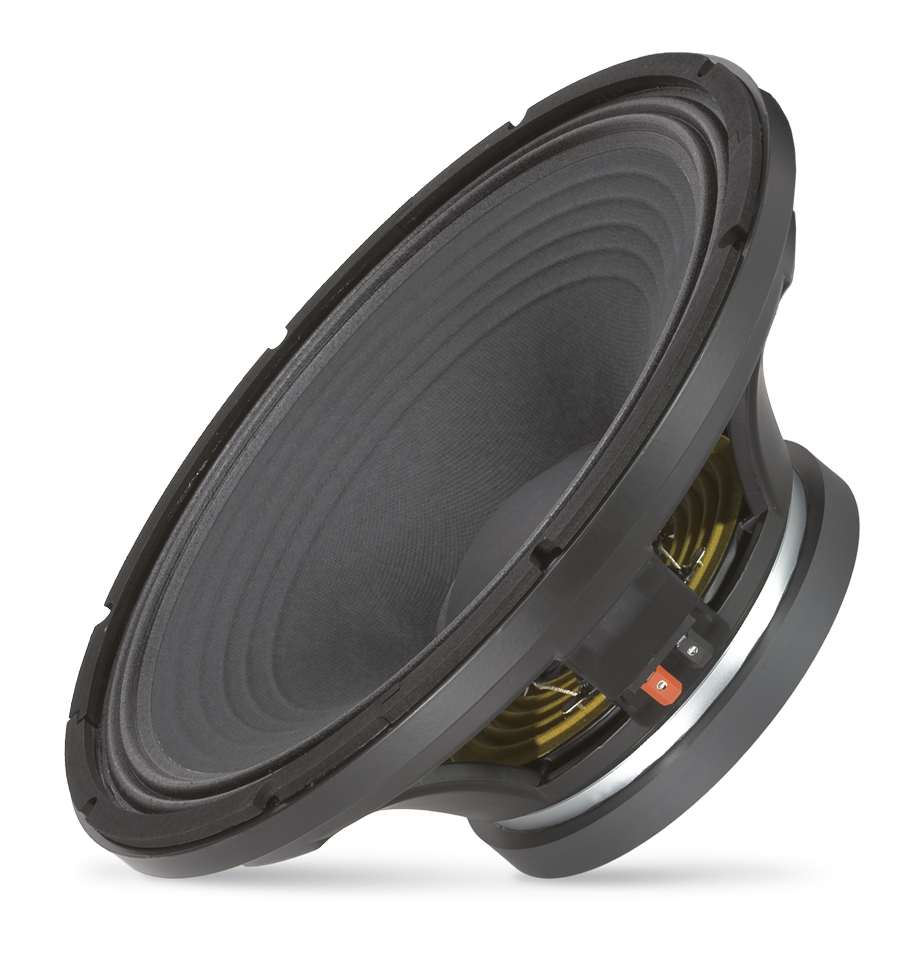

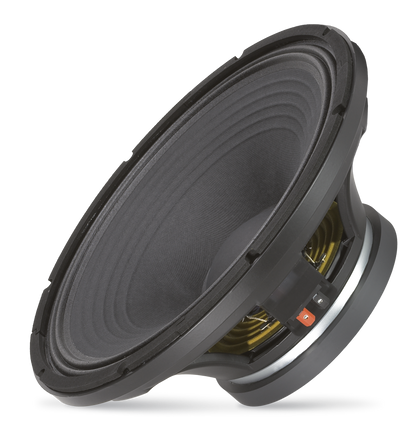

• Woofer: 1 x 15'', 3.0'' v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Protections: Thermal
• Limiter: Soft Limiter
• Controls: Volume, Polarity, Low pass filter frequency

Power Section

• Total Power: 2200 W Peak
• Cooling: Convection
• Connections: VDE

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood

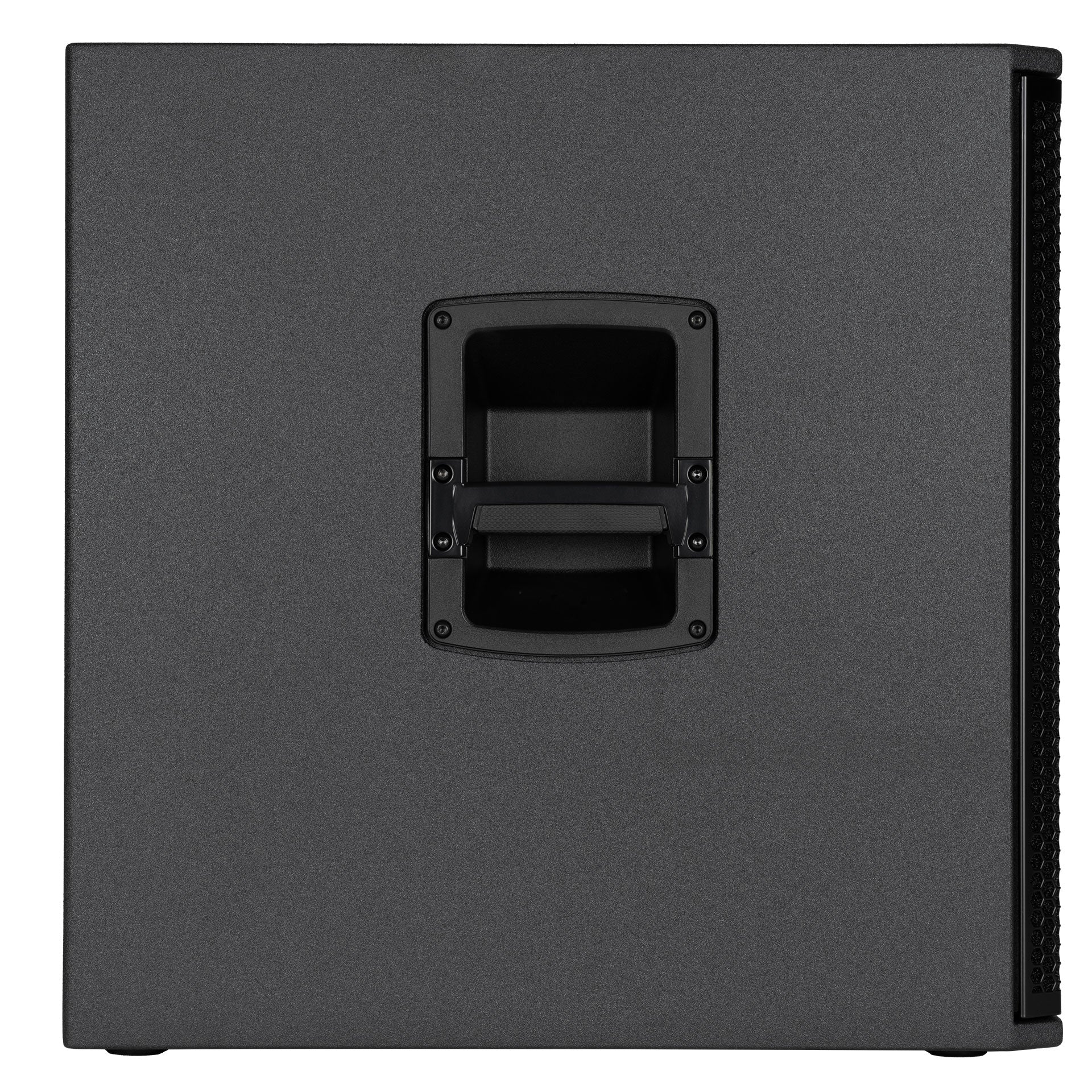

• Handles: 1 each side
• Pole mount/Cap: M20 thread
• Grille: Steel with clothing
• Color: Black

Size / Weight

• Height: 590 mm / 23.23 inches
• Width: 420 mm / 16.54 inches
• Depth: 590 mm / 23.23 inches
• Weight: 30 kg / 66.14 lbs

Shipping Information

• Package Height: 648 mm / 25.51 inches
• Package Width: 638 mm / 25.12 inches
• Package Depth: 478 mm / 18.82 inches
• Package Weight: 34.9 kg / 76.94 lbs

Manufacturer Identifiers

• Part Number (220-240 V): 13000938
• EAN: 8024530023980
