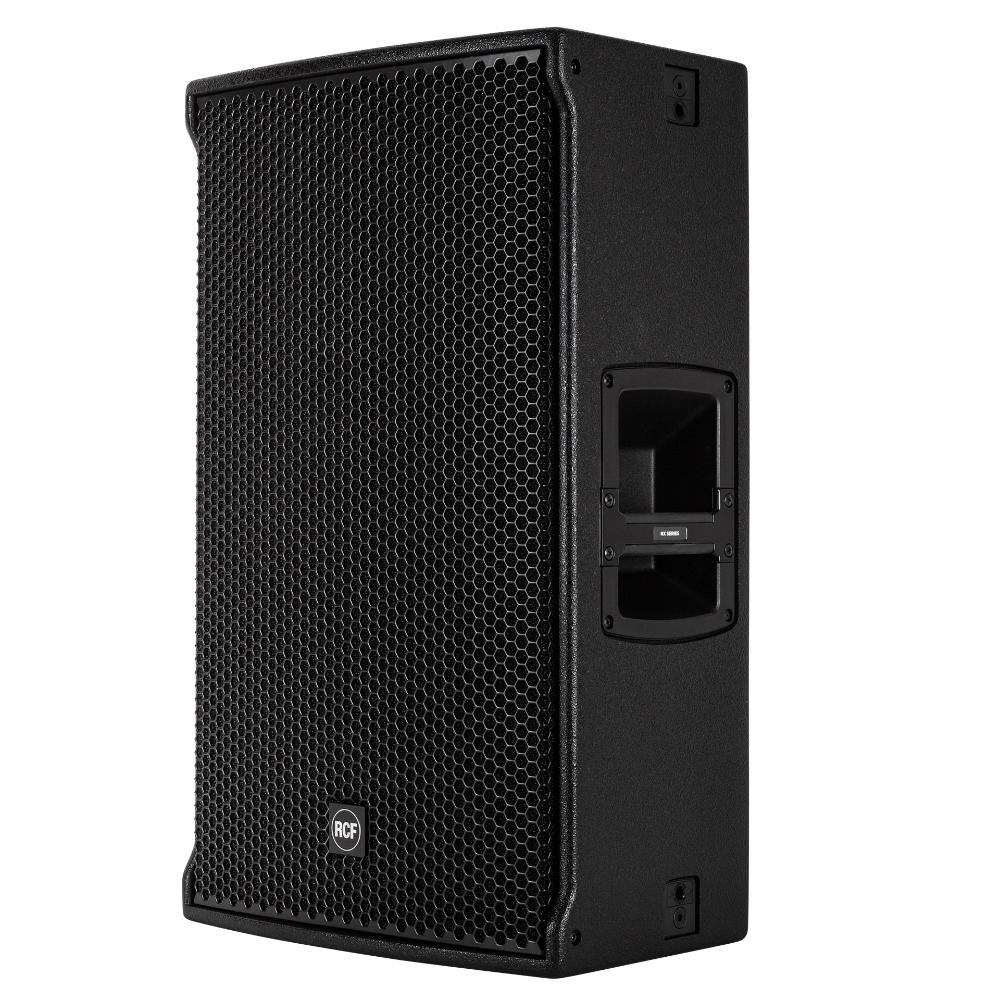

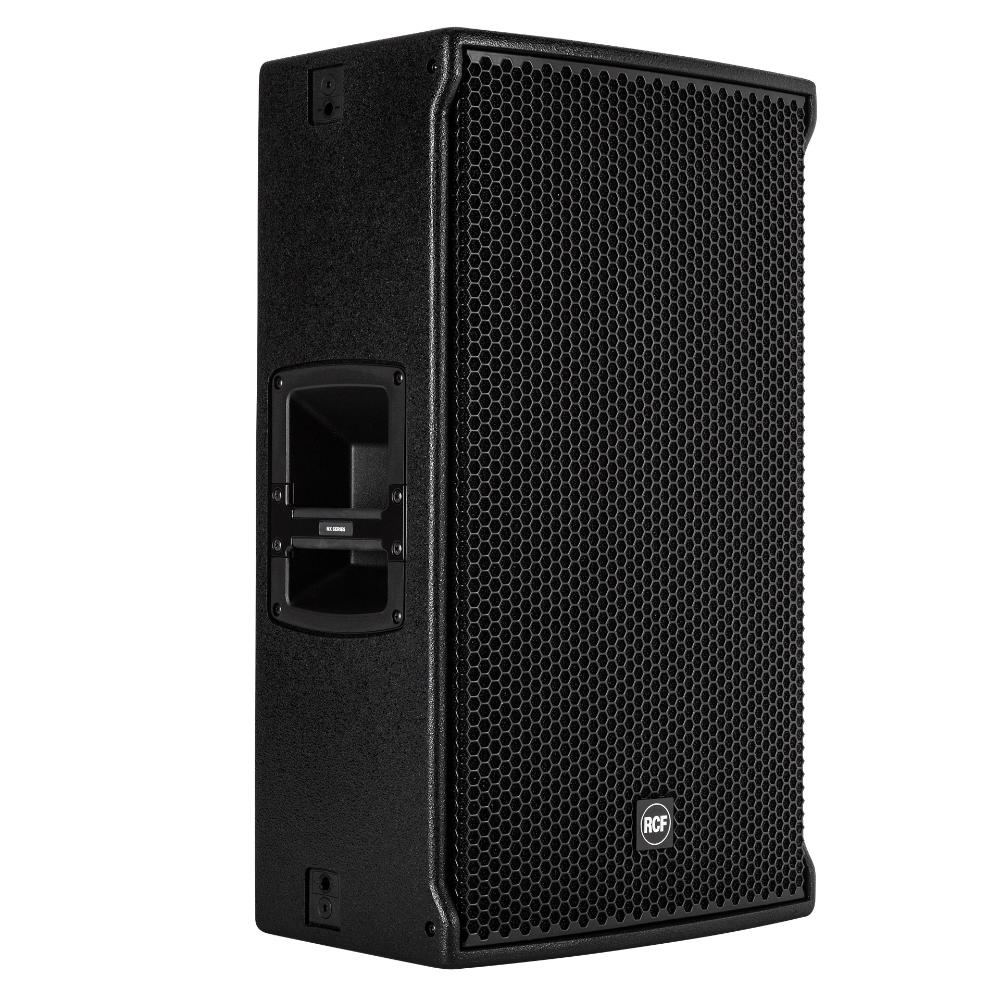

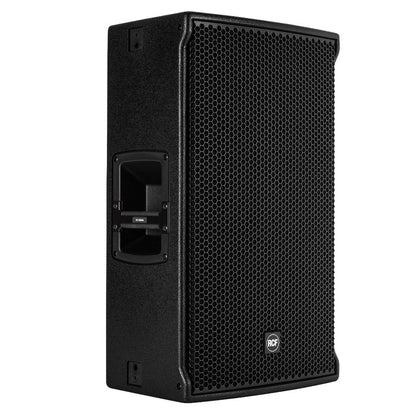

RCF NX45A 15″ ACTIVE TWO WAY MULTIPURPOSE SPEAKER

FEATURES

• 1400 W 2-way class-D amplifier
• 133 dB SPL Max
• 45 – 20000 Hz Frequency Range
• 90° x 50° constant directivity coverage

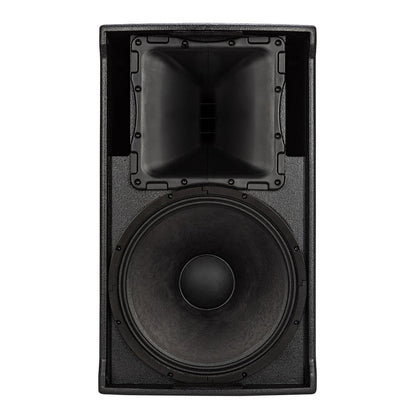

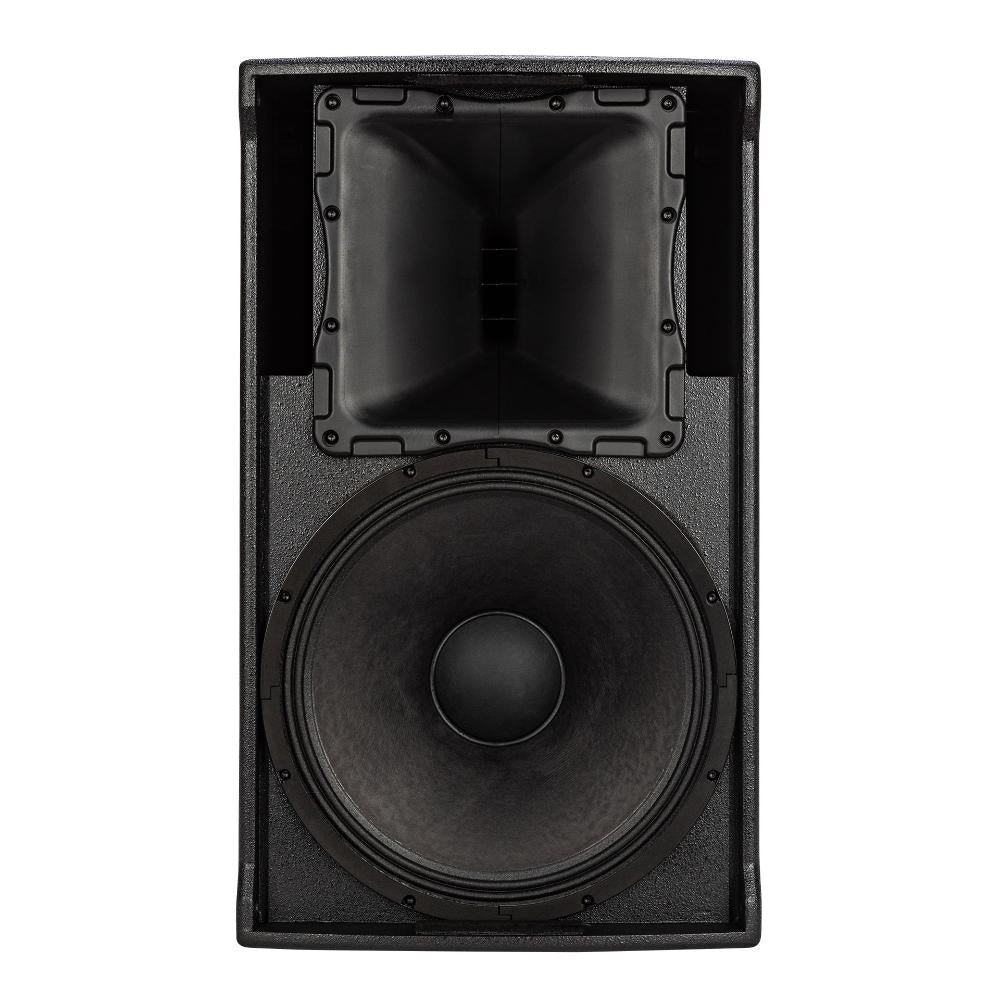

• 15" neodymium woofer, 3.5" voice coil
• Horn loaded 4.0''neodymium c. driver
• Multiple rigging points

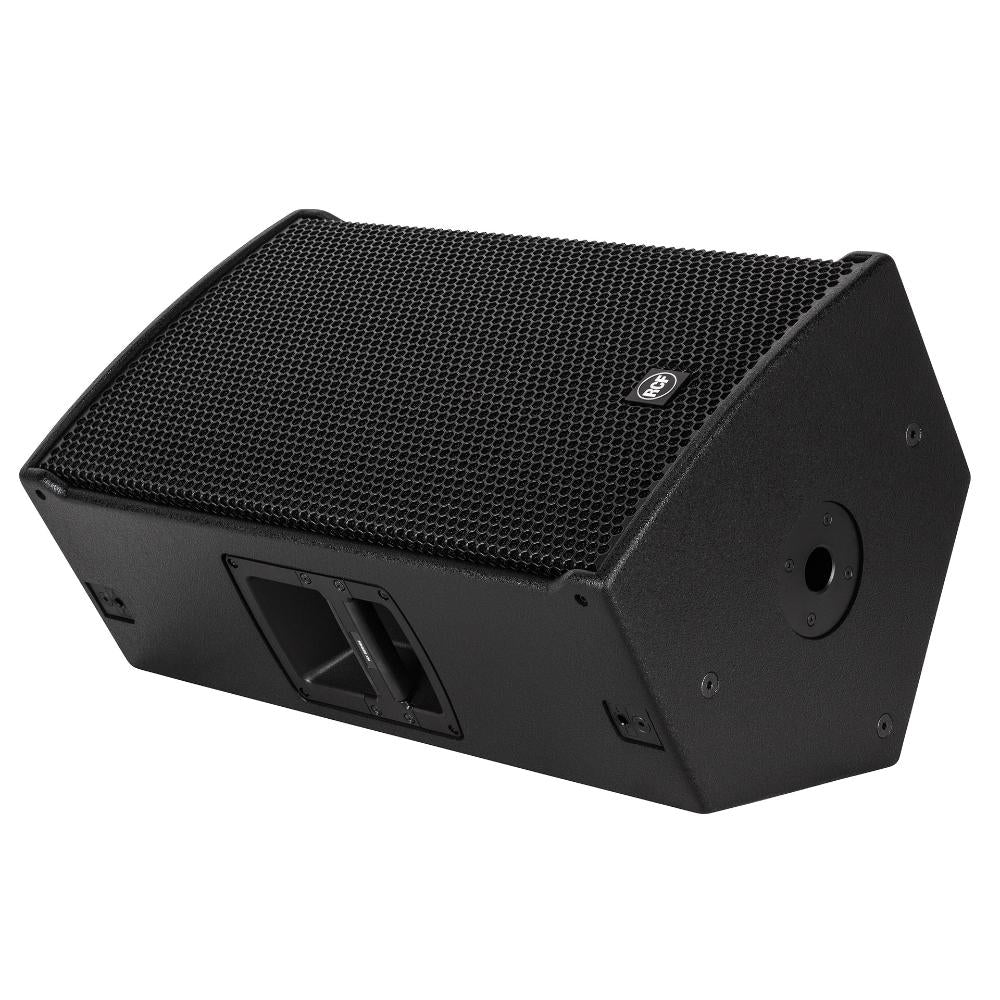

The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.

TECHNICAL SPECIFICATIONS

Frequency Response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 133 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 50°
Compression Driver: 1.4'' neo, 4.0'' v.c
Woofer: 15'' neo, 3.5'' v.c
Input signal: bal/unbal

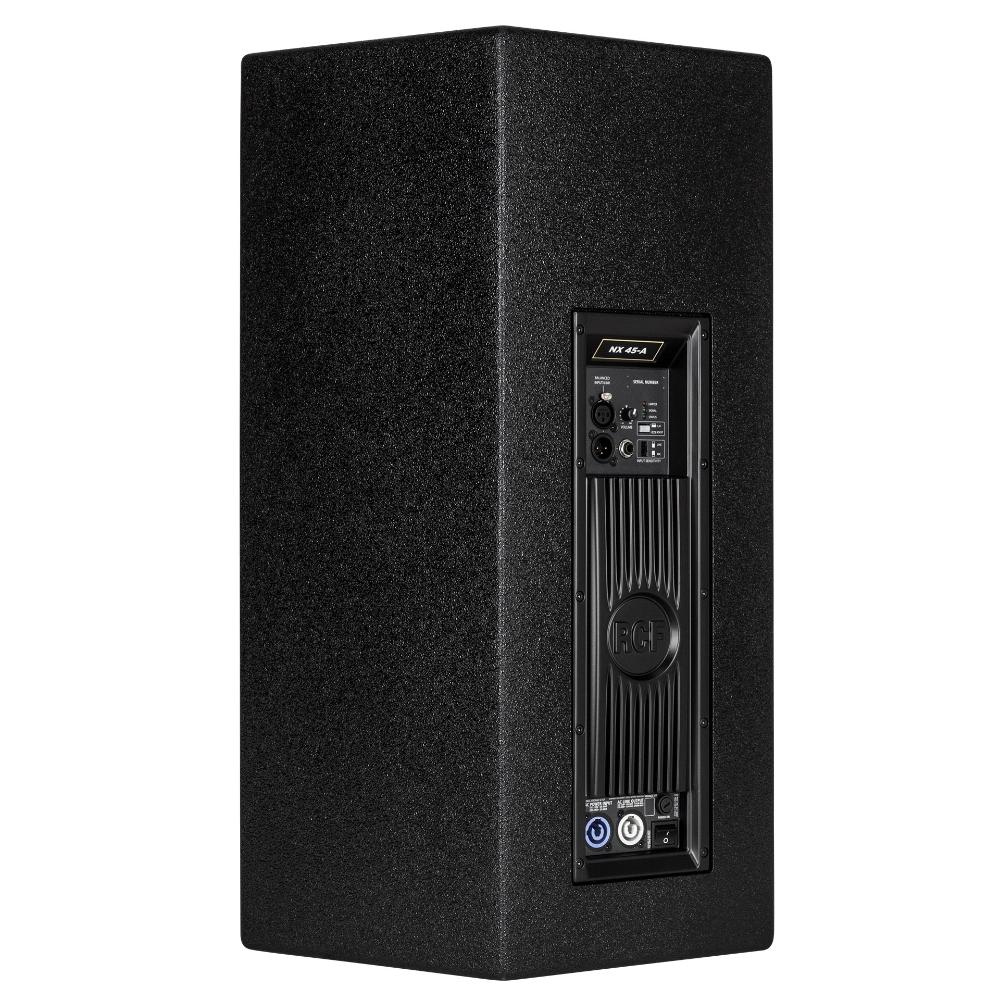

Input connectors: XRL, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic. Input Sensitivity: -32 dBu
Crossover Frequencies: 650 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: Baltic birch plywood

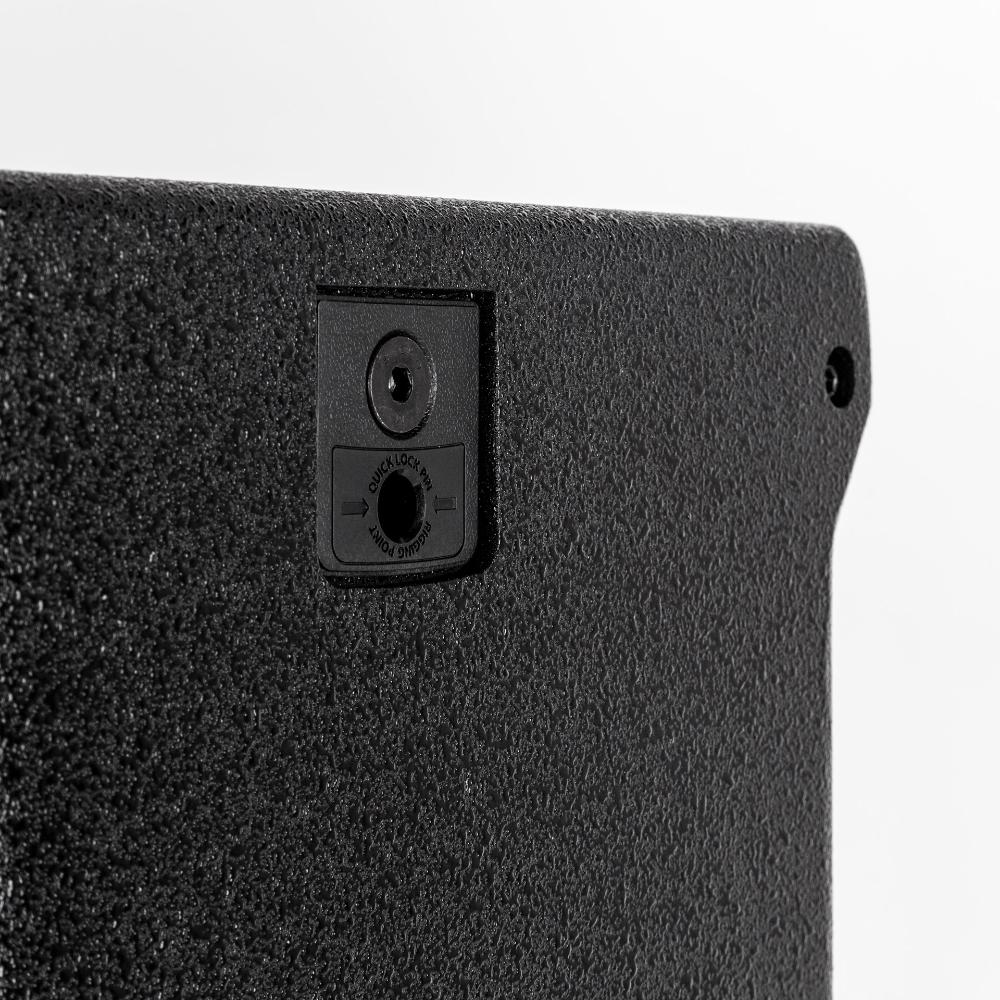

Hardware: 5 x M10, 4 x quick lock

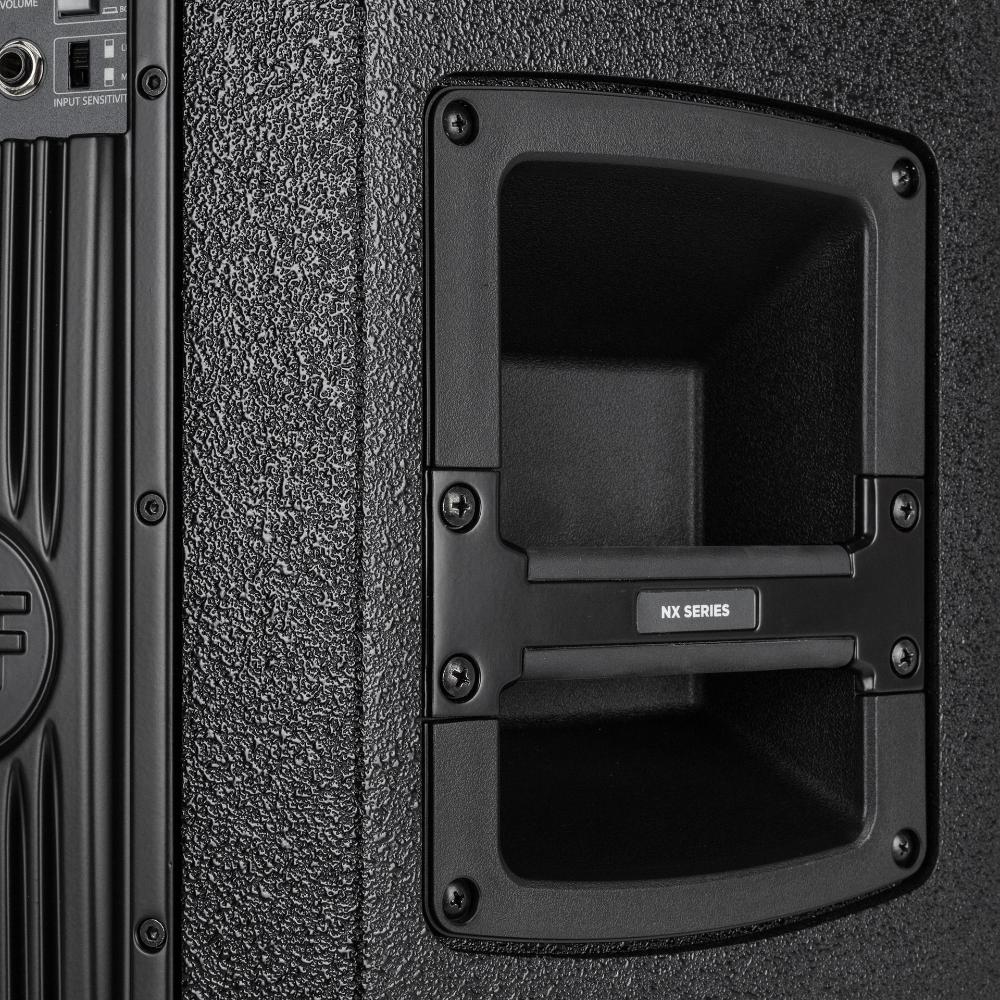

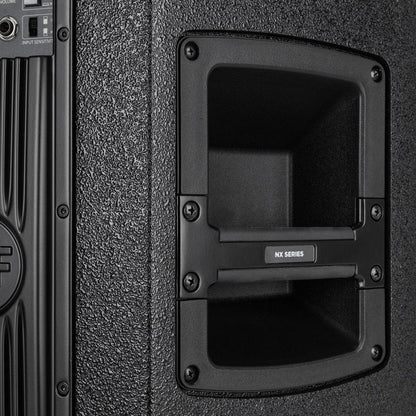

Handles: 2 Side

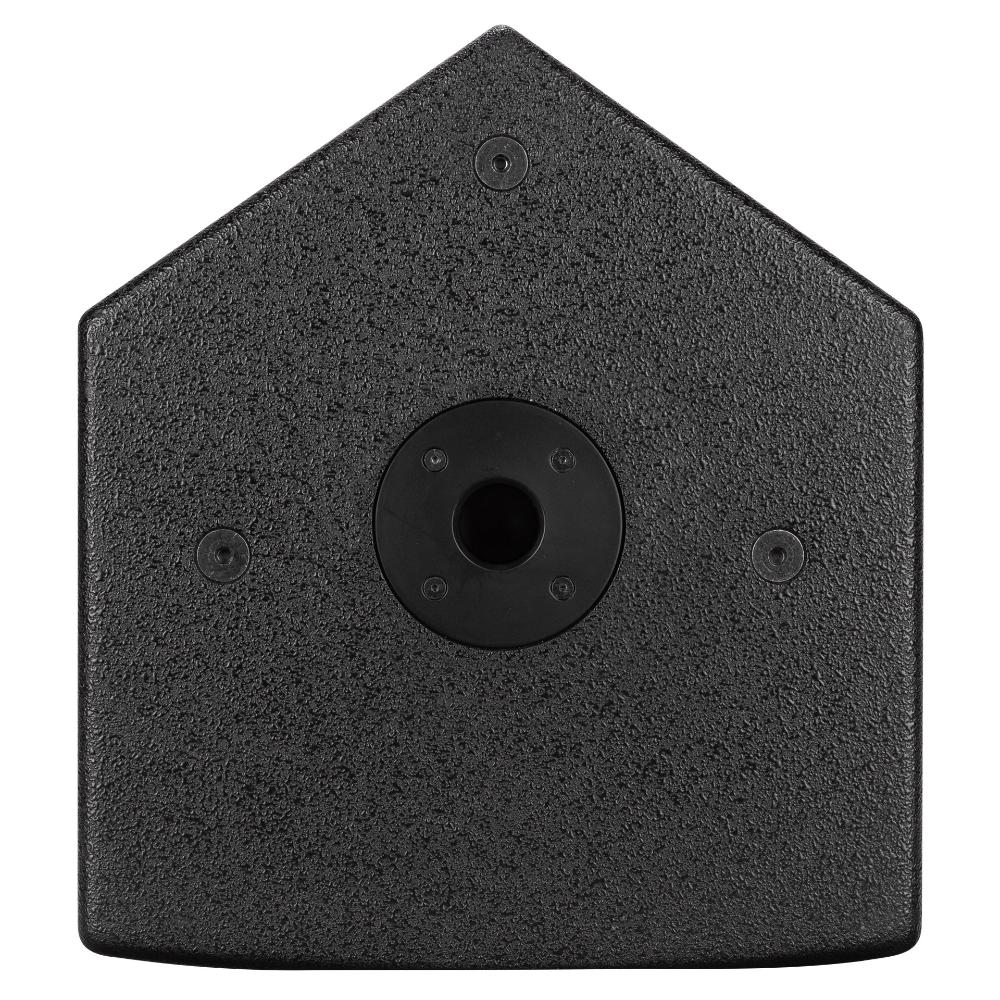

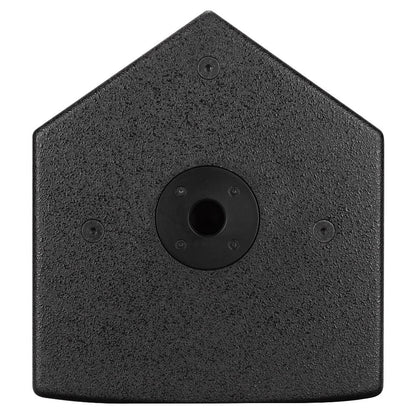

Pole mount/Cap: Yes

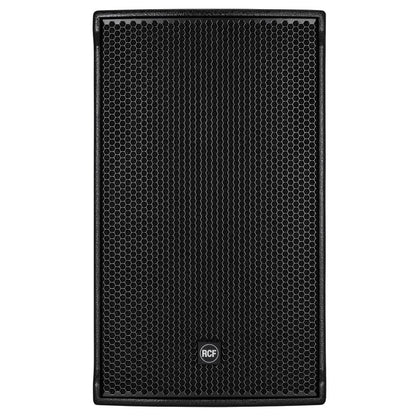

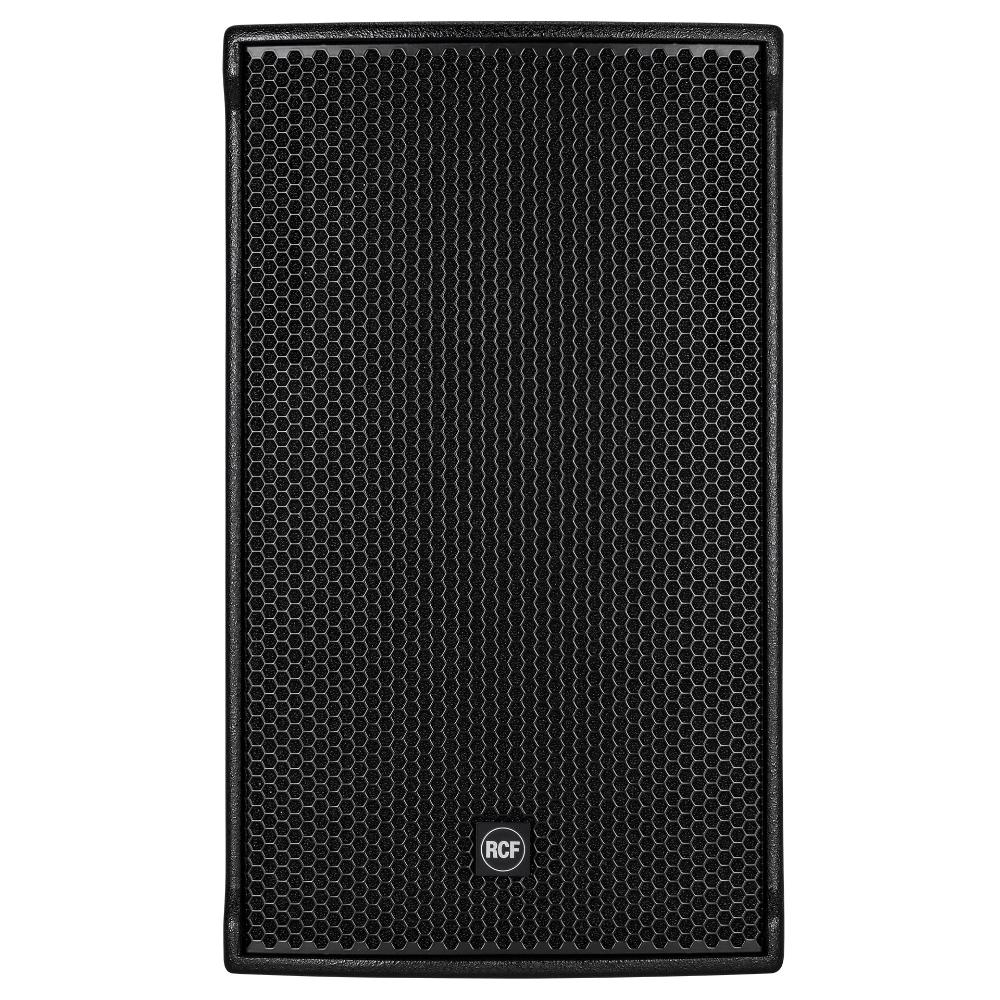

Grille: Steel
Color: Black
Size Height: 707 mm / 27.83 inches
Width: 418 mm / 16.46 inches
Depth: 402 mm / 15.83 inches
Weight: 24 kg / 52.91 lbs

Shipping informations Package:

Package Height: 760 mm / 29.92 inches
Package Width: 480 mm / 18.9 inches
Package Depth: 460 mm / 18.11 inches
Package Weight: 27 kg / 59.52 lbs
