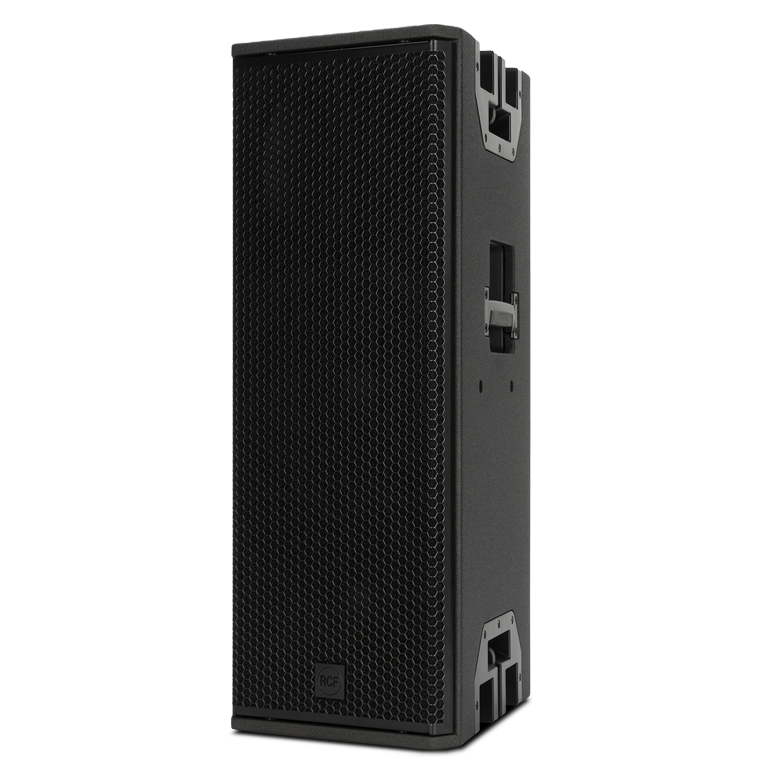

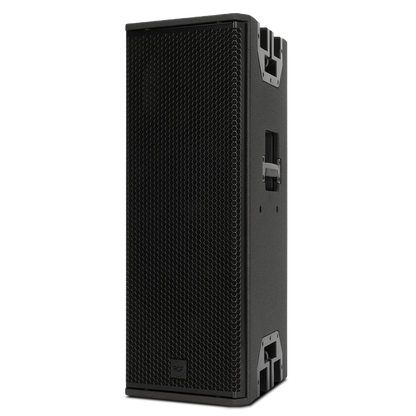

• RCF KXL 4-A active two-way array speaker

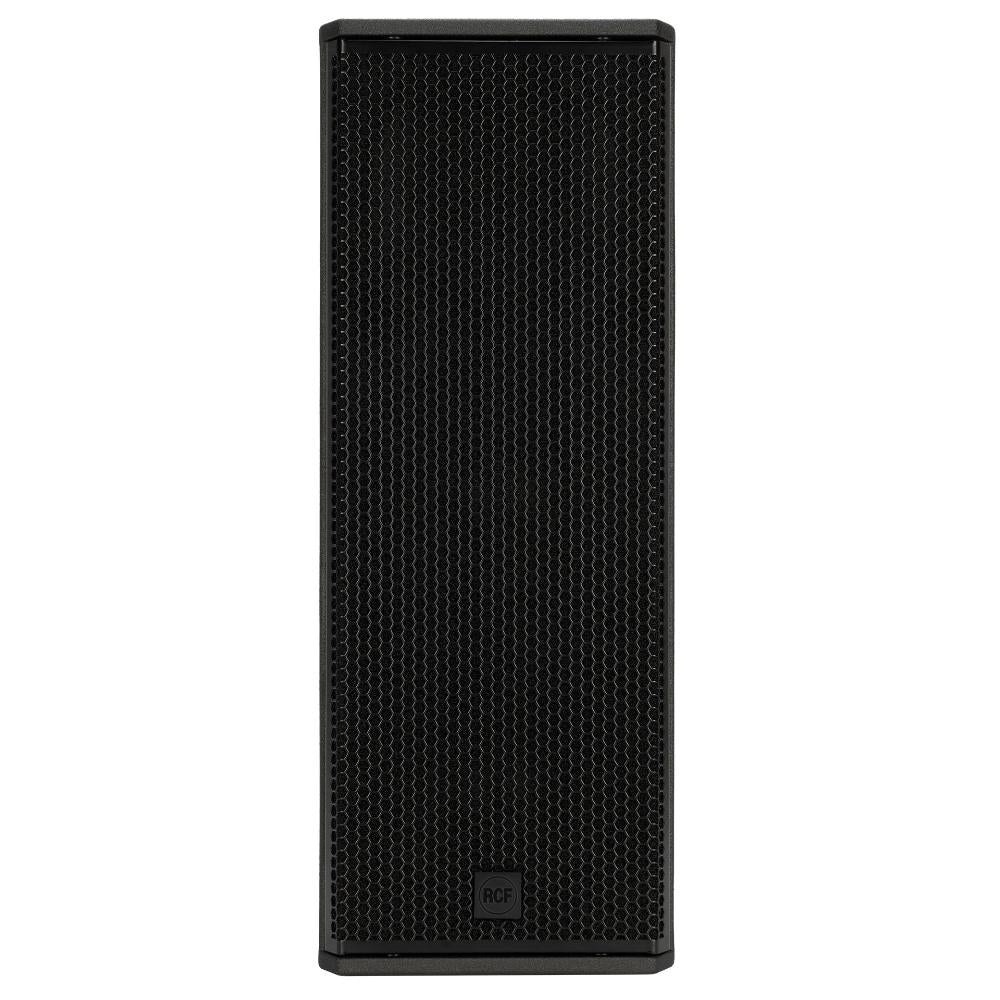

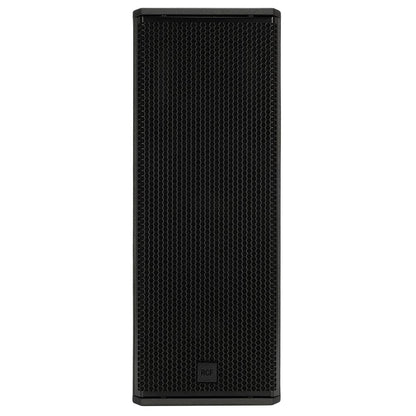

  • RCF KXL 4-A front view

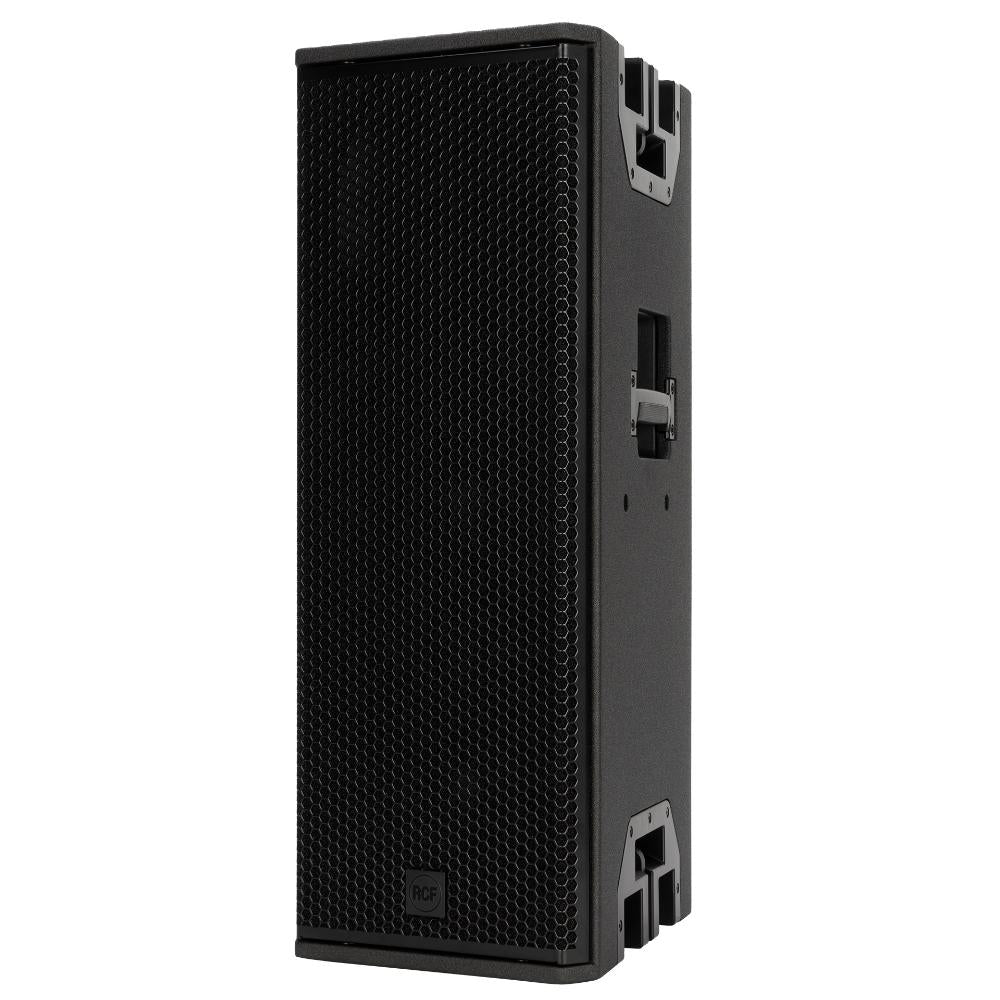

  • RCF KXL 4-A left angle

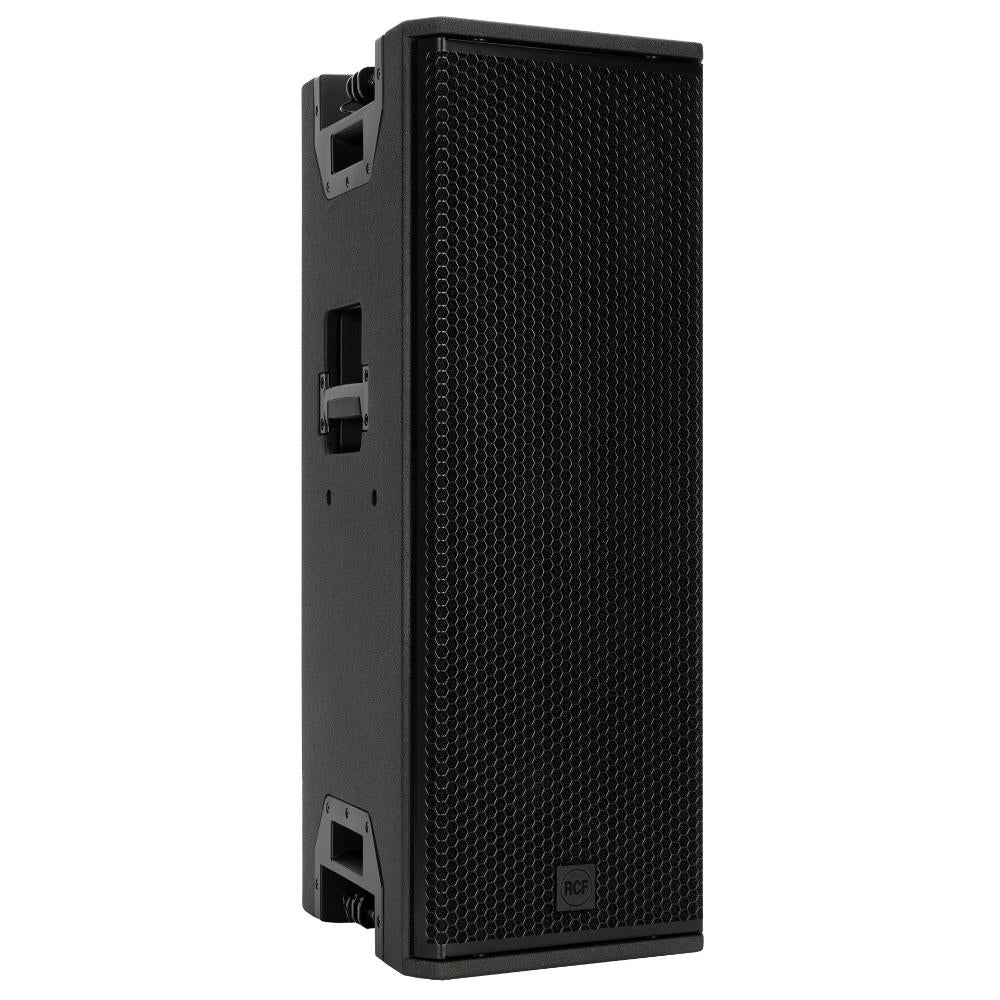

  • RCF KXL 4-A right angle

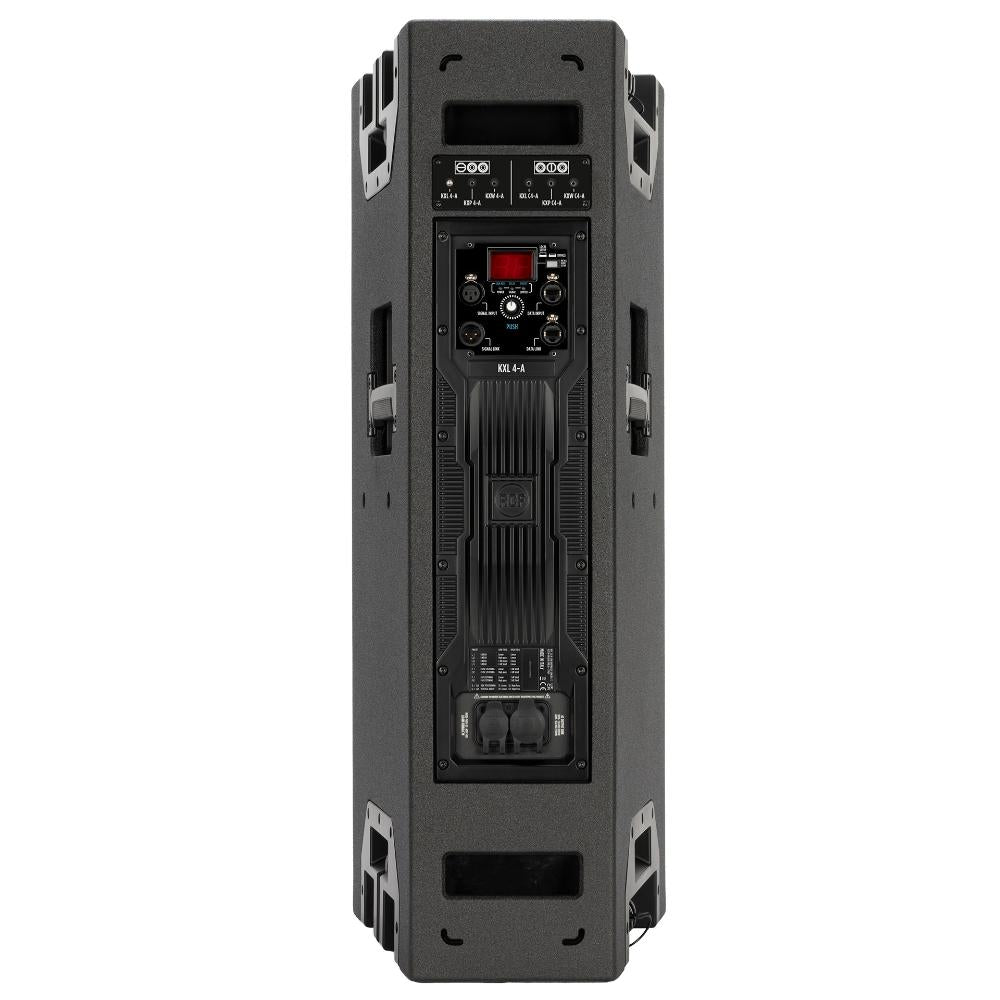

  • RCF KXL 4-A rear panel

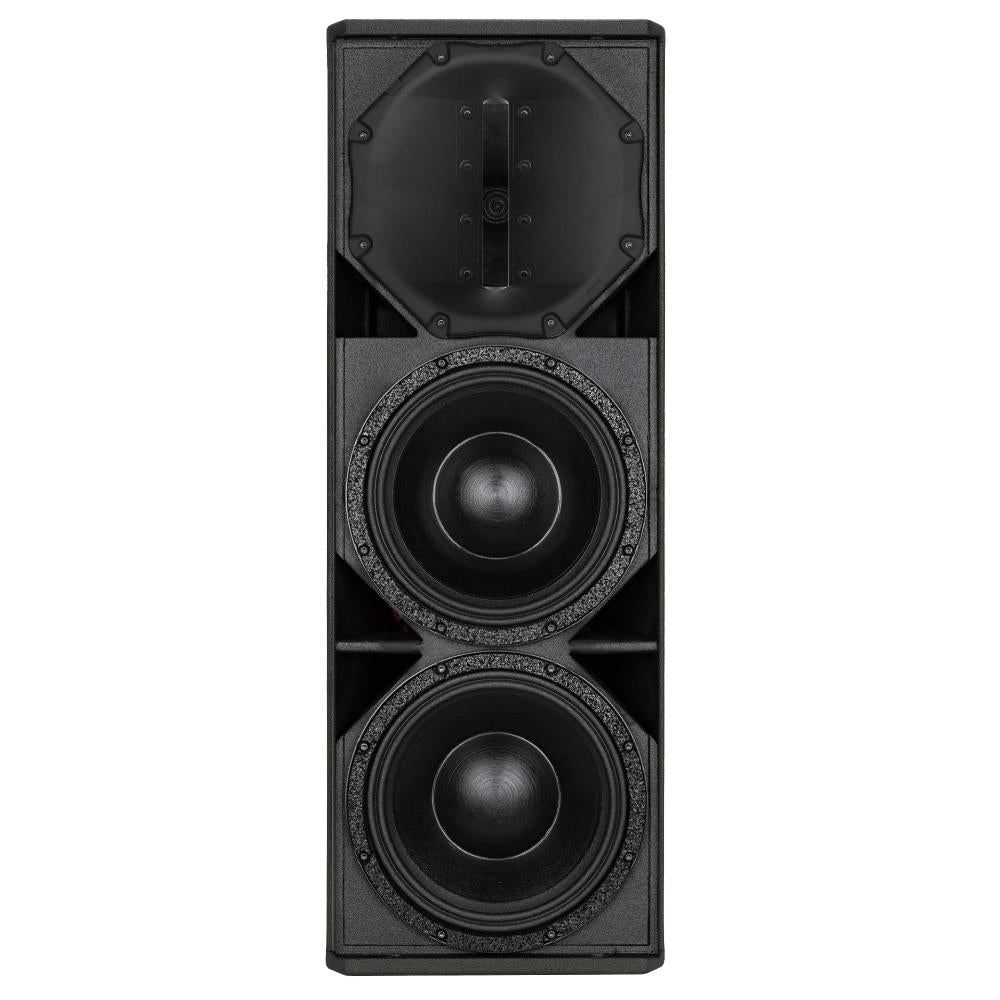

  • RCF KXL 4-A transducers

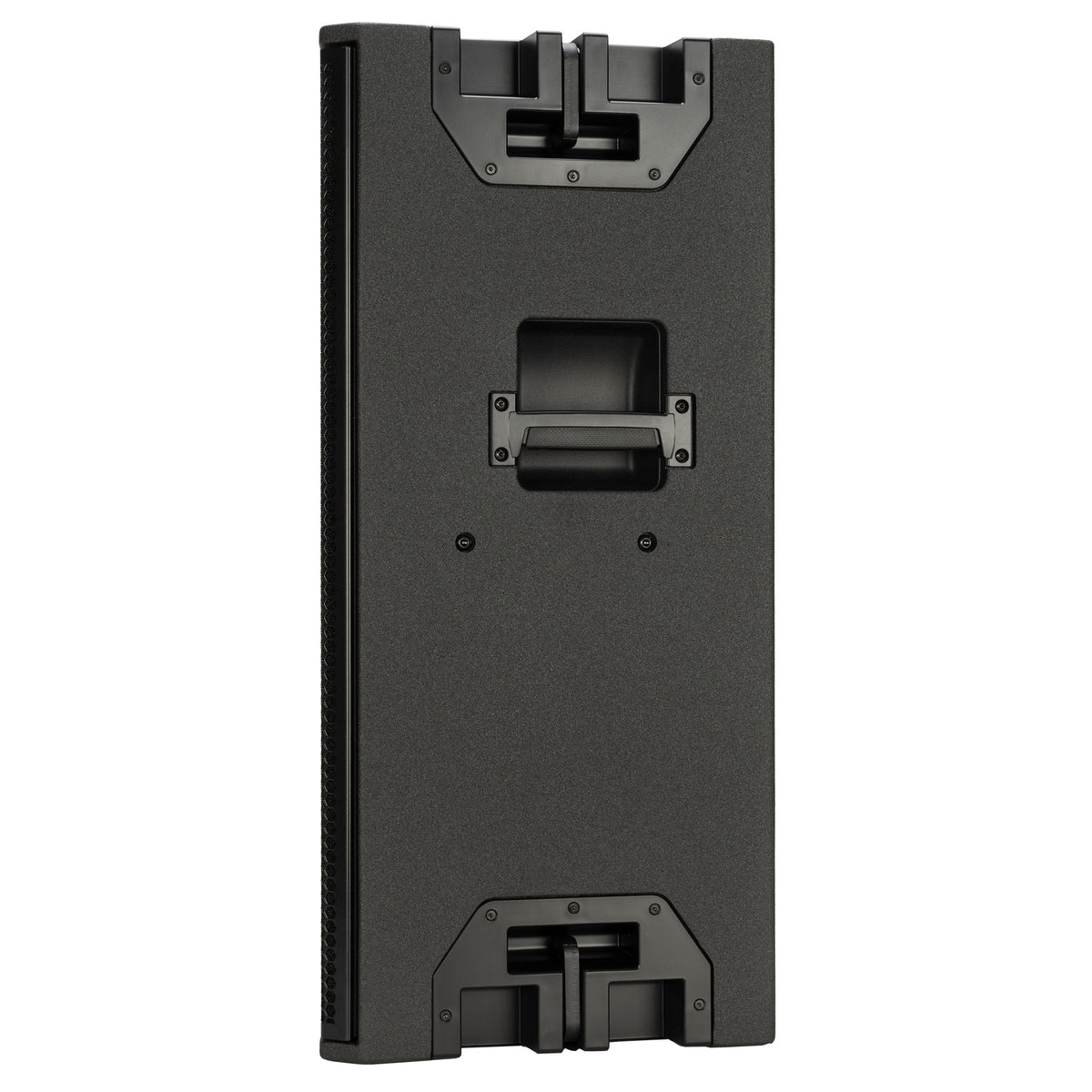

  • RCF KXL 4-A side view

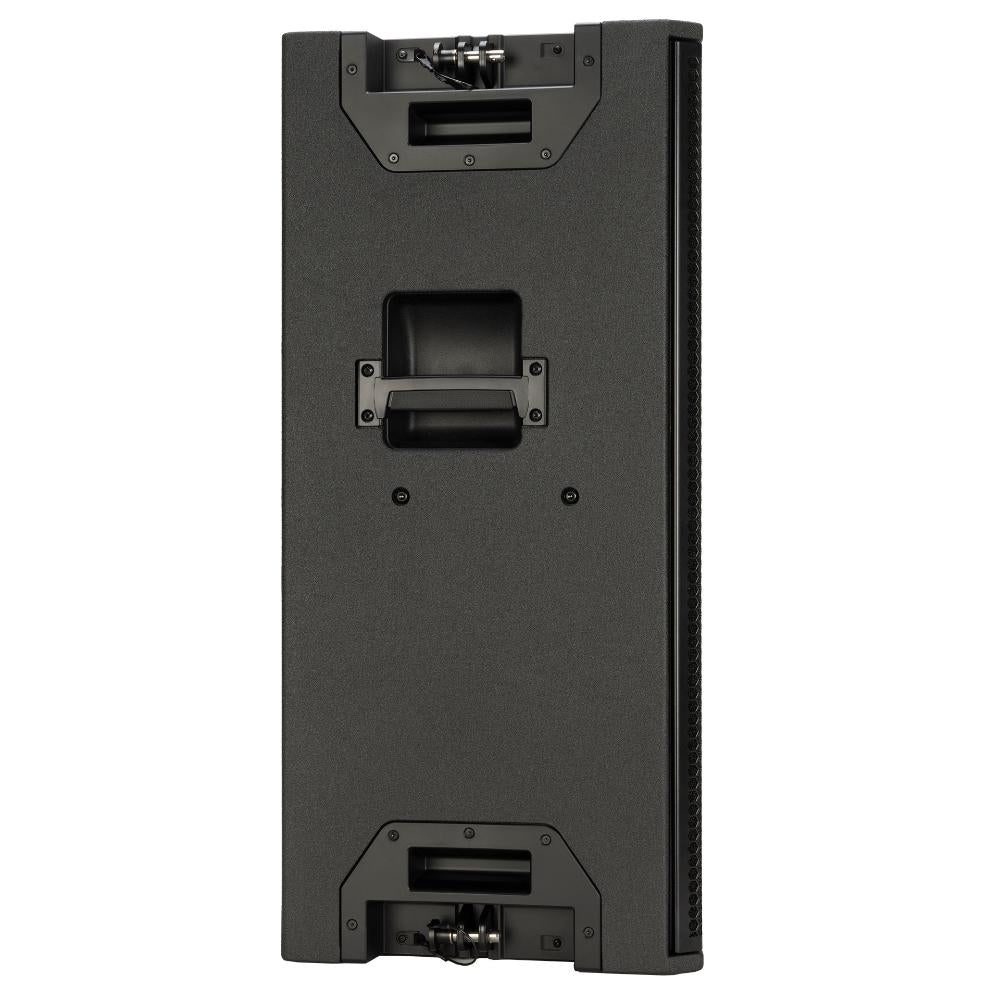

  • RCF KXL 4-A opposite side view
  • RCF KXL 4-A

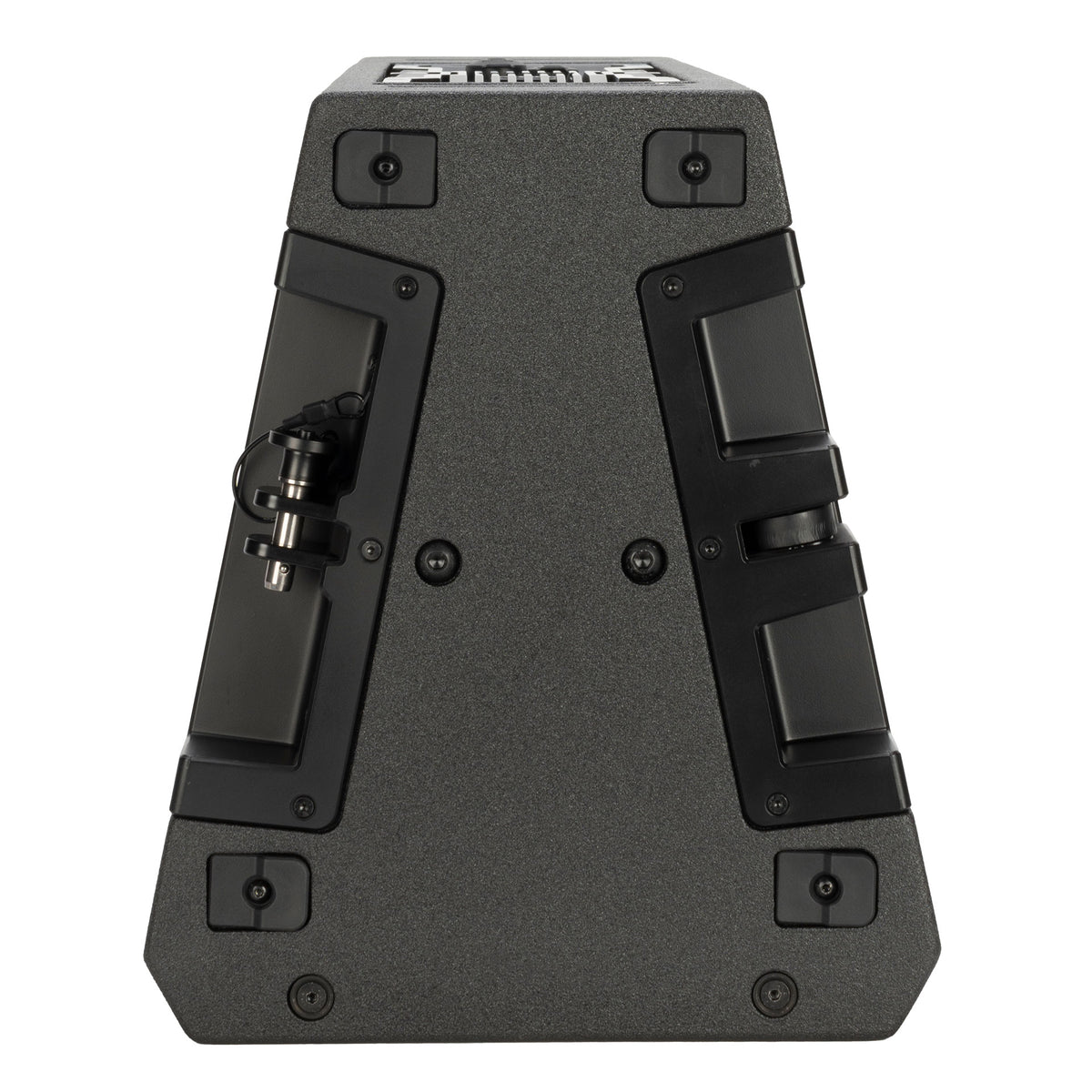

  • RCF KXL 4-A Product Image 2
1 10

RCF

RCF KXL 4-A Active Two-Way Array Speaker

RCF KXL 4-A Active Two-Way Array Speaker

SKU: SP-KXL4A-RCF

$9,595.00
$11,995.00 $9,595.00
Sale Sold out
GST included.

Low Stock – Call for Availability

Description

The RCF KXL 4-A is a compact, flexible high-output 2-way active speaker engineered for professional users, combining precise directivity, high SPL capability and advanced rigging for both vertical and horizontal array configurations.

The low-frequency section features two 10-inch neodymium drivers in a bass-reflex design, while the high-frequency section uses a neodymium compression driver with a 4-inch titanium dome coupled to a rotatable 100° x 25° True Resistive Waveguide. An integrated two-channel 3200 W Class-D amplifier combines proprietary DSP processing with FiRPHASE and Bass Motion Control, plus RDNet networked management and control.

The weatherproof multifunctional Baltic birch plywood enclosure supports ground-stacked, pole-mounted and flown applications, with advanced rigging and powerCON TRUE1 TOP mains connections.

Specification

Acoustical Specifications

  • Frequency Response: 45 Hz - 20000 Hz
  • Max SPL @ 1m: 135 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 25°

Transducers

  • Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
  • Woofer: 2 x 10'' neo, 3.0'' v.c

Input / Output

  • Input signal: bal/unbal
  • Input connectors: XLR, RDNet Ethercon
  • Output connectors: XLR, RDNet Ethercon
  • Input sensitivity: +4 dBu

Processor

  • Crossover Frequencies: 900Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Gain Reduction, delay, proces., 8 sel. presets
  • RDNet: Onboard

Power

  • Total Power: 3200 W Peak
  • High frequencies: 1200 W Peak
  • Low frequencies: 2000 W Peak
  • Cooling: Convection
  • Connections: Powercon TRUE1 TOP IN/OUT

Compliance & Physical

  • Safety agency: CE compliant
  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: Array fittings, 2xM10 on the top, 2xM8
  • Handles: 2 side, 2 rear
  • Pole mount/Cap: 35 mm insert
  • Grille: Steel with clothing
  • Color: Black
  • Height: 825 mm / 32.48 inches
  • Width: 310 mm / 12.2 inches
  • Depth: 369 mm / 14.53 inches
  • Weight: 30.4 kg / 67.02 lbs

Shipping Information

  • Package Height: 410 mm / 16.14 inches
  • Package Width: 865 mm / 34.06 inches
  • Package Depth: 365 mm / 14.37 inches
  • Package Weight: 33.5 kg / 73.85 lbs
