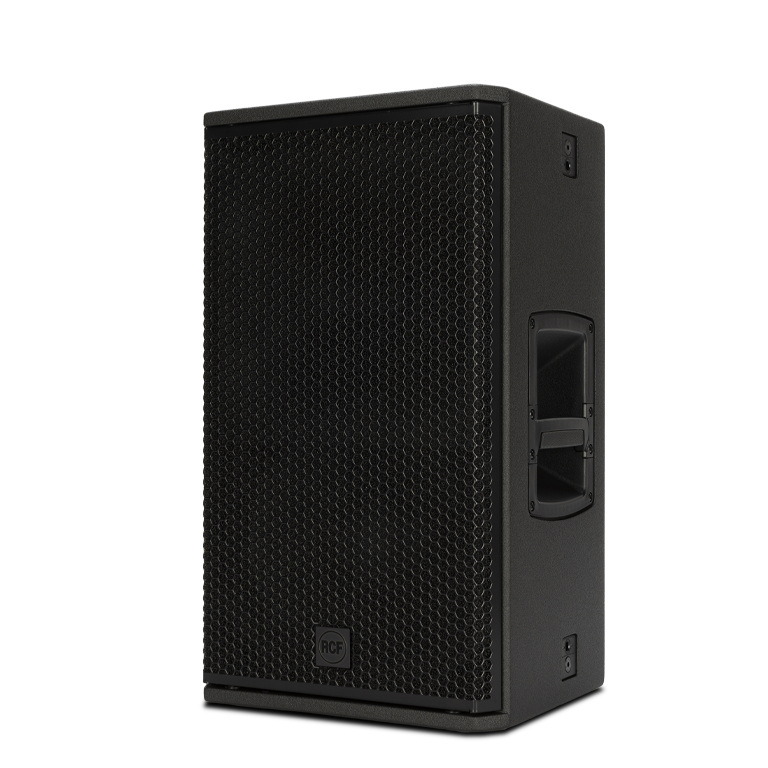

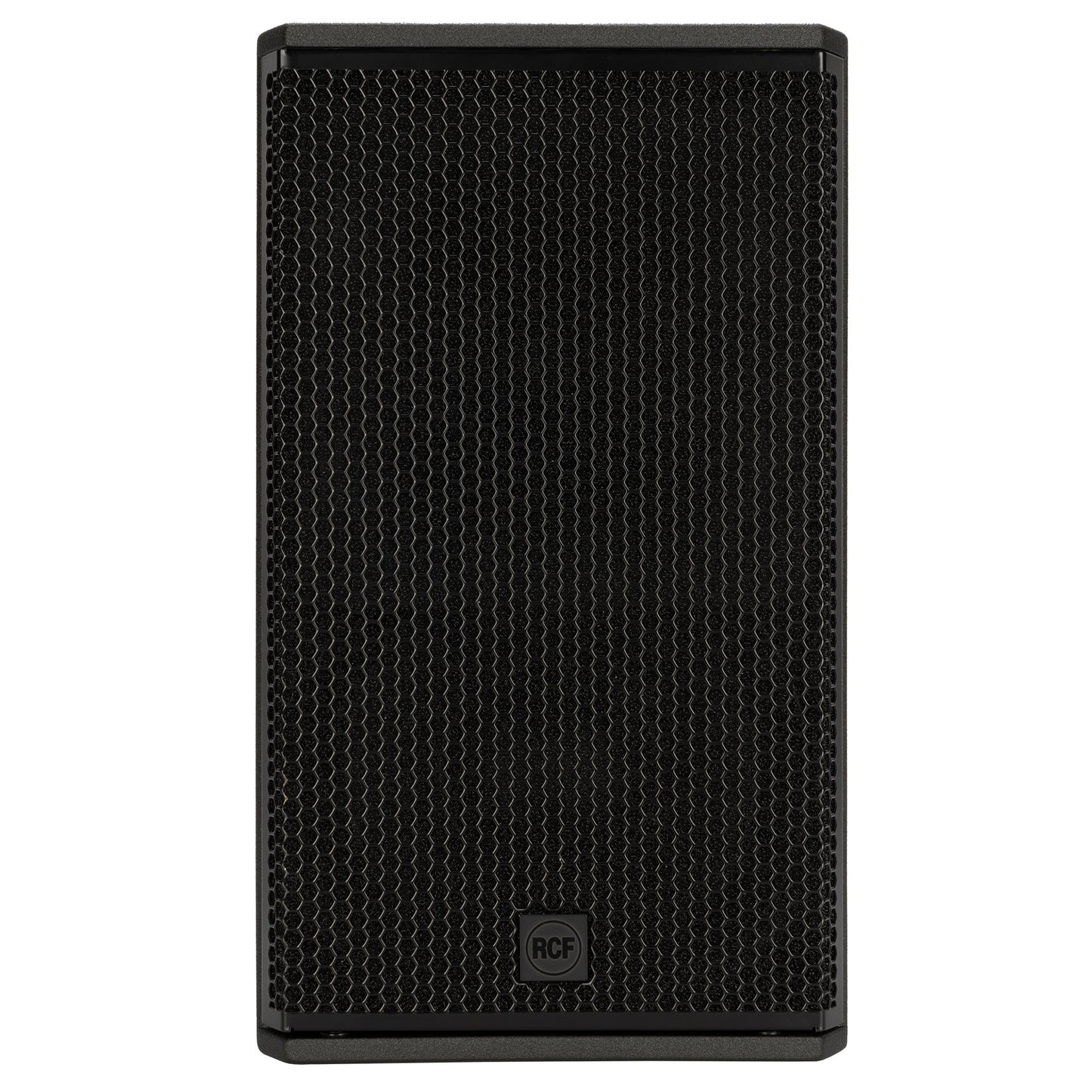

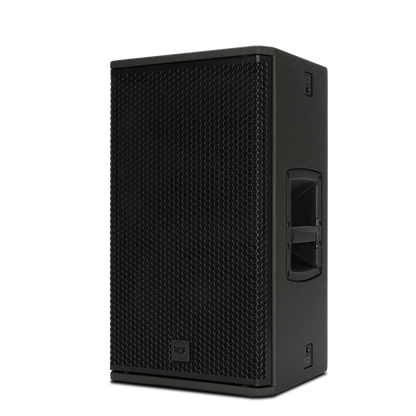

RCF KX 32-A High-Performance 2-Way Point-Source Active Speaker

The RCF KX 32-A is a compact, high-output 2-way active point-source speaker engineered for professional applications, combining precise directivity, high SPL capability and advanced system integration.

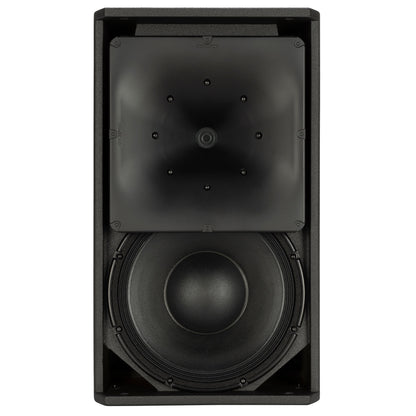

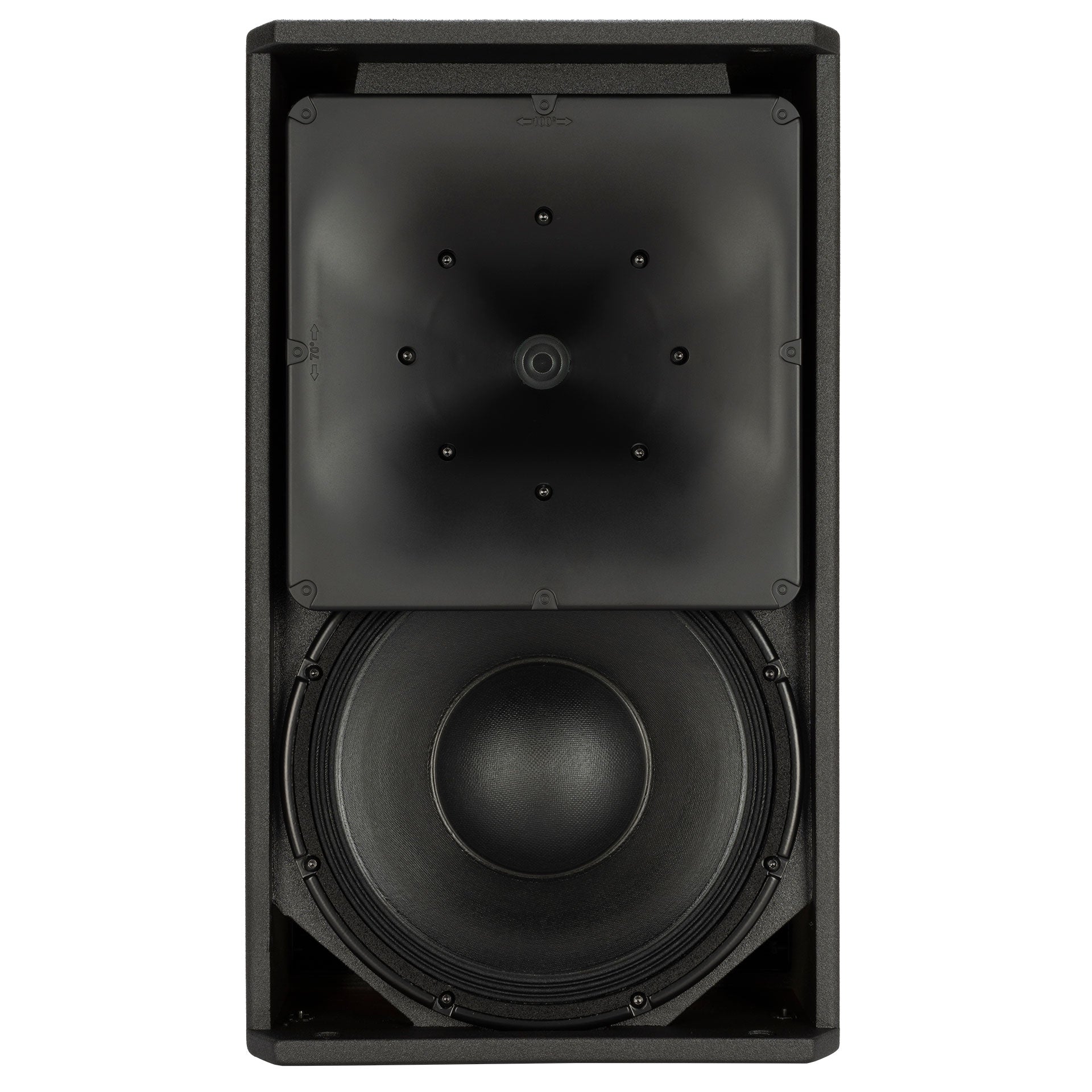

It features a 12-inch neodymium woofer in a bass-reflex design and a neodymium compression driver with a 3-inch titanium dome, coupled to a rotatable 100° x 70° True Resistive Waveguide. An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and RDNet networked management supports professional system control and monitoring.

• 134 dB Max SPL
• Rotatable 100° x 70° TRW horn
• 12-inch neodymium woofer with 3.5-inch voice coil
• 3.0-inch titanium-dome neodymium compression driver
• 2-channel 3200 W Class D amplifier
• DSP processing with FiRPHASE and BMC
• RDNet networked management
• powerCON TRUE1 TOP mains connectors

Acoustical Specifications

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 134 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 70°

Transducers

• Compression Driver: 1.4'' neo, 3.0'' v.c
• Woofer: 12'' neo, 3.5'' v.c

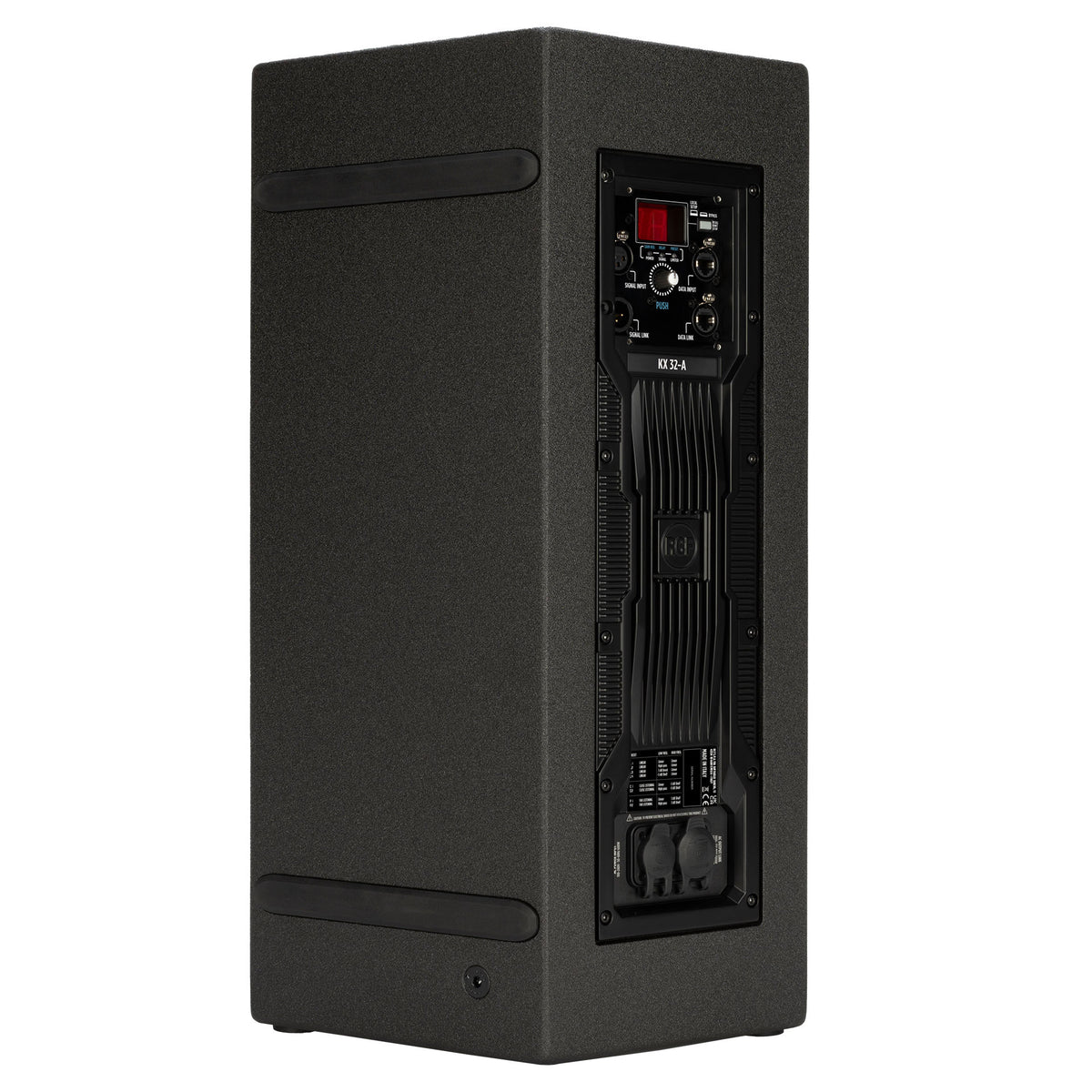

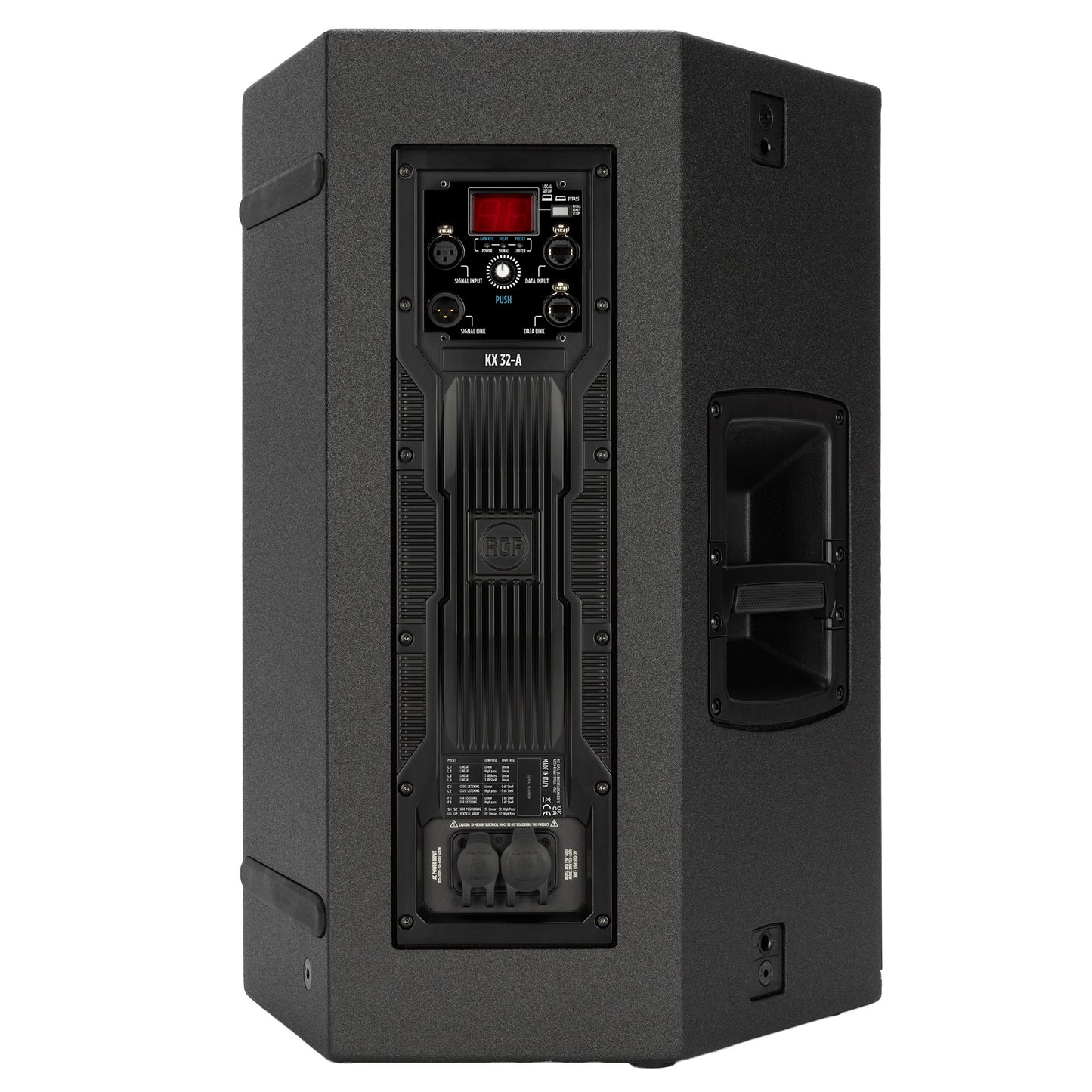

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover Frequencies: 750Hz
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: Gain Reduction, Proces., 8 sel. presets

Power Section

• Total Power: 3200 W Peak
• High frequencies: 1200 W Peak
• Low frequencies: 2000 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliance

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: Quick lock, pole mount, 3 x M10 on top, 3 x M10 on bottom sides

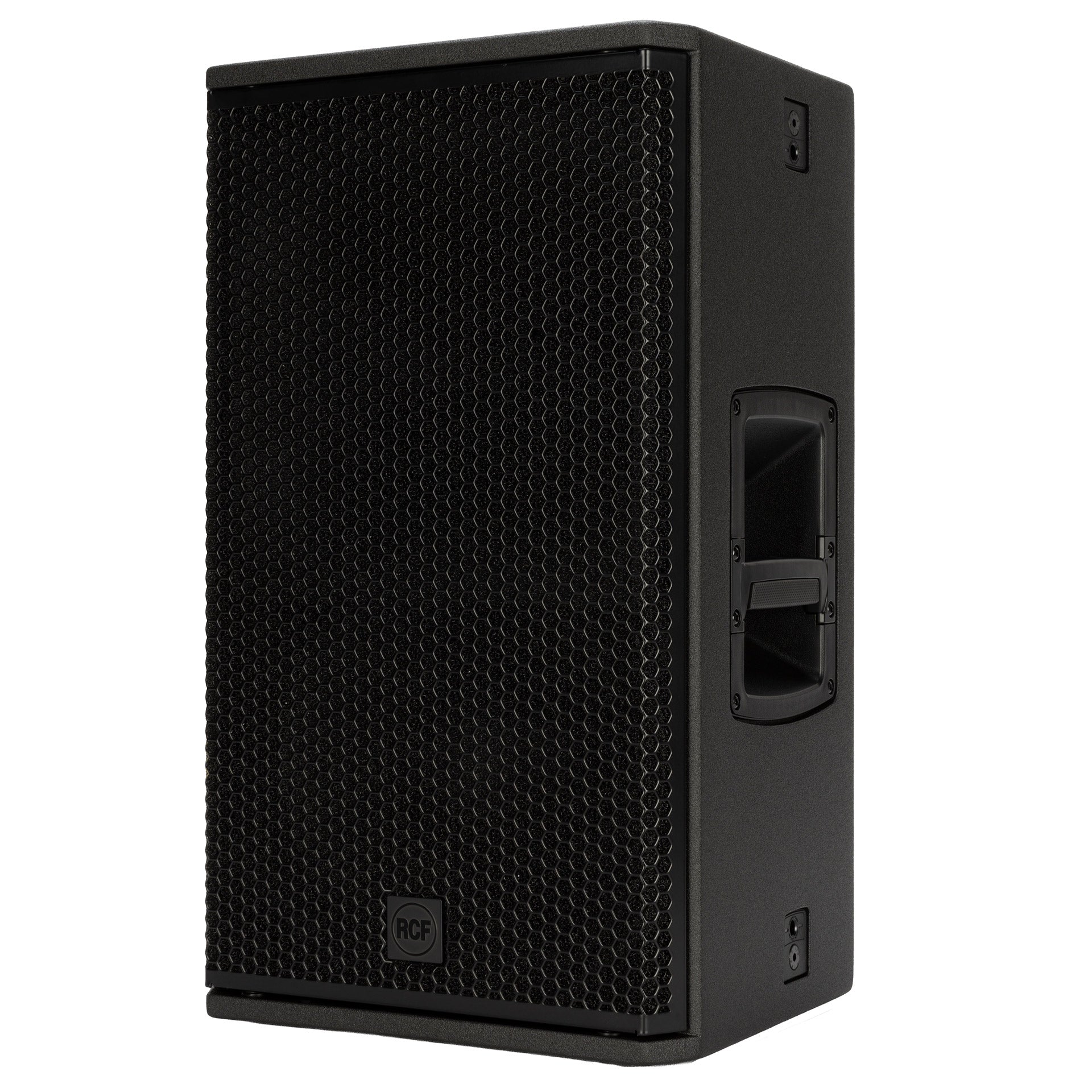

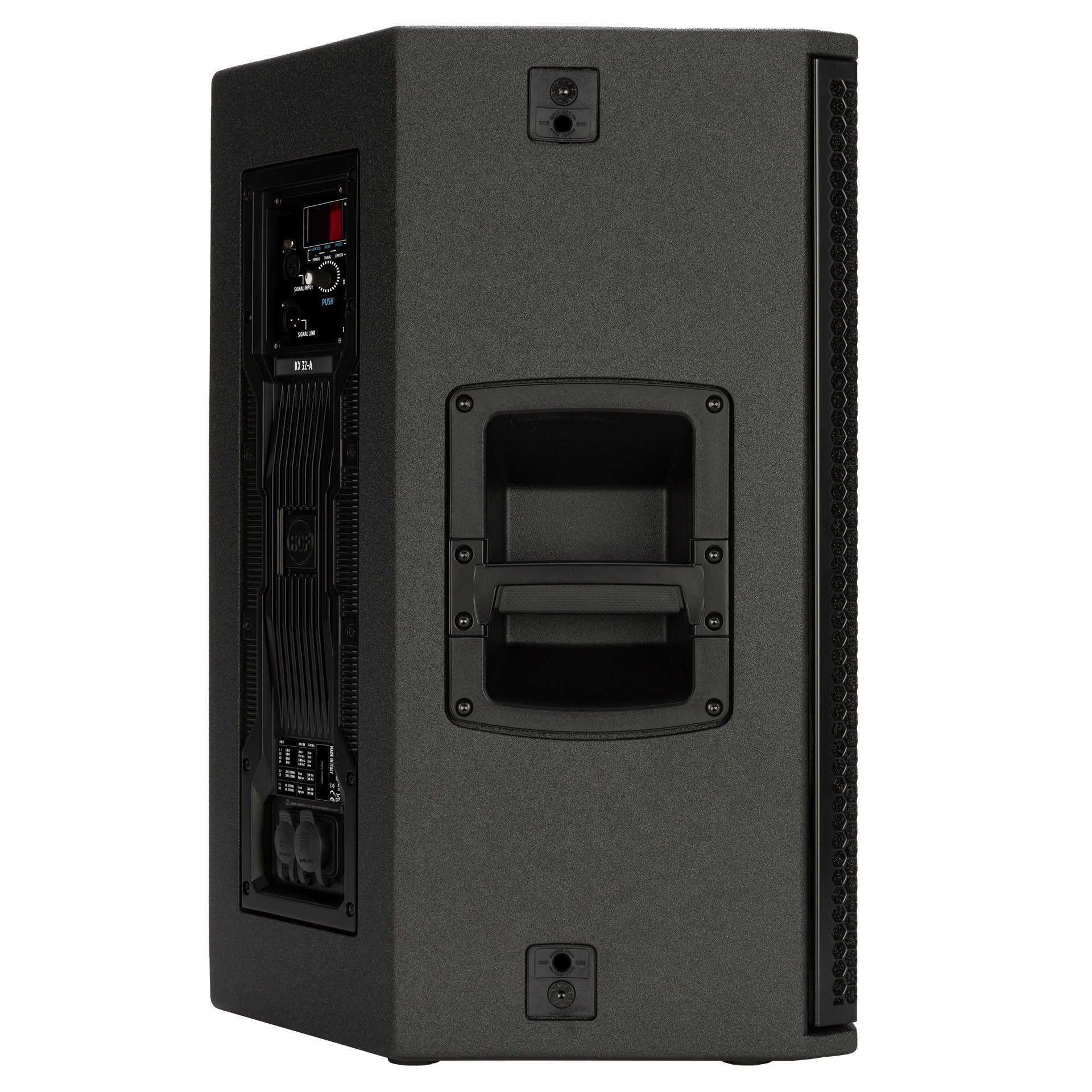

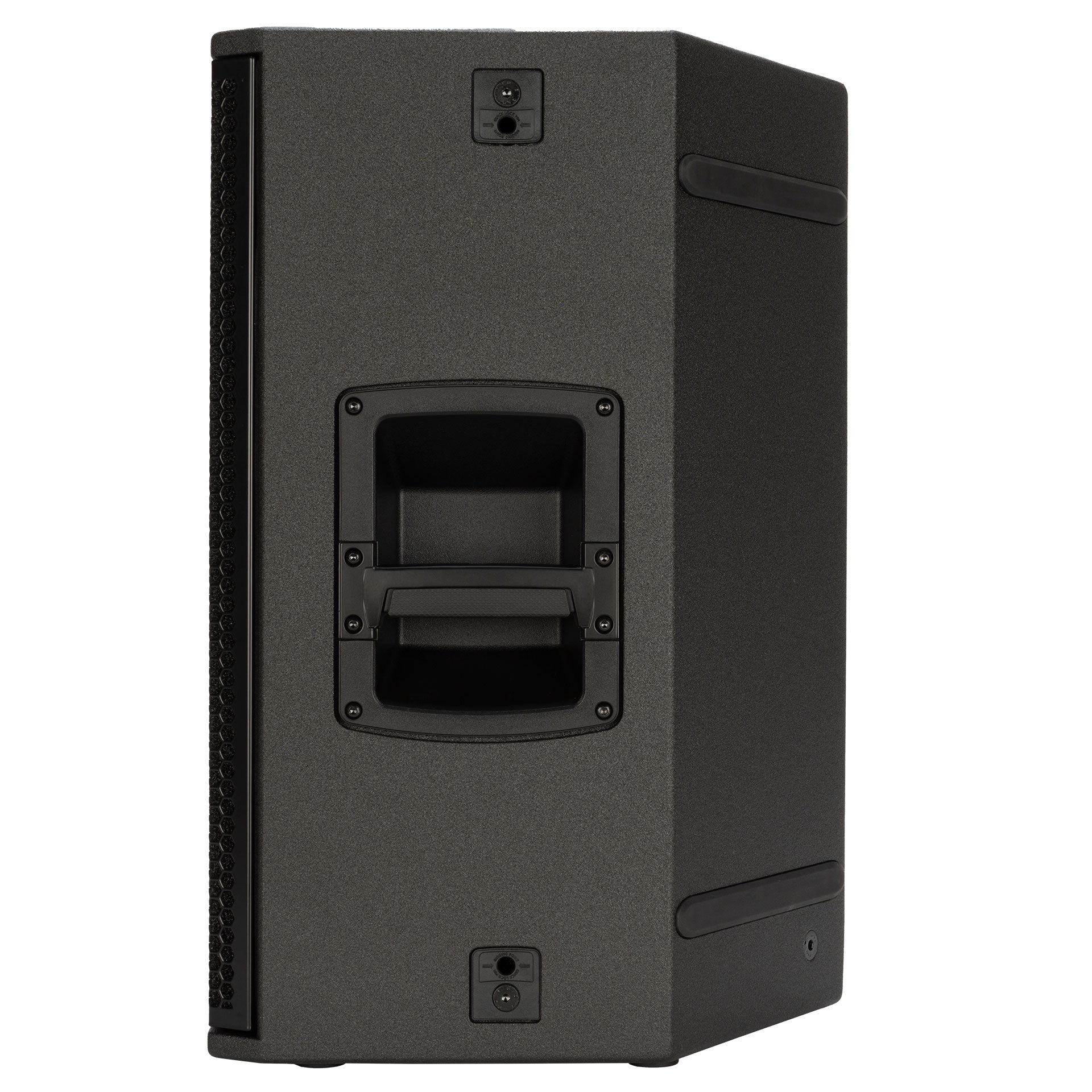

• Handles: 2 on side
• Pole mount/Cap: 35 mm insert

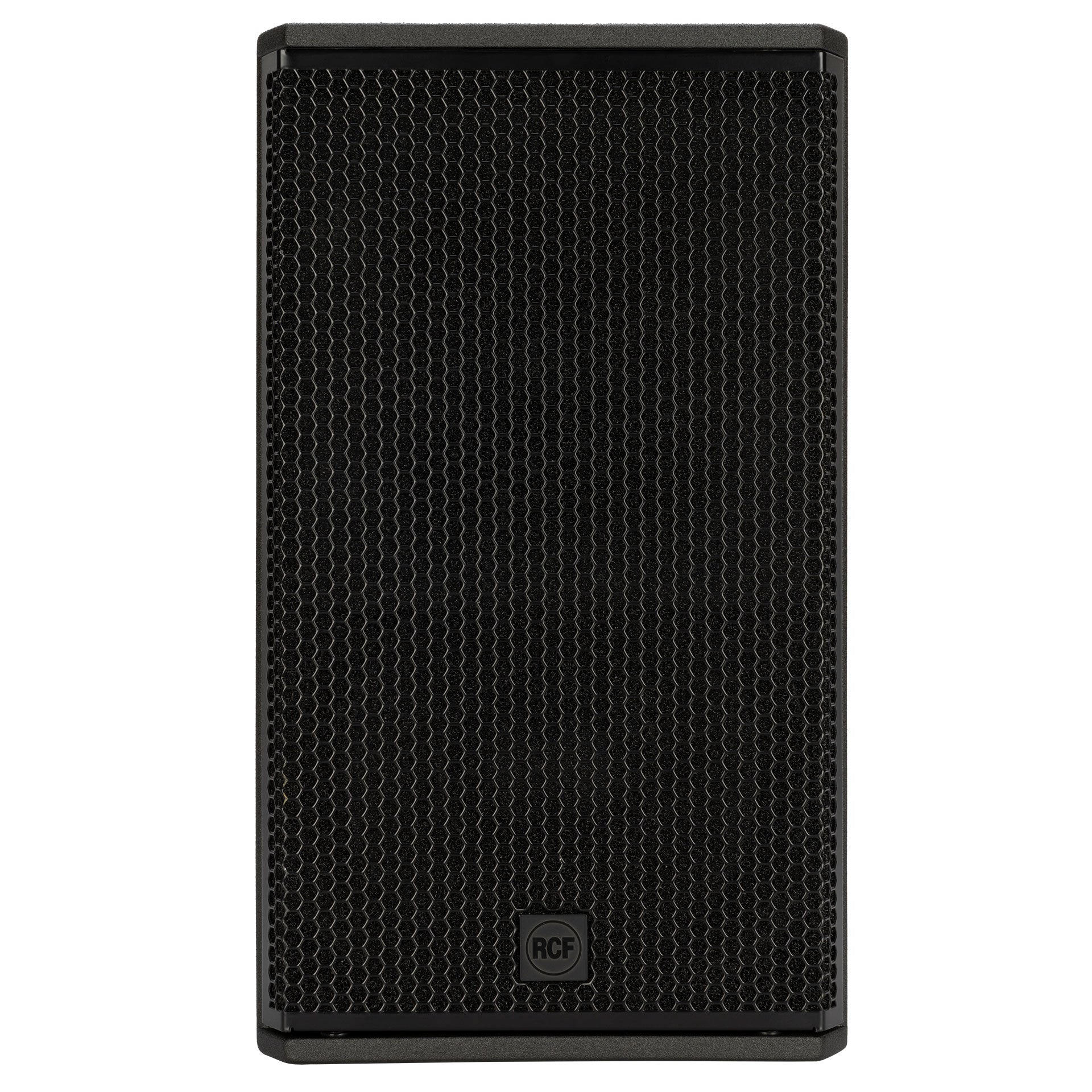

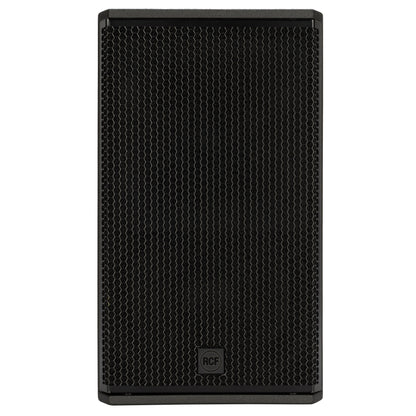

• Grille: Steel with clothing
• Color: Black

Size / Weight

• Height: 620 mm / 24.41 inches
• Width: 360 mm / 14.17 inches
• Depth: 409.3 mm / 16.11 inches
• Weight: 23.65 kg / 52.14 lbs

Shipping Information

• Package Height: 716 mm / 28.19 inches
• Package Width: 409 mm / 16.1 inches
• Package Depth: 458 mm / 18.03 inches
• Package Weight: 25.85 kg / 56.99 lbs

Manufacturer Identifiers

• Model: KX 32-A
• EU Part Number: 13000904
• EU EAN: 8024530022709
