RCF AYRA PRO10s PROFESSIONAL ACTIVE STUDIO SUBWOOFER

AYRA PRO10 SUB is an active reference subwoofer designed for AYRA PRO studio monitors, also suitable for low-frequency extension on third-party audio systems. With tight and accurate bass reproduction it's ideal for audio recording, mixing, multichannel systems, desktop use, and other creative applications.

Pairing the AYRA PRO10 SUB with RCF studio monitors delivers an optimized monitoring experience with extended headroom and powerful low-end. With 300 Watts RMS Class-D Amplifier, frequency range from 30 up to 120 Hz and a variable 2nd order crossover from 50 to 120 hertz, you have enough power for any mixing room size. The bypass footswitch disables the high-pass crossover and mutes the subwoofer, providing full range audio to the monitors without switching off the subwoofer.







LOW RESONANCE AND MINIMUM DISTORTION

Drawing from RCF’s 70-plus years knowledge in speaker production, the low-resonance fiberboard box design follows the requests of many professional sound engineers. Undesirable cabinet’s resonances are removed with careful electro-acoustic design.





THE GOOD FLOW

The advanced vented port is a proprietary solution that helps to achieve a good aerodynamic behavior of the air (laminar), gaining efficiency and reducing distortion.



CLASSIC BASS REFLEX PORT
The flow becomes turbulent
and the vortices are evident





LAMINAR FLOW VENTED PORT
Good aerodynamic behaviour of the air (laminar), gaining efficiency and reducing distortions





BRING OUT THE LOWS

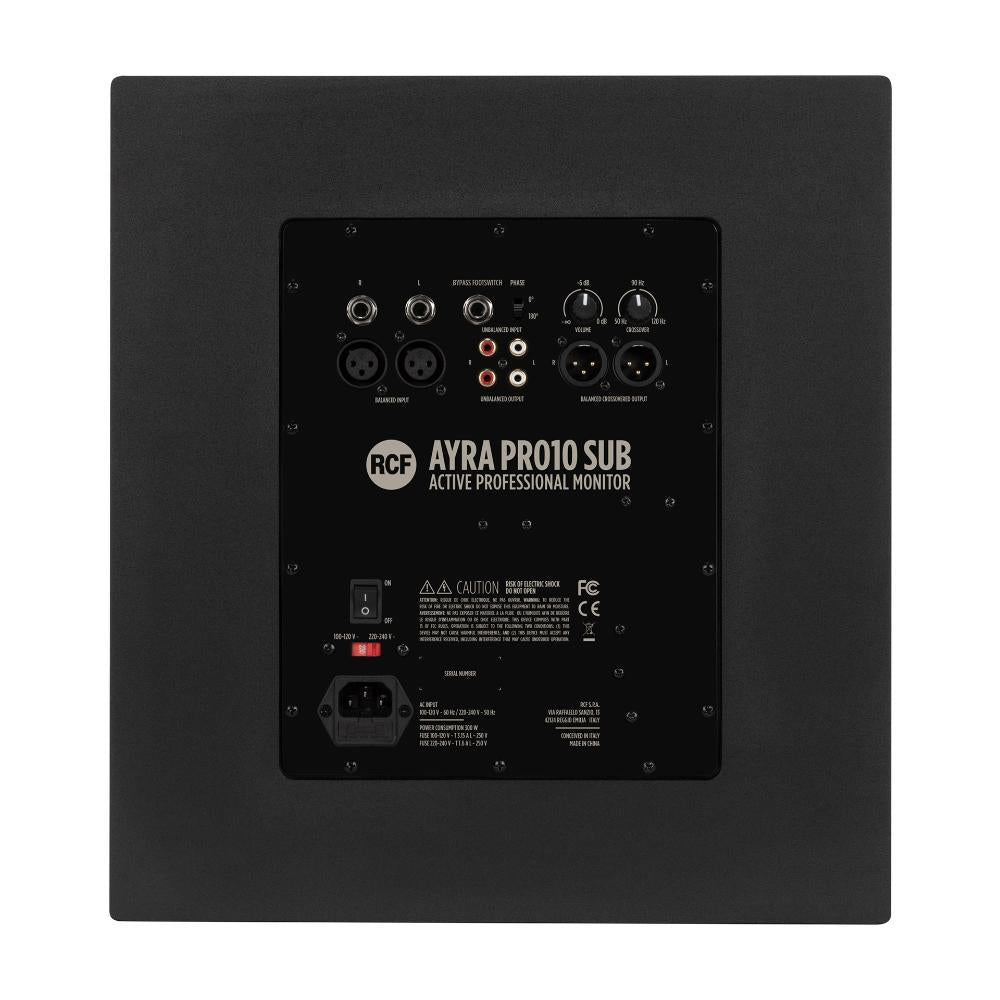

Complete range of analog connectors and controls on the rear panel let you master your monitoring system at its best. The low-frequency behavior of the system is managed carefully with a variable crossovered output for stereo monitors. The low turbulence frontal bass reflex port allows for the best placement flexibility.



FEATURES

• TRUE ACTIVE 300 W RMS CLASS D POWER AMPLIFIER
• 10" COMPOSITE FIBER WOOFER
• 30 HZ – 120 HZ FREQUENCY RESPONSE
• STEREO INPUT BOARD, STEREO X-OVER OUTPUT
• LOW TURBULENCE FRONTAL BASS REFLEX PORT
• VARIABLE 2ND ORDER CROSSOVER FROM 50 TO 120 HERTZ

• FREQUENCY RESPONSE: 30 Hz ÷ 120 Hz
• MAX SPL @ 1M: 120 dB
• WOOFER: 10'', 2.5” v.c
• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack, RCA
• OUTPUT CONNECTORS: XLR STEREO
• INPUT SENSITIVITY: 0 dBu
• HI-PASS FREQUENCIES: Selectable 50-120Hz
• LIMITER: Soft Limiter
• CONTROLS: Level -inf./0dB Selectable High-pass filter 50-120Hz Bypass footswitch 0°/180° phase selector
• TOTAL POWER: 600 W Peak, 300 W RMS
• LOW FREQUENCIES: 600 W Peak, 300 W RMS
• CONNECTIONS: XLR, Jack, RCA
• CE MARKING: Yes
• CABINET/CASE MATERIAL: MDF
• COLOR: Black - RAL 9005
• HEIGHT: 400 mm / 15.75 inches
• WIDTH: 350 mm / 13.98 inches
• DEPTH: 390 mm / 15.35 inches
• WEIGHT: 17.8 kg / 39.24 lbs
• PACKAGE HEIGHT: 500 mm / 19.69 inches
• PACKAGE WIDTH: 460 mm / 18.11 inches
• PACKAGE DEPTH: 500 mm / 19.69 inches
• PACKAGE WEIGHT: 21 kg / 46.3 lbs
