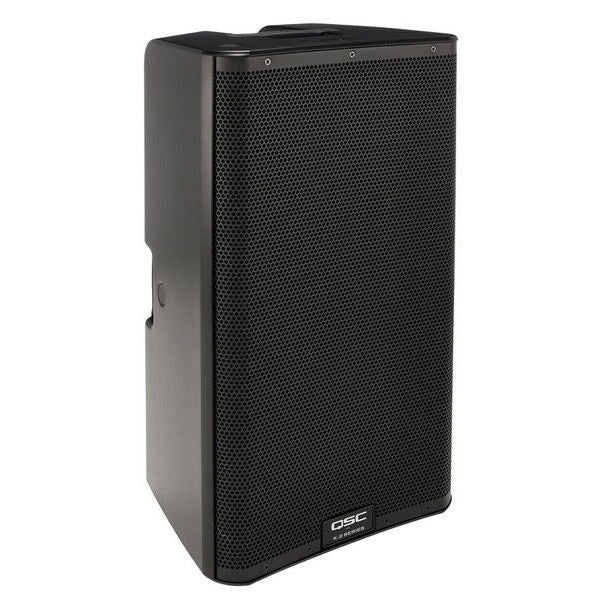

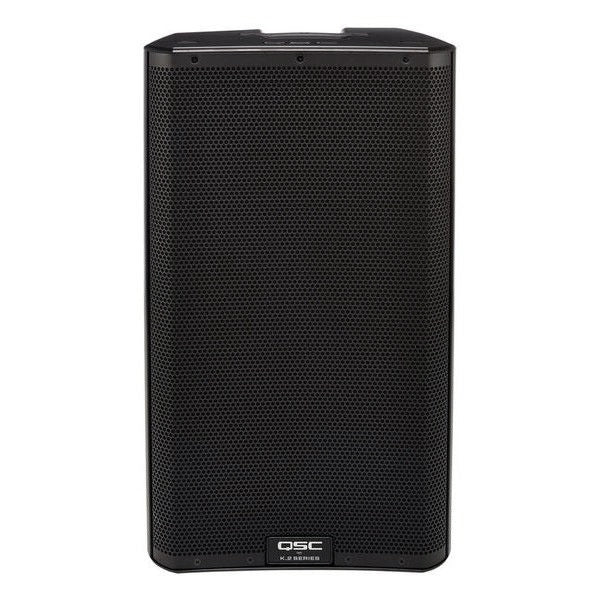

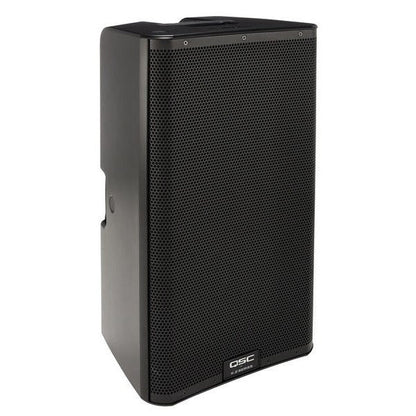

QSC K12.2 12" 2-Way Powered 2000W Portable PA Speaker

QSC K12.2 12" 2-Way Powered 2000W Portable PA Speaker

SKU: QSC K12.2

$1,799.00
$2,399.00 $1,799.00
Sale Sold out
Taxes included.

Description

Features

The QSC K.2 Seriesā„¢ represents the best-inclass loudspeaker for todayā€™s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.Ā
  • Best in class audio performance
  • 2000 Watt Class-D amplifier moduleĀ
  • Intrinsic Correctionā„¢ tuning and Ā loudspeaker management
  • Directivity Matched TransitionĀ®Ā (DMT)Ā design provides excellent power response and consistent performance across the listening area
  • Refined, professional appearance looks great in any application
  • Rugged ABS enclosure for long life and lasting durability

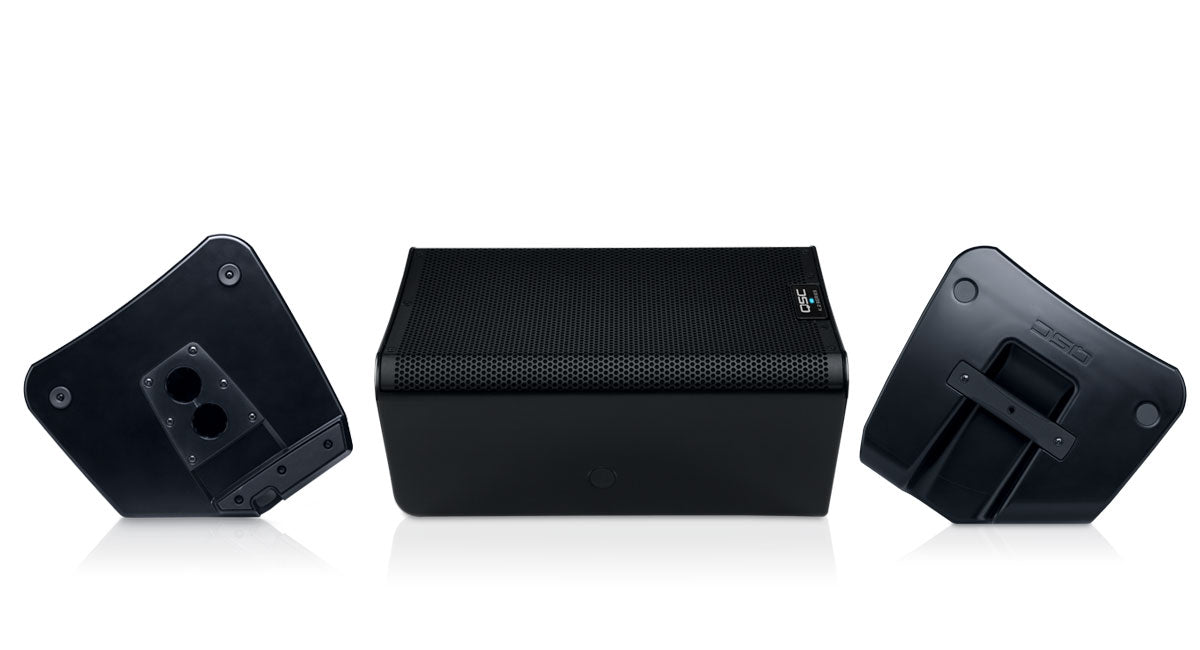

  • Deployment in either main PA or floor monitor position
Ā
  • Factory Presets and savable/recallable Scenes for commonly-used application
  • Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
  • Dual pole cup mounts (standard and 7.5 degree down-tilt)
  • M10 fittings for flown applications
  • Optional security panel prevents Ā unauthorized tampering of controls
  • Complete EASE and CAD information Ā available online
  • 6-Year Warranty (with product registration)

Specification



Attribute Details
Model K12.2
Configuration Multi-purpose, 2-way active loudspeaker
LF Transducer 305 mm (12-inch), cone
HF Transducer 35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response (-6 dB) 50 Hz - 20 kHz
Frequency Range (-10 dB) 45 Hz - 20 kHz
Nominal Coverage Angle 75° Axisymmetric
Maximum Rated SPL Peak: 132 dB @ 1 M, Continuous: 126 dB @ 1 M
Amplifier Class D
Cooling Low-noise, variable-speed fan
Peak Power LF: 1800 W, HF: 225 W
Controls Power, 3 × Level, Rotary encoder (push), 2 × selection buttons
Indicators Monochrome LCD Display 1.75-inch x 1-inch, 2 × Power LED (front and rear), 3 × Input Signal LED, Input A Mic selected LED, Input B Hi-Z selected LED, Limiter active LED

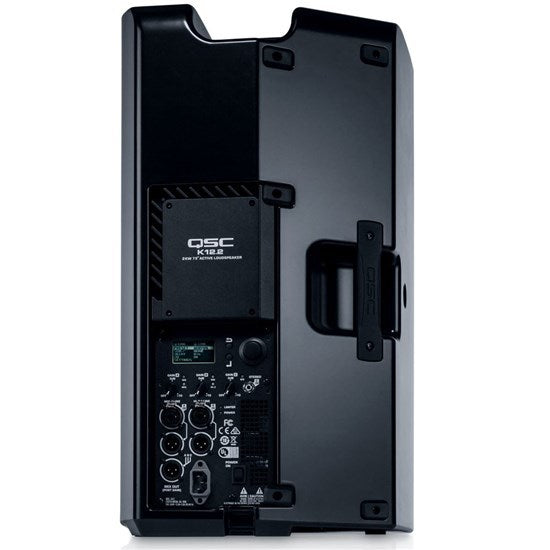

Connectors 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input), 1 × 3.5 mm TRS (Stereo Input), 2 × XLR/M (Loop-thru Output), 1 × XLR/M (Mix Output), 1 × locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby 0.2 A at any voltage
Enclosure Details Impact Resistant ABS
Attachment Points 2 × M10 threaded inserts plus Pull-Back
Color Black (RAL 9011)
Grille 18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (HxWxD) 602 × 356 × 350 mm
Carton Dimensions (HxWxD) 570 × 470 × 464 mm
Net Weight 17.7 kg / 39 lb
Shipping Weight 21.6 kg / 47.6 lb
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories K12 Tote, K12 Outdoor Cover, M10 Kit-C, K.2-LOC LockOut Cover, K12.2 Yoke
