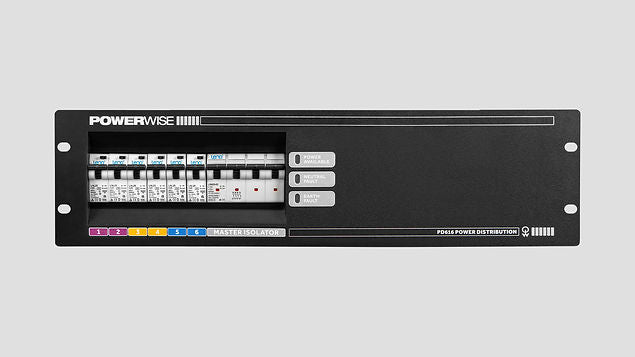

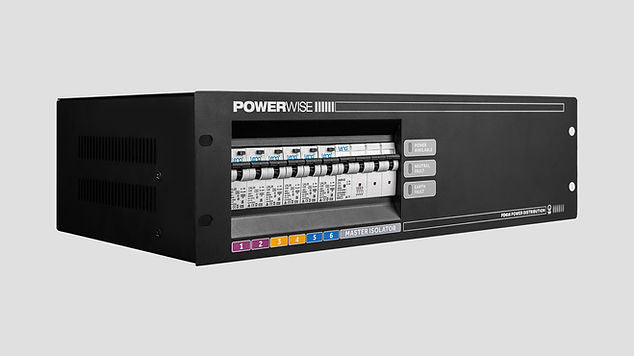

POWERWISE PD616 Rackmount Power Distribution

Powerwise PD616 Rackmount Power Distribution

The Powerwise PD Series brings you feature-packed models designed for fixed or mobile applications where 3-phase to discrete multi-channel single phase 240 volt outlet power distribution is required. Born for the stage This convenient 19" rack mount 3-Phase power distribution family is ideally suited to a life on the road powering mobile sound and lighting, corporate AV and TV or is equally at home in fixed theatre and nightclub installations. With a variety of specialist features, you can pick the best model for your requirements. Exceeds today’s high standards This product range facilitates compliance with the mandatory Residual Current Device (RCD) protection requirement of AS/NZS4249 and is ideal protection for source power supplies sourced from non-RCD protected switchboards or generators.

All the right features

• Twelve 240V outputs distributed across the 3-Phase supply • Circuit breaker protection per output circuit
• One or three individual phase RCDs (model dependant)
• Master supply isolator
• Comprehensive power management meters* • Phase Power indicator LEDs
• Neutral/Earth Fault indicator
• Pre-wired and ready to use
• Heavy duty flexible 3-phase supply cable.

Are you playing it safe or playing with fire? With the growing sophistication of today’s entertainment technology, show power has become a specialist discipline requiring care and attention by professionals who guarantee that the show will go on. Take the weak links out of your power chain with Powerwise. PD616 KEY FEATURES

• • 2 Pole Line/Neutral Switching of Outlets for AS/
  • NZS3002:2021 Compliance
  • Neutral and Earth Fault Indication
  • Power Available Indication

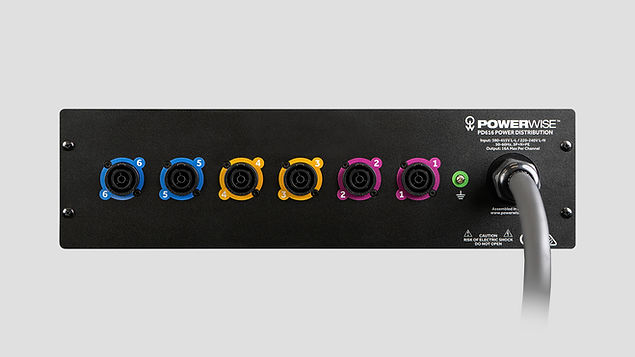

  • 5 Pin 56 Style 32A Supply Plug
  • Type A 30mA RCBO Protection per Circuit
  • 4 Pole Protection and Isolation of Incoming Supply
  • Visual Phase Identification for Ease of Phase Loading
  • Earthing Terminal for Ease of PAT Testing
  • Standard 3RU 19" Rack Mountable
  • Heavy Duty Rubber 6mm2 Supply Cable
  • Designed, Engineered and Assembled in Australia
  • AS/NZS 62368.1:2022 AV & IT Compliance
  • AS/NZS 3002:2021 Shows and Carnivals Compliance
