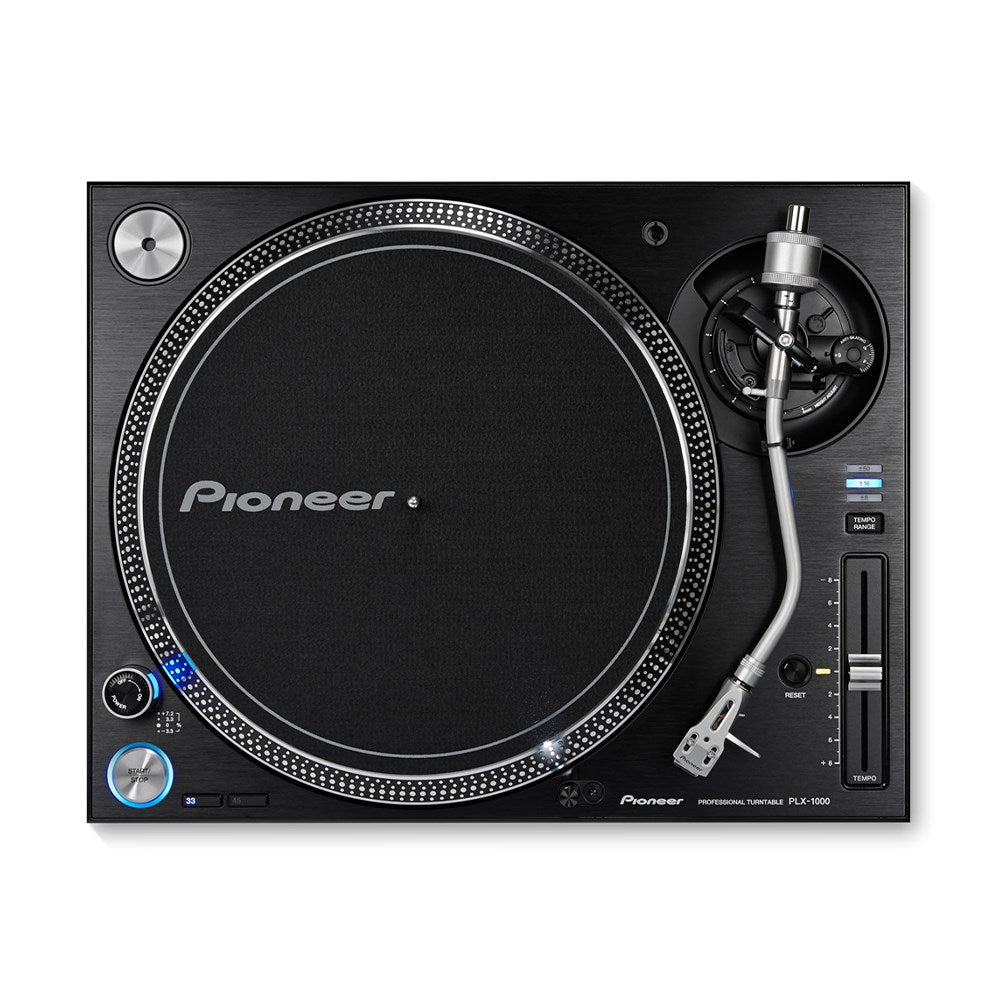

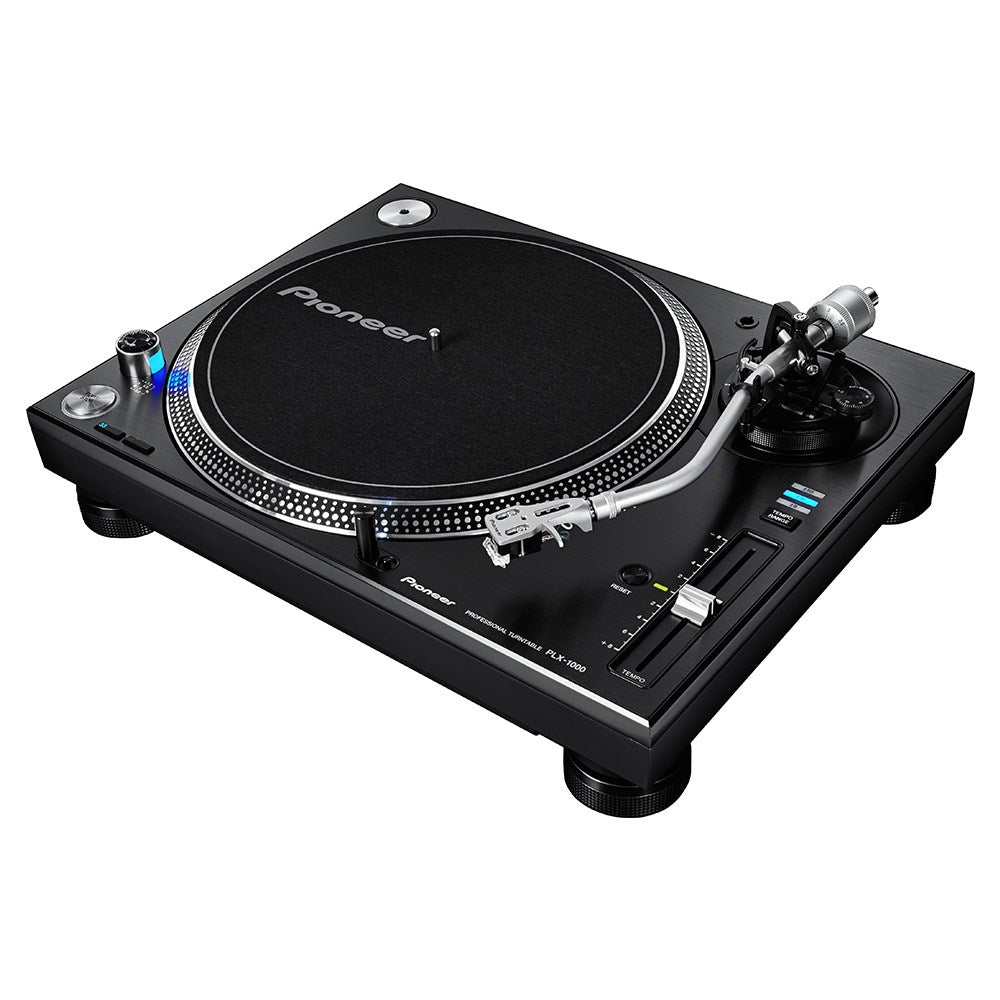

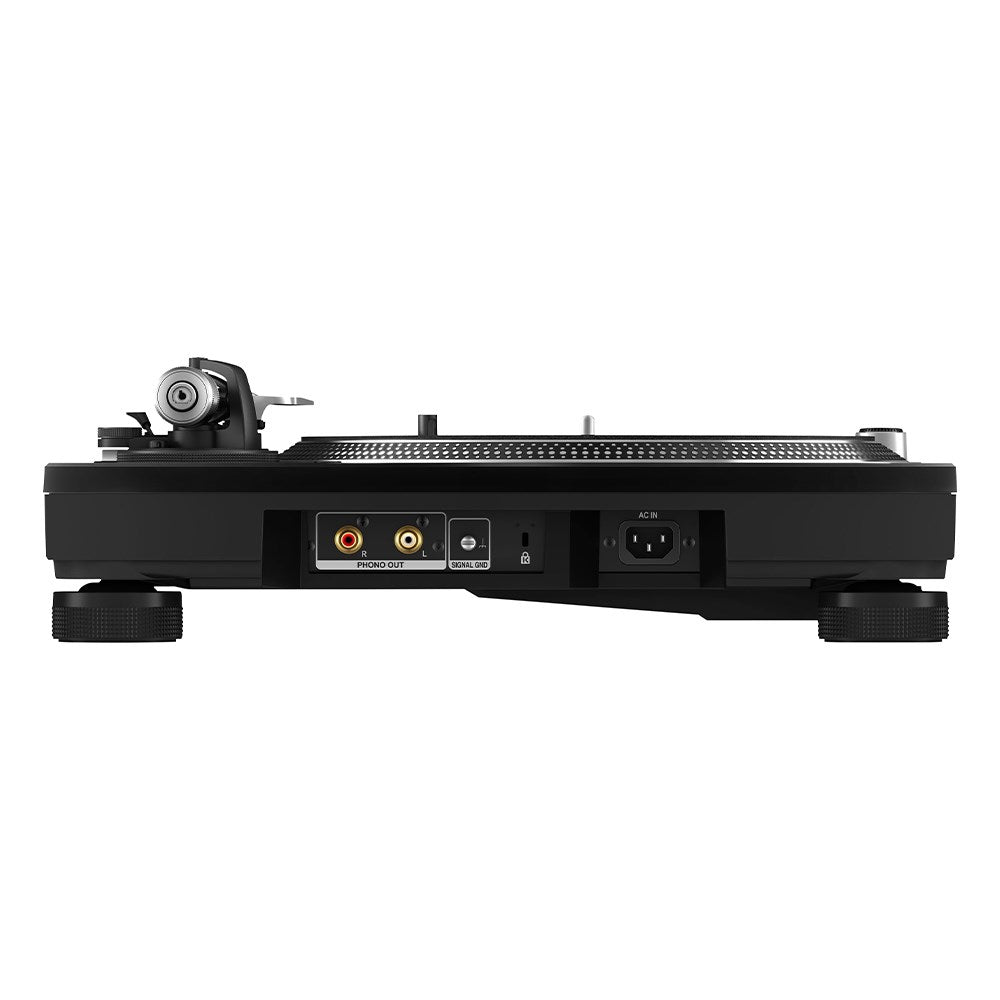

Pioneer DJ PLX-1000 High-torque direct drive professional turntable

Pioneer DJ PLX-1000 High-torque direct drive professional turntable

SKU: PLX-1000

$1,399.00
$1,599.00 $1,399.00
Sale Sold out
Taxes included.

Description

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback. Simply add your choice of cartridge and stylus to the PLX-1000 (not included) and combine with your mixer for an ideal setup for turntablists.



Features

  • High-torque direct drive (33 1/3 rpm in 0.3 seconds)
  • Classic DJ turntable layout
  • Removable power, ground and phono cables
  • S-shaped tone arm
  • Multiple tempo control options: ±8%, ±16% and ±50%
  • Tempo reset button
  • Solid build for excellent vibration damping
  • Professional-grade gold-plated RCA jacks
  • Rubber-lined tone arm to improve isolation and prevent feedback

Specification

Width

 453 mm

Height

 159 mm

Depth

 353 mm

Weight

 14.6 kg


Drive Method

 Quartz lock, servo-type, direct drive

Platter

 Aluminium, die-casting diameter: 332 mm

Motor

 3-phase, brushless DC motor

Braking System

 Electronic brake

Rotation Speed

 33⅓-45 rpm

Rotation Adjustment Range

 ±8, ±16, ±50 %

Wow and Flutter

 < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)

Signal-to-Noise Ratio

 70 dB

Starting Torque

 > 4.5 kgf・cm

Start Time

 Within 0.3 sec (at 33⅓ rpm)

Tone Arm

Arm Type
  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type

Overhang

 15 mm

Effective Length

 230 mm

Tracking Error

 Within 3°

Height Adjustment Range

 6 mm

Stylus Pressure Variable Range

 0-4 g (1 scale 0.1 g)

Proper Cartridge Weight

 2.5-12 g (includes mounting materials)

Terminals

Outputs

 1 ANALOGUE (RCA)
