Midas
Midas DL251 48 Input 16 Output Stage Box
Midas DL251 48 Input 16 Output Stage Box
SKU: SKU: MIX-DL251-MIDAS
Regular price
$7,599.00
Regular price
$7,599.00
Sale price
$7,599.00
GST included.
Quantity
Low Stock – Call for Availability
Description
Description

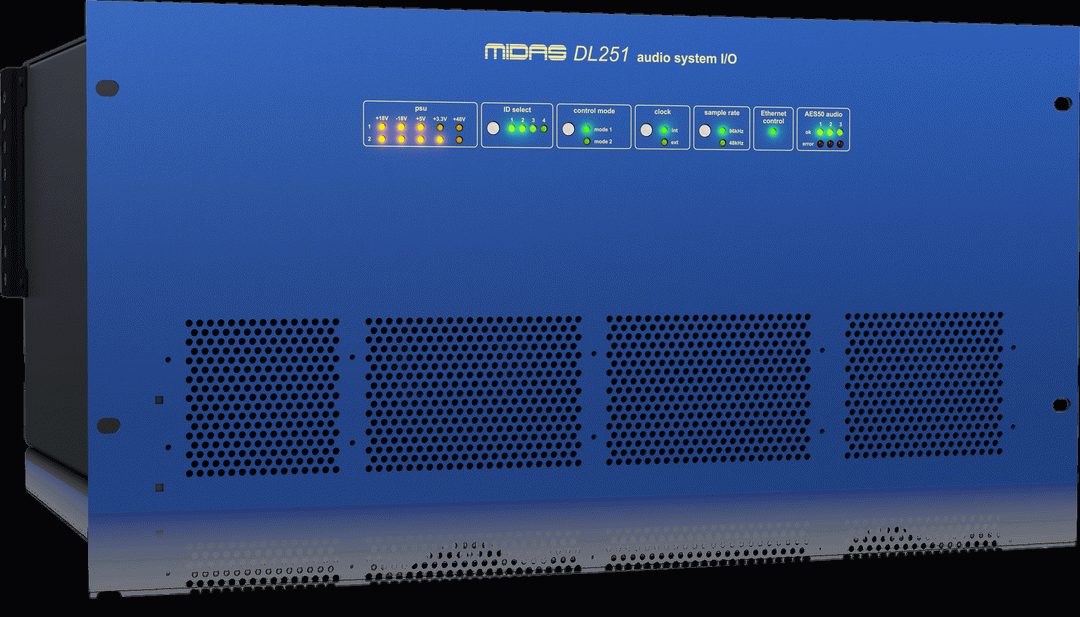

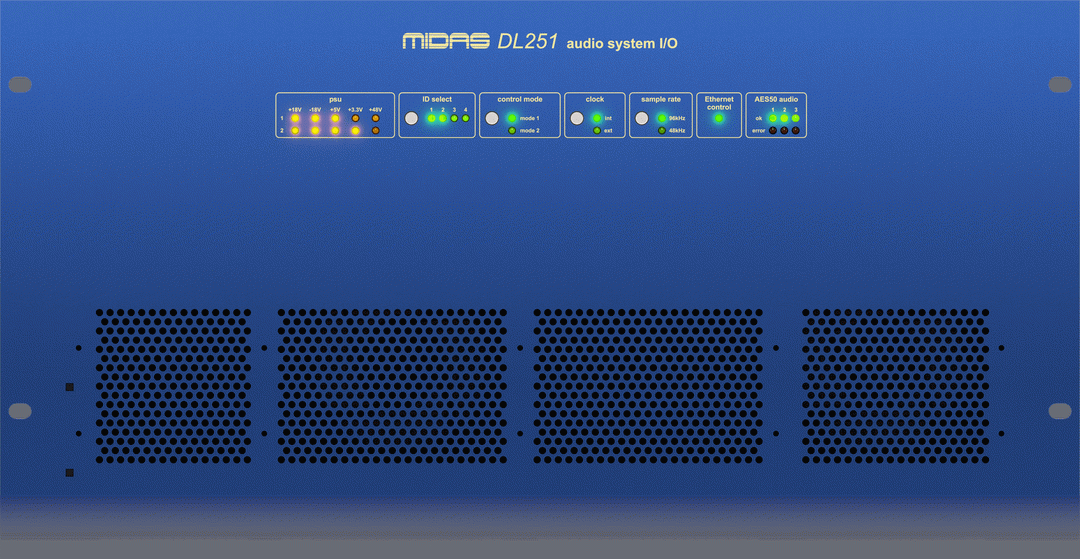

Midas PRO SERIES DL251 is a 5U 19-inch fixed-configuration rack I/O unit with 48 mic/line inputs, 16 line outputs and 48 Midas microphone preamplifiers. Dual-redundant AES50 networking and dual-redundant power supplies are provided for professional live sound systems.
- 48 mic/line inputs
- 16 line-level outputs
- 48 Midas microphone preamplifiers
- 2.5 dB analogue gain steps
- Dual-redundant AES50 network connectivity
- Remote operation up to 100 m via CAT5/5e cable
- Dual-redundant auto-ranging universal switch-mode power supplies
- 5U 19-inch rackmount format
Specification
Specification
| Inputs | 48 mic/line level inputs |
|---|---|
| Outputs | 16 line-level outputs |
| Microphone Preamplifiers | 48 Midas microphone preamplifiers |
| Network | Dual-redundant AES50 |
| Remote Operation | Up to 100 m via CAT5/5e cable |
| Power Supplies | Dual-redundant auto-ranging universal switch-mode |
| Rack Size | 5U 19-inch |
| Dimensions | 483 x 416 x 220 mm |
| Weight | 10.1 kg |
| Australis Vendor Item No. | 0606-ABY86-AU1 |
| UPC/EAN | 4033653014113 |
