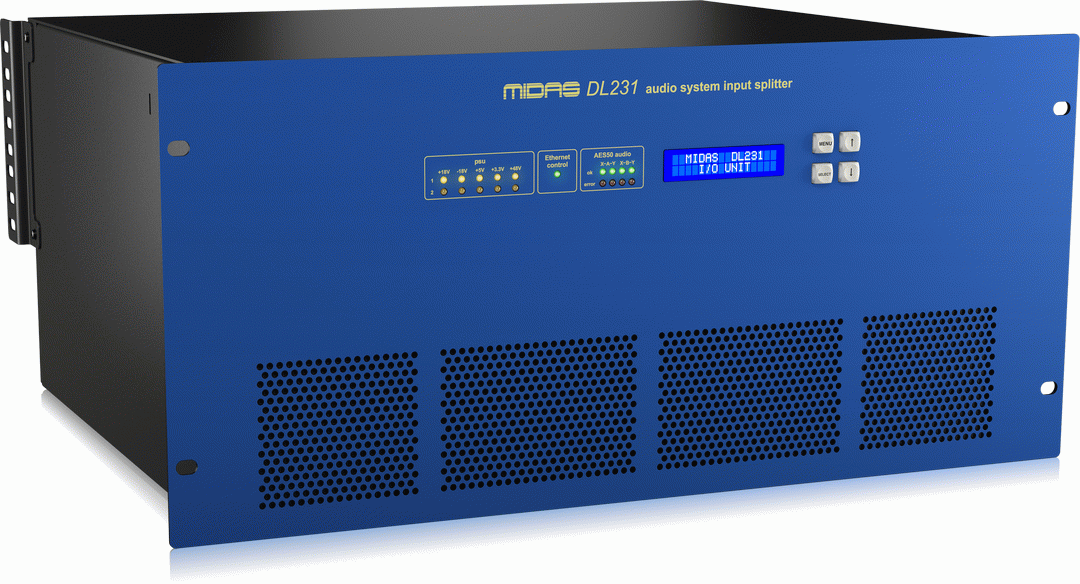

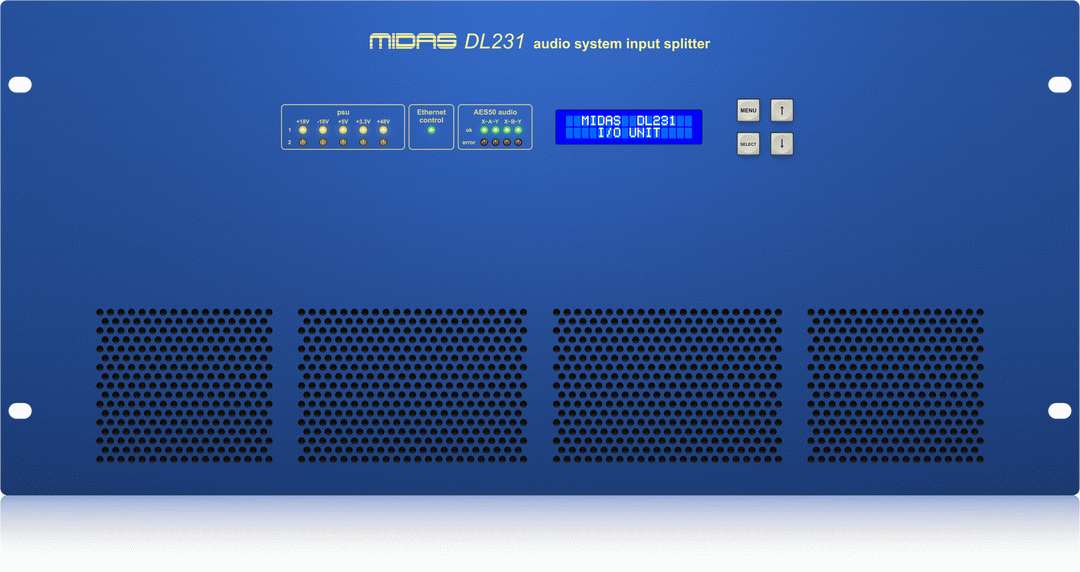

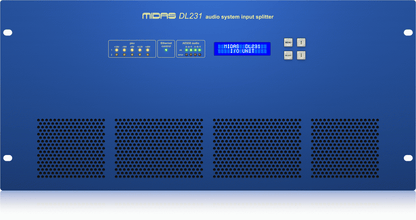

Midas DL231 24 Input 24 Output Stage Box
Midas DL231 24 Input 24 Output Stage Box
SKU: SKU: MIX-DL231-MIDAS
Regular price
$9,999.00
Regular price
$9,999.00
Sale price
$9,999.00
GST included.
Quantity
Low Stock – Call for Availability
Description
Description
Midas PRO SERIES DL231 is a 5U 19-inch fixed-configuration rack I/O unit with 24 mic/line inputs, 24 line outputs and 24 Midas microphone preamplifiers. Dual redundant AES50 networking and dual redundant power supplies support professional touring and installation applications.
- 24 mic/line inputs
- 24 line-level outputs
- 24 Midas microphone preamplifiers
- Dual-redundant AES50 network connectivity
- Dual-redundant auto-ranging universal switch-mode power supplies
- Remote operation up to 100 m via CAT5/5e cable
- 5U 19-inch rackmount format
Specification
Specification
| Inputs | 24 mic/line level inputs |
|---|---|
| Outputs | 24 line-level outputs |
| Microphone Preamplifiers | 24 Midas microphone preamplifiers |
| Network | Dual-redundant AES50 |
| Remote Operation | Up to 100 m via CAT5/5e cable |
| Power Supplies | Dual-redundant auto-ranging universal switch-mode |
| Rack Size | 5U 19-inch |
| Dimensions | 483 x 416 x 220 mm |
| Weight | 14.5 kg |
| Australis Vendor Item No. | 0606-ABW86-AU1 |
| UPC/EAN | 4033653014090 |
