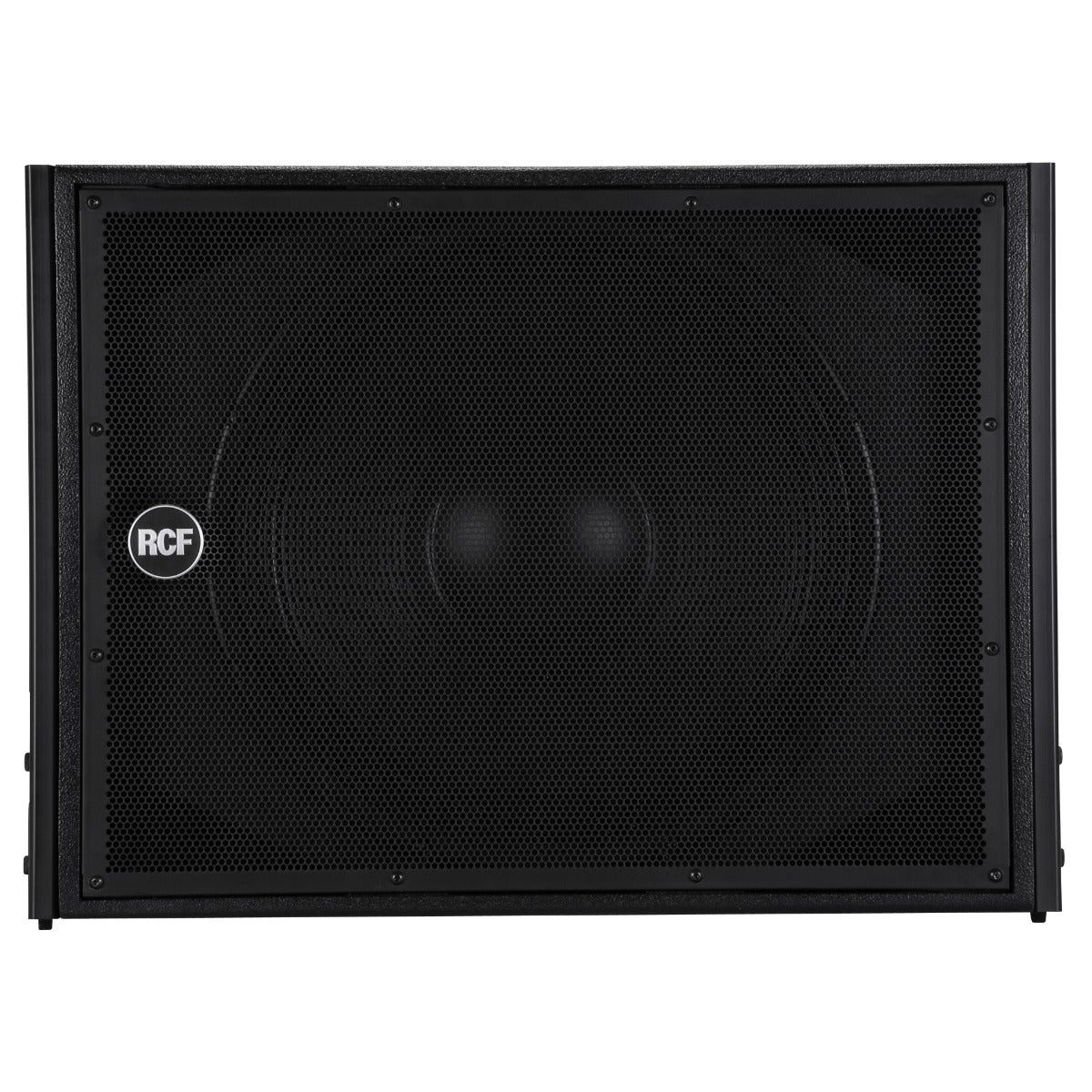

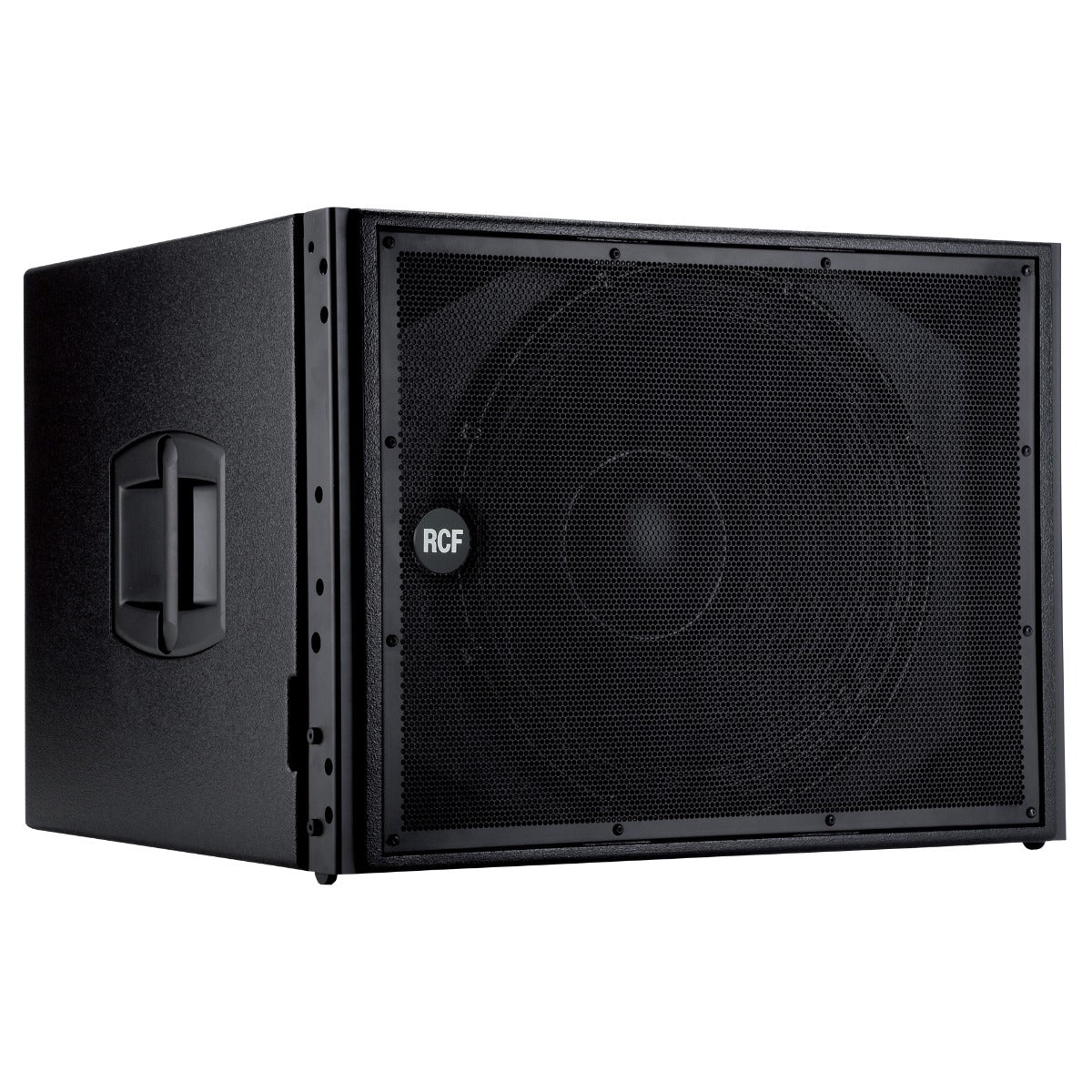

RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER
RCF HDL 18-AS ACTIVE FLYABLE HIGH POWER SUBWOOFER
SKU: SKU: HDL-18AS
Regular price
$7,299.00
Regular price
$9,090.00
Sale price
$7,299.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Description
Description
The HDL18-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4” voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.
- 2000 Watt Peak power - 1000 Watt RMS
- 135 dB max SPL
- 30 Hz - 140 Hz frequency response
- 1 x 18" Woofer
- DSP controlled Input section with selectable presets

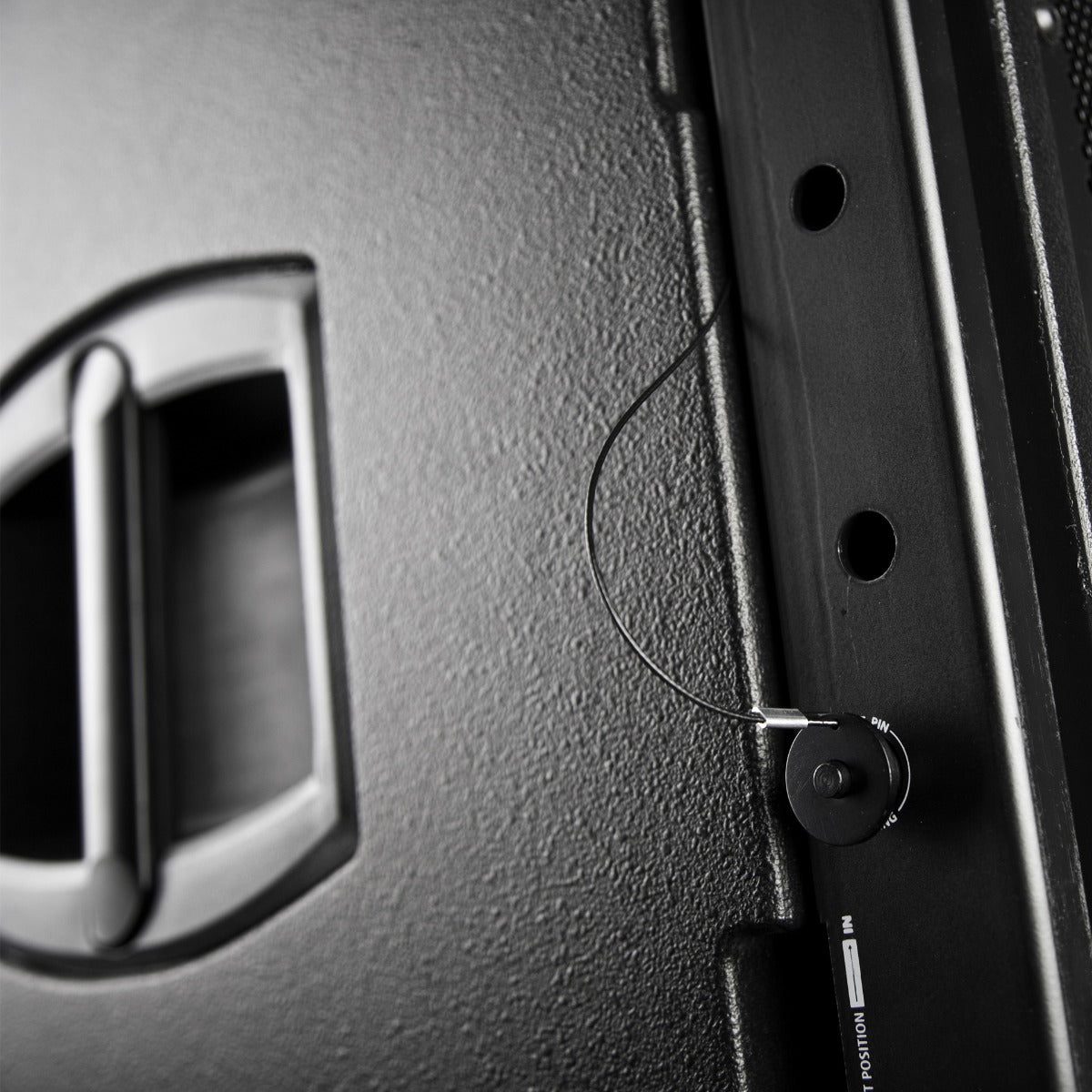

- Tour grade safe and solid variable mechanics, compatible with HDL 20-A
- Designed to compliment the HDL 20-A speaker system
- Baltic birch tour grade cabinet
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE: 30 Hz ÷ 140 Hz
MAX SPL @ 1M: 135 dB
Transducers

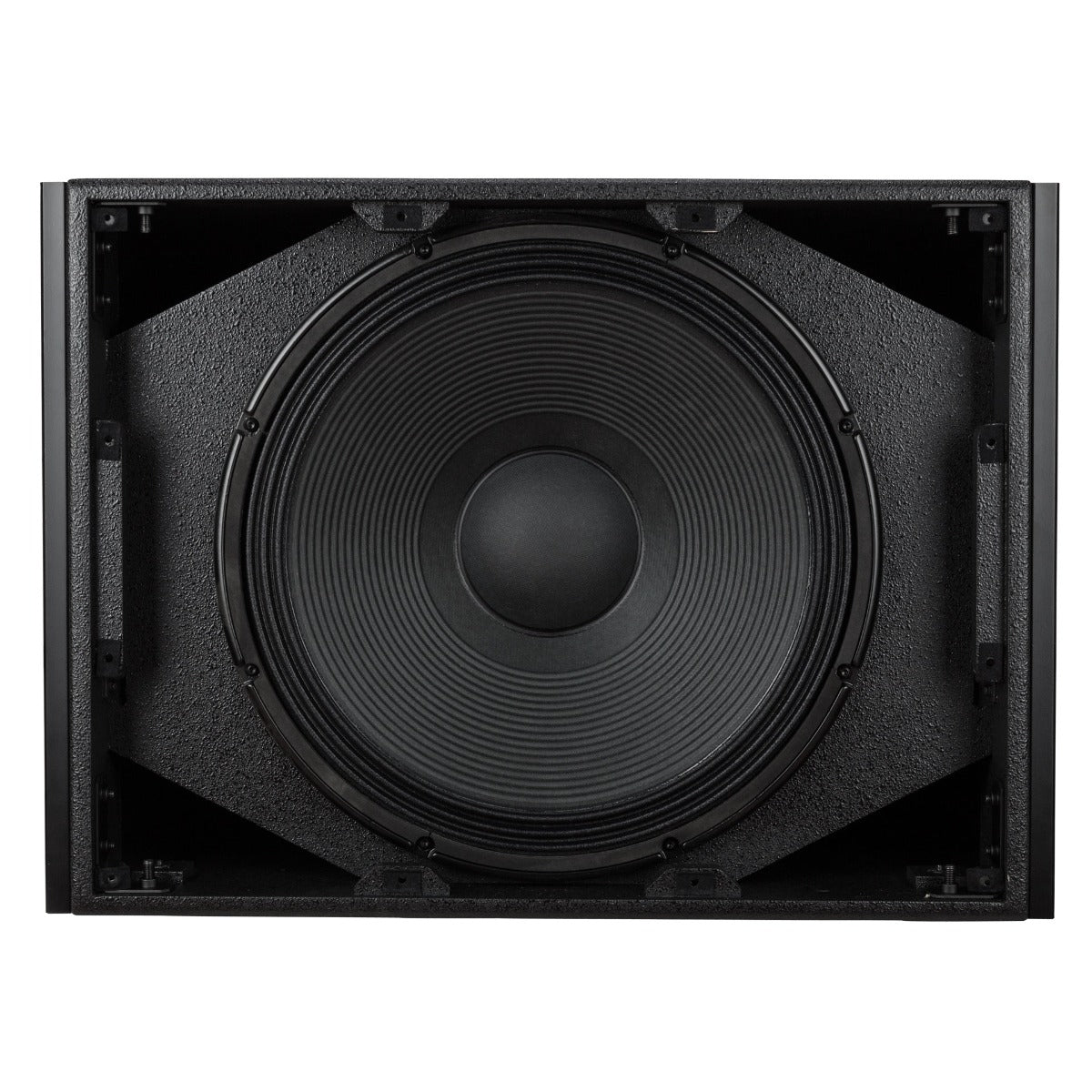

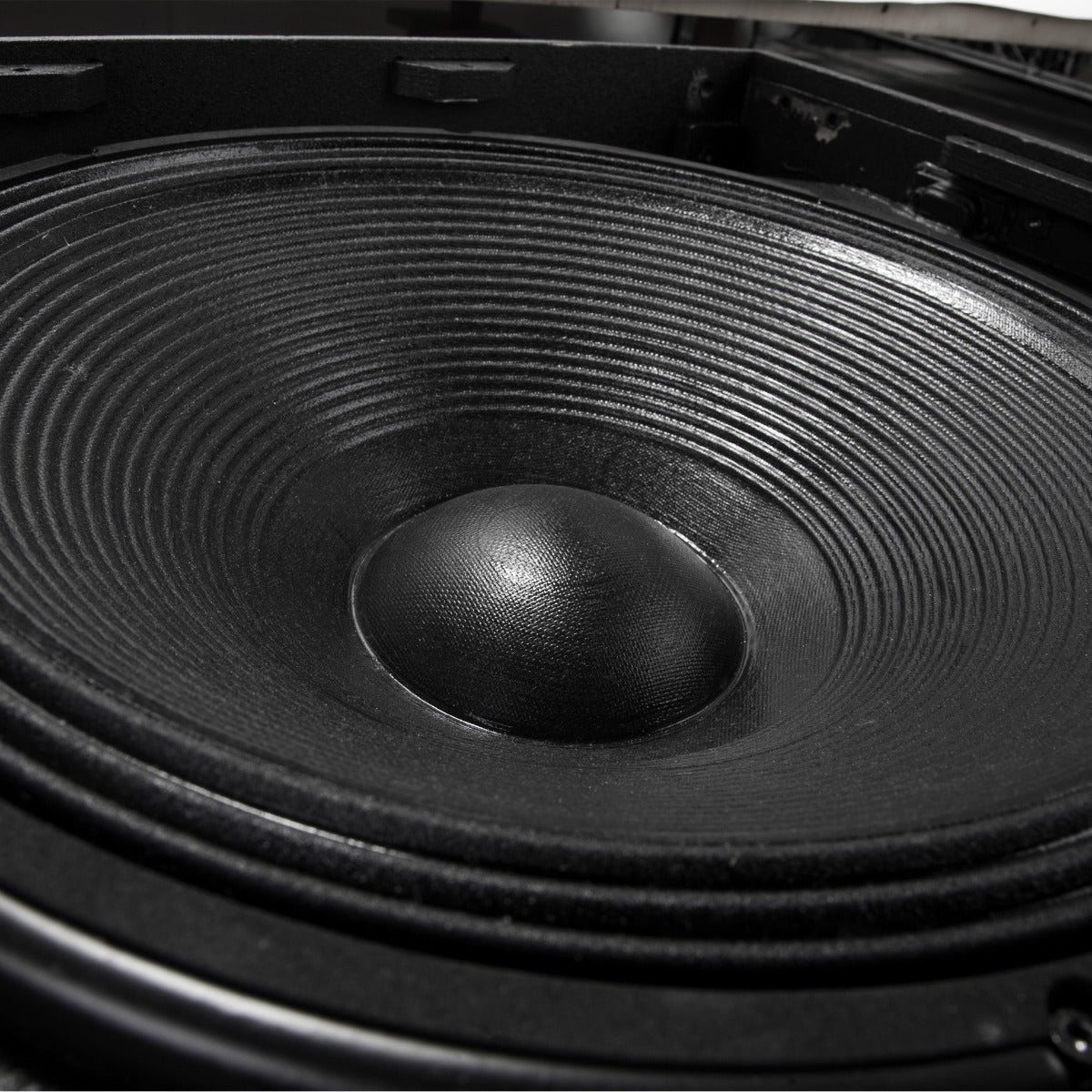

WOOFER: 18'', 4.0'' v.c

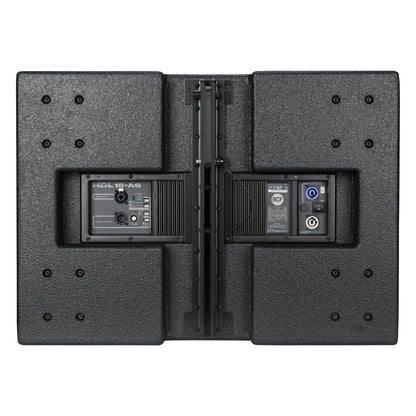

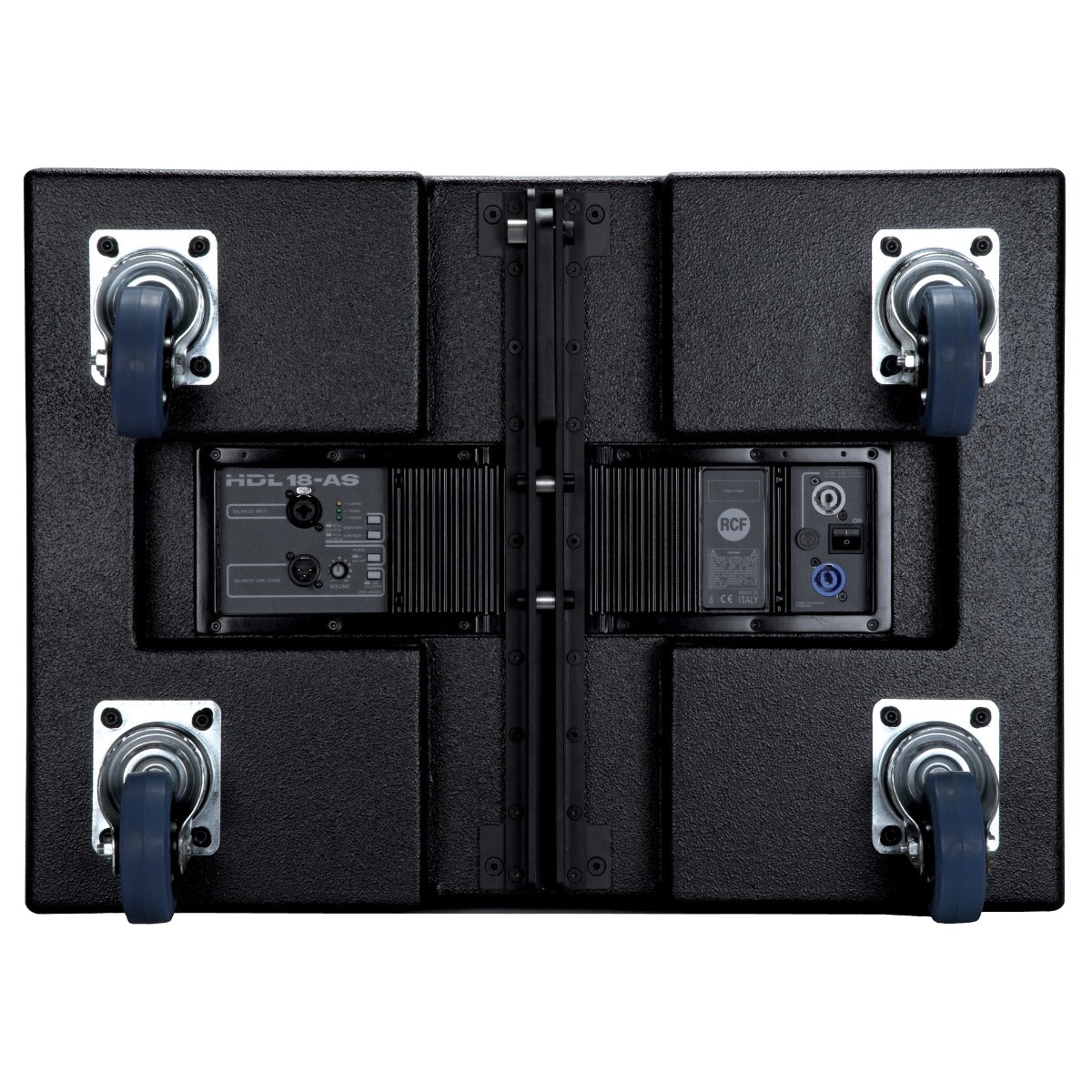

Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES: 30Hz, 45Hz
LOW-PASS FREQUENCIES: 90Hz, 140Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Volume, EQ shape, Xover
Power section
TOTAL POWER: 2000 W Peak, 1000 W RMS
LOW FREQUENCIES: 2000 W Peak, 1000 W RMS
COOLING: Convection/Forced
CONNECTIONS: Powercon IN/OUT
Physical specifications
CABINET/CASE MATERIAL: Baltic birch plywood

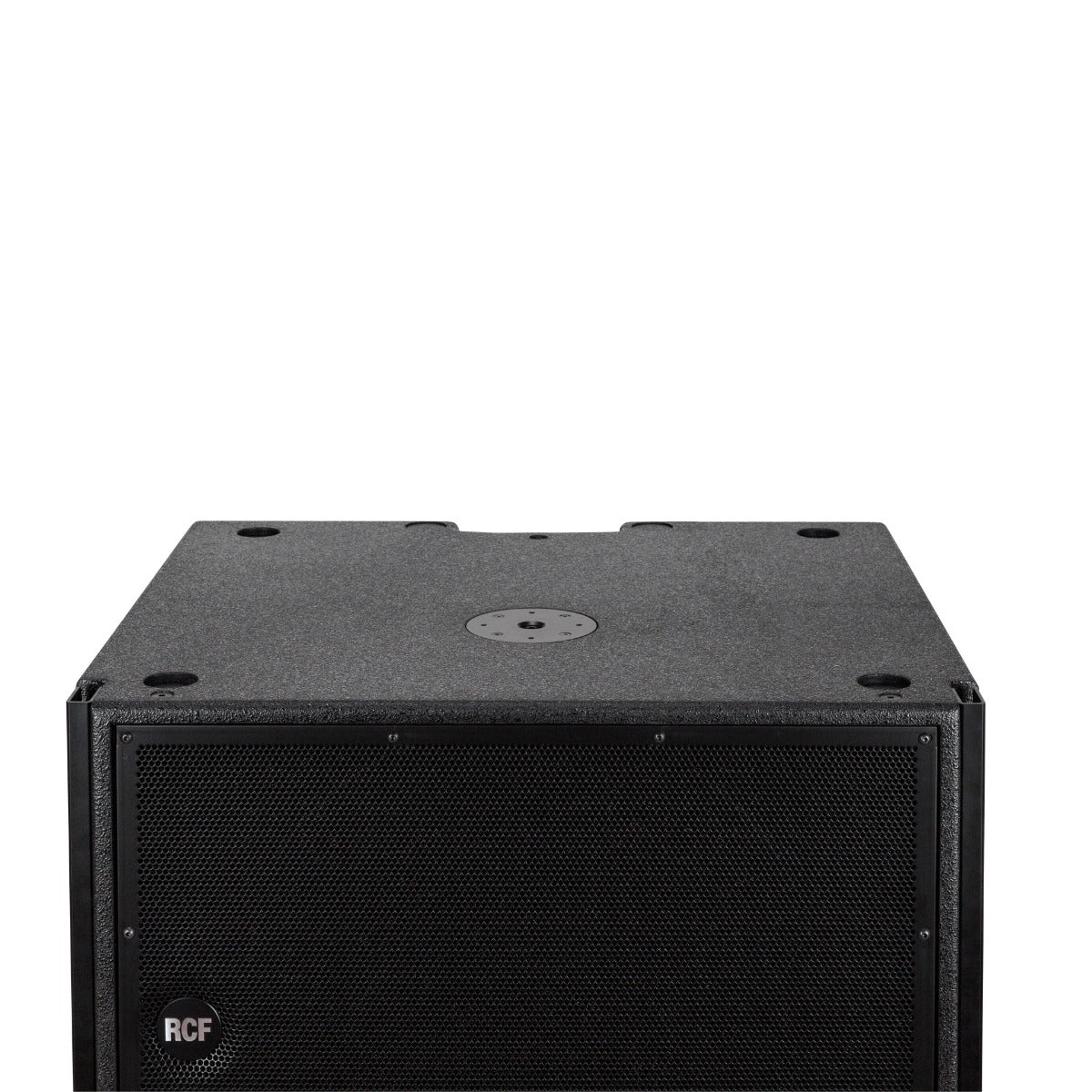

HARDWARE: Rigging flyware, M20 insert
HANDLES: 2 side
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 512 mm / 20.16 inches
WIDTH: 700 mm / 27.56 inches
DEPTH: 620 mm / 24.41 inches
WEIGHT: 53 kg / 116.84 lbs
Shipping informations
PACKAGE HEIGHT: 639 mm / 25.16 inches
PACKAGE WIDTH: 814 mm / 32.05 inches
PACKAGE DEPTH: 734 mm / 28.9 inches
PACKAGE WEIGHT: 60.2 kg / 132.72 lbs
