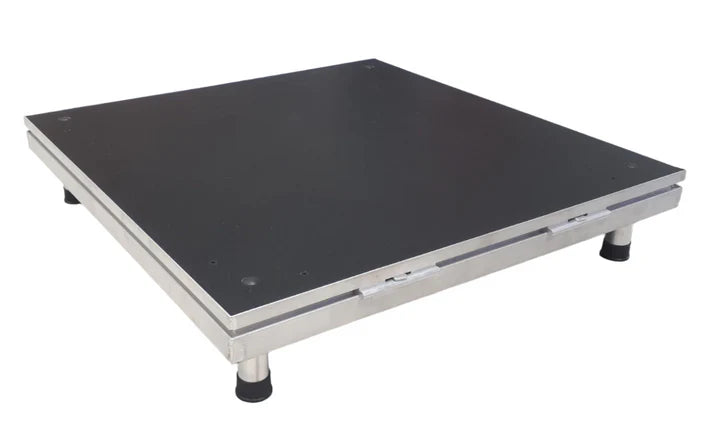

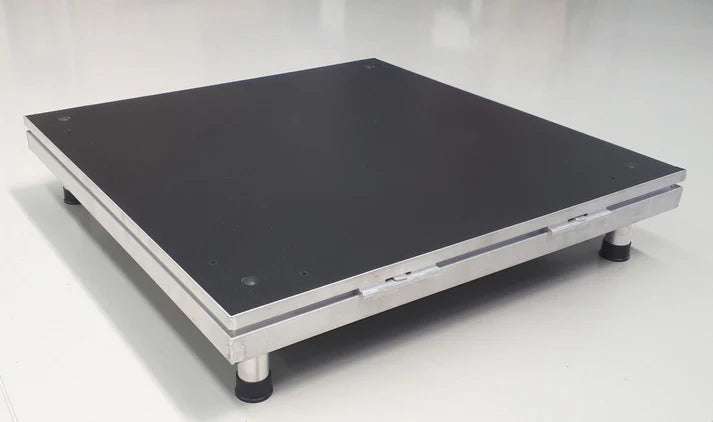

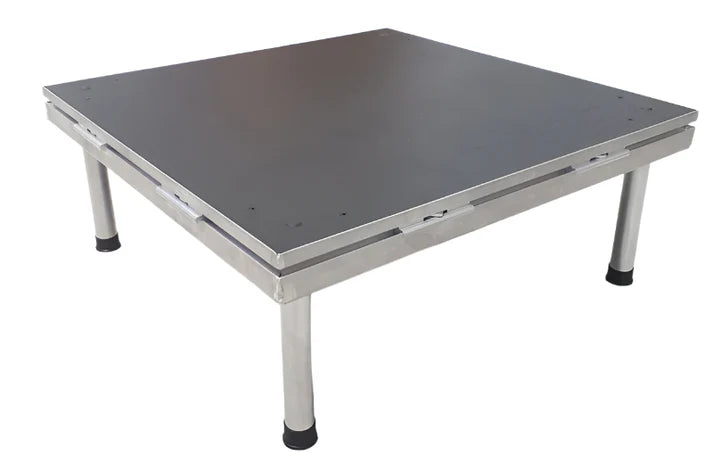

Portable Stage Panel – 1.0m x 1.0m with Fixed Height Legs

BULKY ITEM – EXTRA FREIGHT CHARGES MAY APPLY. PLEASE ENQUIRE BEFORE PURCHASING.

A high-quality, professional-grade portable stage panel designed for strength, safety, and easy setup. Perfect for schools, theatres, exhibitions, corporate events, and live performances, this stage system combines a heavy-duty aluminium frame, non-slip laminated plywood surface, and a TUV-certified load rating for maximum reliability.

The built-in tongue-and-groove connector system allows multiple panels to join seamlessly, creating a stable and level performance platform. Choose from a range of fixed height aluminium legs (200mm, 300mm, 400mm, 600mm) to suit your event requirements.


Key Features

Heavy-Duty Aluminium Frame – Engineered for strength and long-lasting use
TUV Rated – Certified quality and load capacity
High Load Capacity – Supports up to 940kg static distributed load per panel
Slip-Resistant Surface – Black laminate finish, tested to AS 4586 standards for performer safety
Tool-Free Assembly – Quick-fit leg system locks in place without the need for tools
Modular & Expandable – Connect multiple panels via the inbuilt locking system
Customisable Height – Choice of 200mm, 300mm, 400mm, or 600mm fixed legs
Easy to Transport & Store – Lightweight design and flat-pack capability
Accessories Available – Add guardrails, stairs, or skirts for a professional finish

Specification

Specifications

Stage Deck

  • Panel Size: 1000mm x 1000mm

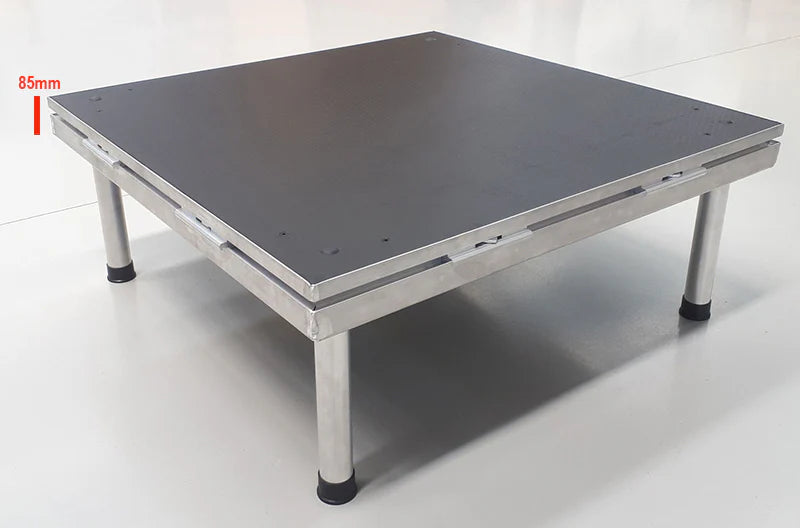

  • Frame Material: Heavy-duty aluminium alloy (85mm thick frame)
  • Deck Surface: 18mm slip-resistant black laminated plywood
  • Safe Working Load (SWL): 940kg (static distributed load)
  • Weight: 22kg
  • Surface Rating: AS 4586 – Section A3 D1 (Dry); P3, SRV 39 (Wet Pendulum)
  • Certification: TUV rated (certificates available on request)

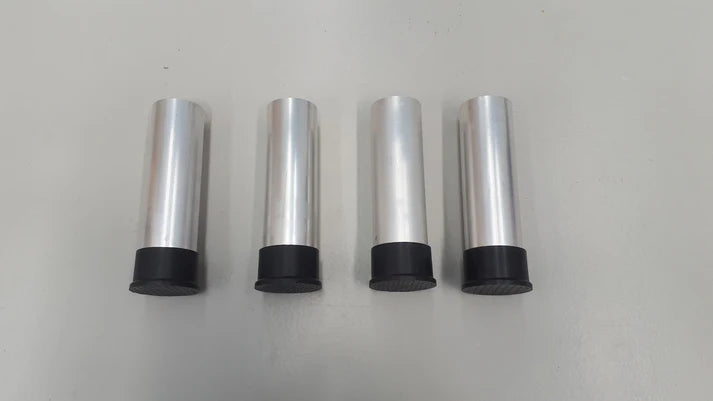

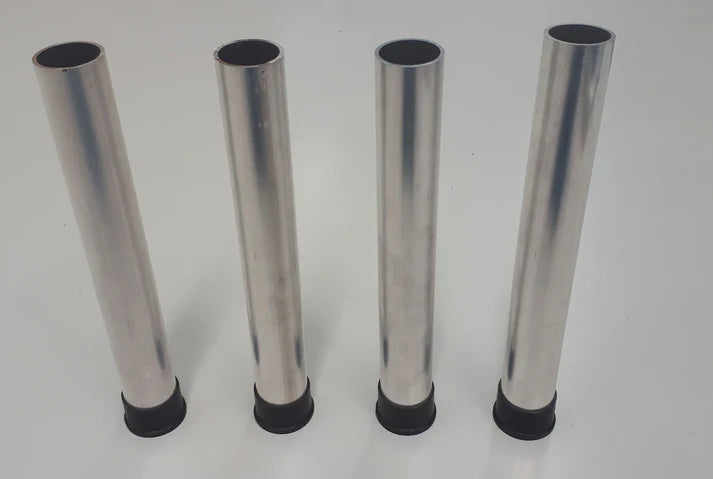

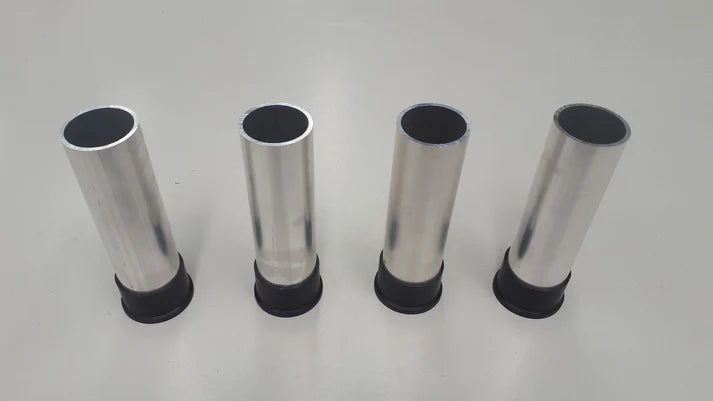

Stage Legs

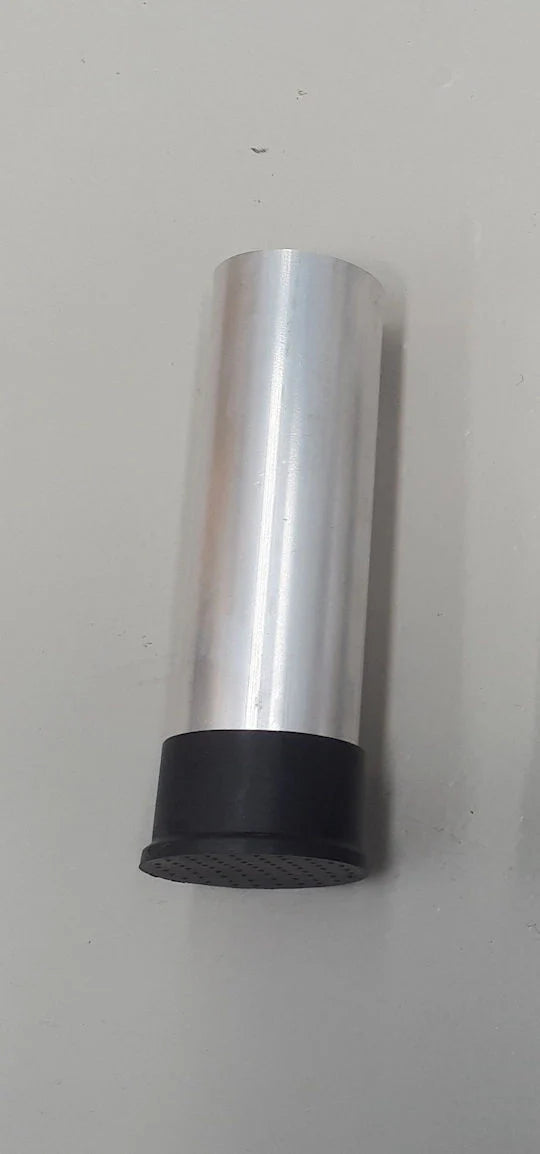

  • Material: 50mm aluminium with flexible foot
  • Height Options: 200mm / 300mm / 400mm / 600mm (select legs when adding to cart)

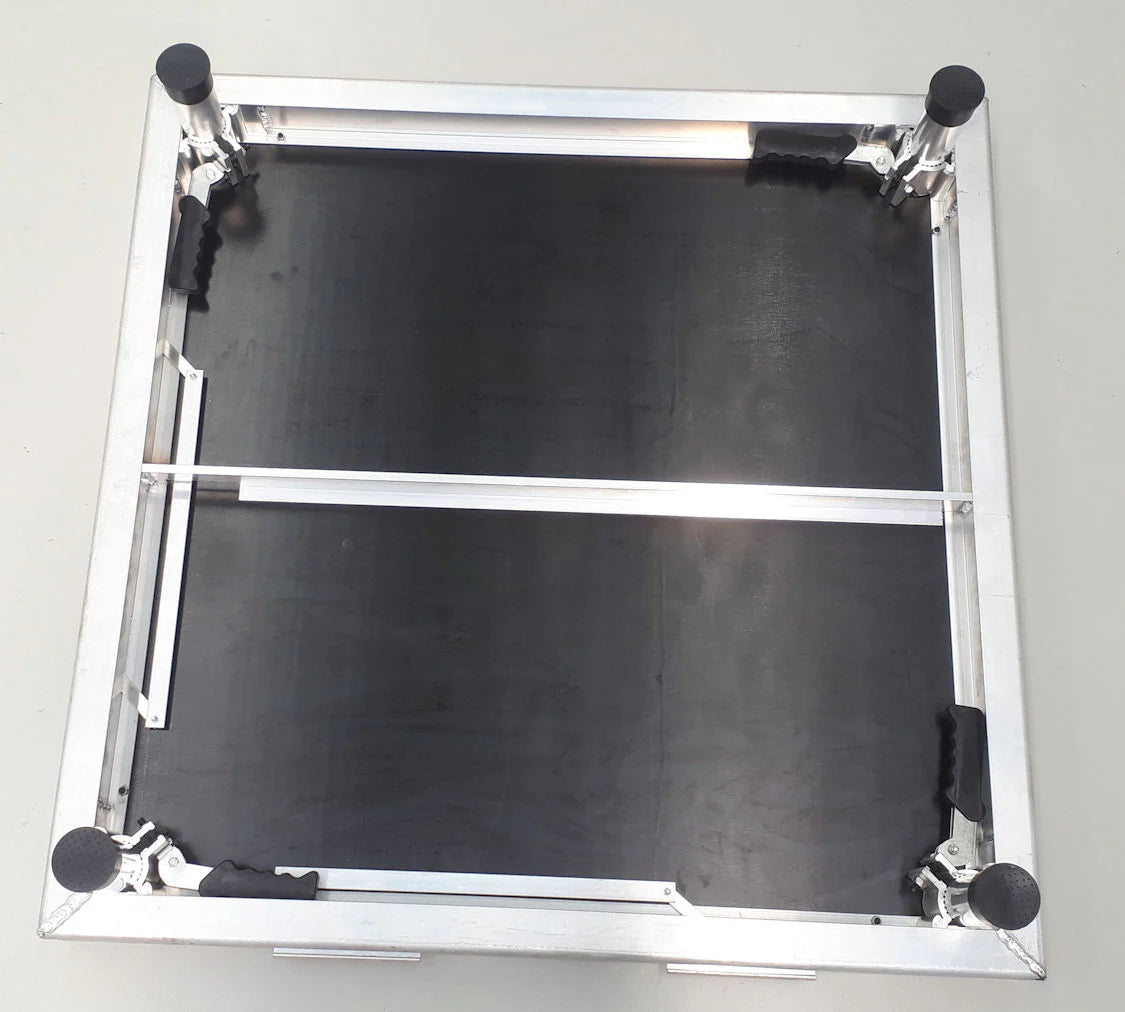

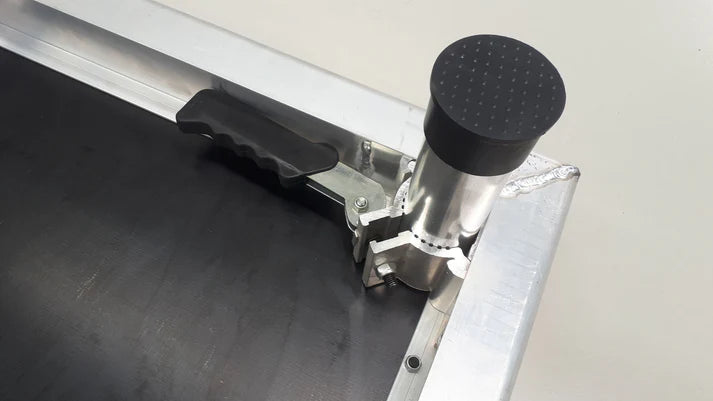

  • Attachment: Quick-fit corner clamps with locking lever (no tools required)
  • Removable: Yes

Compatibility & Accessories

  • Connect multiple panels via built-in tongue-and-groove / locking system
  • Optional accessories: guardrails, stairs, and stage skirts
