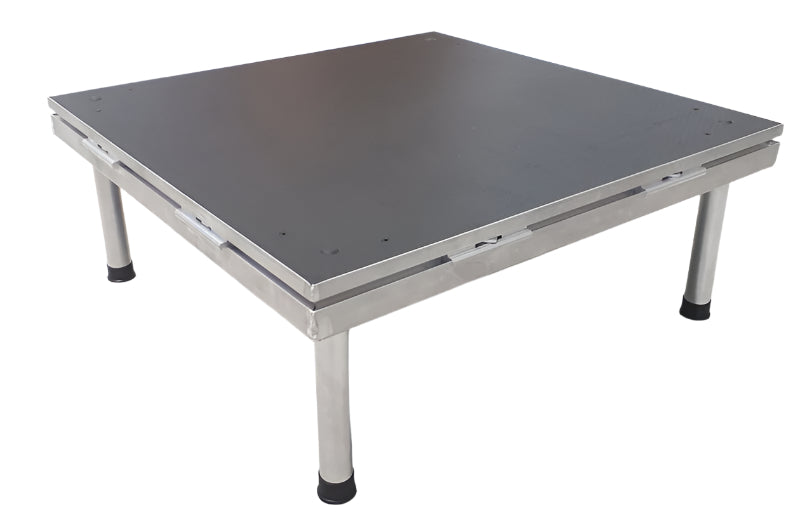

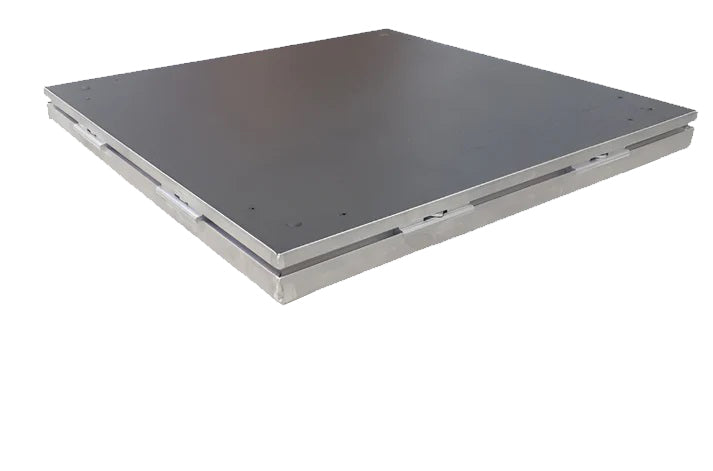

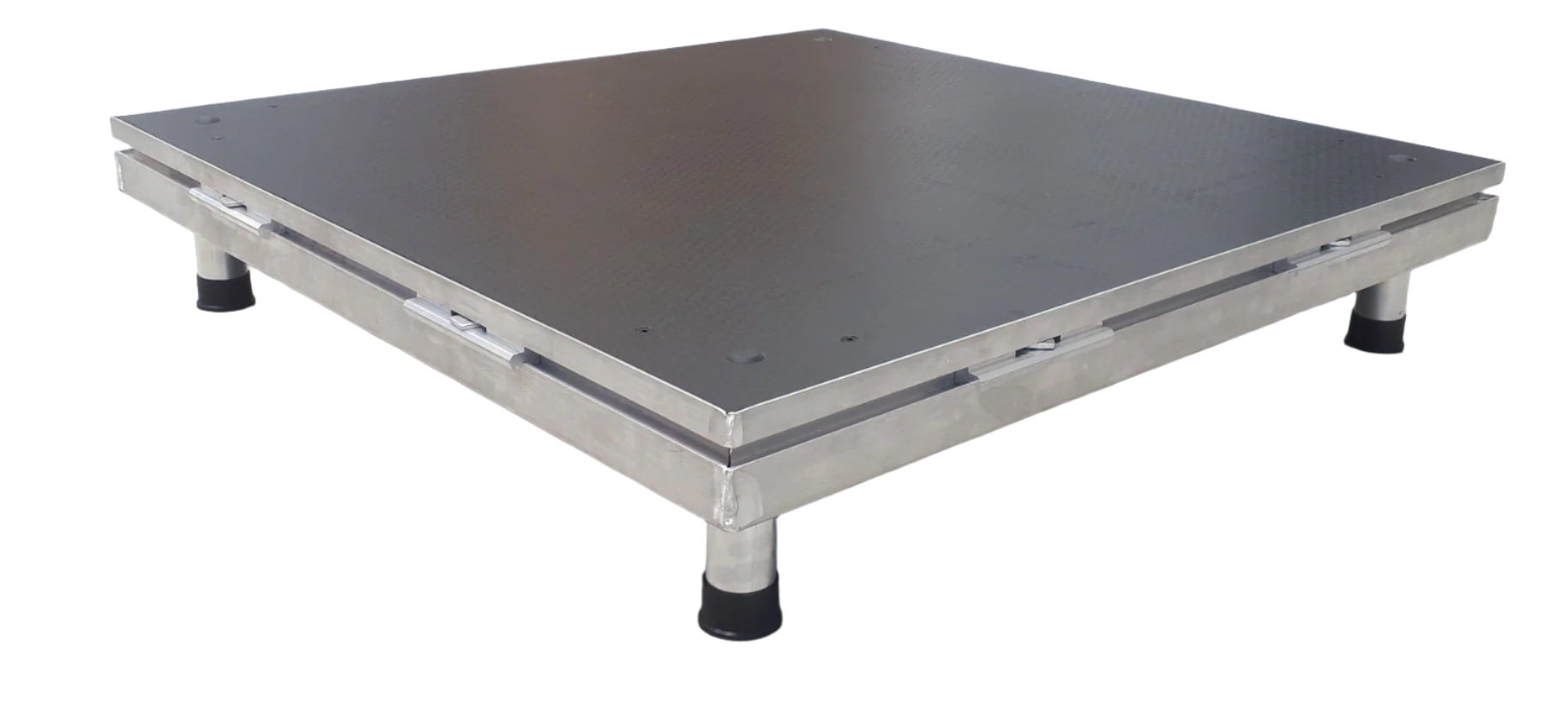

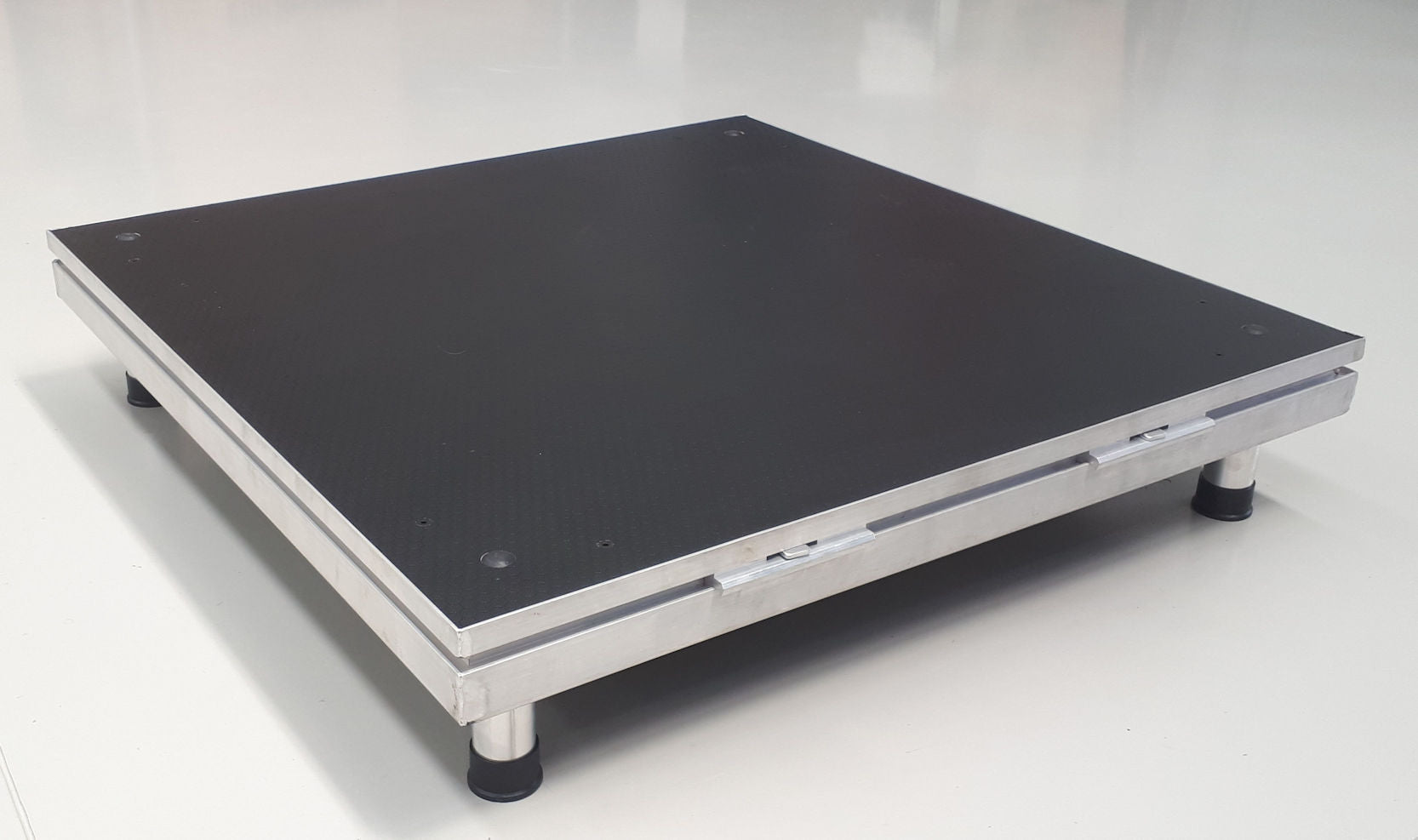

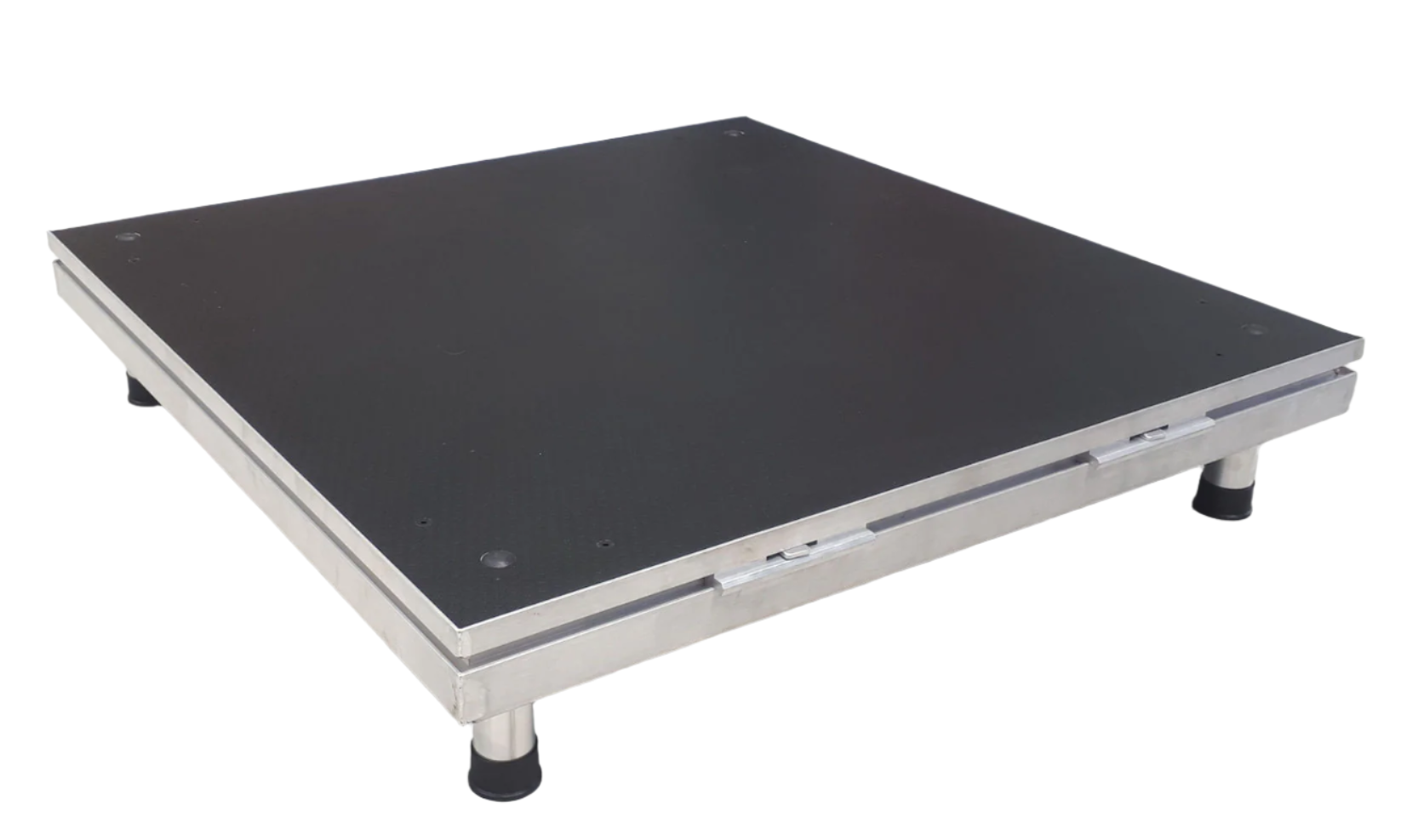

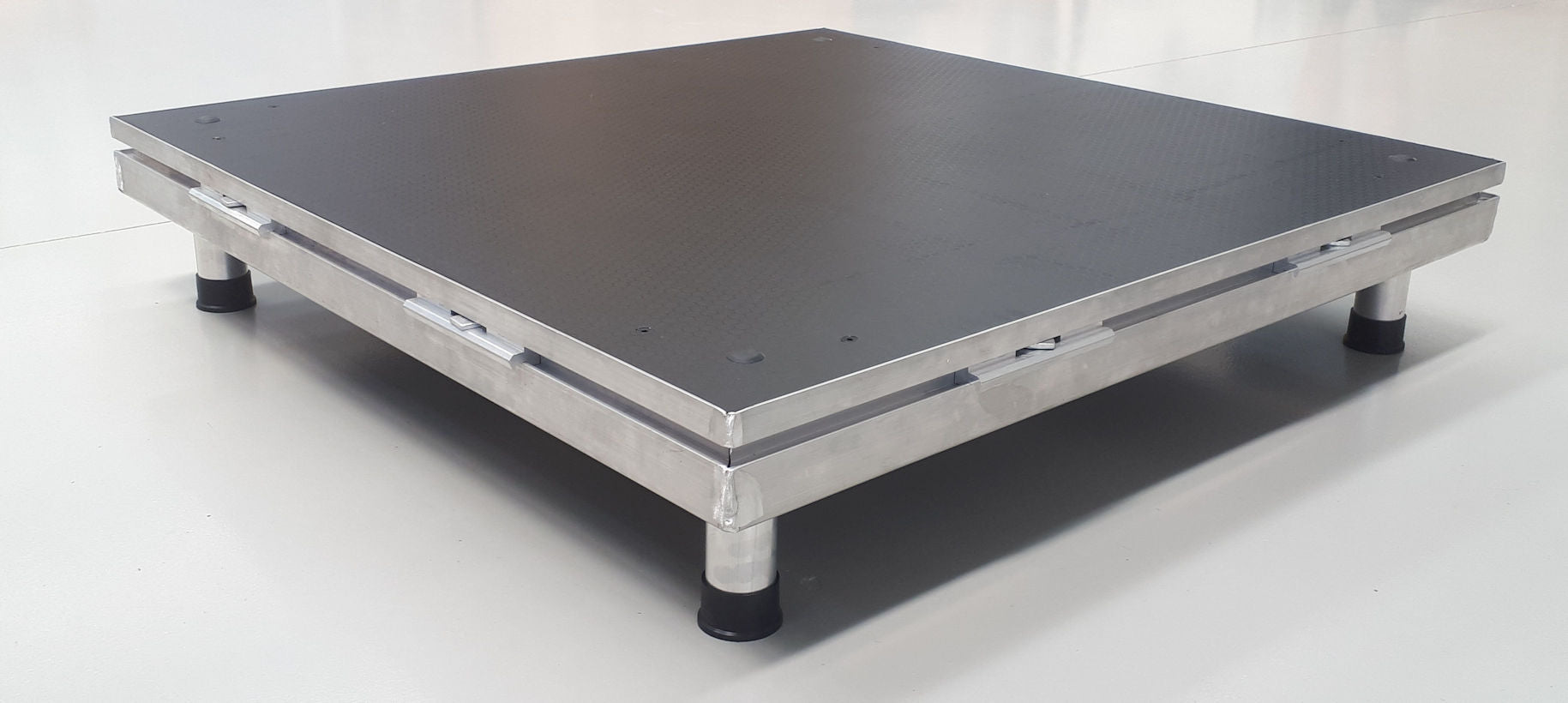

Fixed height stage panel 1.0M x 1.0M (DECK ONLY)
Fixed height stage panel 1.0M x 1.0M (DECK ONLY)
SKU: SKU: STAGE-W1010-1
In Stock
Description
Description
This listing is for the stage deck only. If you require Fixed height legs you can purchase our Stage Pack by CLICKING HERE
BULKY ITEM – EXTRA FREIGHT CHARGES MAY APPLY. PLEASE ENQUIRE BEFORE PURCHASING.
A high-quality, professional-grade portable stage panel designed for strength, safety, and easy setup. Perfect for schools, theatres, exhibitions, corporate events, and live performances, this stage system combines a heavy-duty aluminium frame, non-slip laminated plywood surface, and a TUV-certified load rating for maximum reliability.
The built-in tongue-and-groove connector system allows multiple panels to join seamlessly, creating a stable and level performance platform. Choose from a range of fixed height aluminium legs (200mm, 300mm, 400mm, 600mm) to suit your event requirements.
Key Features
✅ Heavy-Duty Aluminium Frame – Engineered for strength and long-lasting use
✅ TUV Rated – Certified quality and load capacity
✅ High Load Capacity – Supports up to 940kg static distributed load per panel
✅ Slip-Resistant Surface – Black laminate finish, tested to AS 4586 standards for performer safety
✅ Tool-Free Assembly – Quick-fit leg system locks in place without the need for tools
✅ Modular & Expandable – Connect multiple panels via the inbuilt locking system
✅ Customisable Height – Optional Choice of 200mm, 300mm, 400mm, or 600mm fixed legs
✅ Easy to Transport & Store – Lightweight design and flat-pack capability
✅ Accessories Available – Add guardrails, stairs, or skirts for a professional finish
Specification
Specification
Specifications
Stage Deck
- Panel Size: 1000mm x 1000mm

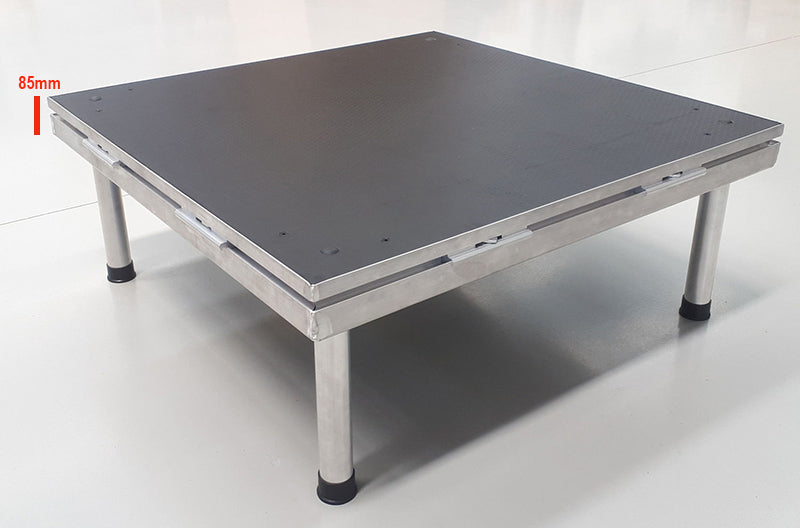

- Frame Material: Heavy-duty aluminium alloy (85mm thick frame)
- Deck Surface: 18mm slip-resistant black laminated plywood
- Safe Working Load (SWL): 940kg (static distributed load)
- Weight: 22kg
- Surface Rating: AS 4586 – Section A3 D1 (Dry); P3, SRV 39 (Wet Pendulum)
- Certification: TUV rated (certificates available on request)
Stage Legs

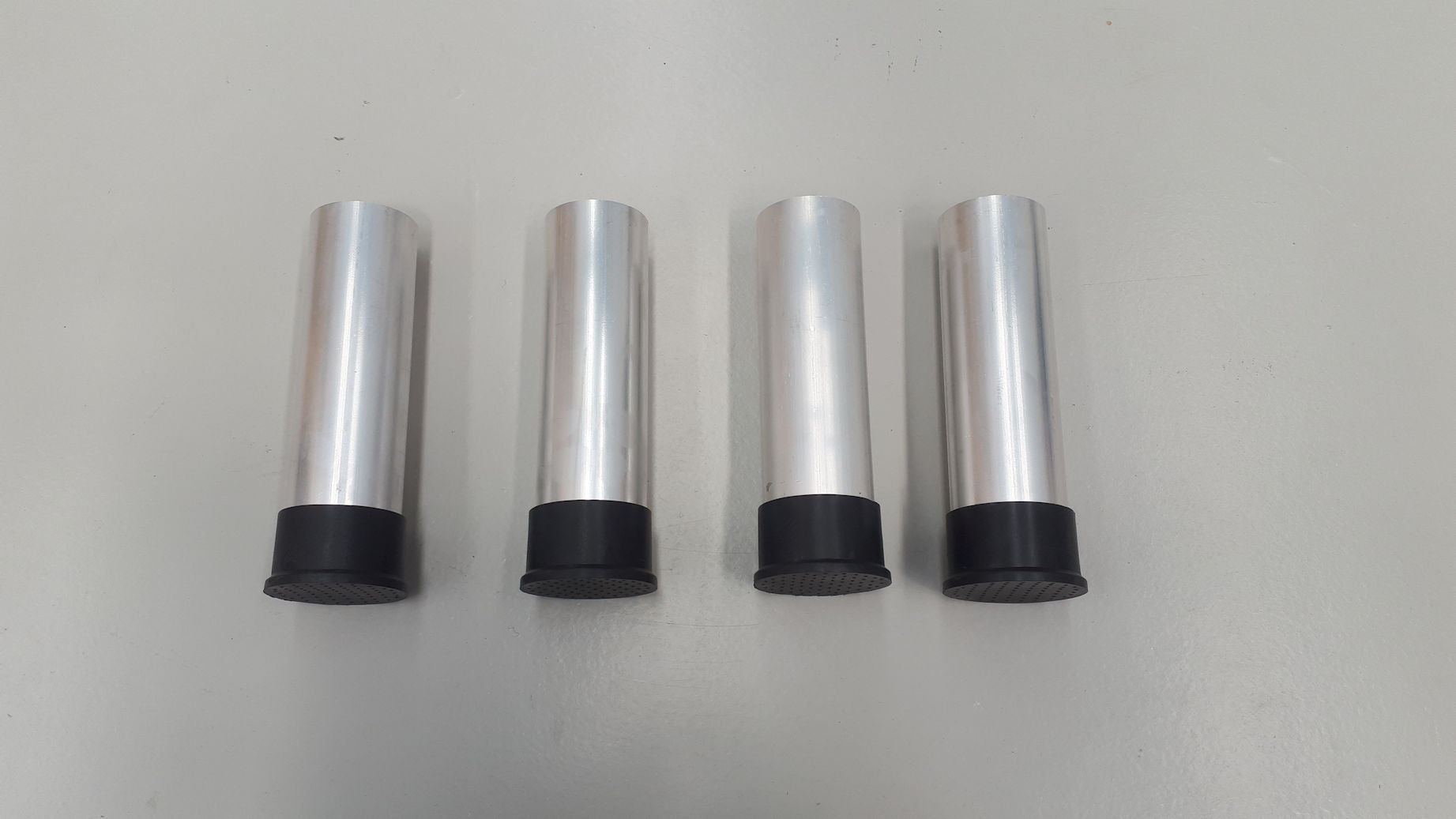

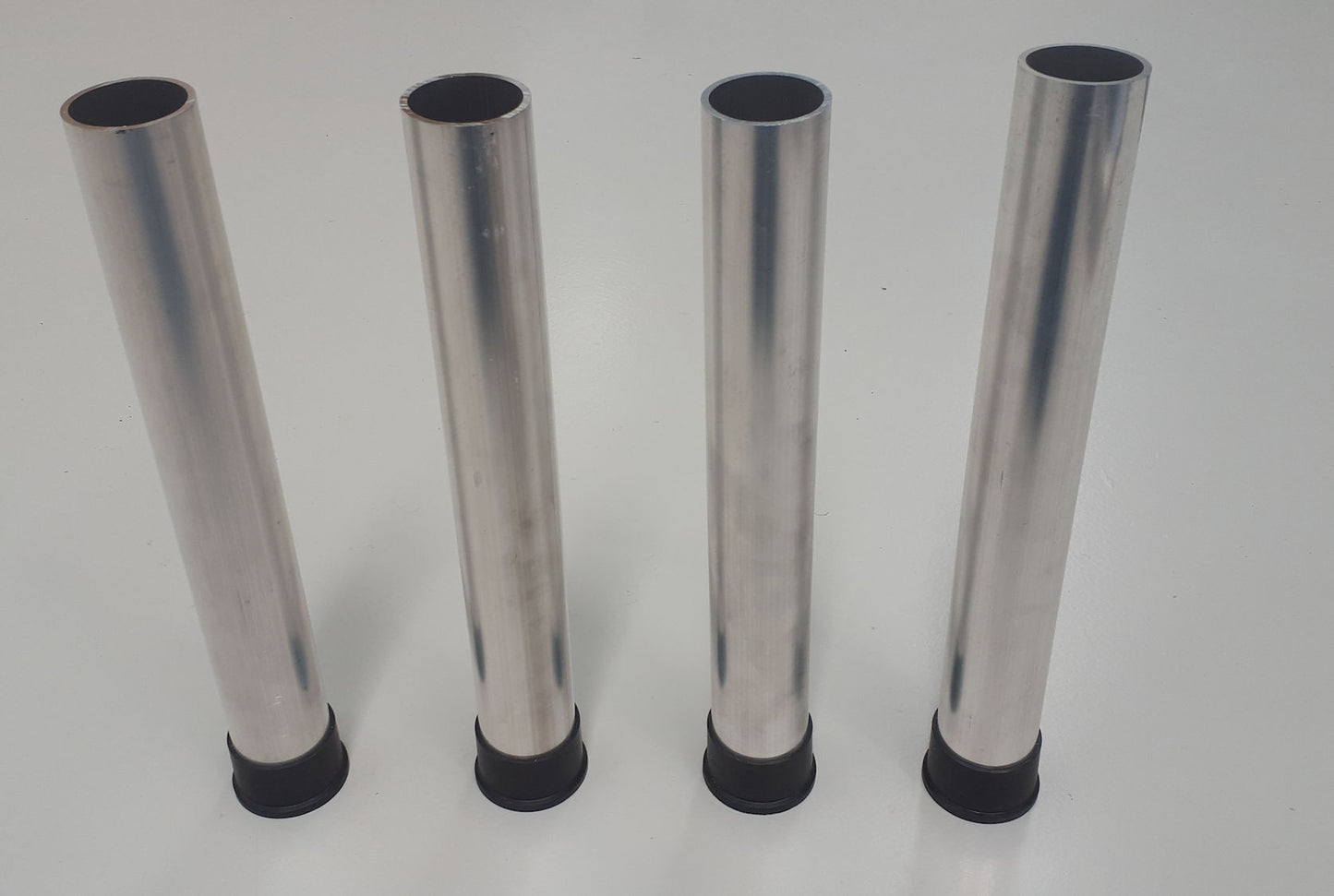

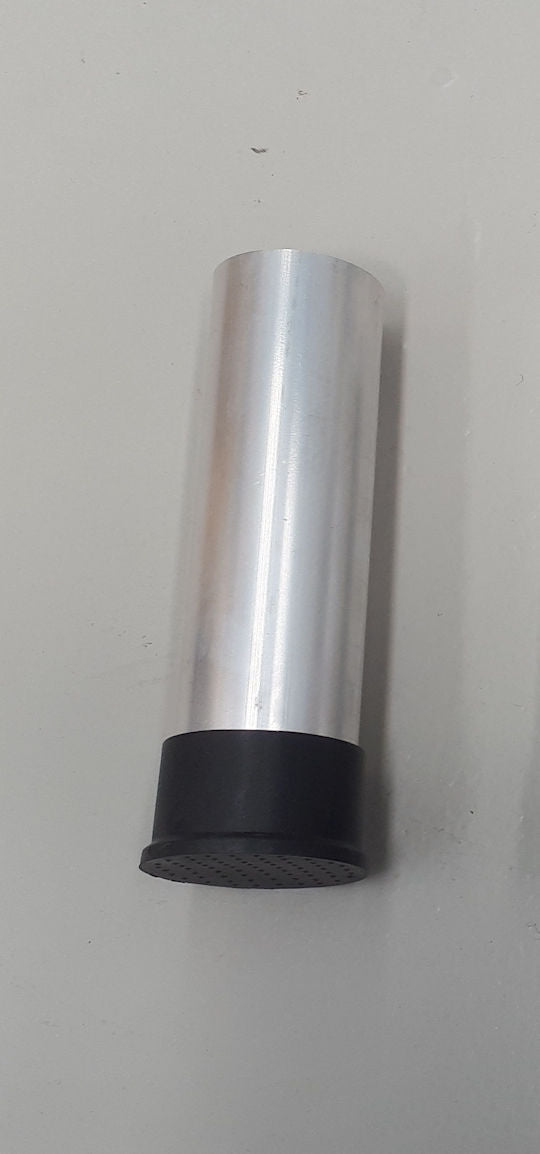

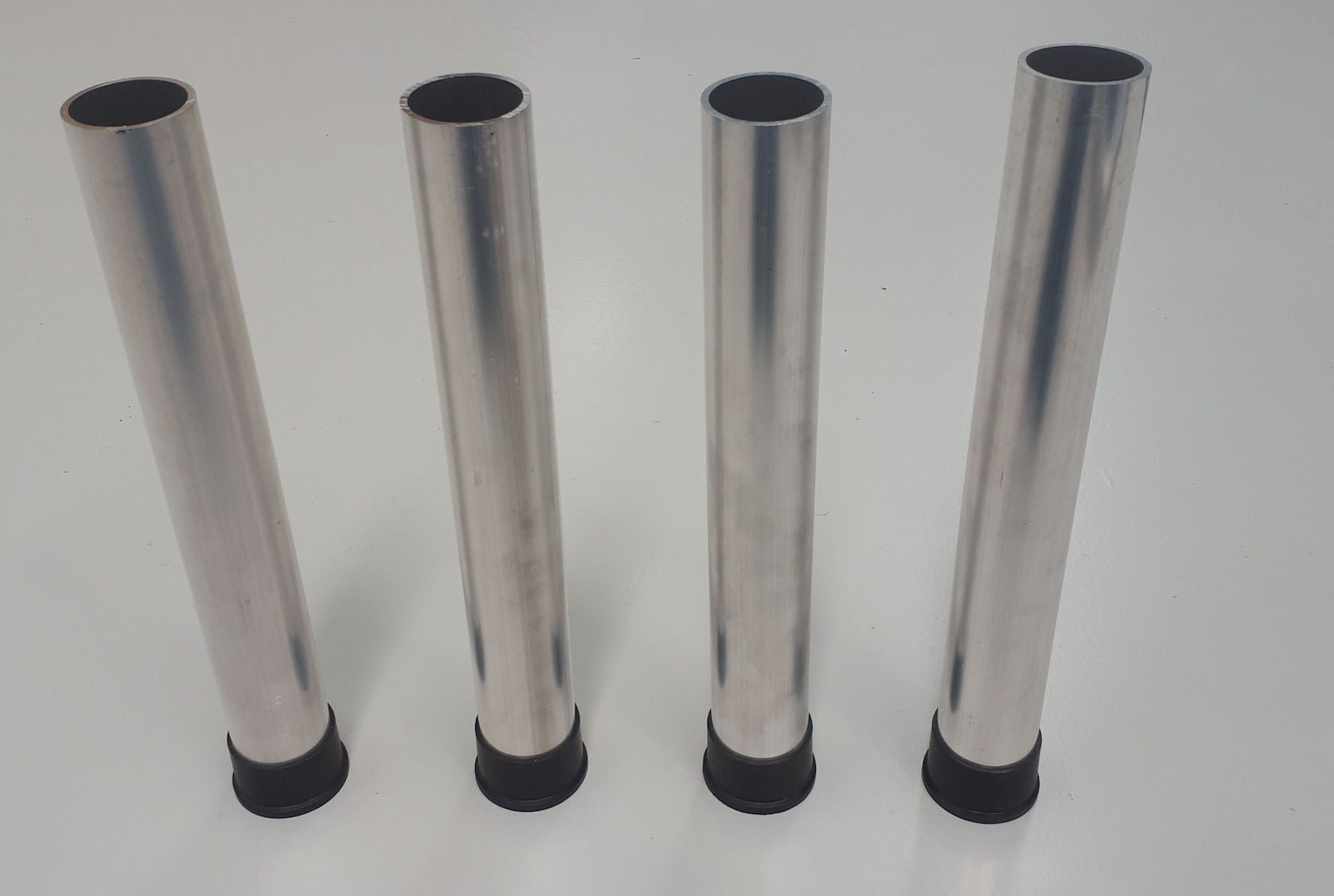

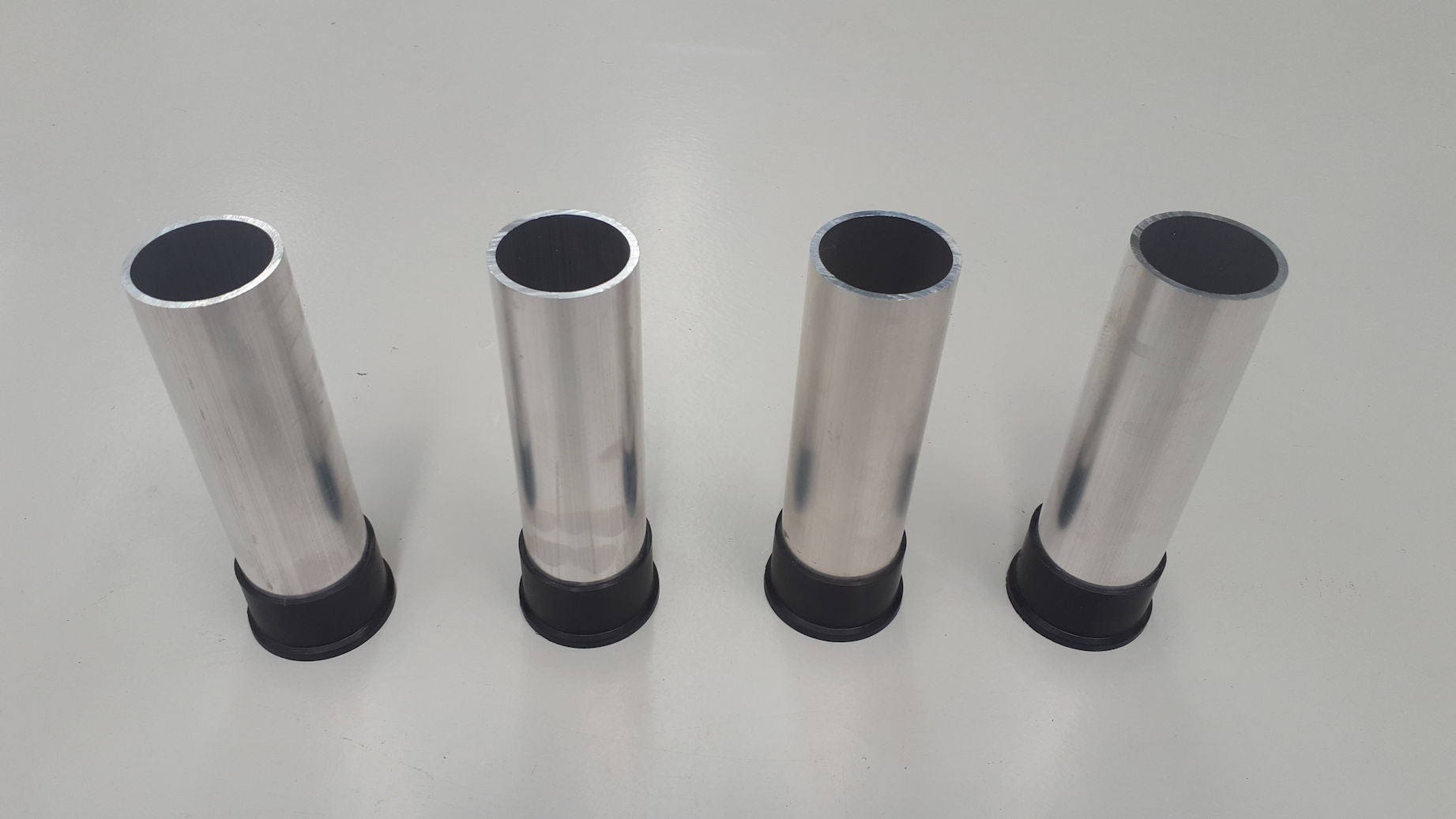

- Material: 50mm aluminium with flexible foot
- Height Options: 200mm / 300mm / 400mm / 600mm (Can be added separately)

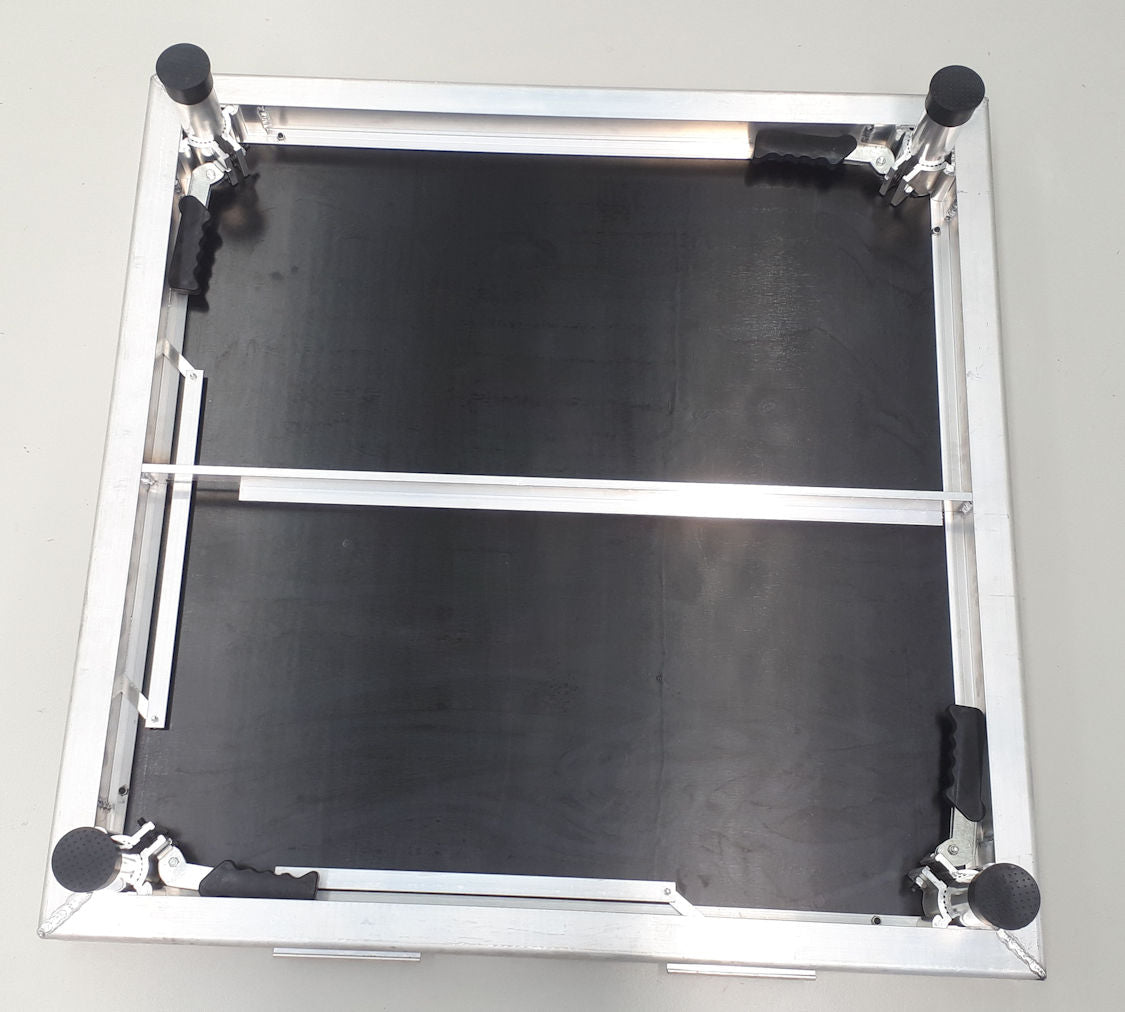

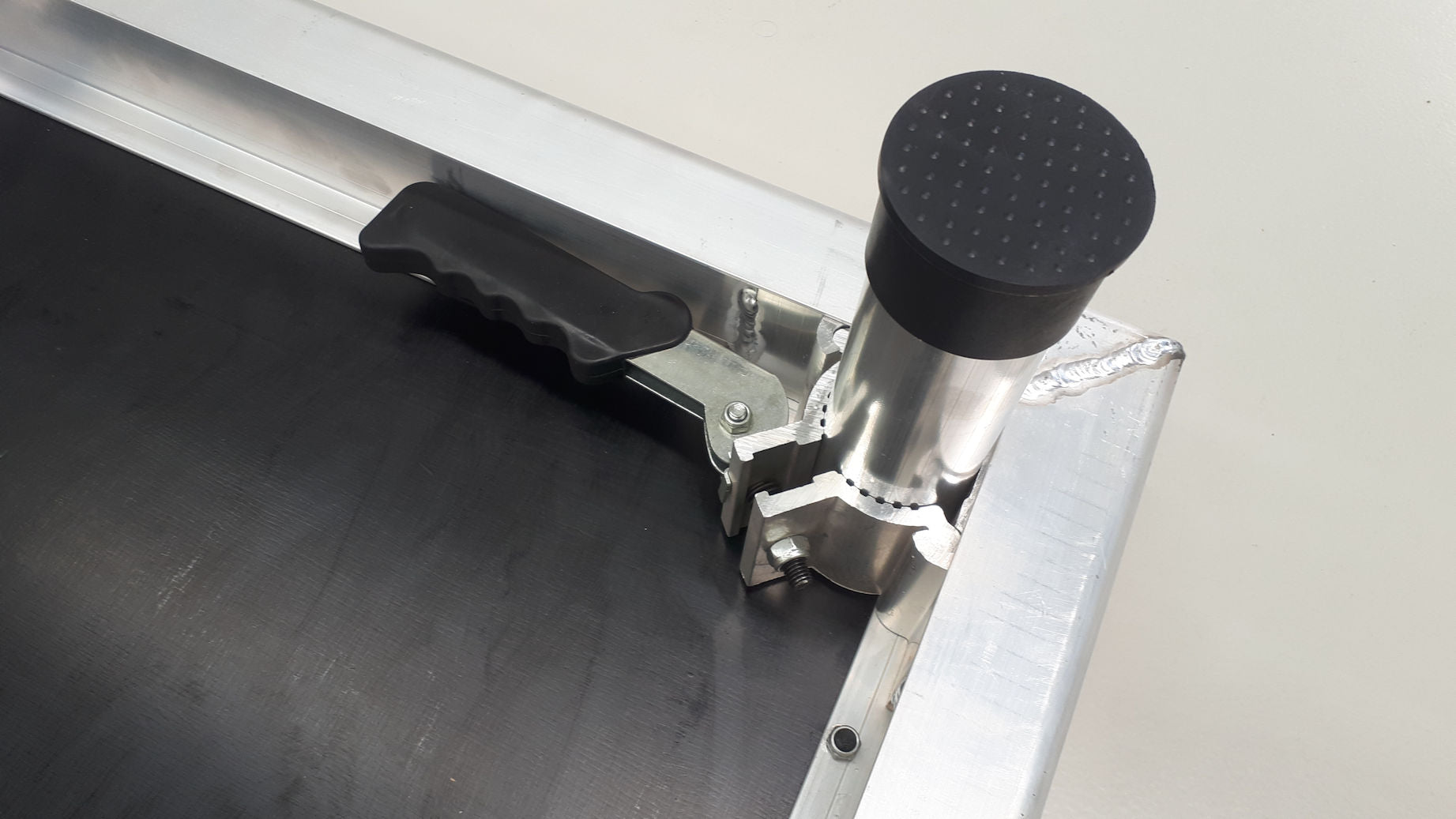

- Attachment: Quick-fit corner clamps with locking lever (no tools required)
- Removable: Yes
Compatibility & Accessories
- Connect multiple panels via built-in tongue-and-groove / locking system
- Optional accessories: guardrails, stairs, and stage skirts
