RCF EVOX 5 ACTIVE TWO-WAY ARRAY

RCF EVOX 5 ACTIVE TWO-WAY ARRAY

SKU: SKU: EVOX5

Regular price $1,999.00
Regular price $2,495.00 Sale price $1,999.00
Sale Sold out
Taxes included.

Description

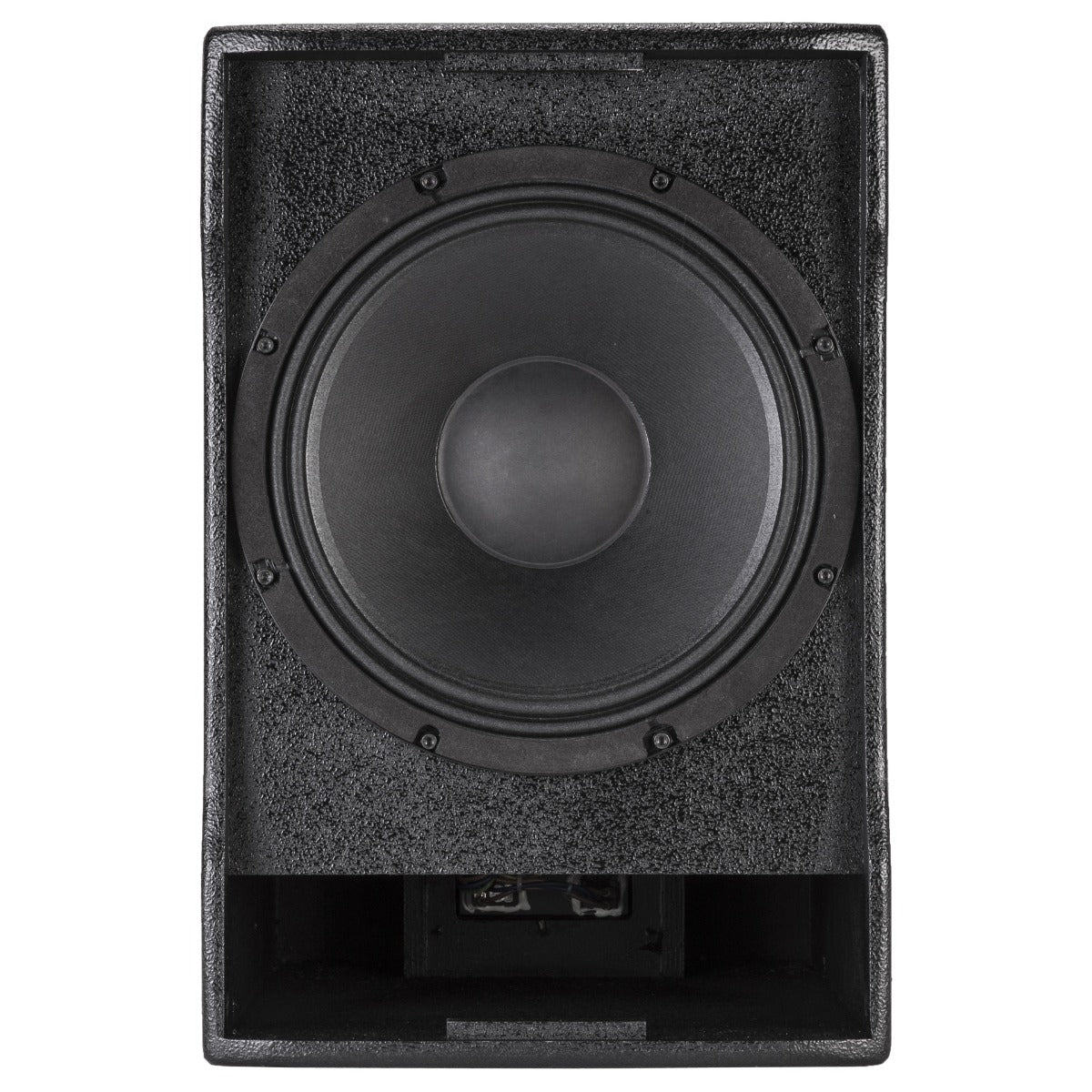

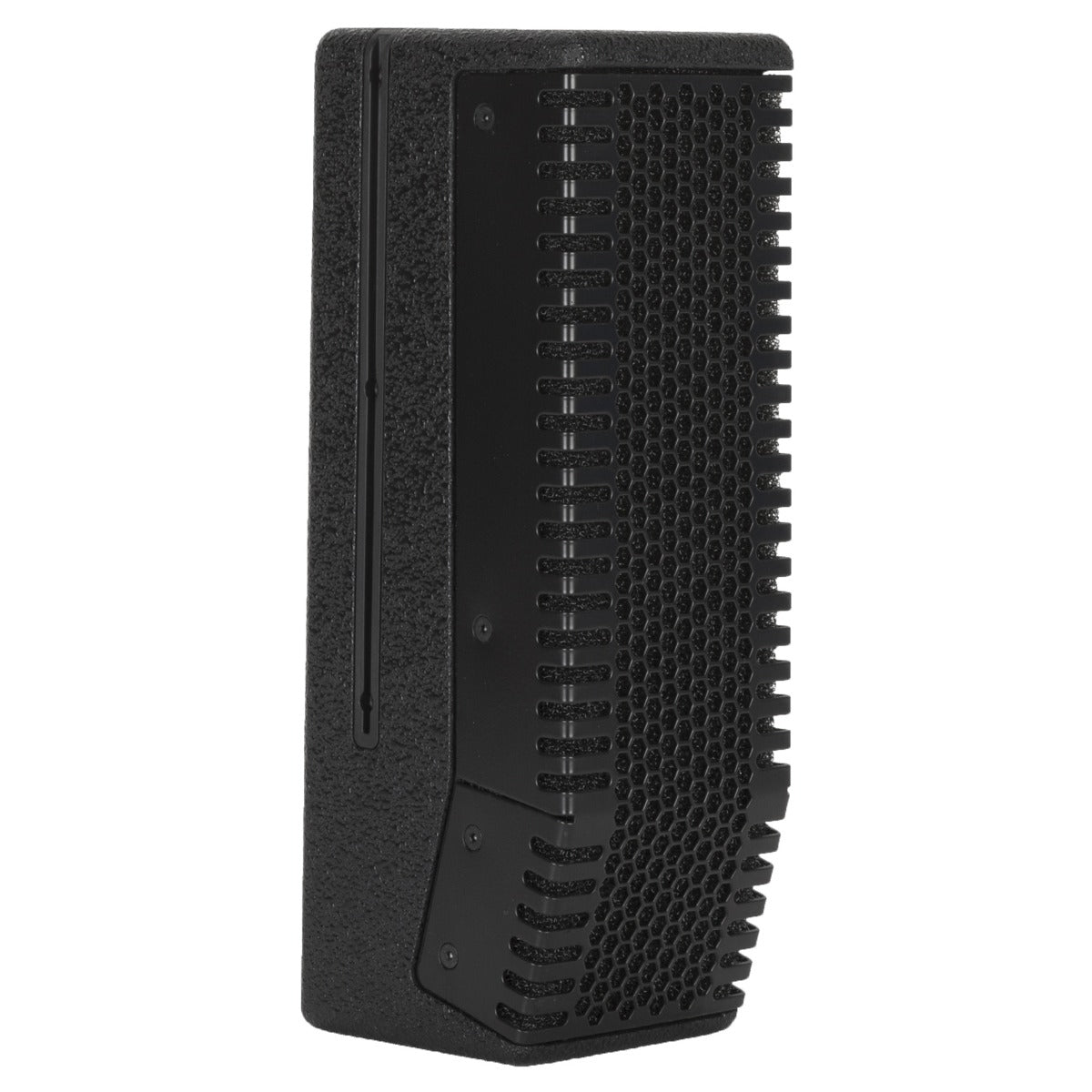

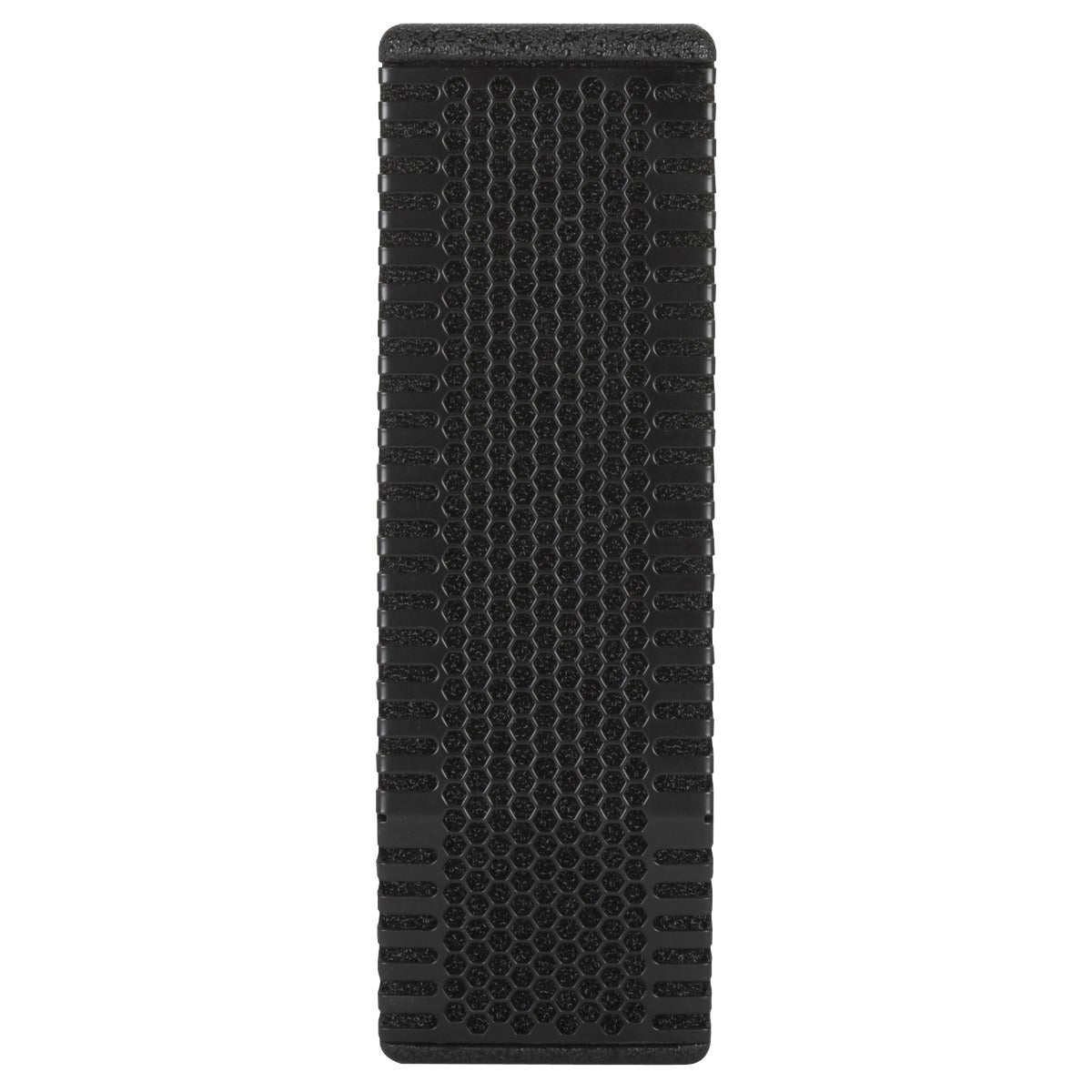

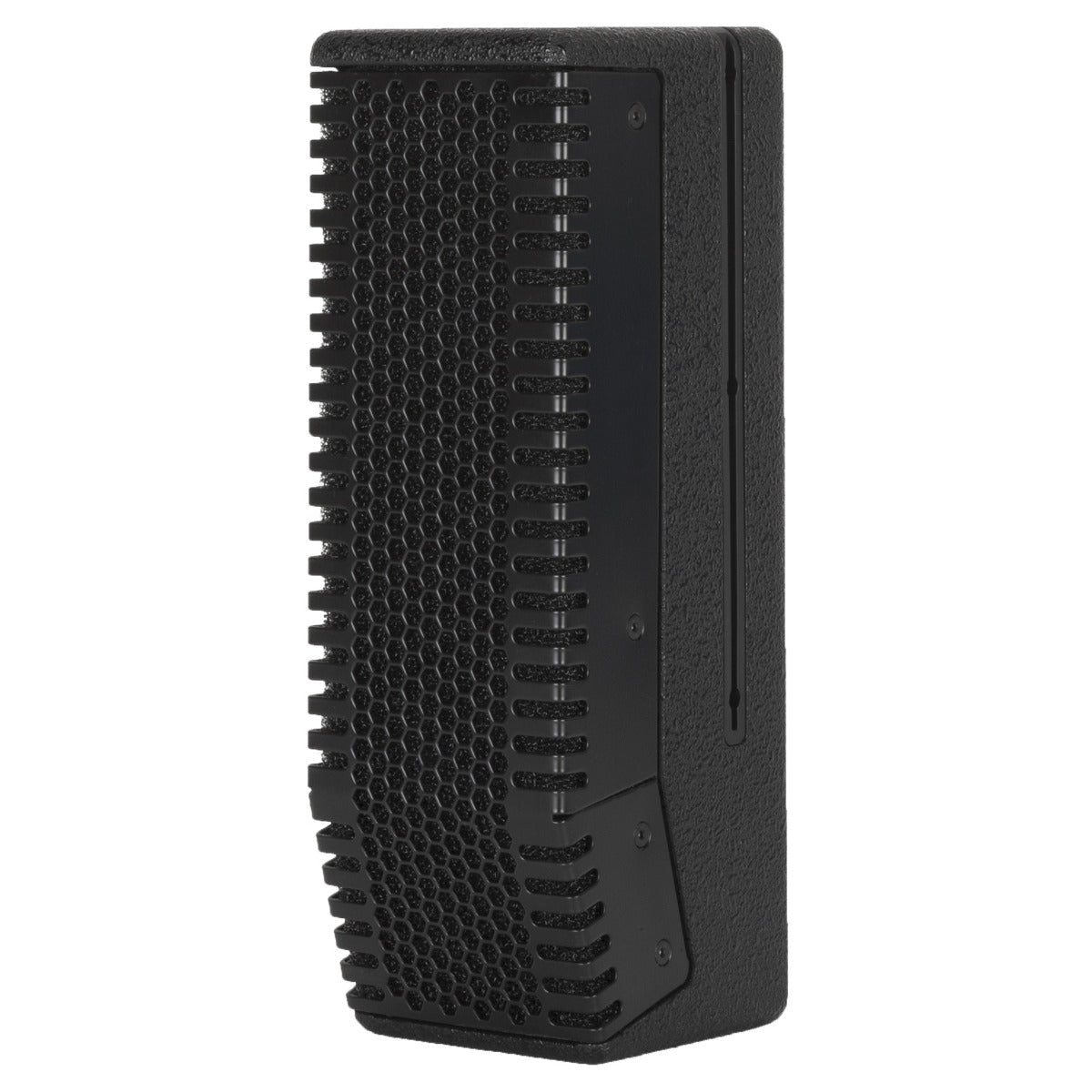

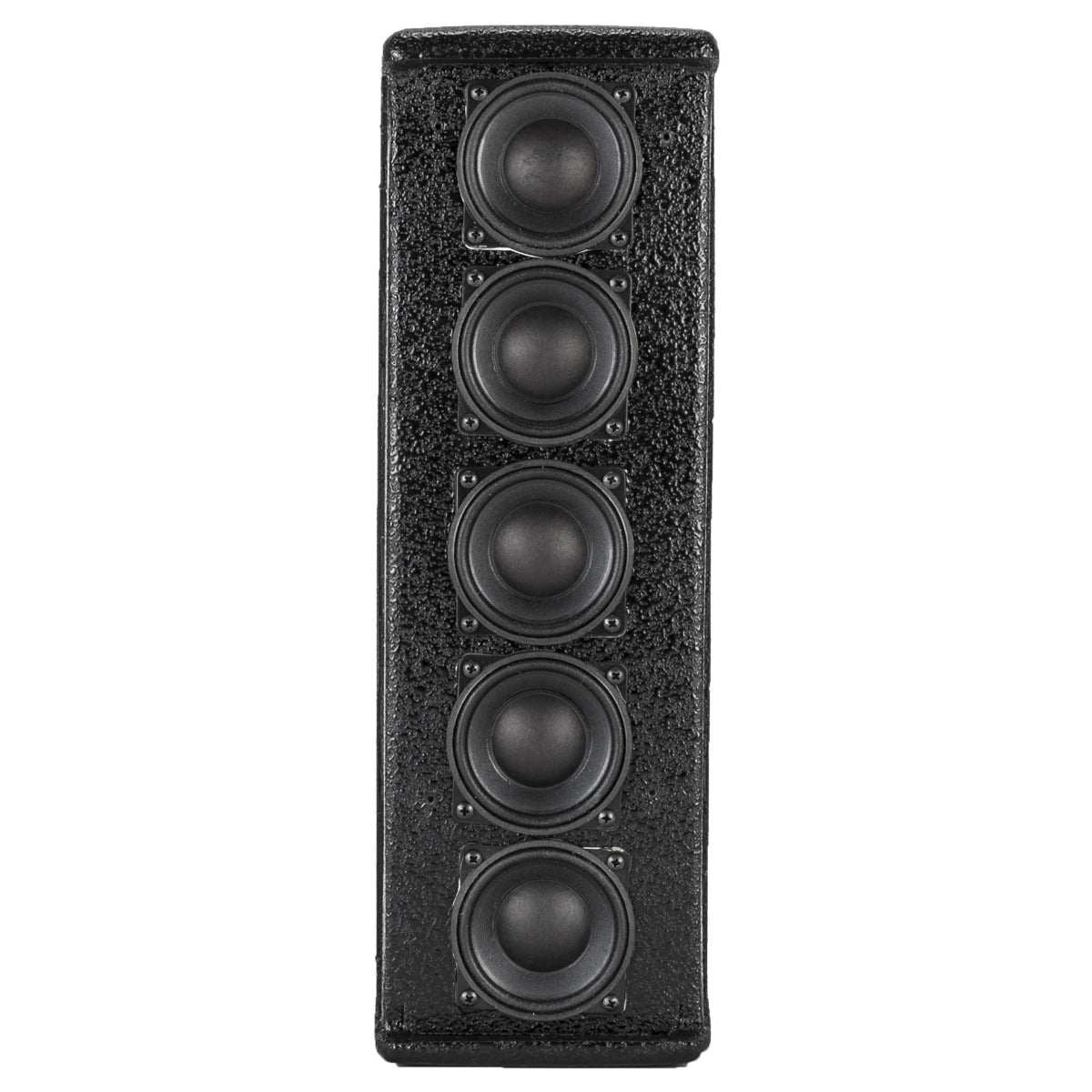

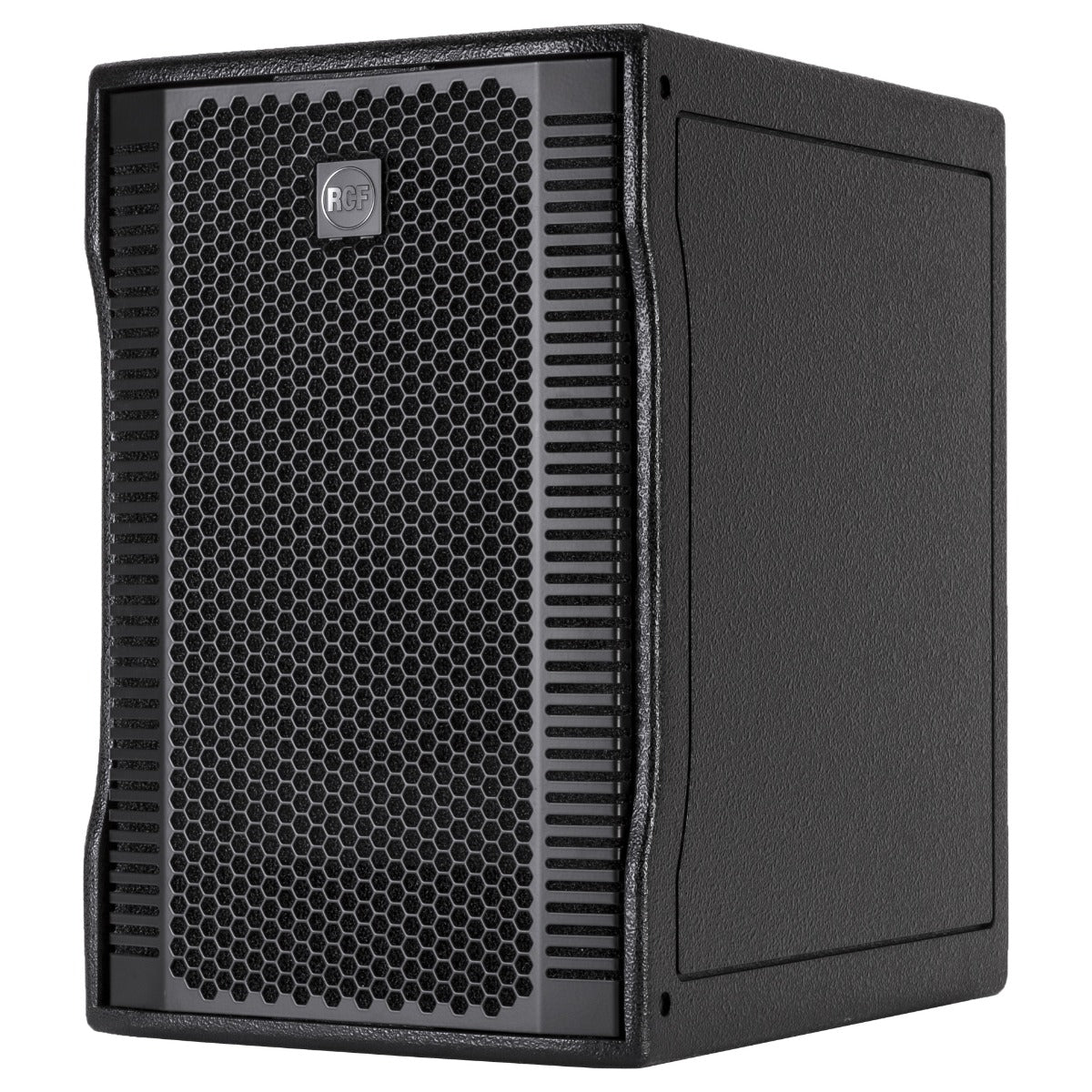

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.



  •  800 Watt
  •  125 dB max SPL
  •  45 Hz 20 kHz frequency response
  •  10" Woofer, 2.0" v.c.
  •  5 x 2" Ultra compact fullrange, 1.0 v.c.
  •  120° x 30° slightly tilted pattern control
  •  Innovative DSP processing
  •  Pole mountable, easy set-up and transportation

READY TO PLAY IN A FEW SIMPLE STEPS

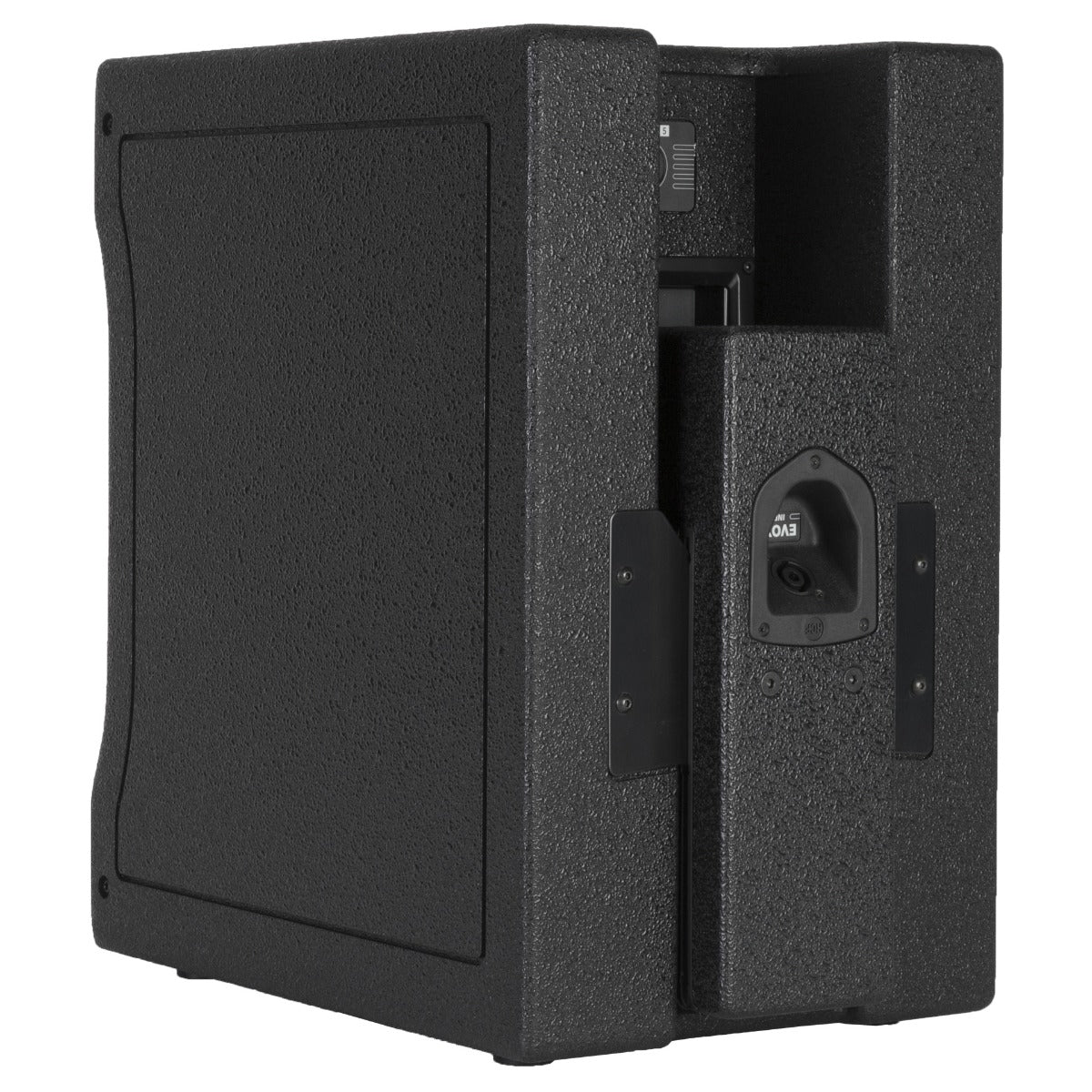

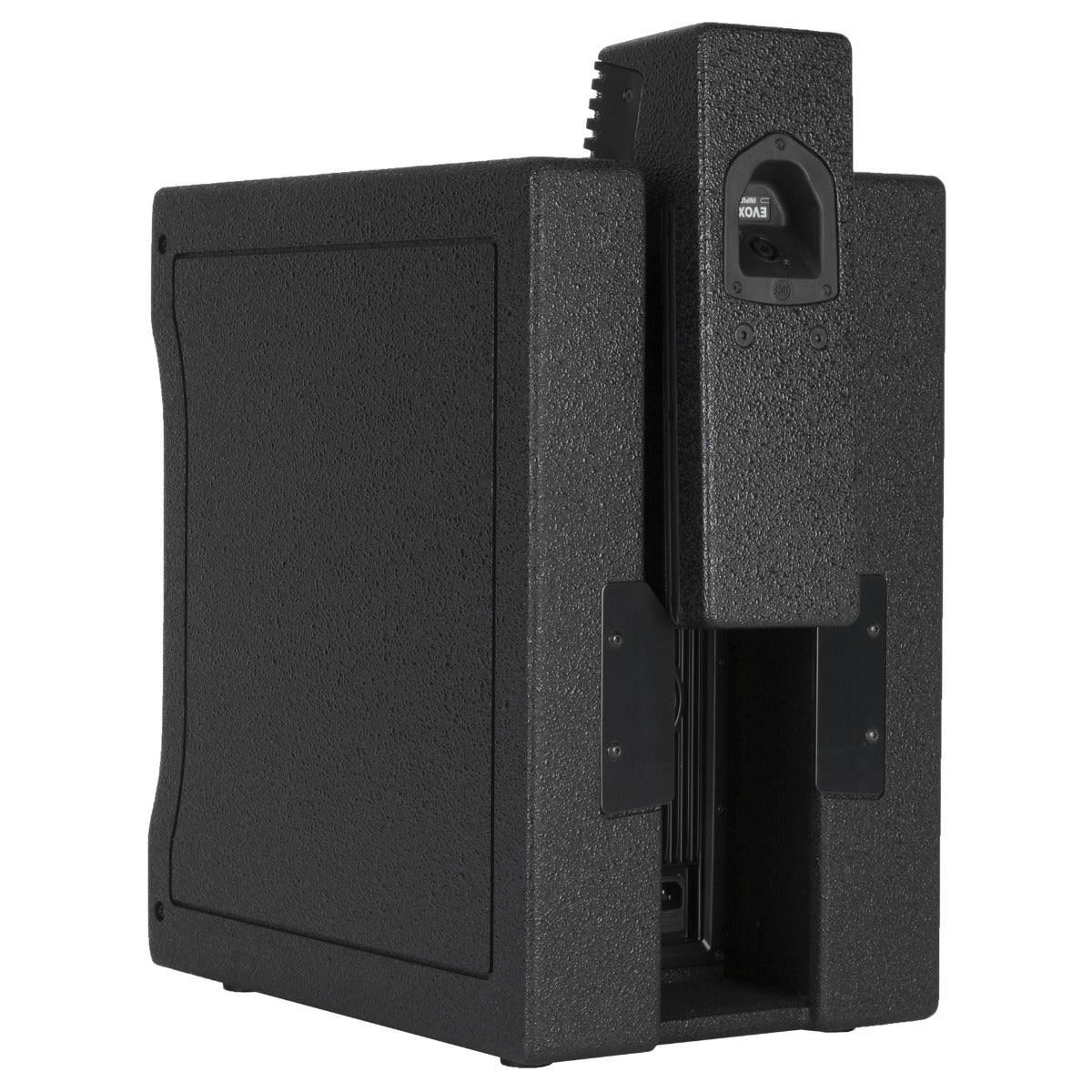

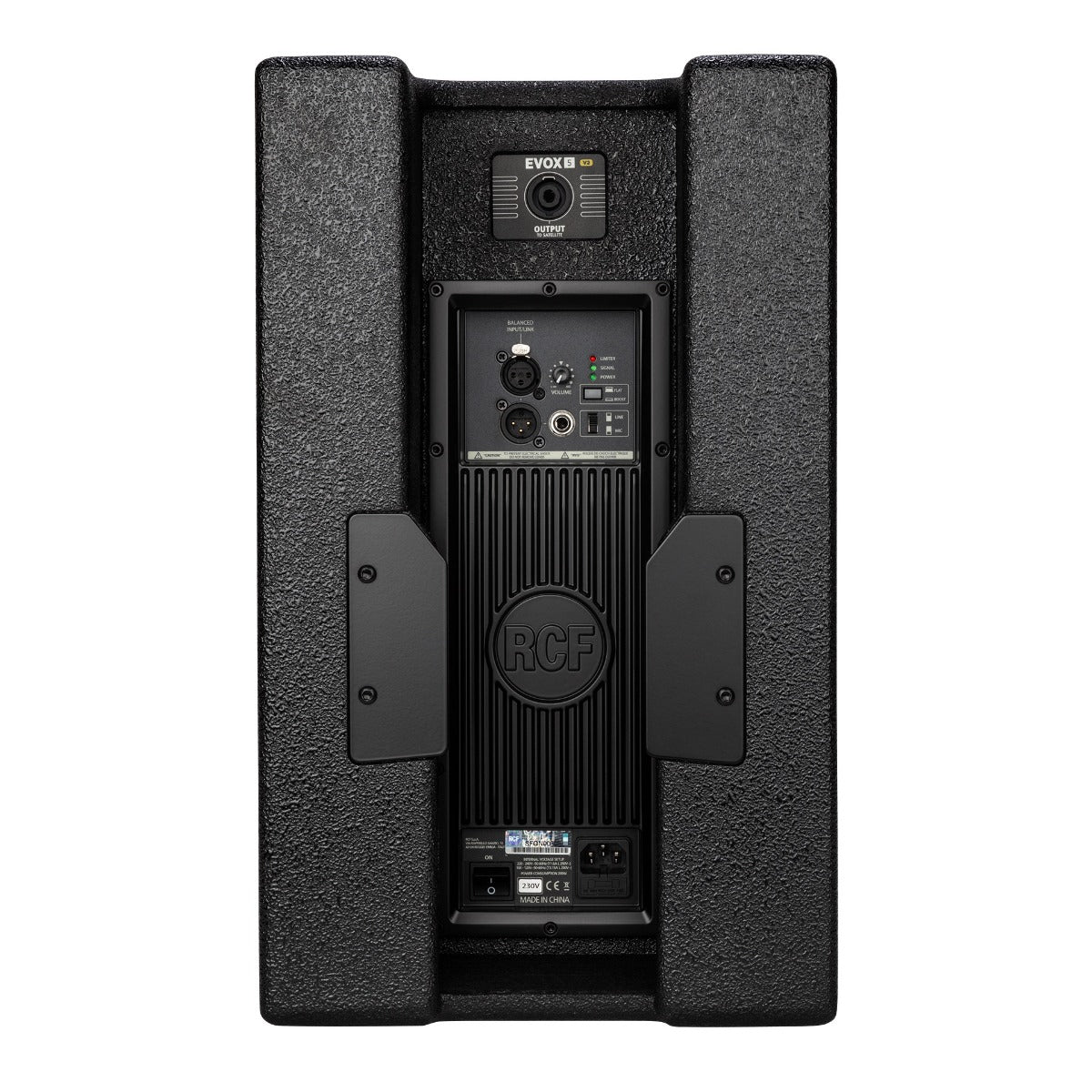

PORTABILITY During transportation, the top column is located in a special socket in the back side of the Sub. A specifically designed rail on the sub will guide you during the insertion and extraction of the top column.

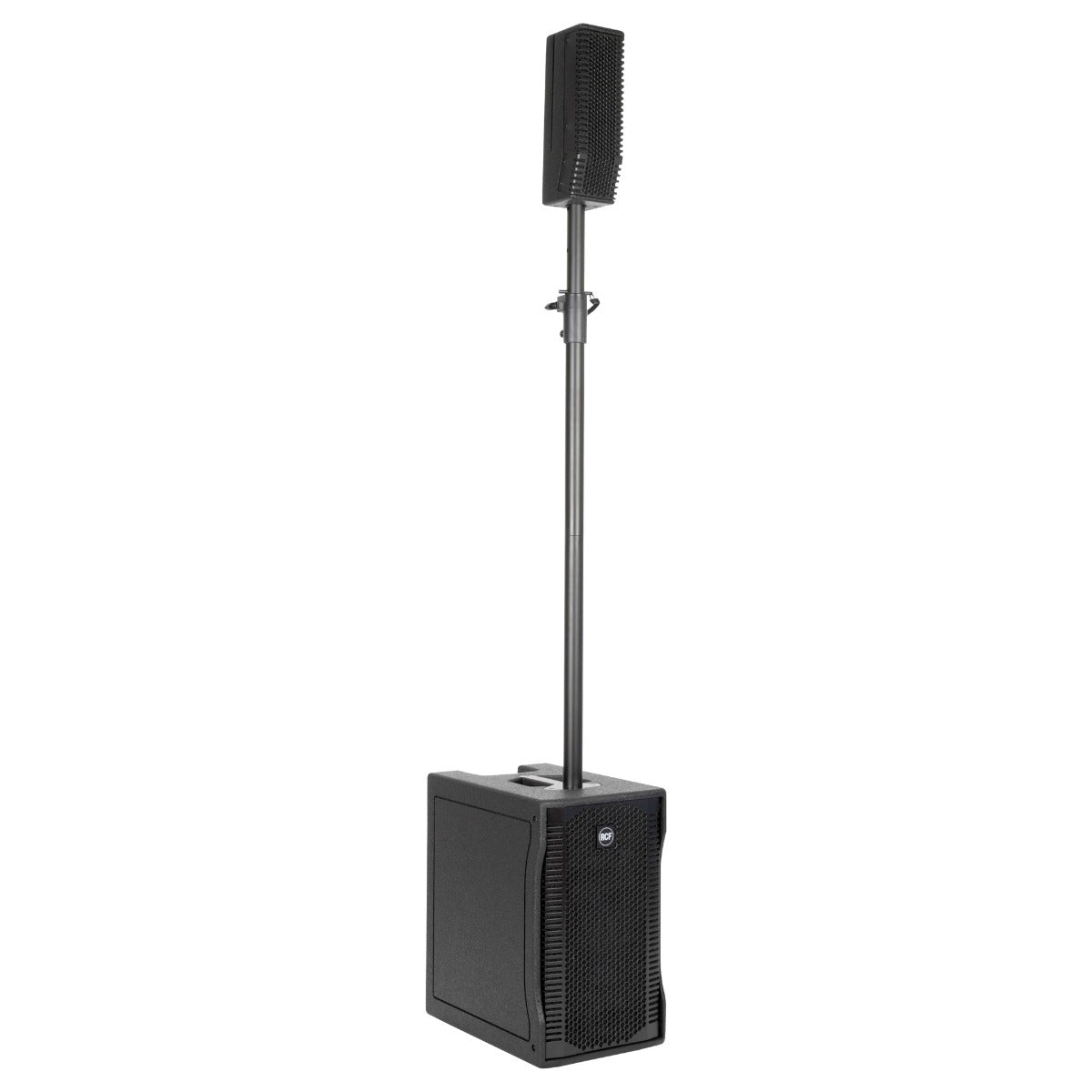

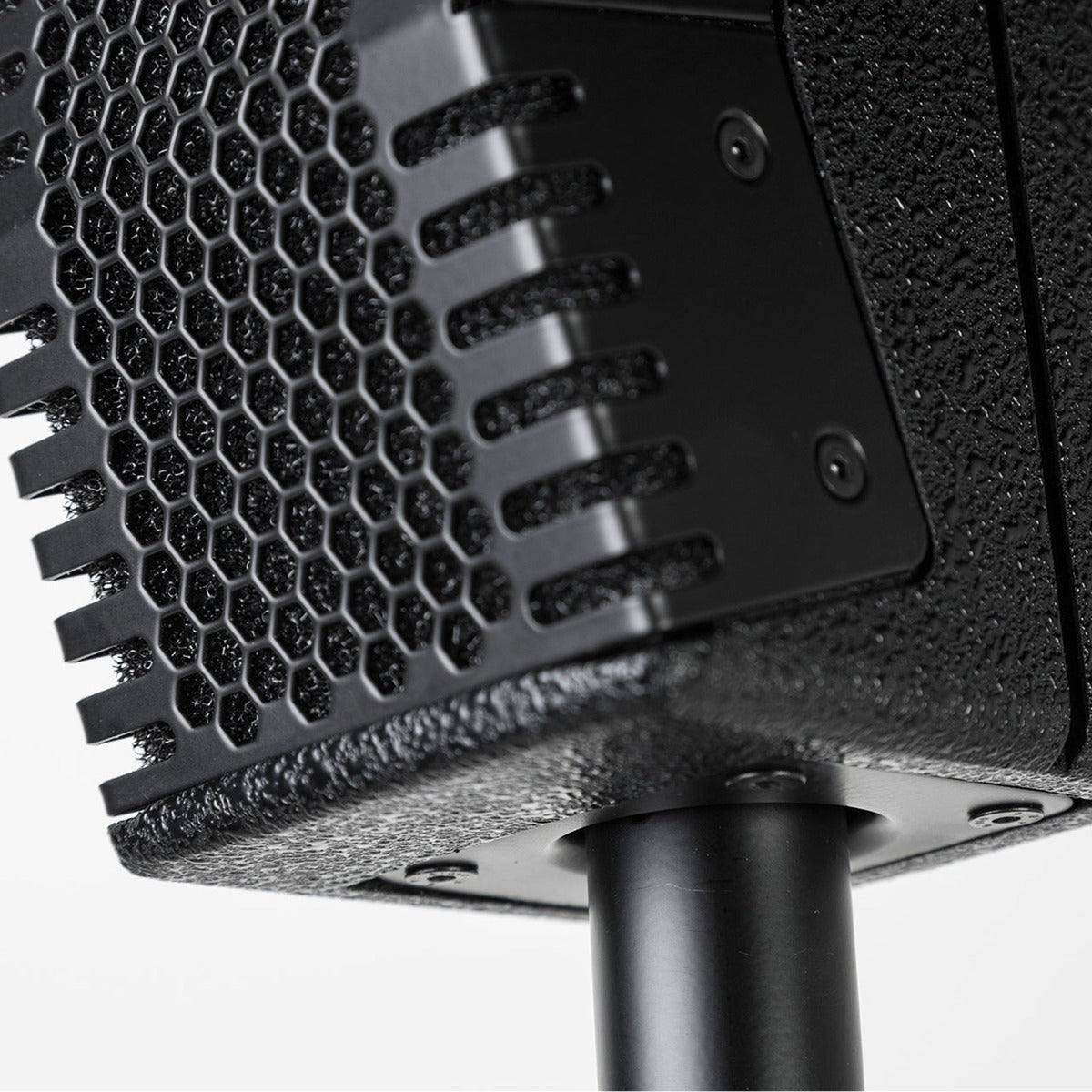

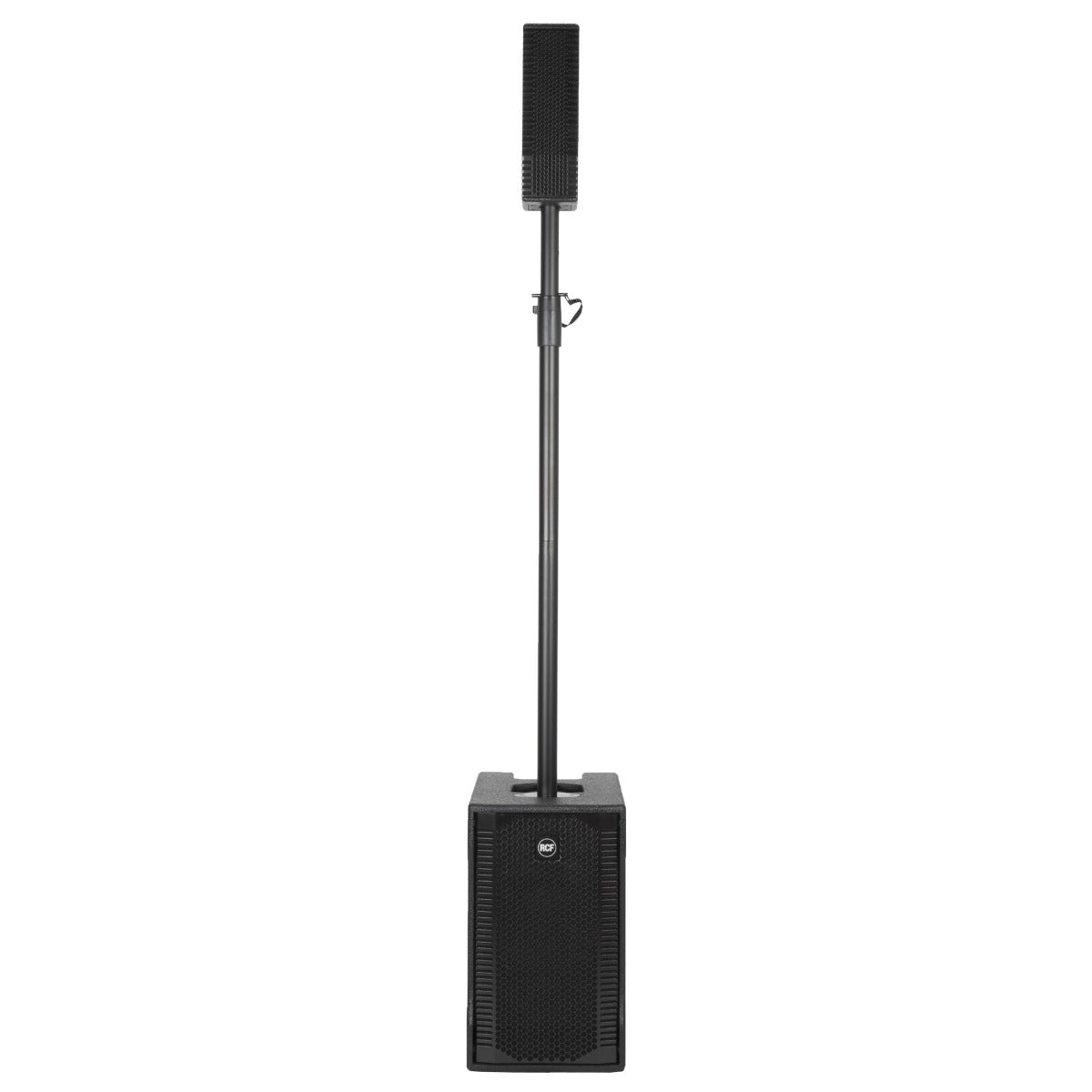

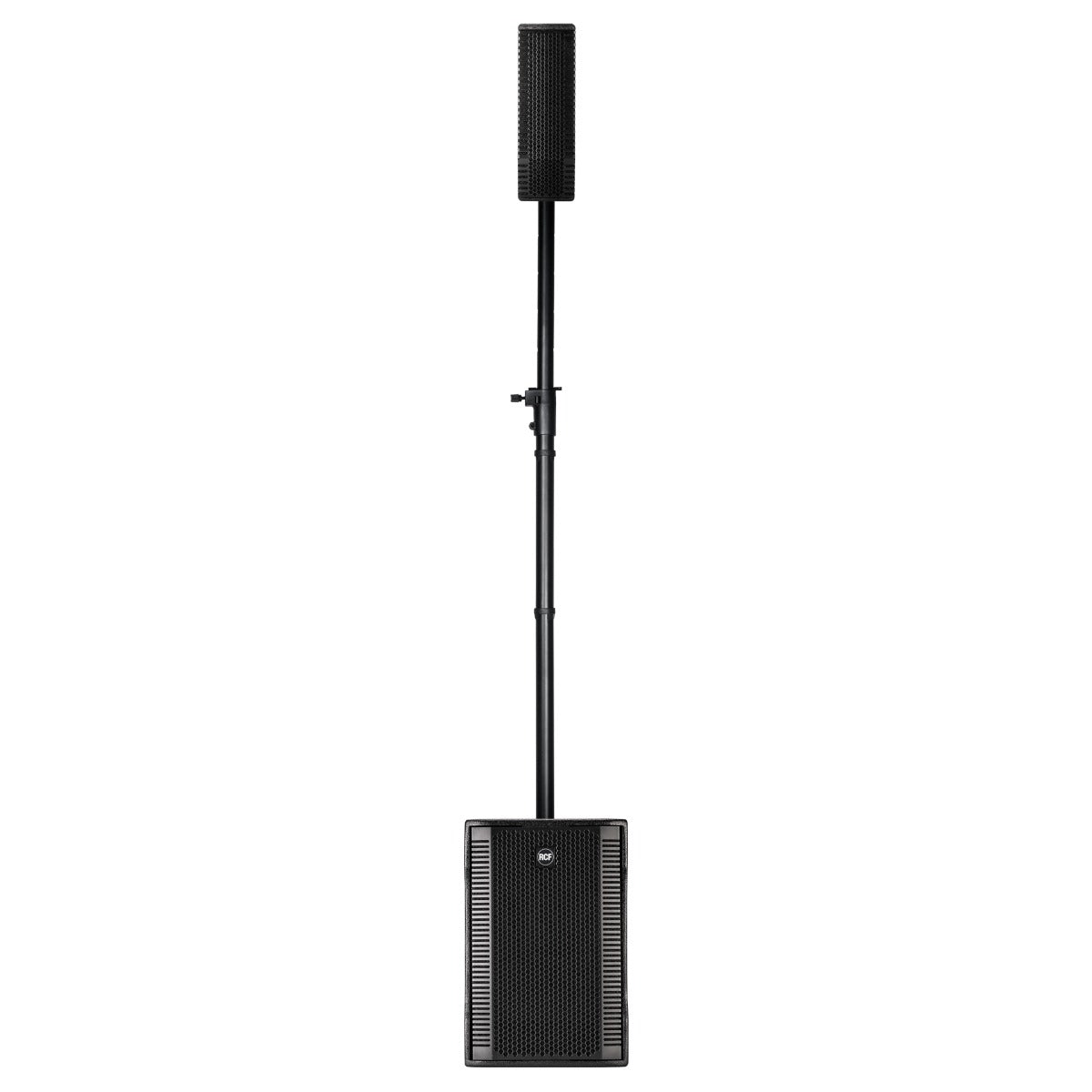

MOUNTINGThe top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated in two single parts in order to place it on the transportation bag.

PLAY!Carrying and mounting your audio system has never been so quick!

POWERFUL CLASS D AMPLIFIER

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz

MAX SPL @ 1M: 125 dB

HORIZONTAL COVERAGE ANGLE: 120°

VERTICAL COVERAGE ANGLE: 30°

Transducers

FULLRANGE: 5 x 2.0'', 1.0'' v.c

WOOFER: 10'', 2.0'' v.c

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR, Jack

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

CROSSOVER FREQUENCIES: 220 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Soft Limiter

CONTROLS: Volume, EQ, Phase, Xover

Power section

TOTAL POWER: 800 W Peak, 400 W RMS

HIGH FREQUENCIES: 200 W Peak, 100 W RMS

LOW FREQUENCIES: 600 W Peak, 300 W RMS

COOLING: Convection

CONNECTIONS: VDE

Standard compliance

CE MARKING: Yes

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

HARDWARE: 2 x M6

HANDLES: 1 Top

POLE MOUNT/CAP: Yes

COLOR: Black

Size

HEIGHT: 490 mm / 19.29 inches

WIDTH: 288 mm / 11.34 inches

DEPTH: 427 mm / 16.81 inches

WEIGHT: 18.8 kg / 41.45 lbs
Shipping informations

PACKAGE HEIGHT: 650 mm / 25.59 inches

PACKAGE WIDTH: 345 mm / 13.58 inches

PACKAGE DEPTH: 480 mm / 18.9 inches

PACKAGE WEIGHT: 22.8 kg / 50.27 lbs

Specification

SPECIFICATIONS
Acoustical specifications

FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz

MAX SPL @ 1M: 125 dB

HORIZONTAL COVERAGE ANGLE: 120°

VERTICAL COVERAGE ANGLE: 30°

Transducers

FULLRANGE: 5 x 2.0'', 1.0'' v.c

WOOFER: 10'', 2.0'' v.c

Input/Output section

INPUT SIGNAL: bal/unbal

INPUT CONNECTORS: XLR, Jack

OUTPUT CONNECTORS: XLR

INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

CROSSOVER FREQUENCIES: 220 Hz

PROTECTIONS: Thermal, RMS

LIMITER: Soft Limiter

CONTROLS: Volume, EQ, Phase, Xover

Power section

TOTAL POWER: 800 W Peak, 400 W RMS

HIGH FREQUENCIES: 200 W Peak, 100 W RMS

LOW FREQUENCIES: 600 W Peak, 300 W RMS

COOLING: Convection

CONNECTIONS: VDE

Standard compliance

CE MARKING: Yes

Physical specifications

CABINET/CASE MATERIAL: Baltic birch plywood

HARDWARE: 2 x M6

HANDLES: 1 Top

POLE MOUNT/CAP: Yes

COLOR: Black

Size

HEIGHT: 490 mm / 19.29 inches

WIDTH: 288 mm / 11.34 inches

DEPTH: 427 mm / 16.81 inches

WEIGHT: 18.8 kg / 41.45 lbs
Shipping informations

PACKAGE HEIGHT: 650 mm / 25.59 inches

PACKAGE WIDTH: 345 mm / 13.58 inches

PACKAGE DEPTH: 480 mm / 18.9 inches

PACKAGE WEIGHT: 22.8 kg / 50.27 lbs
