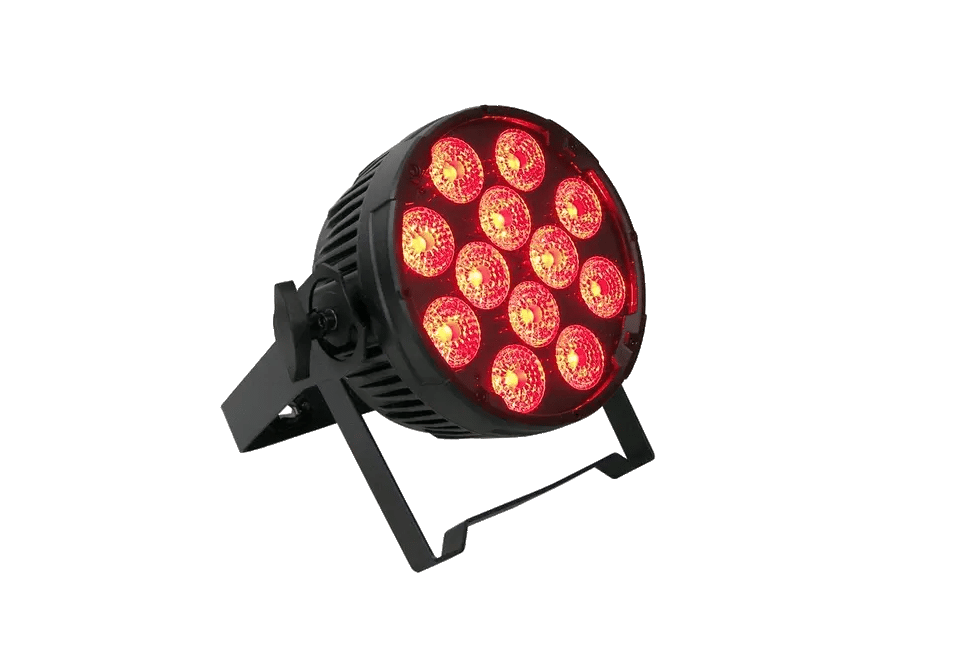

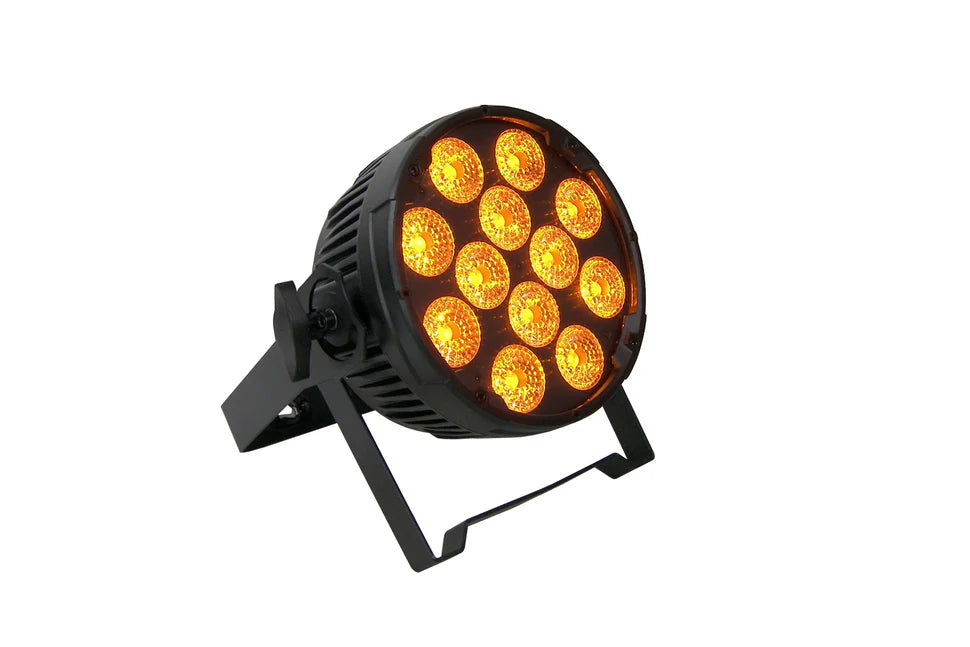

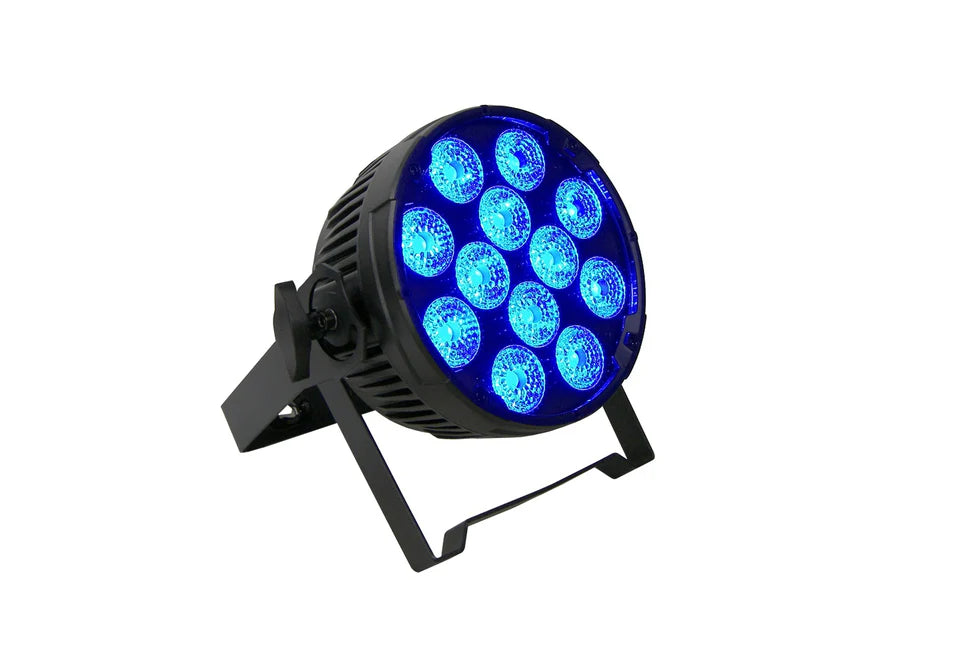

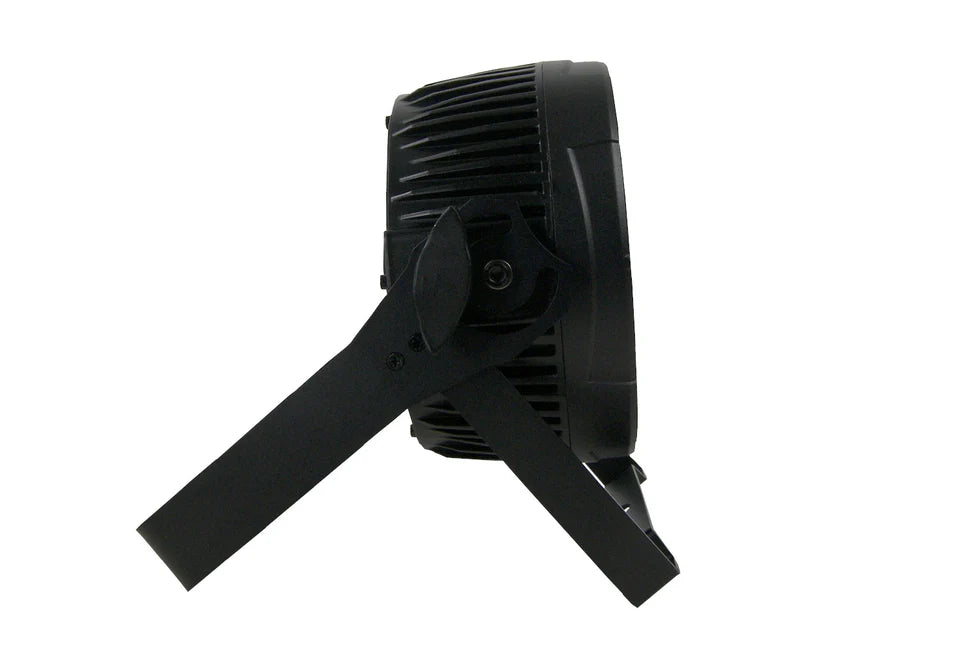

PAR12H - Indoor Pro Par with 12 x 12W RGBWAU LEDs

The Event Lighting PAR12H is a durable and versatile LED Pro Parcan. With 12 x 12W RGBWA+UV LEDs, it delivers stunning colour combinations to suit any space. Enjoy customisable beam angles with options for 30˚, 40˚, 25˚ and 15˚, providing the perfect spread for any application. Experience 3,150 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

The PAR12H comes with True1 in/out, 5 pin DMX in/out and includes an omega bracket for quick and easy installation.

• Specifications:

  Photometrics

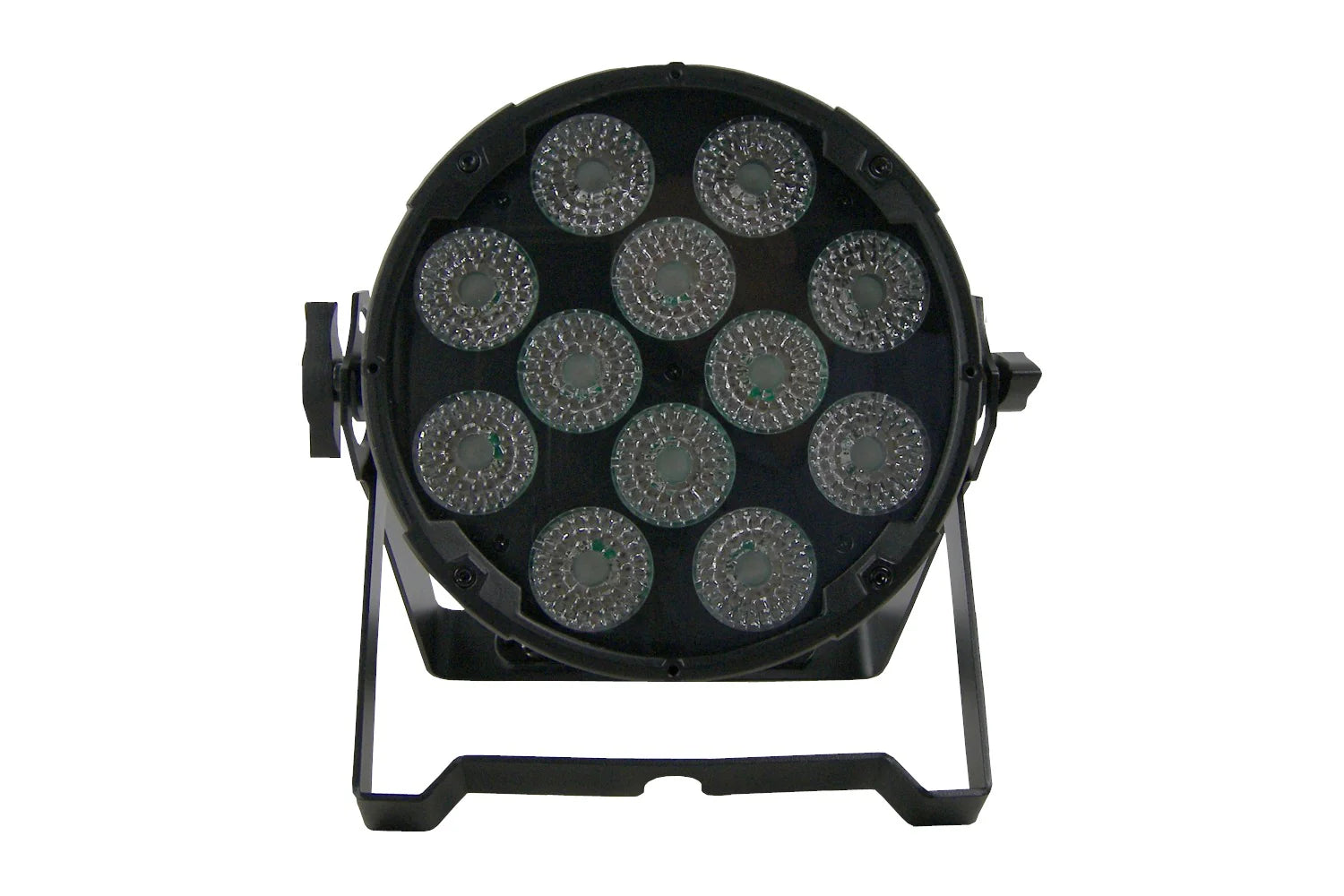

  • Light Source: 12 x 12W RGBWA+UV LEDs
  • Beam Angle: 30˚ (40˚, 25˚, 15˚ Optional)

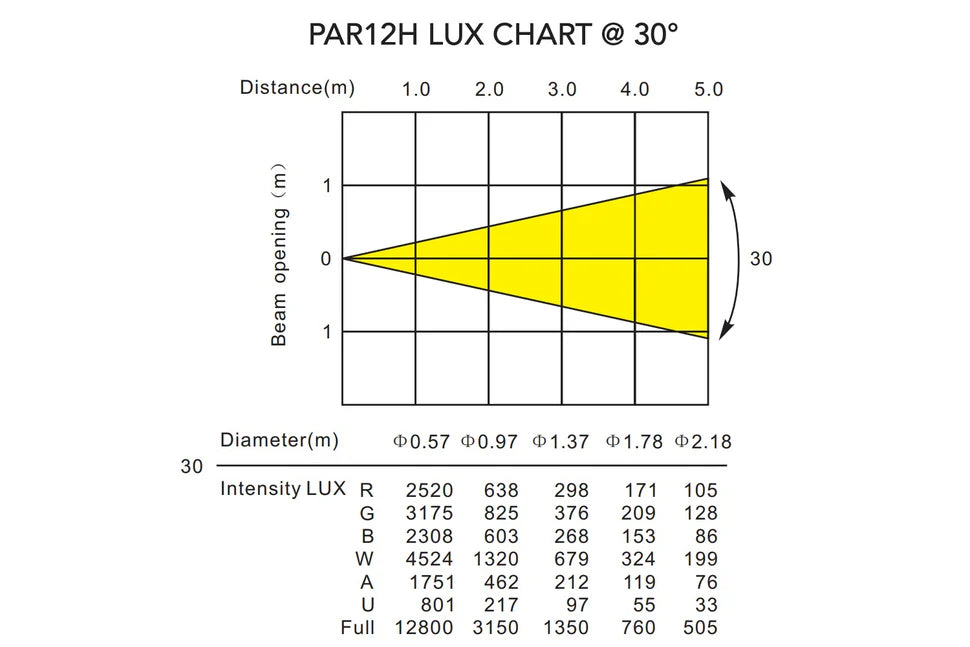

  • Output: 3,150 lux @ 2.0 m full on
  • PWM: 2,940Hz
  • LED Life: 50,000 hours

  Effects

  • Dimming: 5 x 16-bit Dimming Curves
  • Strobe: 1~30Hz

  Power

  • Input Voltage: 100V~240 V AC, 50/60Hz, 120W
  • Power Connection: True1 in/out

  Control

  • Operational Modes: DMX, WDMX (optional), auto run, sound active, master/slave, manual colour control, static colour control
  • Display: 4-button LCD control panel
  • DMX Protocol: DMX512
  • DMX Channel Mode: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14

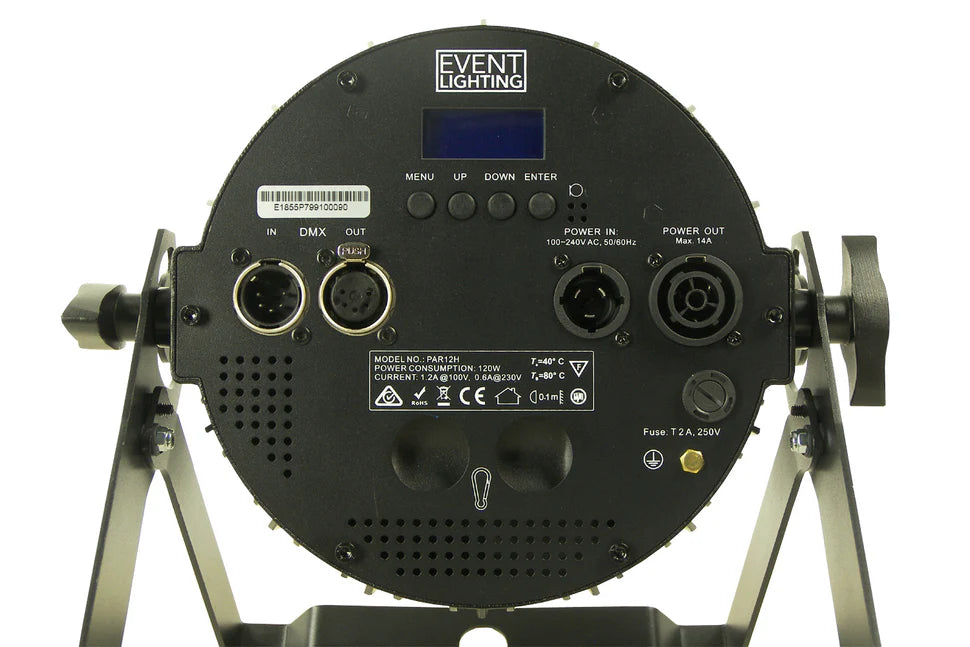

  • DMX Interface: 5-pin XLR in/out

  Housing

  • Housing Materials: Die-cast aluminium, matte black finish
  • Cooling: Fanless Cooling

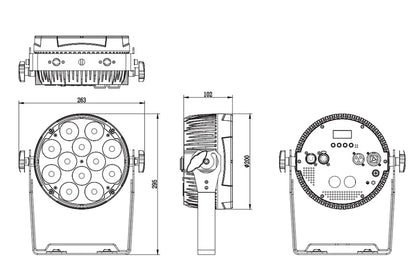

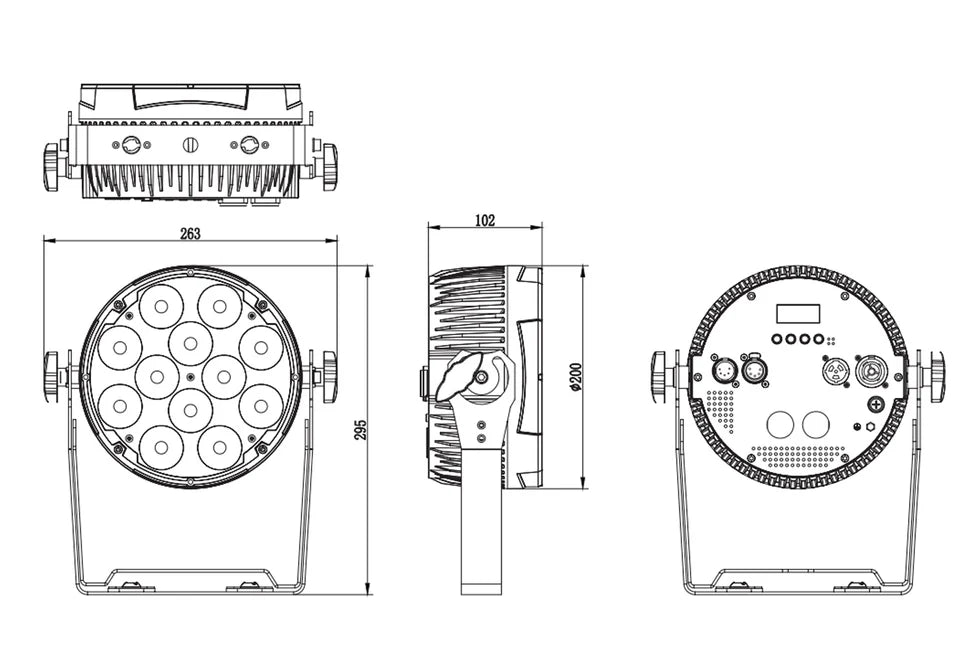

  • Dimension: 263 x 293 x 98mm / 10.4" x 11.5" x 3.9"
  • Net Weight: 3.2 kg / 7.1 lbs

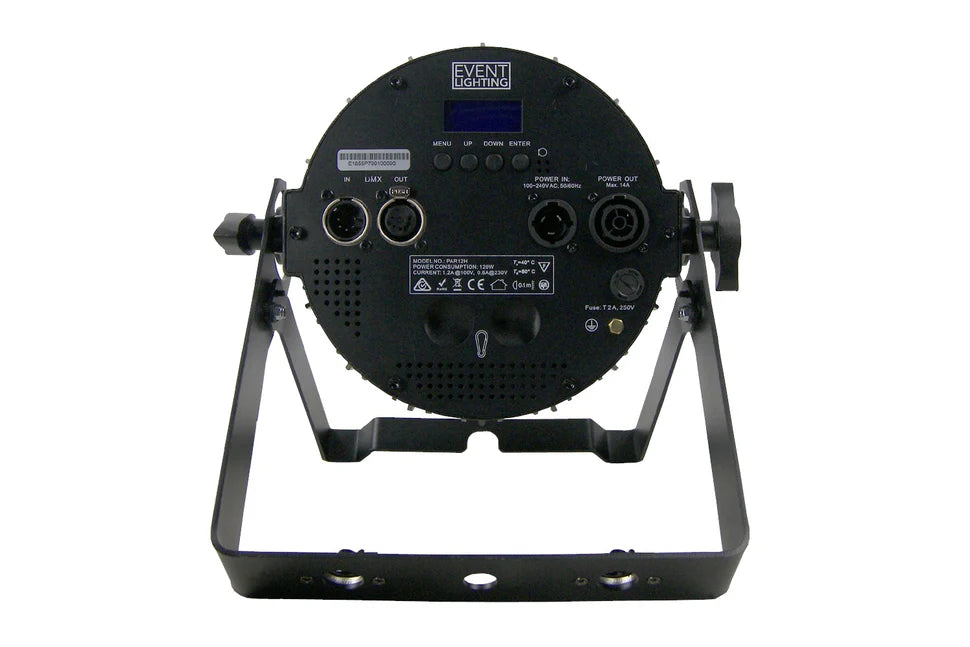

  • Rigging: 1 x Omega bracket with 1/4 turn quick locks

View more stage & theatre lighting from our online store.

• Input Voltages: 100V~240V AC,50/60Hz
• Power Consumption: 120W
• Light Source: 12 pcs 12 W RGBWAUV LED
• Power Connection: Neutrik® Powercon input and output connection
• LED Life: 50,000 hours
• Lux: 3150 lux on @2.0M RGBWAUV full on
• Beam Angle: 30°
• PWM: 2,940Hz
• Dimmer: 0-100% dimmer (Smooth electronic dimming with a 16-bit 4 Dimmer curve & one 8-bit Dimmer curve)
• Strobe: 1 - 30 Hz
• Control: DMX512, 5-pin XLR interfaces, 2/3/6/8/12 channel mode
• 4-button LCD display control panel
• Die-cast Aluminium housing
• Smart Cooling system without fan
• Software upgrade via DMX.
• Net weight: 3.2 Kg
• Overall Size: 263x293x98mm
• Road case:PAR12BDCASEWC, PAR12CASEWC
• Barn door: PAR12RBD
