EVENT LIGHTING DIM4 - 4 channel DMX Dimmer/Switch

The DIM4 is a dimming pack with four output channels, each of which can be loaded up to 3A. The DIM4 can be controlled using its built-in chaser and sound control functions, or by using DMX.

Power

• Input Voltage: 230V AC, 50 Hz
• Fuse: 8A/250V
• Fuse Per Channel: 3A/250V
• Channel Output: Max. of 3A per channel, maximum of 8A total across all 4 channels

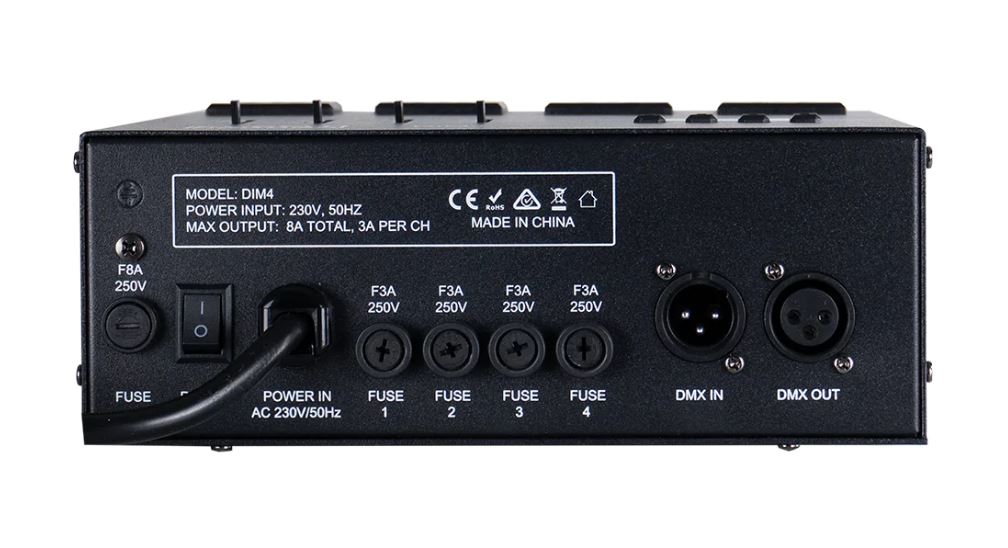

• Connections: 4x power sockets

Control

• Operation modes: DMX512, stand alone, sound active, local control
• DMX channels: 1/2/4
• Interface: 3-pin XLR in/out
• Mode: Dimmer or Switch

Housing

• Dimensions: 220*82*275 mm
• Weight: 3.5 kg
