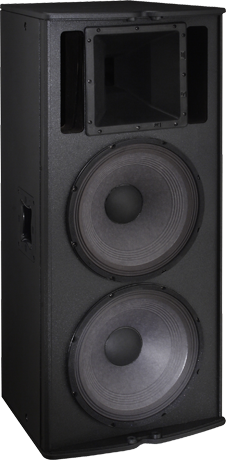

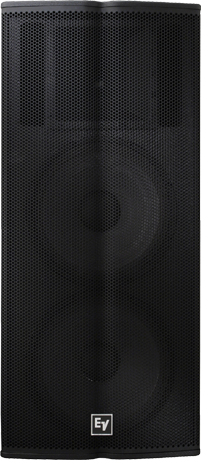

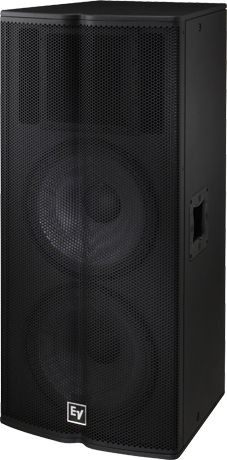

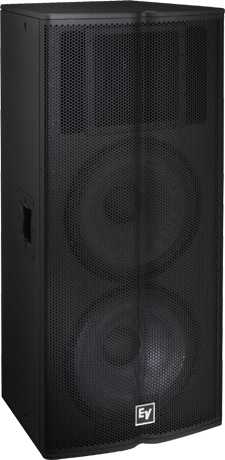

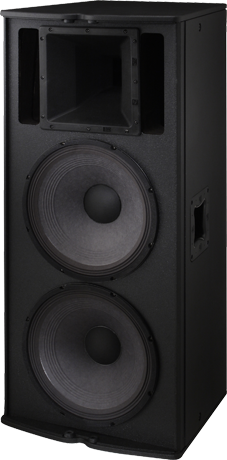

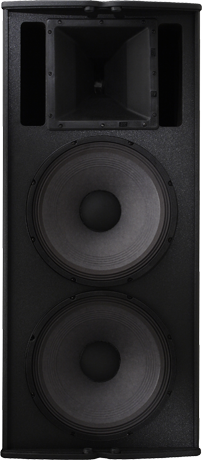

EV TX2152 15" 1000W RMS PASSIVE SPEAKER
EV TX2152 15" 1000W RMS PASSIVE SPEAKER
SKU: SKU: TX2152
Regular price
$5,095.00
Regular price
$3,799.00
Sale price
$5,095.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low Stock – Call for Availability
Description
Description
TX2152 excels where all other dual, 15“ loudspeakers fail - transient detail. The secret is in the incredible crossover and world class components.
- Designed for Club Sound, House of Worship, Pro Music, and other applications.
- ND2-8 2” (51 mm) diaphragm, 1” (25.4 mm)-exit neodymium compression driver
- Dual SMX2151 15” (381 mm) LF transducers with fully symmetric drive
- Advanced sixth-order crossover with HF protection
- 60° x 40° rotatable coverage pattern
- 103 dB sensitivity, 139 dB maximum SPL
- 1000 W continuous, 4000 W peak power handling
- Six 3/8” threaded points for suspension
Specification
Specification
Specifications:
| Color | Black |
| Input Connections | Parallel Neutrik® NL4 |
| Speaker Type | Fullrange |
| Frequency Response (-3 dB) | 55 - 13000 Hz |
| Frequency Response (-10 dB) | 50 - 18000 Hz |
| Internal Crossover | Yes |
| Recommended High-Pass Frequency | 40 Hz |
| Sensitivity 1 W/1 m | 103 dB |
| Max. SPL/1m (calc) | 139 dB |
| Coverage (Nominal -6 dB) H° |
60 ° |
| Coverage (Nominal -6 dB) V° |
40 ° |
| Rotatable Horn | Yes |
| System Power Handling (Continuous/Program/Peak) | 1000 Watts |
| LF Transducer | (2) SMX2151 |
| HF Transducer | ND2 |
| Crossover Frequency | 1750 Hz |
| Nominal Impedance (Passive) | 4 Ω |
| Minimum Impedance | 3.1 Ω |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Flying | Yes |
| Suspension | (6) 3/8-inch threaded inserts |
| Height | 1154 mm (45.43") |
| Width | 508 mm (20") |
| Depth | 471 mm (18.54") |
| Weight Net | 42.8 kg (94.36 lbs) |
