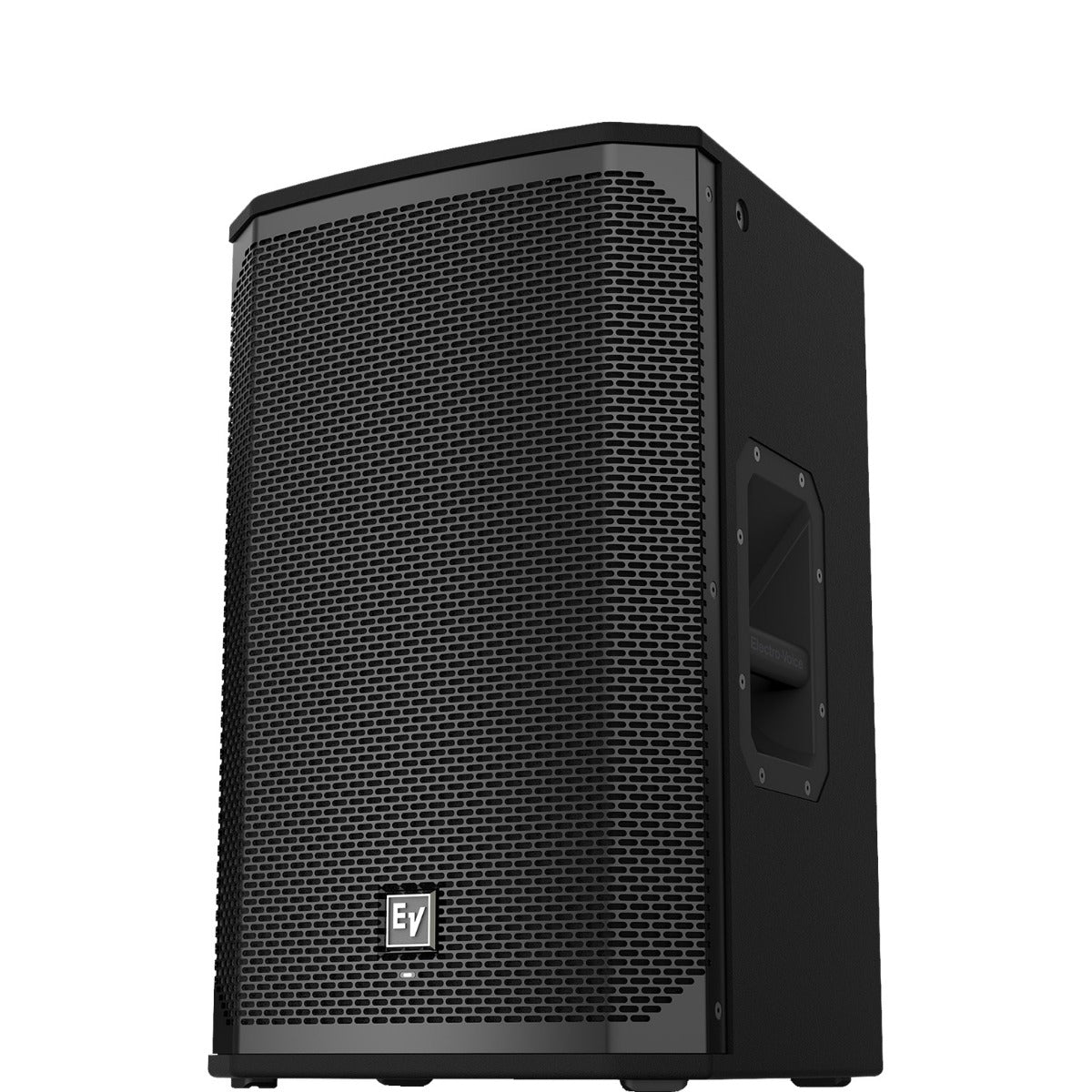

EV EKX-12 12" TWO WAY PASSIVE LOUDSPEAKER
EV EKX-12 12" TWO WAY PASSIVE LOUDSPEAKER
SKU: SKU: EKX12
Regular price
$969.00
Regular price
$1,386.00
Sale price
$969.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low Stock
Description
Description
- EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

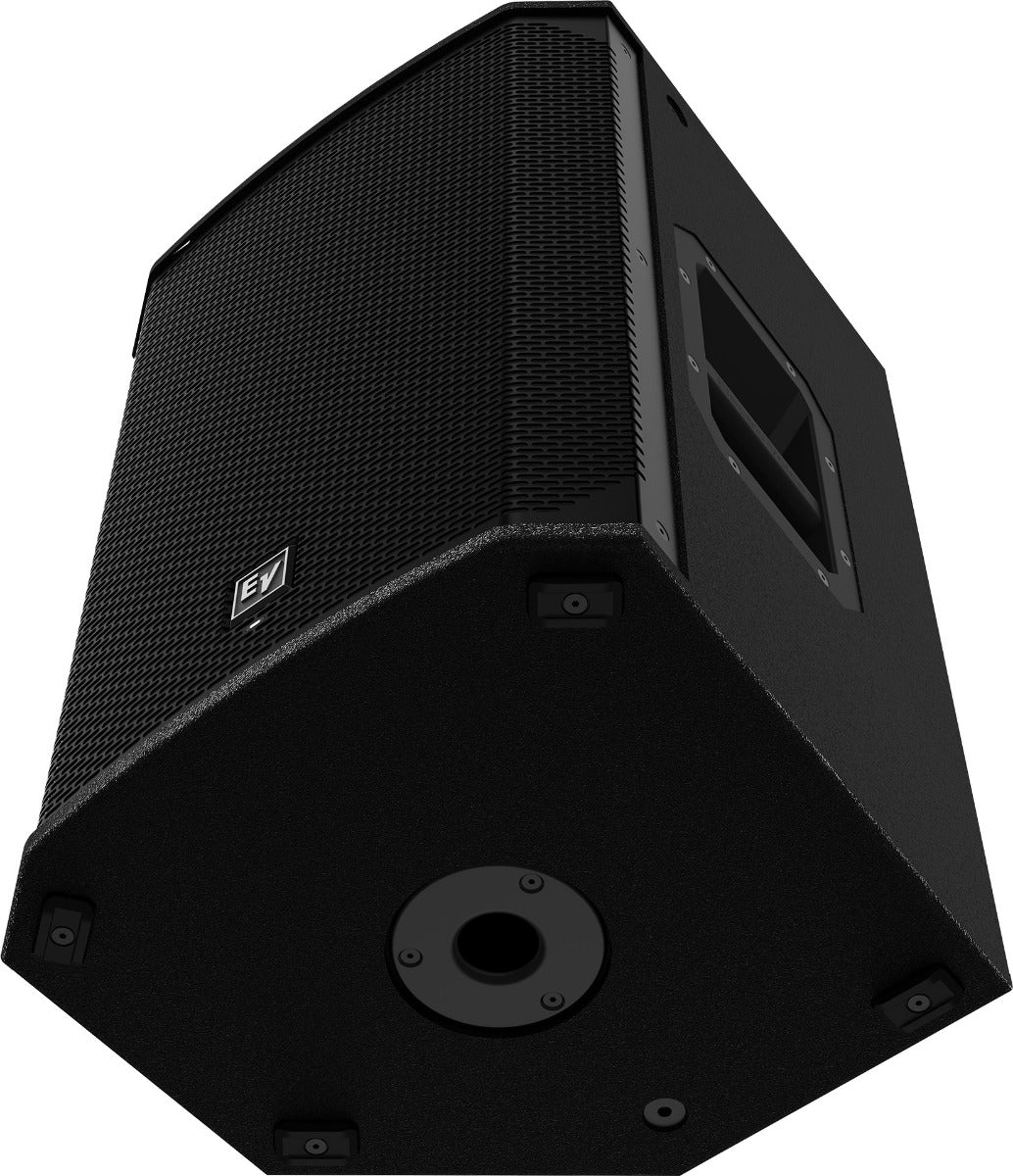

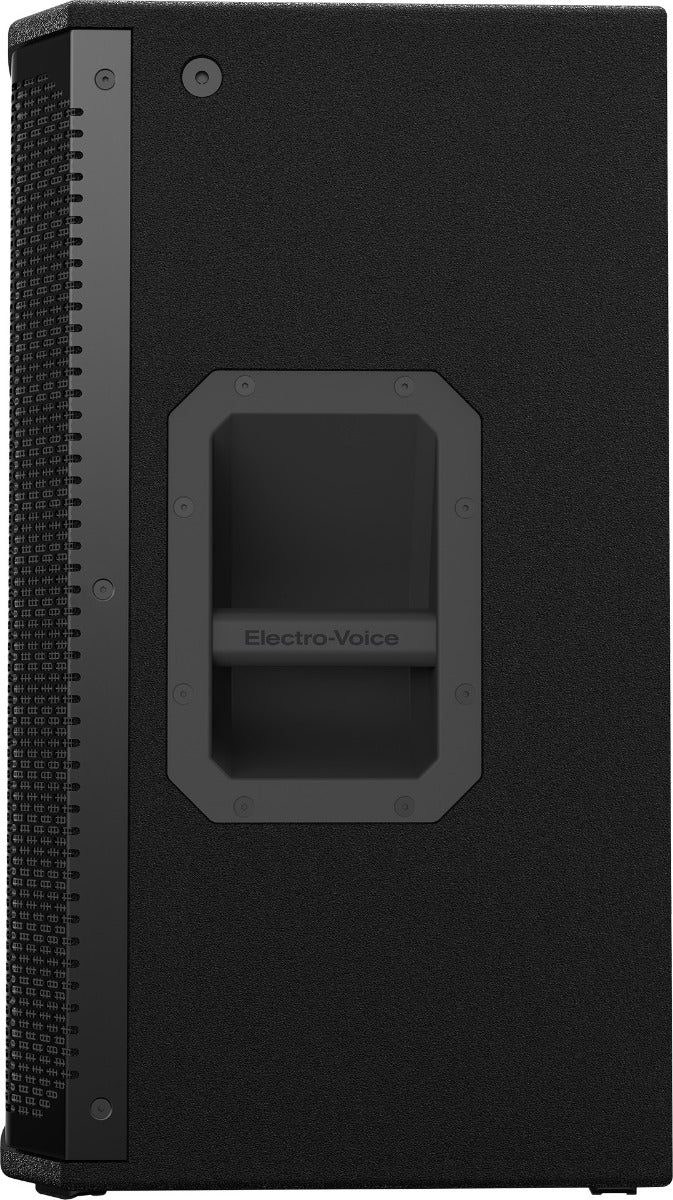

- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Specification
Specification
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95 dB |
| Connector Type | Dual NL4 |
| Coverage (Nominal -6 dB) H | 90 ° |
| Crossover Frequency | 1.6 k Hz |
| Enclosure Material | 15 mm, plywood with EVCoat |
| Frequency Response (-10 dB) | 55 Hz - 20 k Hz Full Space Measurement |
| Frequency Response (-3 dB) | 82 Hz - 18 k Hz Full Space Measurement |
| Grill | 18 AWG steel with powdercoat |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| LF Transducer | EVS-12M 300 mm (12 in) |
| Maximum SPL | 131 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating |
| Minimum Impedance | 7.5 Ω |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous / Peak) | 350 W/1400 W |
| Recommended High-Pass Frequency | 55 Hz |
| Shipping Weight | 21.4 kg (47.18 lbs) |

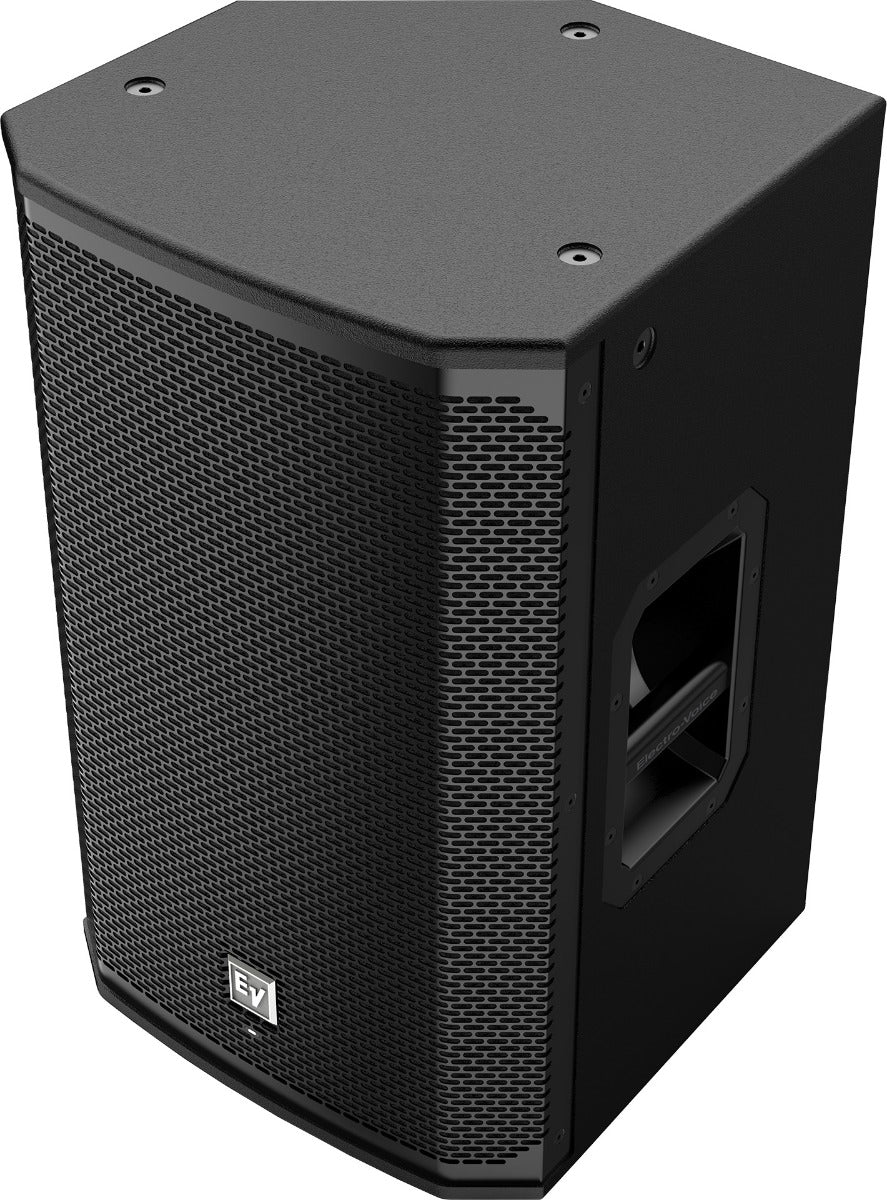

| Suspension | (8) M10 threaded mounting points |
| Height | 14RU 607 mm (23.9") |
| Width | 375 mm (14.76") |
| Depth | 356 mm (14.02") |
| Weight Net | 17.4 kg (38.36 lbs) |
