Electro-Voice

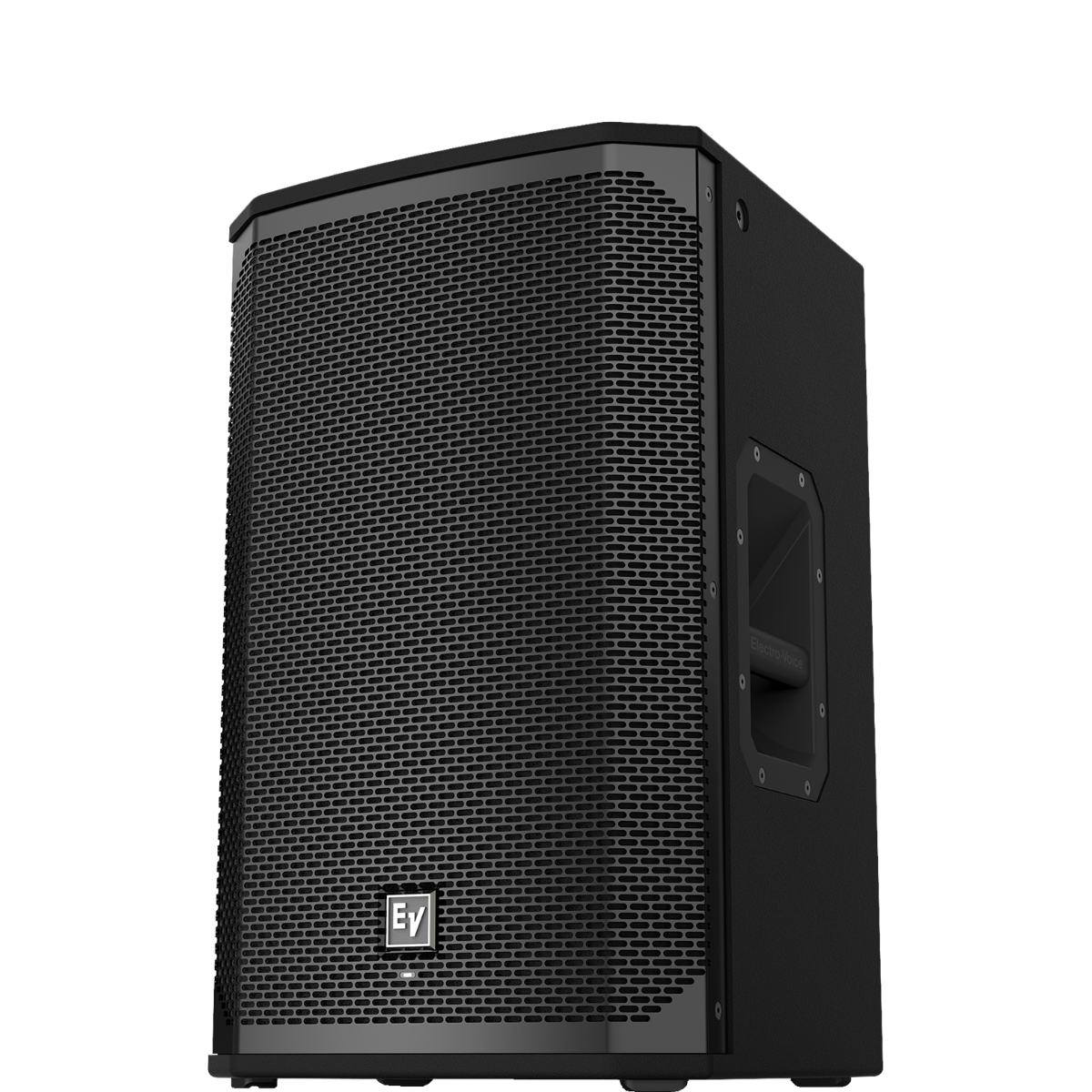

EV EKX-15P 15-INCH TWO-WAY POWERED LOUDSPEAKER

EV EKX-15P 15-INCH TWO-WAY POWERED LOUDSPEAKER

SKU: EKX15P

$1,749.00
$2,455.00 $1,749.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low Stock – Call for Availability

Description

EKX-15P

15-INCH TWO-WAY POWERED LOUDSPEAKER

  • QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
  • High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.

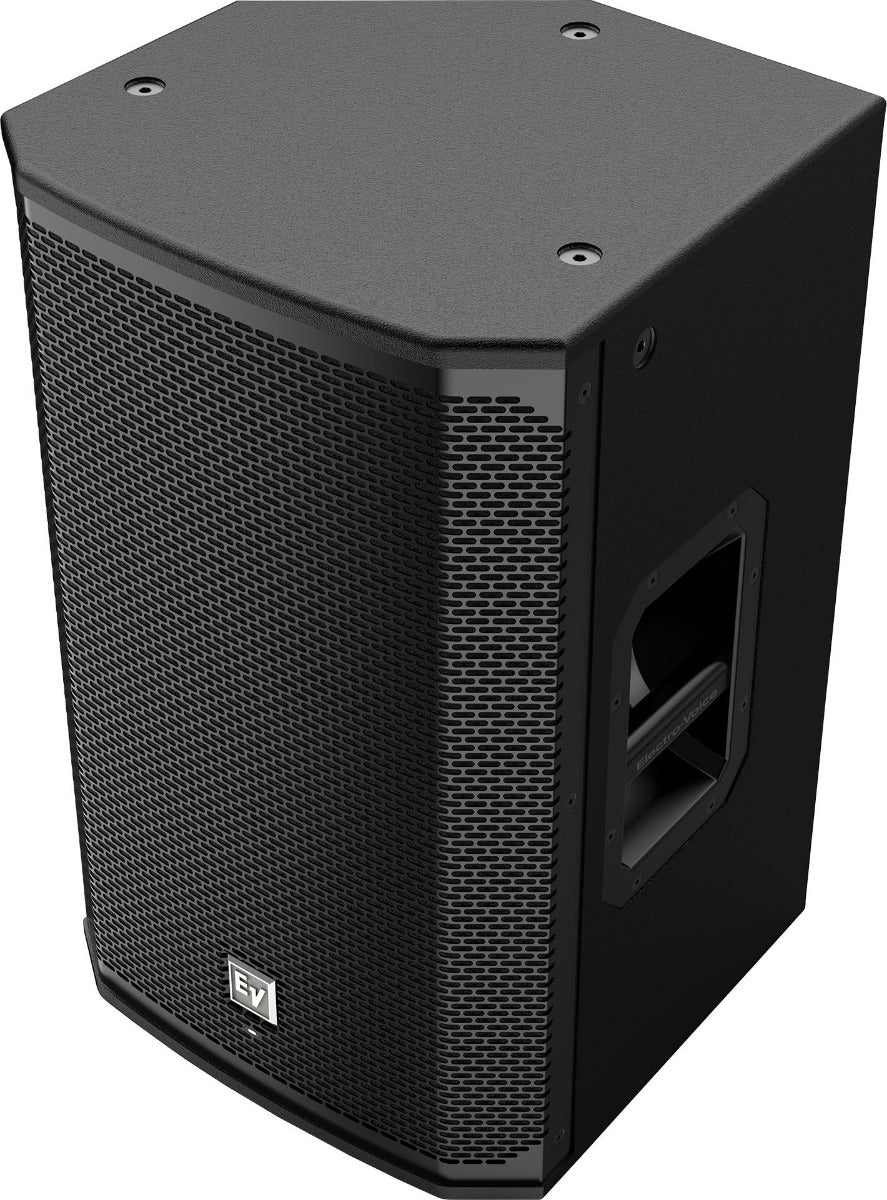

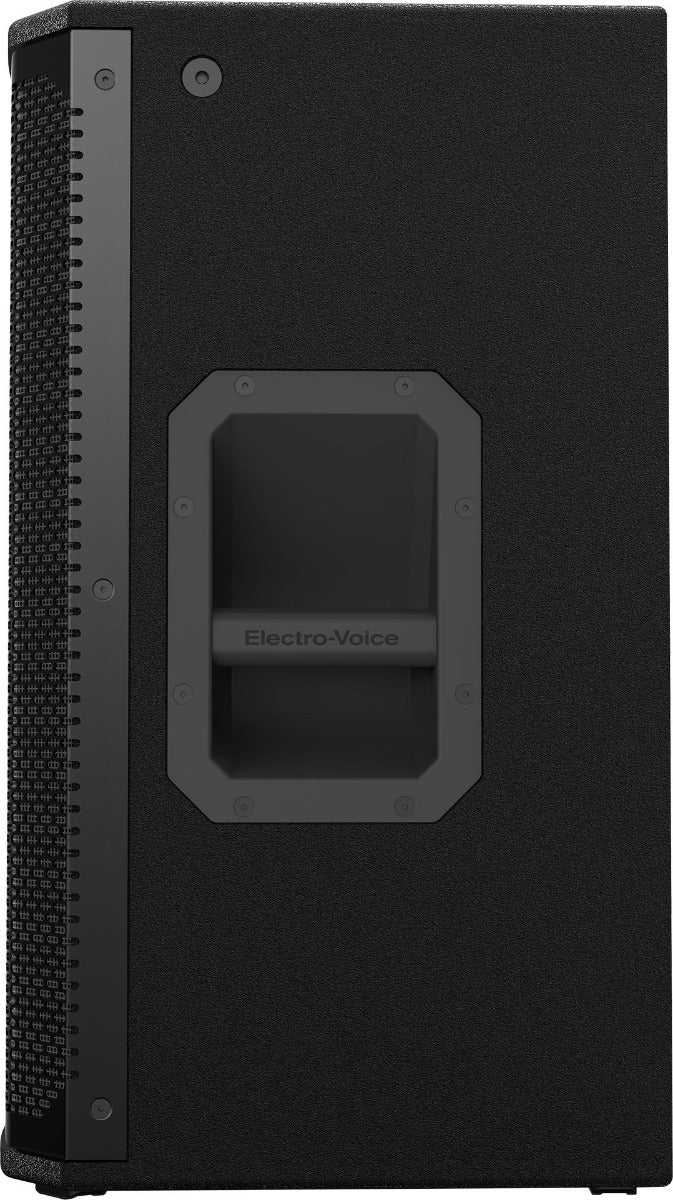

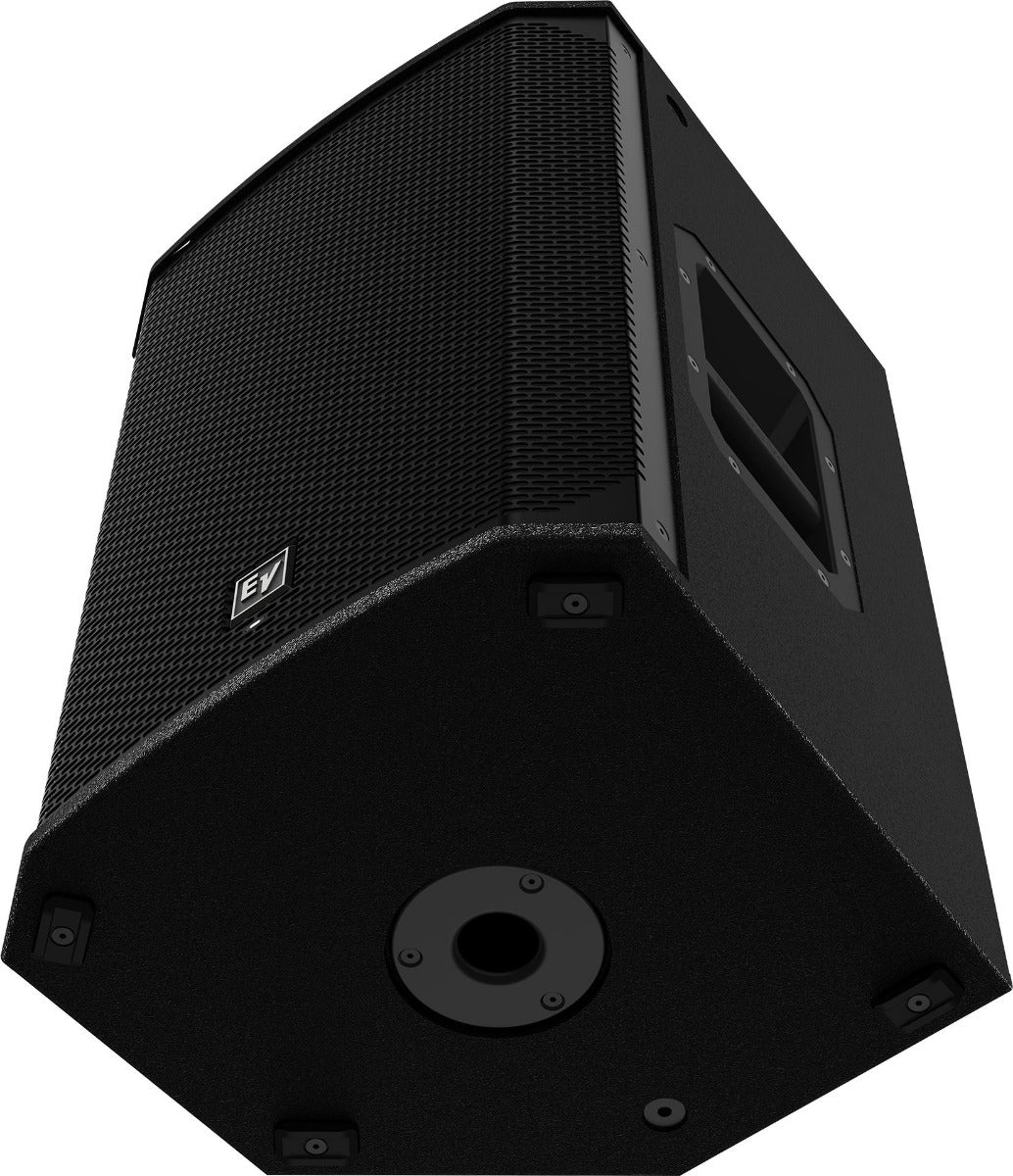

  • Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles..

Buy from our range of DJ Equipment and DJ Speakers online.

Specification

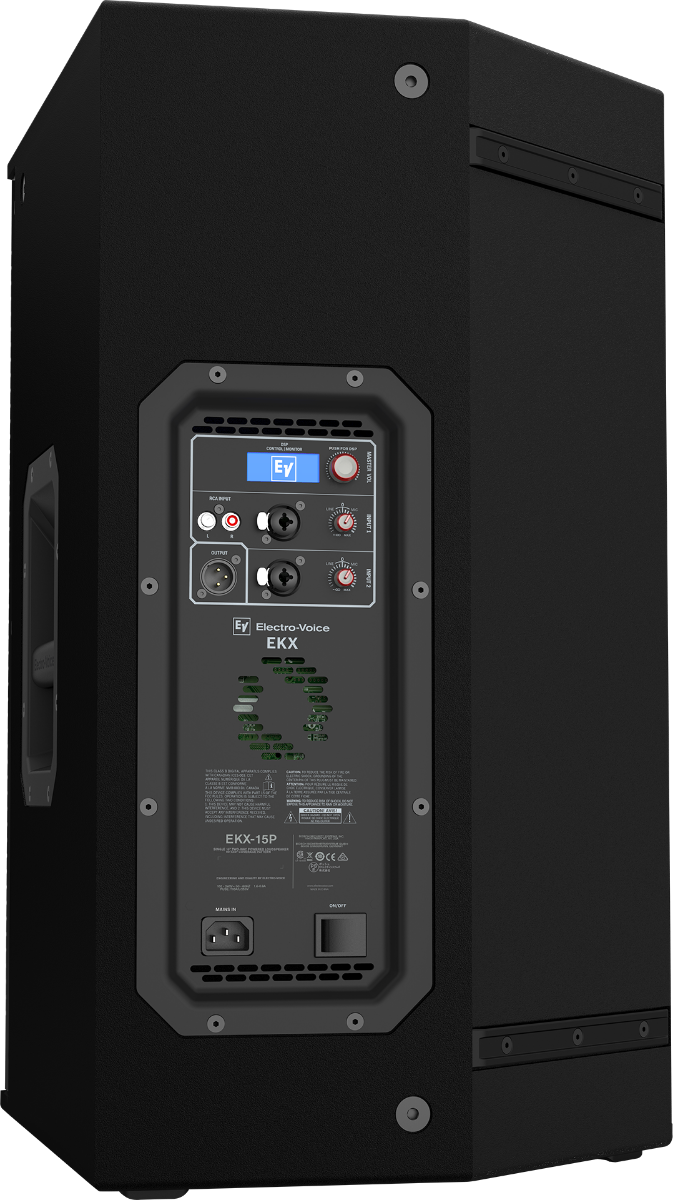

Connector Type (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °

SPECIFICATIONS
Crossover Frequency 1.7 k Hz
Depth 429 mm
Enclosure Material 15 mm, plywood with EVCoat
Family EKX
Frequency Response (-10 dB) 48 Hz - 20 kHz Hz
Frequency Response (-3 dB) 55 Hz - 18 kHz Hz
Grill 18 AWG steel with powdercoat
Height 685 mm
HF Transducer DH-1M 1-inch titanium compression driver
LF Transducer EVS-15M 381 mm (15 in)
Max. SPL/1m (calc) 134 dB
Maximum SPL 134 dB
Power Consumption 1.8 A
Power Rating 1500 W
Powered or Passive Powered
Shipping Weight 29.5 kg
Speaker Type Full-Range, two-way
Suspension (8) M10 threaded mounting points
Weight Net 24.4 kg
Width 432 mm
Woofer Size 15 mm
