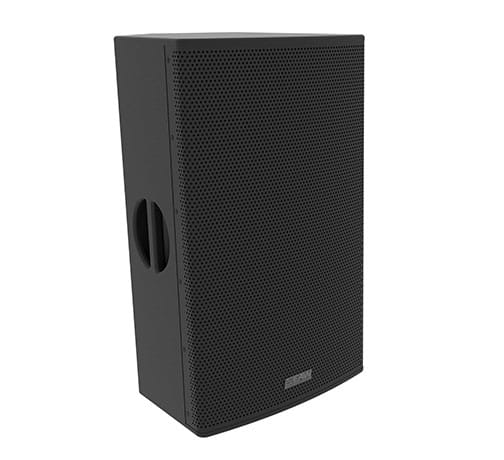

EAW RS123 2-WAY SELF-POWERED LOUDSPEAKER

EAW RS123 2-WAY SELF-POWERED LOUDSPEAKER

SKU: SP-RS123-EAW

$3,019.00
$3,019.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low Stock

Description

2-WAY SELF-POWERED LOUDSPEAKER

The RS Series delivers EAW signature performance in a portable and lightweight wooden enclosure. Each enclosure in the series is first designed around the latest breed of touring grade HF and LF transducers. The intelligent features of the series include EAW Focusing which provides unmatched musical clarity and tonal accuracy. Pattern control of the RS Series is further enhanced by the unique, constant directivity HF horn; a design theory first proven in our legendary MK Series, a series born from the audio performance needs of stadiums throughout the world.



Product Description


  • High quality transducers for best-in-class acoustic performance
  • EAW Focusing for unmatched clarity and accuracy
  • Rotatable MK inspired horn for EAW signature pattern control
  • Lightweight and durable wooden enclosure with M10 threaded suspension points

The lightweight and durable wooden enclosure has been meticulously designed to eliminate resonance and houses onboard bi-amplified electronics (1500W) featuring signature EAW DSP including Focusing and DynO. Our Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple RS Series enclosures within a venue or performance space.

Applications

  • Houses of Worship
  • Theatres, Auditoria and Performing Arts Centers
  • Live Music Clubs
  • Corporate AV Houses
  • Live Production/Regional Rental Houses
  • Dry Hire

Specification

RS123 - 2-Way Self-Powered Loudspeaker
Speaker Type
Type12in, 2-Way, Bi-Amp Self-Powered Speaker, Vented
Performance
Max SPL138dB
Operating Range47 Hz – 20 kHz
Nominal Beamwidth90° Horizontal × 60° Vertical, Constant Directivity, User-Rotatable
Nominal Phase±15° from ideal high-pass filter
Configuration
LF Transducer12in Cone, 2.5in Voice Coil
HF Transducer3in Voice Coil Neodymium Compression Driver, 1.4in Exit
Crossover800 Hz
Signal ProcessingDSP with EAW Focusing™ and DynO™
ModesMain / Monitor, Mic / Line
Electrical
Input TypeElectronically Balanced XLR / TRS
Loop TypeElectronically Balanced XLR
AmplifierClass D, 1500W Peak (LF / HF combined)
ConnectorNeutrik PowerCON™
AC Input100-120V or 200-240V, 50-60Hz
Current Draw
Idle50W
1/8th Power100W
1/3rd Power150W
Full Power200W
Physical
Material15mm Plywood
Dimensions (H × W × D)25.9 × 14.5 × 15in (658 × 368 × 381mm)
Net Weight41lb (19kg)
Shipping Weight52lb (24kg)
Ordering Info
115V Part No.2070209-90
230V Part No.2070209-95
Transport Cover2070539
