Dynacord

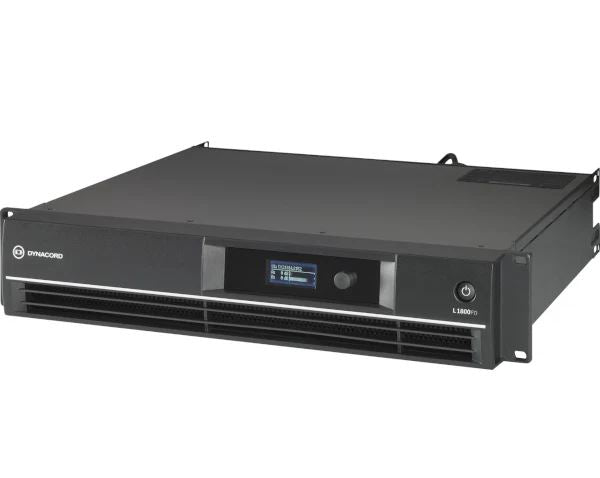

Dynacord L1800FD DSP 2 x 850 W Power Amplifier with DSP (Copy)

SKU: SKU:

$1,650.00

~~$2,245.00~~ $1,650.00

Sale Sold out

GST included.

Low Stock – Call for Availability

Description

DSP 2 x 850 w power amplifier for live performance applications

Professional DSP amplifier for live and mobile application
Fully integrated professional speaker processing with FIR drive technology
Market-leading acoustic performance and rock solid reliability
Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

Channels: 2

DSP: Yes

Watts per Channel at 4Ω: 850 W

Watts per Channel at 8Ω: 450 W

Specification

SPECIFICATIONS

Maximum RMS Voltage Swing THD = 1%, 1 kHz	55.3 V
Voltage Gain Ref.1 kHz	32.0 dB
THD at 450 W/4 Ω MBW = 80 kHz, 1kHz	< 0.05%
IMD-SMPTE, 60 Hz, 7 kHz	< 0.1%
DIM30, 3.15 kHz, 15 kHz	< 0.05%
Maximum Input Level	+21 dBu
Crosstalk ref. 1 kHz, at 100W/4 Ω	< -80 dB
Frequency Response, ref. 1 kHz	10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced	20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω	>104 Db
Output Noise, A-weighted	< -68 dBu
Output Stage Topology	Class AB
Power Requirements	240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption ⅛ MaximumOutput Power @ 4 Ω	550 W
Mains Fuse	240 V/230 V: T10AH; 120 V/100 V: T20AH
Protection	Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
Cooling	Front-to-rear, 3-stage-fans
Ambient Temperature Limits	+5°C to +40°C (40°F to +105°F)
Safety Class	I
Color	Black
Dimensions (W x H x D), mm	483 x 88 x 462.4
Weight	12.9 kg (28.4 lb)
Signal Processing	FIR filters, audio limiters, output and array delay, 10-band user PEQ, 5-band array PEQ** per channel, load impedance
Remote Control	SONICUE sound system software **
Accessories	RMK15 (rear rack mount kit)
