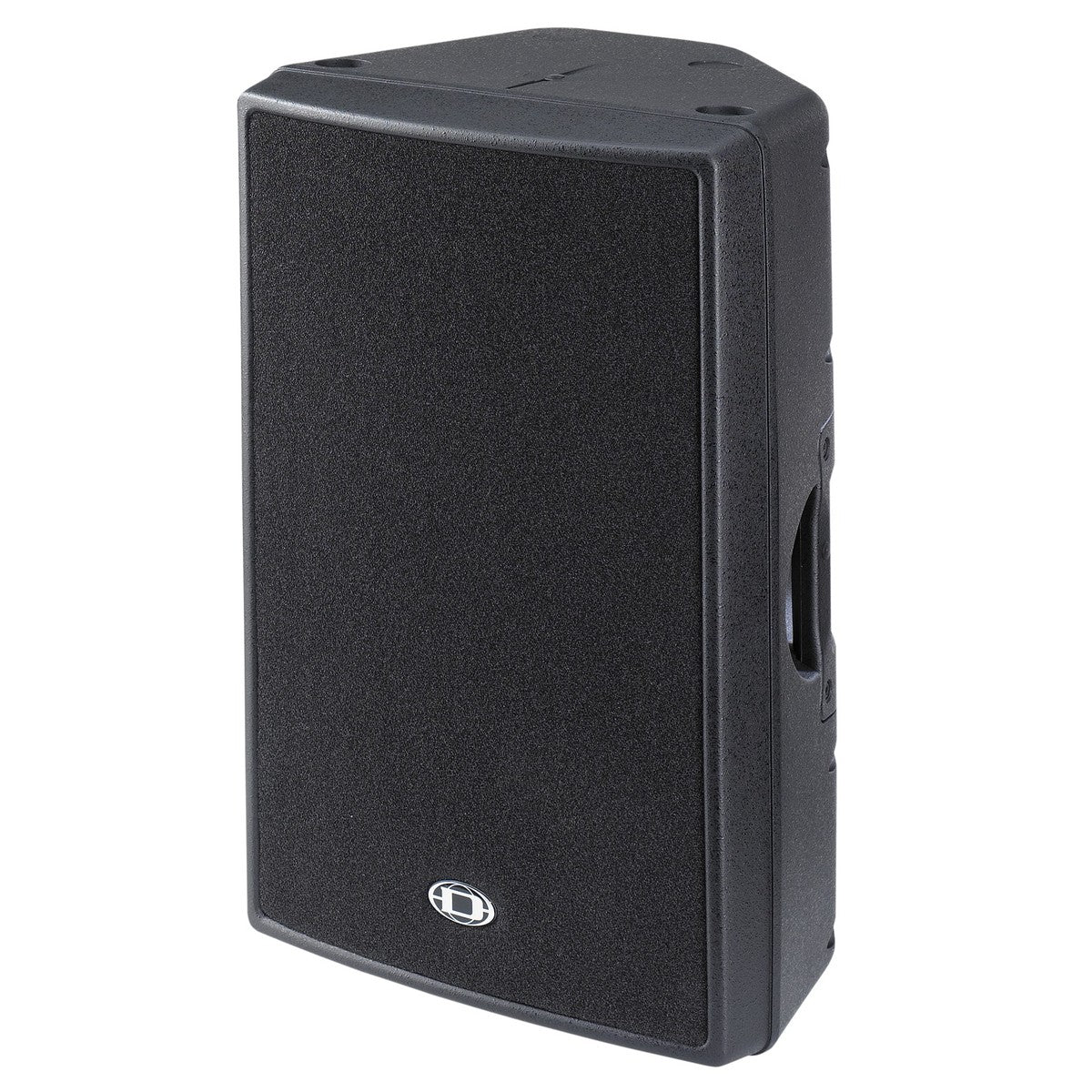

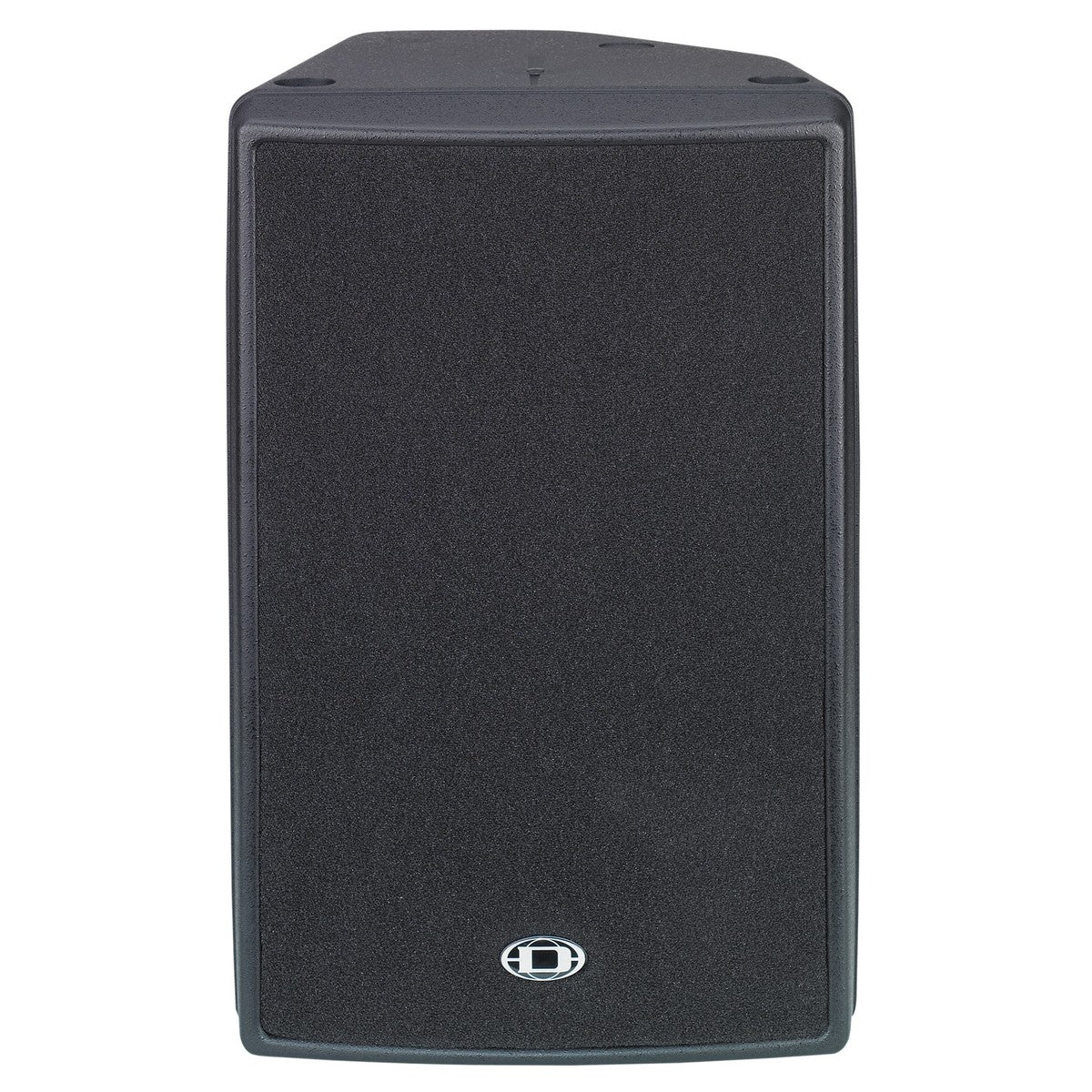

DYNACORD D15-3 3-WAY 15" PASSIVE SPEAKER 500W RMS

With the newly designed D15-3, DYNACORD fulfi lls a longtime customer demand for a light-weight, extremely robust high-performance professional 15“ 3-way plastic cabinet for use in professional, portable and fixed install sound reinforcement applications.

With a variety of suspension accessories and conservative cosmetics, the D15-3 is also ideally suited to be used in demanding fi xed installations. The cabinet is manufactured from Polypropylene and therefore is extremely resistant against abuse on the road. For low frequencies a DYNACORD DND 15400 Neodymium cone transducer is used.

The midrange is projected from the ultra-low distortion DYNACORD DND 6120 Neodymium cone transducer with a conical radiation pattern of 120°. The DND 6120 guarantees excellent intelligibility without any necessity of precise aiming. The Electro-Voice DH 3 driver is used for the projection of the high frequencies. The Constant-Direcctivity HF horn has been integrated into the baffl e by CAD methods. The nominal coverage angle of the cabinet is 90°*50°, horizontal*vertical, respectively. Power handling of the cabinet is 500W (continuous), 1000W (program) and 2000W peak. The maximum sound pressure level is 130dB, the frequency range of the D15-3 is 50Hz to 18kHz. The D15-3 is ideally suited for applications as full-range cabinet or as Mid-Hi cabinet in in high-performance small-format active and passive satellite systems.
