DYNACORD AXM12A COAXIAL POWERED MONITOR / SPEAKER

DYNACORD AXM12A COAXIAL POWERED MONITOR / SPEAKER

SKU: AXM12A

$1,439.00
$1,827.00 $1,439.00
Sale Sold out
Taxes included.

Description

No matter used as a small full range main PA, delay speaker, side or front fill and other similar applications - there are a number of reasons to fall in love with the AXM 12A.

The compact footprint demonstrates its versatility and how it can benefit the user where space on stage is at a premium. Acoustically the AXM 12A offers the ideal combination of a high quality 12” / 1.75” coaxial transducer with onboard signal processing and 2-channel amplification.

Outstanding sound performance and ultimate ease of use.

Artist Reflection
- Due to the 12” coax woofer and the intelligent design of the housing the audio performance will enable an artist to control every nuance of their performance

Flexibility

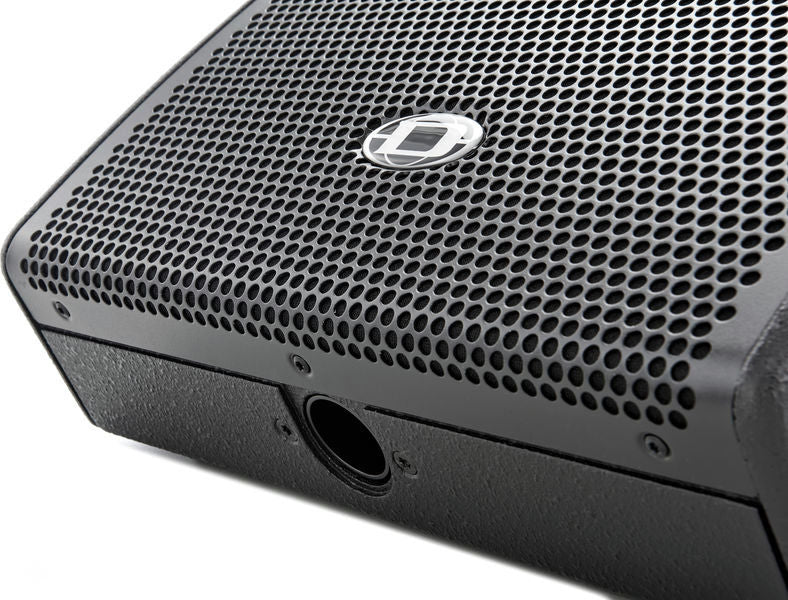

- Horizontal mounting on a speaker pole

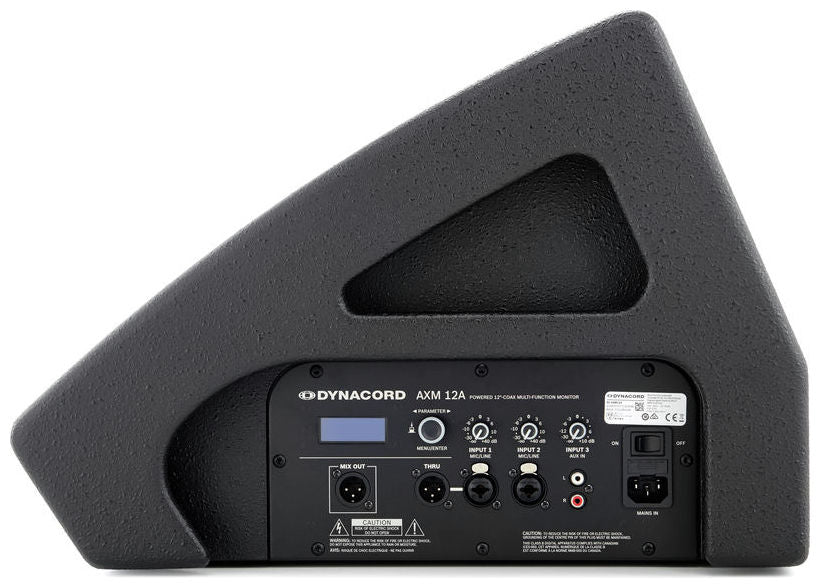

- 2 x MIC/LINE inputs (XLR), 1 x AUX input (RCA)
- 1 x MIX OUT, 1 x THRU output

Portability
- Small footprint fits perfectly on every stage and can be placed as close as possible to the artist
- Lightweight, wooden housing < 15 Kg allows easy setup and transportation

DSP Functions
- Integrated digital signal processing for IIR and FIR settings
- Digital Equalizer: Hi + Lo = shelving, parametric mids
- Adjustable Lo-Cut Filter
- Tunable feedback notch filter
- Delay function (for distances up to 100m, 0.1m increment)
- 5 presets for monitor and PA applications
- 5 user memories
- Backlit LC-Display with rotary control

Description
Powered monitor speaker for multifunctional applications
Maximum amplifier output capability, IHF-A   -520 W
Low amplifier power  -360 W IHF-A, 260 W RMS
Mid-high amplifier power   -160 W IHF-A, 75 W RMS
Maximum SPL (1 meter)   -128 dB (calc.)
Frequency range (-10 dB)   -50–20000 Hz
Coverage angle nominal   -90° horizontal x 90° vertical
Crossover frequency   -1.6 kHz
Transducer   -DCX 12300, 12-inch/1.75-inch 2-way coaxial transducer with lightweight neodymium compression driver

Audio sockets
Inputs  -2 x Mono XLR/Jack socket (MIC/LINE), switchable phantom power (+15 V) 1 x Stereo RCA (AUX IN)
Outputs   -1 x XLR THRU (parallel to MIC/LINE 1) 1 x XLR MIX OUT

Equalization

Low shelving filter   -±10 dB / 60 Hz
Mid peak filte   -±10 dB / 70–12000 Hz
High shelving filter   -±10 dB / 12 kHz

Filter

Low-cut filter   -f = 50–200 Hz, 12 dB/oct.
Feedback filter   -70–10000 Hz, Notch, -10 dB
Master delay   -0–100 m
Settings   -5 factory presets, 5 user settings
Display   -Blue backlit LC-display, dimmable
AC power input   -100–240 V AC, 50–60 Hz
AC power consumption   -0.8–0.5 A
Cooling   -Passive

Safety class

Operating temperature  -0 °C to 40 °C
Product dimensions (Width x Height x Depth)   -414 x 339 x 484 mm
Net weight   -14.9 kg
Shipping weight   -18.4 kg
Enclosure material   -15 mm birch plywood
Enclosure finish   -Heavy duty structured lacquer
Color   -Black (RAL 9005, jet black)
Grille   -Powder coated steel, acoustic foam
Pole mount adaptor   -1

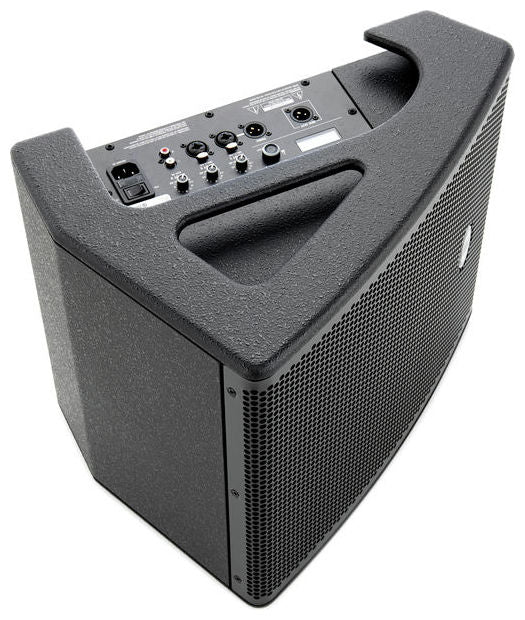

Handles   -1 x bar carry handle, 2 x recessed grip

Shipping and Return

Specification

Description
Powered monitor speaker for multifunctional applications
Maximum amplifier output capability, IHF-A
520 W
Low amplifier power
360 W IHF-A, 260 W RMS
Mid-high amplifier power
160 W IHF-A, 75 W RMS
Maximum SPL (1 meter)
128 dB (calc.)
Frequency range (-10 dB)
50–20000 Hz
Coverage angle nominal
90° horizontal x 90° vertical
Crossover frequency
1.6 kHz
Transducer
DCX 12300, 12-inch/1.75-inch 2-way coaxial transducer with lightweight neodymium compression driver
Audio sockets
-
Inputs
2 x Mono XLR/Jack socket (MIC/LINE), switchable phantom power (+15 V) 1 x Stereo RCA (AUX IN)
Outputs
1 x XLR THRU (parallel to MIC/LINE 1) 1 x XLR MIX OUT
Equalization
-
Low shelving filter
±10 dB / 60 Hz
Mid peak filter
±10 dB / 70–12000 Hz
High shelving filter
±10 dB / 12 kHz
Filter
-
Low-cut filter
f = 50–200 Hz, 12 dB/oct.
Feedback filter
70–10000 Hz, Notch, -10 dB
Master delay
0–100 m
Settings
5 factory presets, 5 user settings
Display
Blue backlit LC-display, dimmable
AC power input
100–240 V AC, 50–60 Hz
AC power consumption
0.8–0.5 A
Cooling
Passive
Safety class
I
Operating temperature
0 °C to 40 °C
Product dimensions (Width x Height x Depth)
414 x 339 x 484 mm
Net weight
14.9 kg
Shipping weight
18.4 kg
Enclosure material
15 mm birch plywood
Enclosure finish
Heavy duty structured lacquer
Color
Black (RAL 9005, jet black)
Grille
Powder coated steel, acoustic foam
Pole mount adaptor
1
Handles
1 x bar carry handle, 2 x recessed grip
