DiGiCo S21 Live D-Rack Pack SPECIAL

The DiGiCo S21 Live D-Rack Pack combines the S21 digital mixing console with remote D-Rack I/O and the DMI-MADI-C interface.

The S21 features dual P-CAP multi-touch screens, 48 Flexi Input Channels, 16 Flexi Aux / Sub-Group Busses, an LR Master Buss, a 10 x 8 full-processing Matrix and 96kHz operation.

The S21 local I/O includes 24 mic/line inputs, 12 line outputs, AES/EBU I/O, Word Clock I/O, networking and two DMI card slots. The console connects with the DiGiCo remote I/O D-Rack providing an additional 32 inputs and up to 16 outputs.

The included DMI-MADI-C provides RJ45 Standard MADI for connection to DiGiCo devices including the D-Rack, supporting 64 channels in and out at 48kHz or 96kHz.

Pack contents: S21 worksurface, DMI-MADI-C interface, DMI blank, D-Rack 32/8 remote I/O rack (X-D-RACK-2), 75m CAT5e cable and dust cover.

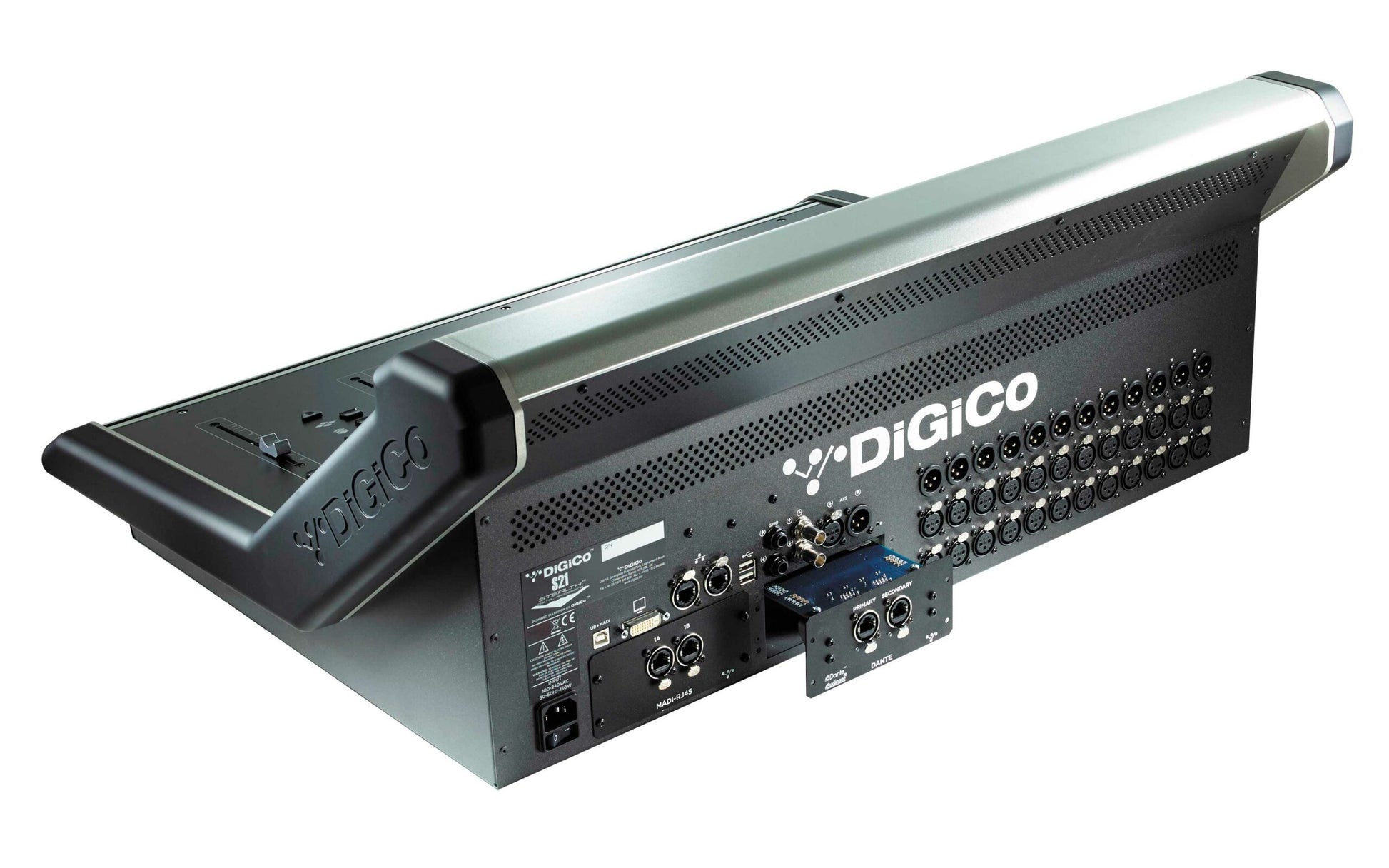

S21 Mixing Console

• 48 x Input flex-channels Mono/Stereo (equivalent of 96 DSP channels)
• 46 busses: 16 x flexi-busses Mono/Stereo (equivalent of 32 DSP busses), Stereo Master (2), Solo busses (2 stereo, 4 total), and 10 x 8 Matrix (8)
• 10 x Control Groups
• 1 x Compressor per channel and buss
• 1 x Gate per channel and buss (switchable to ducker, or compressor with side chain access)
• 16 x assignable 32 band Graphic EQs
• 8 x FX engines (reverbs, delays, w/modulation and enhancer)
• 21 x assignable DiGiTuBes
• 21 x assignable Multiband Compressors
• 21 x assignable Dynamic EQ’s
• User definable Macros
• An extremely high power headphone amplifier with 1/4 inch and mini jack socket
• 96kHz as standard
• 24 mic/line inputs
• 12 analogue outs
• 2 AES/EBU I/O (mono)
• Word Clock I/O
• 1 GPI and 1 GPO
• DVI out (for an external monitor)
• 2 DMI Card slots (up to 64 I/O per slot)
• 2 Ethernet connections for Networking
• 2 x 24 segment master/solo meters
• Touch sensitive rotaries with integrated switch & HTL
• 2 x multi-touch screens
• 21 x touch sensitive moving faders
• 4 x layers of banks of 10 faders
• Customisable bank and channel layout
• Snapshots
• Integrated USB2 Audio I/O interface for recording and playback of up to 48 channels

Audio Specification

• Sample Rate 48kHz, 96kHz
• Processing Delay 2ms Typical @ 48k (48 Stereo Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @ 96kHz
• Internal Processing Up to 40-bit, Floating Point
• A>D & D>A 24-bit Converter Bit Depth
• Frequency Response +/- 0.6dB (20Hz – 20kHz)
• THD <0.05% @ Unity Gain, 10dB Input @ 1kHz
• Channel Separation Better Than 90dB (40Hz – 15kHz)
• Residual Output <90dBu Typical
• Microphone Input Better Than -126dB Equivalent Noise
• Maximum Output Level +22dBu
• Maximum Input Level +22dBu

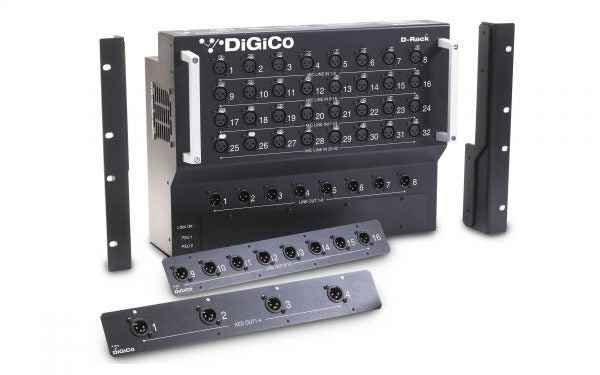

D-Rack

• 32 inputs / 8 outputs supplied
• Expandable to 32 inputs / 16 outputs

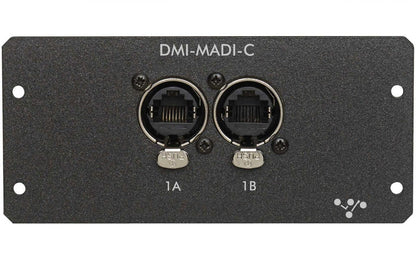

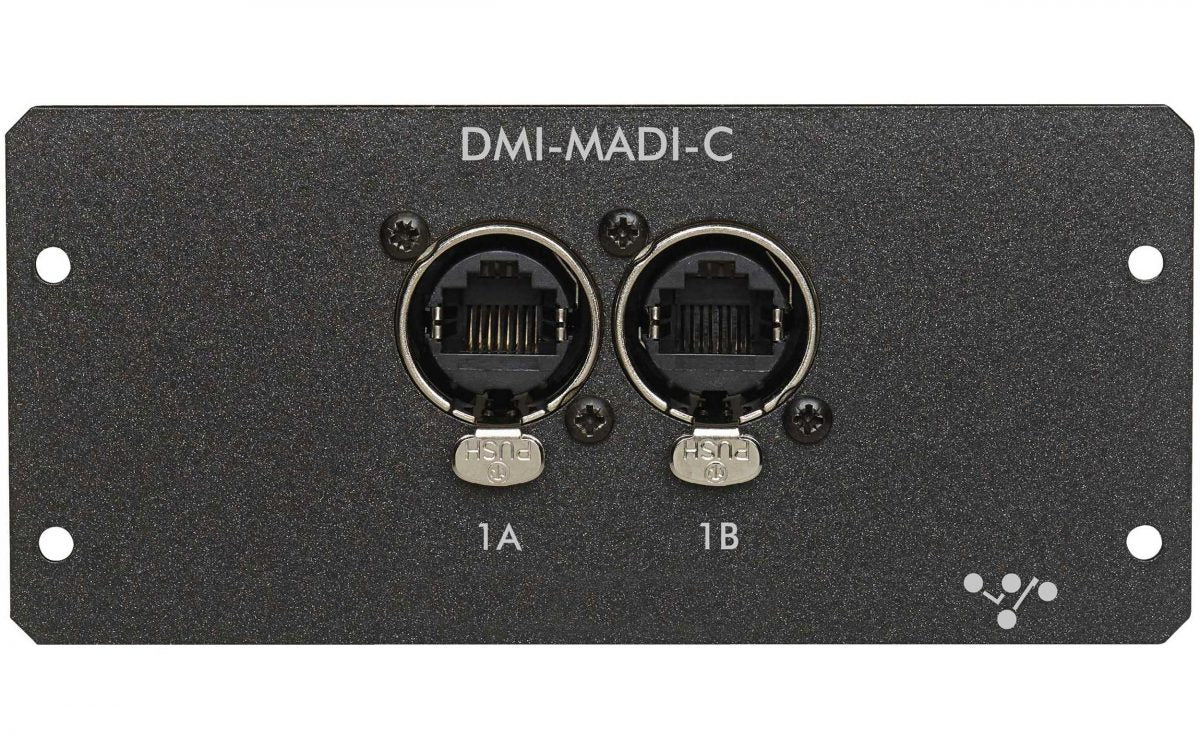

DMI-MADI-C

• RJ45 connection
• 64 channels in and out at 48kHz and 96kHz
• Only for use with DiGiCo audio over Cat5 devices
• Internal switches to determine whether connected to a console or a rack
• Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4

Pack Contents

• X-S21-WS S21 worksurface
• DMI-MADI-C interface
• DMI blank
• X-D-RACK-2 D-Rack, 32/8 I/O
• 75m CAT5e cable
• Dust cover
